LUXUL AMS-1208P Av Series 12-Pt/8 Poe+ Gbe Mngd Switch

LUXUL AMS-1208P Av Series 12-Pt/8 Poe+ Gbe Mngd Switch

SoundPro Item: 148044 | Part Number: AMS-1208P

$615.00
$615.00 $615.00
Your Price Sold out
MSRP: $615.00 | MAP: $615.00

Usually ships in 5-7 business days

  • PoE Self-Healing with auto-recovery and power scheduling
  • 10, Gigabit RJ45 Ports
  • 2, Gigabit SFP ports
  • 8 Ports Support 802.3af/at PoE+ with 130 Watt Power Budget
  • 24Gbps Switching Capacity
  • Layer 3 Static Routing
  • 802.1Q VLAN (with Trunking) and QoS Support
  • Plug-and-Play Installation with Intuitive Management
  • Simple Power Management of PoE-Enabled Devices
  • User Selectable Green or Blue Front facing LEDs
  • Fanless for Silent Operations
  • The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)
Log in or register for YOUR best price

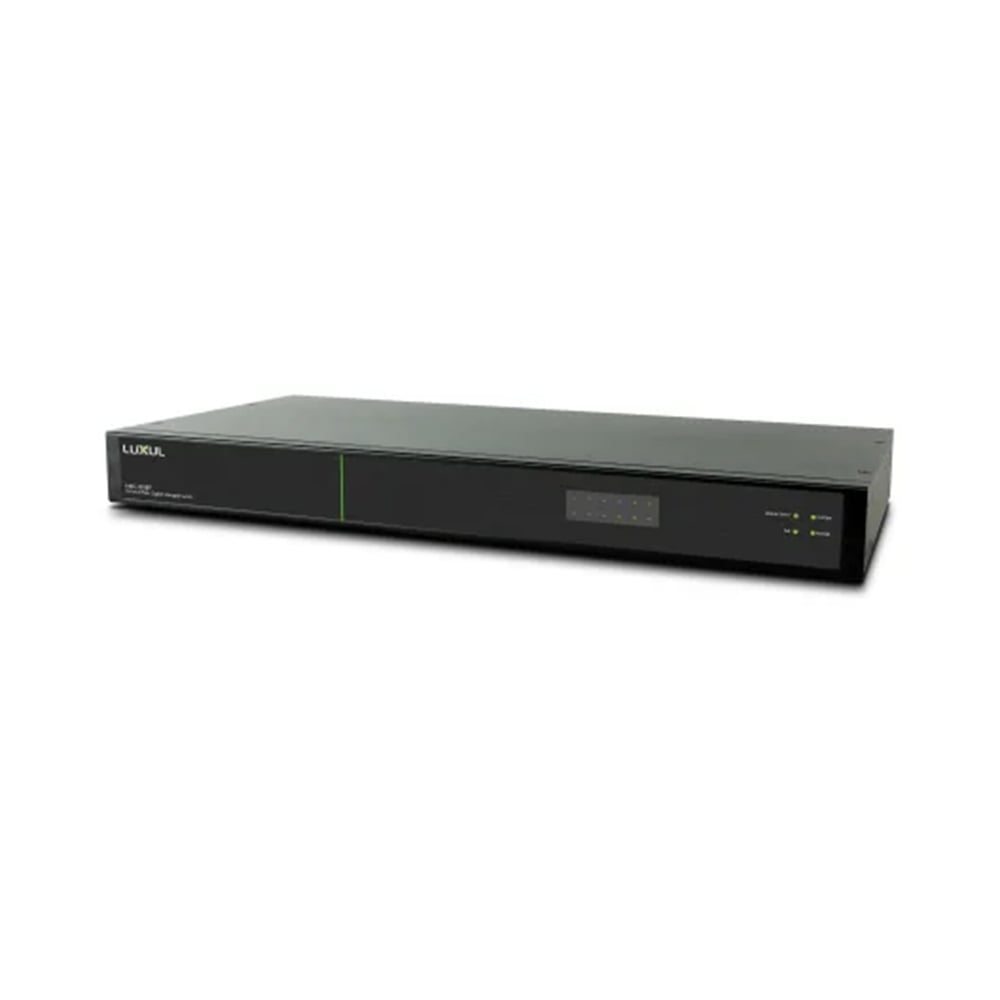

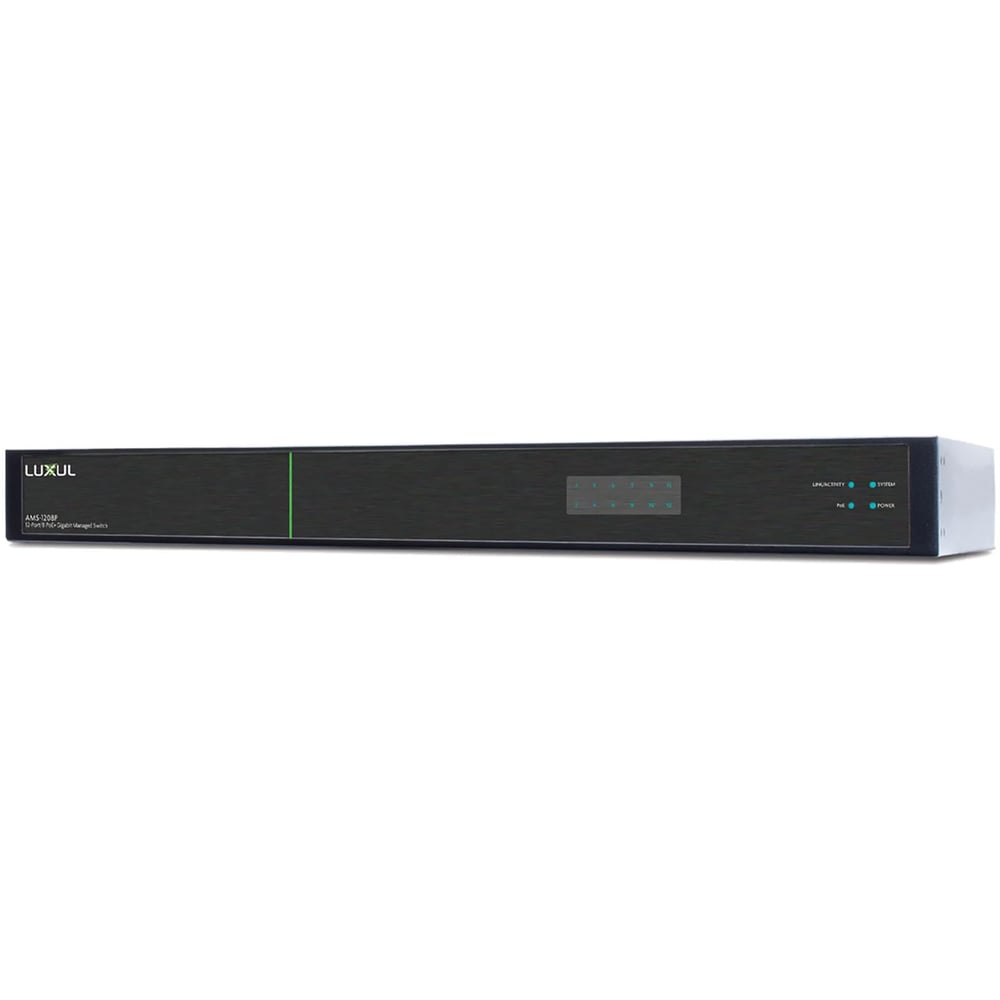

The Luxul AV-Series 12-Port/8 PoE+ Gigabit Managed Switch (AMS-1208P) features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The switch includes 8 PoE+ ports, with a total power budget of 130 Watts. It also features 2 Gigabit RJ-45 and 2 Gigabit SFP ports for easy network expansion. The AMS-1208P helps your network with support for Layer 3 static routing between VLANs while also featuring simple-to-use management, and VLAN and security capabilities to provide benefit to your home or office network.

View full details

Specifications

'General Information
Manufacturer
Legrand Group
Manufacturer Part Number
AMS-1208P
Brand Name
Luxul
Product Series
AV
Product Model
AMS-1208P
Product Name
12-Port/8 PoE+ Gigabit Managed Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
12
Uplink Port
Yes
Modular
Yes
Network (RJ-45)
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+
2 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Optical Fiber
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
1000Base-X
I/O Expansions
Number of Total Expansion Slots
2
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
2
Network & Communication
Layer Supported
3
Networking Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3af
IEEE 802.1D
IEEE 802.3x
IEEE 802.1Q
IEEE 802.1p
Management & Protocols
Manageable
Yes
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
130 W
Input Voltage
120 V AC
230 V AC
Frequency
50 Hz
60 Hz
Power Source
Power Supply
Power Consumption
168 W
Physical Characteristics
Form Factor
Rack-mountable
Desktop
Length
17.3"
Miscellaneous
Package Contents
12-Port/8 PoE+ Gigabit Managed Switch Power Cord Rack Mount Kit Quick Install Guide
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
