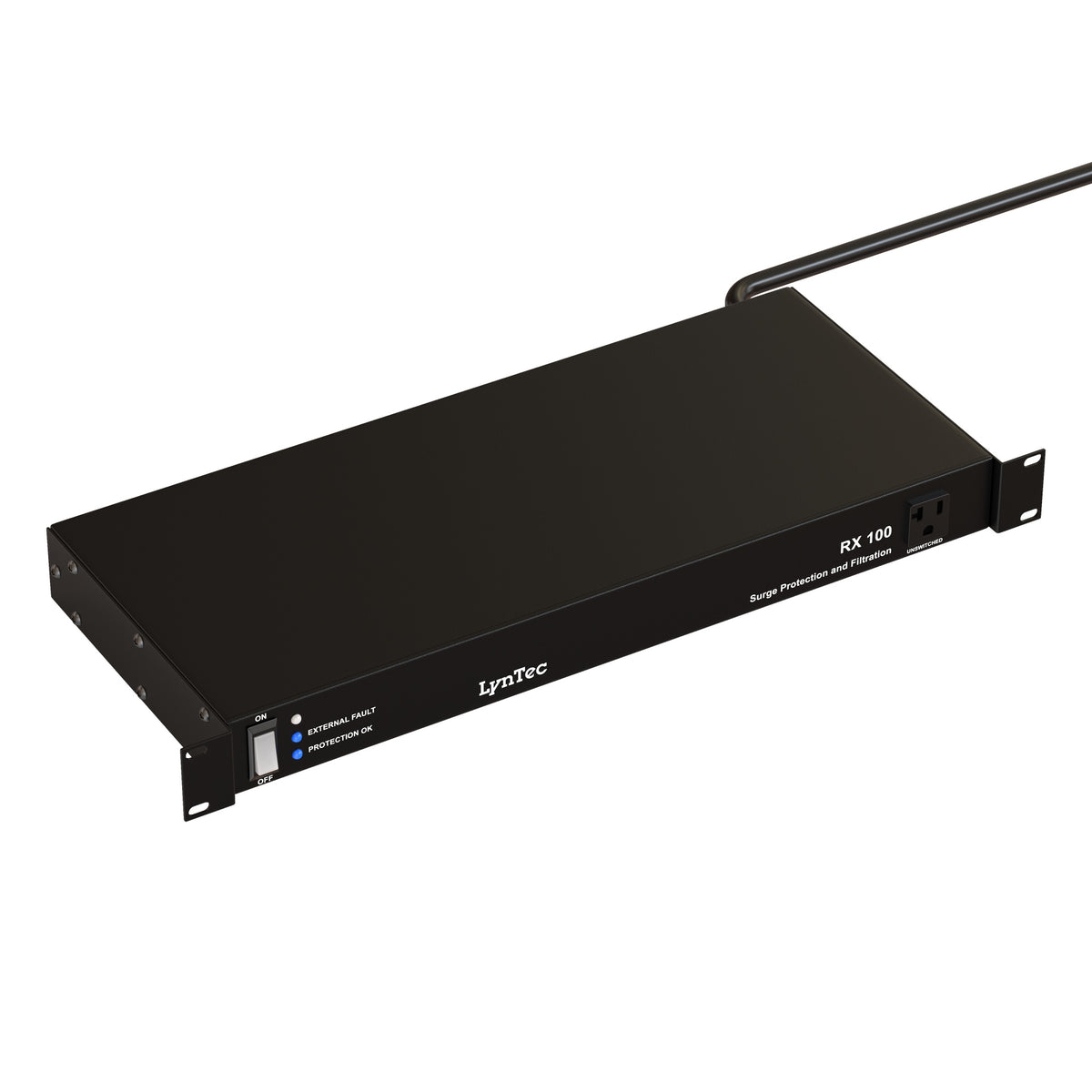

• RX10020A Rx Series 1U power conditioner angled hero view showing ON/OFF rocker, External Fault and Protection OK LEDs, Lyntec

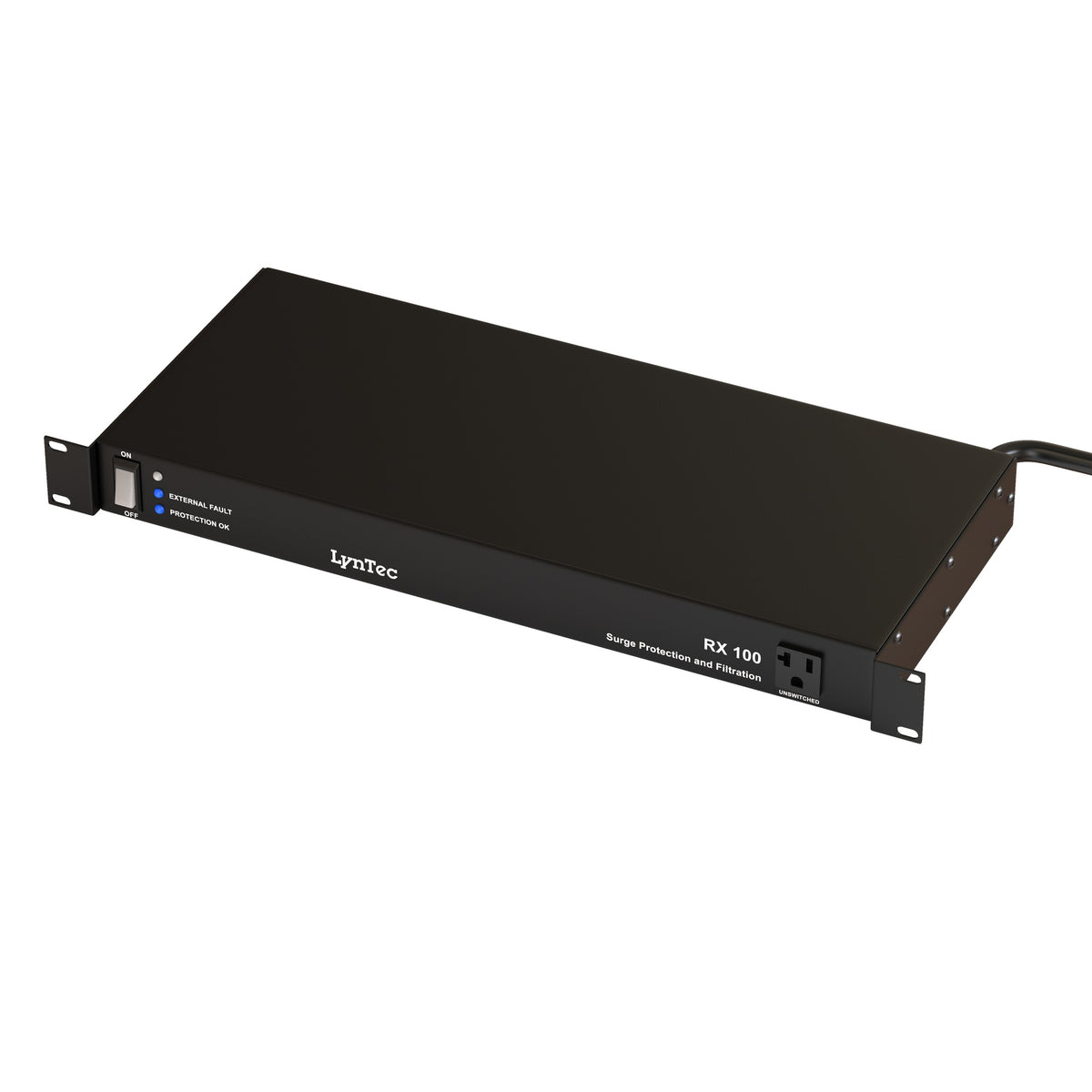

  • RX10020A 1U rack power conditioner front three-quarter view with rack ears and unswitched front outlet, Lyntec

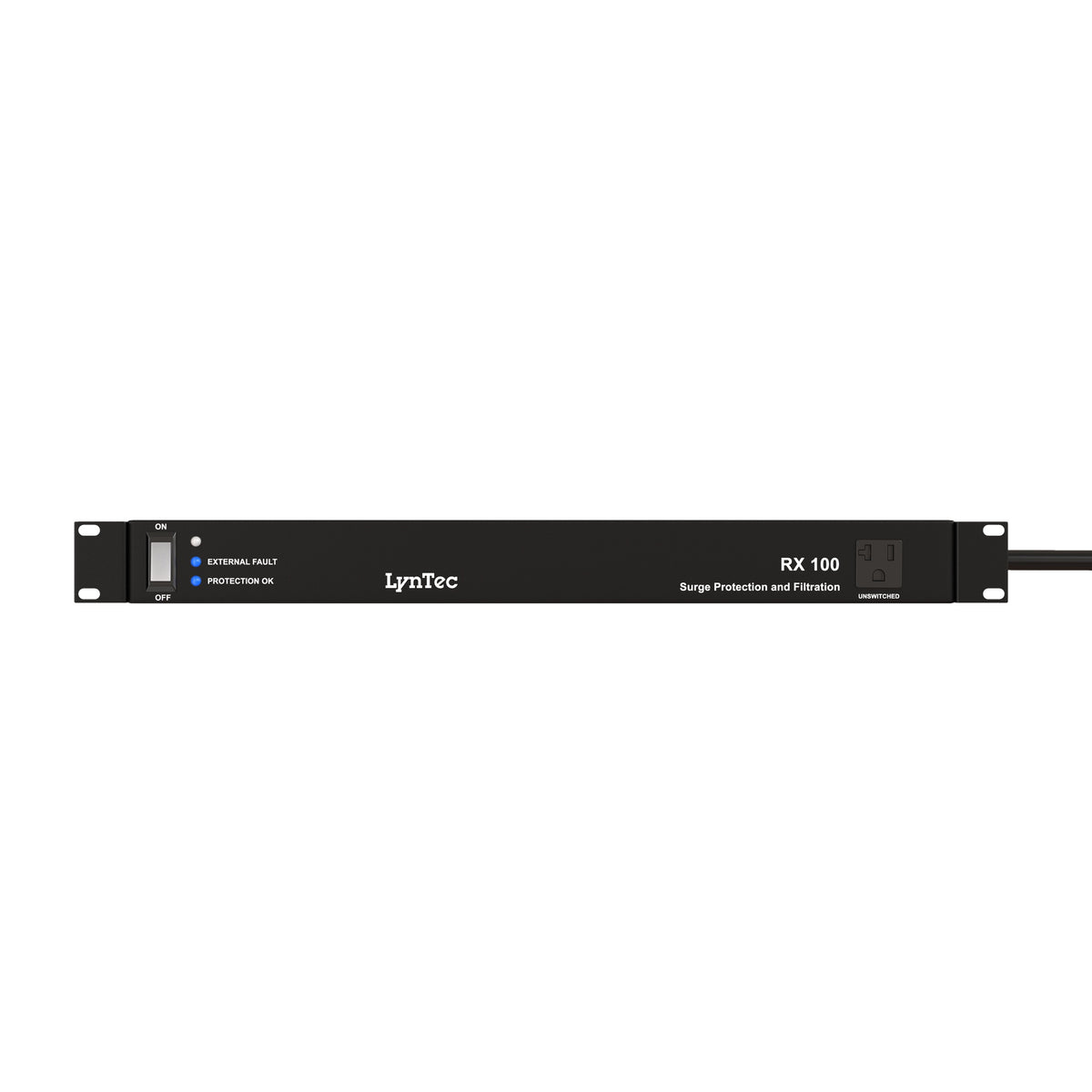

  • RX10020A straight-on front panel view with Surge Protection and Filtration labeling and status LEDs, Lyntec
  • RX10020A elevated front view showing 1U chassis top and attached power cord exiting the rear, Lyntec

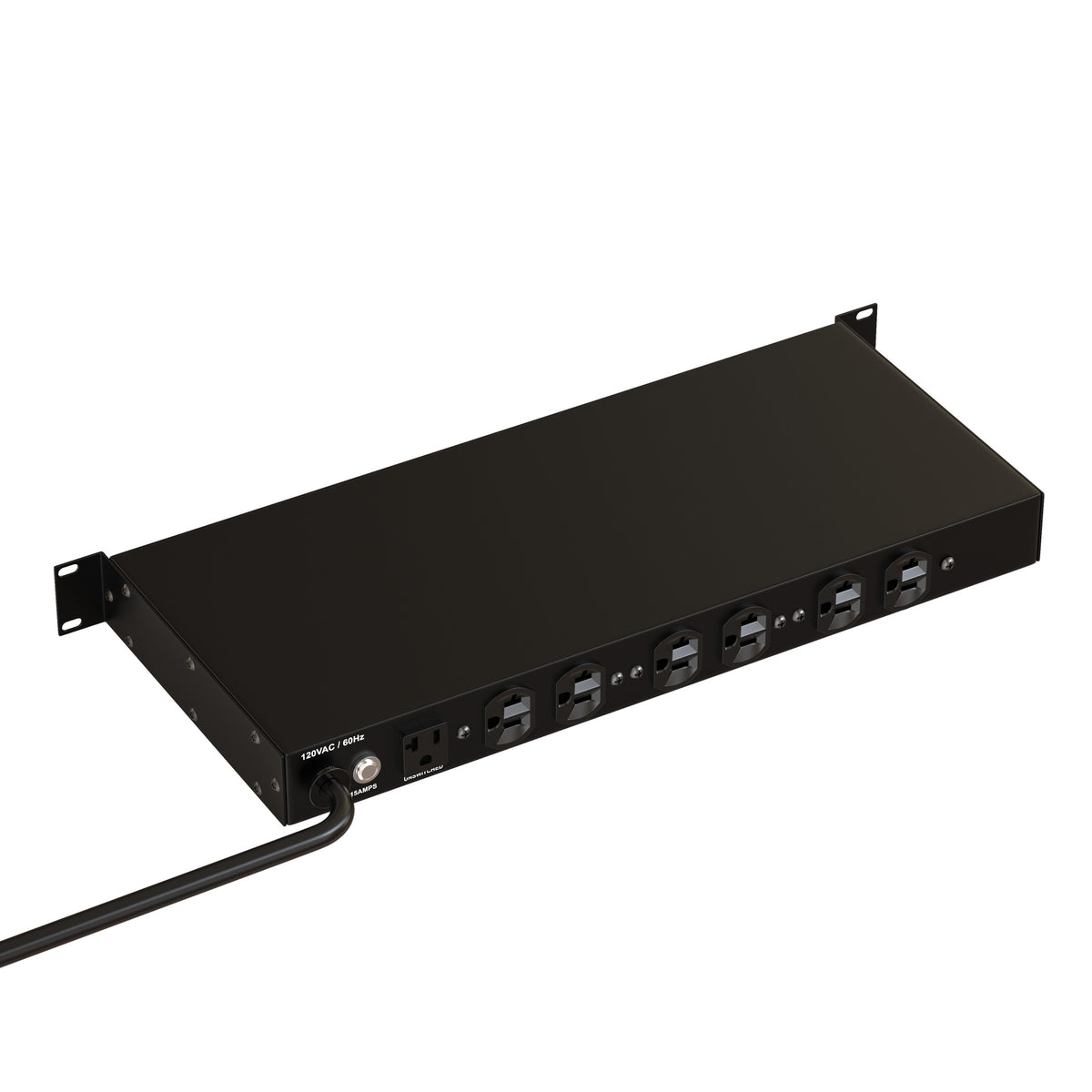

  • RX10020A rear three-quarter view with six NEMA outlets, 15A breaker and hardwired 120VAC cord, Lyntec

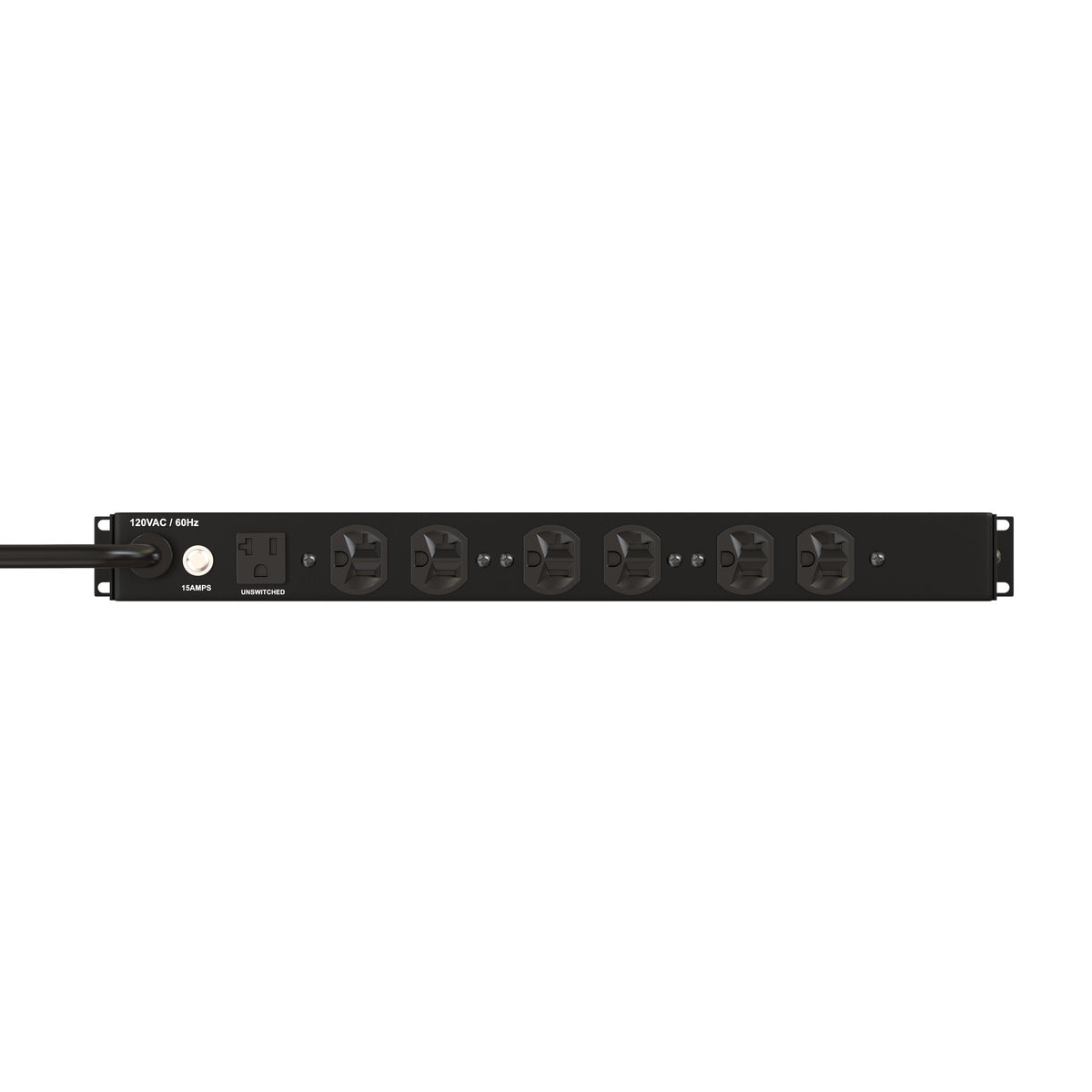

  • RX10020A rear panel straight-on showing six switched outlets, unswitched outlet and 15AMPS reset button, Lyntec

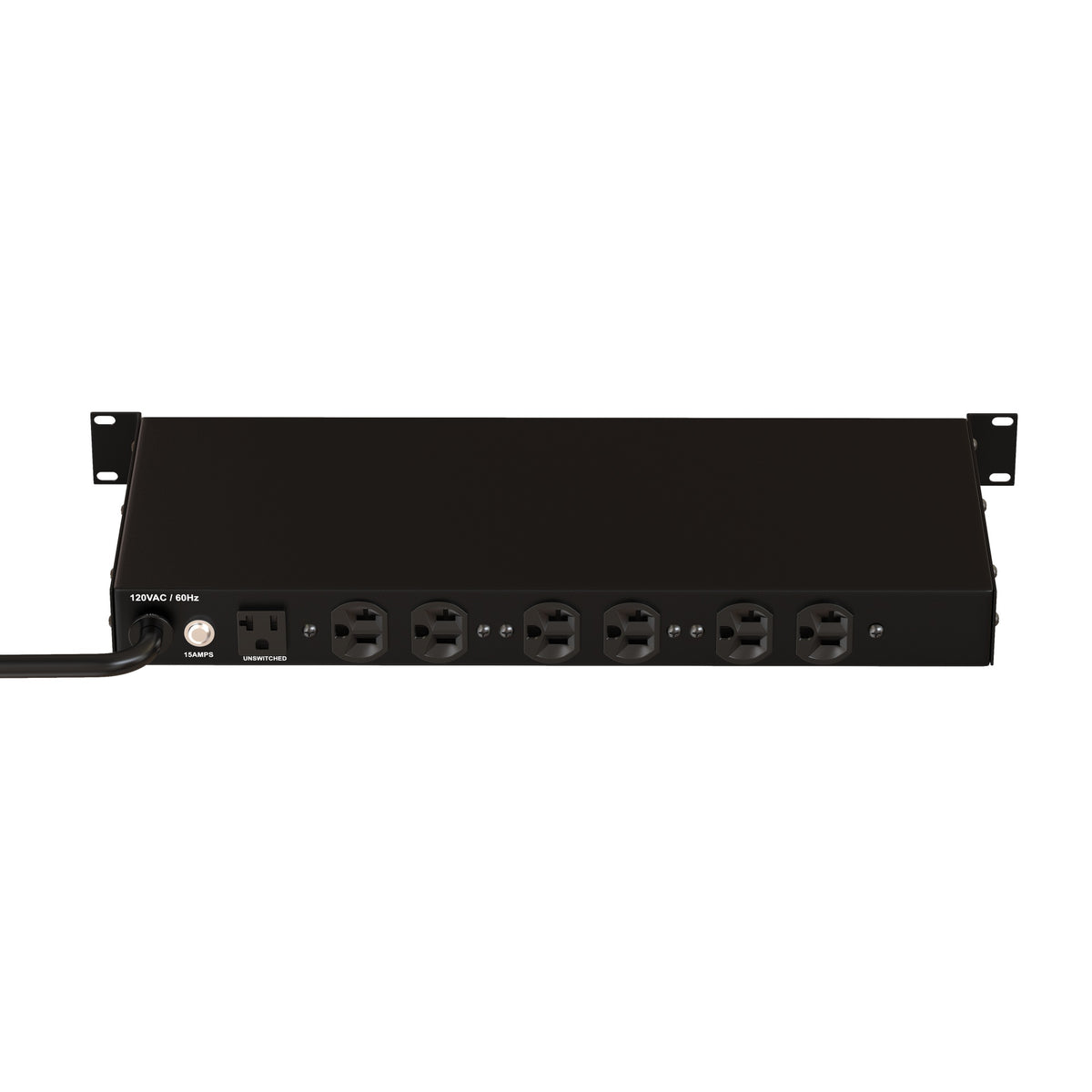

  • RX10020A rear view from above showing outlet bank layout and 120VAC/60Hz marking, Lyntec
1 7

Lyntec RX10020A Rx Series 1U Rack Power Conditioner With Surge Filter

Lyntec RX10020A Rx Series 1U Rack Power Conditioner With Surge Filter

SoundPro Item: 209260 | Part Number: RX10020A

$339.99
$408.15 $339.99
Your Price Sold out
MSRP: $408.15 | MAP: $339.99

Usually ships in 5-7 business days

  • Hybrid Filter Technology Reduces Common And Normal Mode Noise Across All Power Leads
  • Over-Voltage Shutdown Automatically Disconnects Load To Protect Connected Equipment
  • Front-Panel Wiring Fault LED Alerts Technicians To Hazardous External Wiring Conditions
  • Seven Rear And One Front NEMA 5-20R Outlets For Flexible Rack Connectivity
  • Tour Class Cold-Rolled Steel Chassis Built For Demanding Install And Road Environments
  • Clean Ground Design Keeps Sensitive AV Equipment Within Safe Operating Parameters
Log in or register for YOUR best price

The Lyntec RX10020A is built for AV integrators and production teams who need dependable, clean power distribution in demanding rack environments. Rated at 20A with eight NEMA 5-20R outlets split between the rear and front panels, it accommodates fully loaded racks without requiring outlet adapters or additional distribution hardware. The single-piece cold-rolled steel chassis holds up in touring and permanent install scenarios alike, making it a practical choice for both road cases and fixed infrastructure.

Where basic power strips fall short, the RX10020A delivers hybrid filter technology that addresses both common mode and normal mode noise across all power leads. This matters in live production and installed AV contexts where switching power supplies, dimmers, and motor loads share the same circuit and introduce interference that degrades audio and video performance. The clean ground design and surge let-through limits keep sensitive DSP, amplifiers, and signal processors operating within safe parameters rather than absorbing transient energy directly.

The over-voltage shutdown function automatically disconnects the load during sustained over-voltage events, protecting equipment that would otherwise be exposed until a circuit breaker trips. The front-panel LED wiring fault indicator gives technicians immediate visibility into external wiring problems before they cause equipment damage, a detail that earns its keep during fast load-ins or in installations where the facility wiring history is unknown.

Downloads

View full details

Specifications

Electrical
Input Voltage
120 VAC, 60 Hz
Current Rating
20A
Outlets
8x NEMA 5-20R (7 rear, 1 front)
Power Cord
7-foot, 12/3 SJT
Protection
Surge Let-Through (L-N)
Maximum 10.0V
Surge Let-Through (Ground)
Maximum 0.5V
Noise Filtration
Normal and Common Mode
Over-Voltage Shutdown
Included
Construction
Chassis
Tour Class cold-rolled steel
Form Factor
1U Rack-Mount
Dimensions
Dimensions (W x D x H)
19.0" x 7.0" x 1.75"
Weight
8 lbs
Shipping
Package Weight
50.71 lbs
Package Width
10"
Package Length
22"
Package Height
12"
