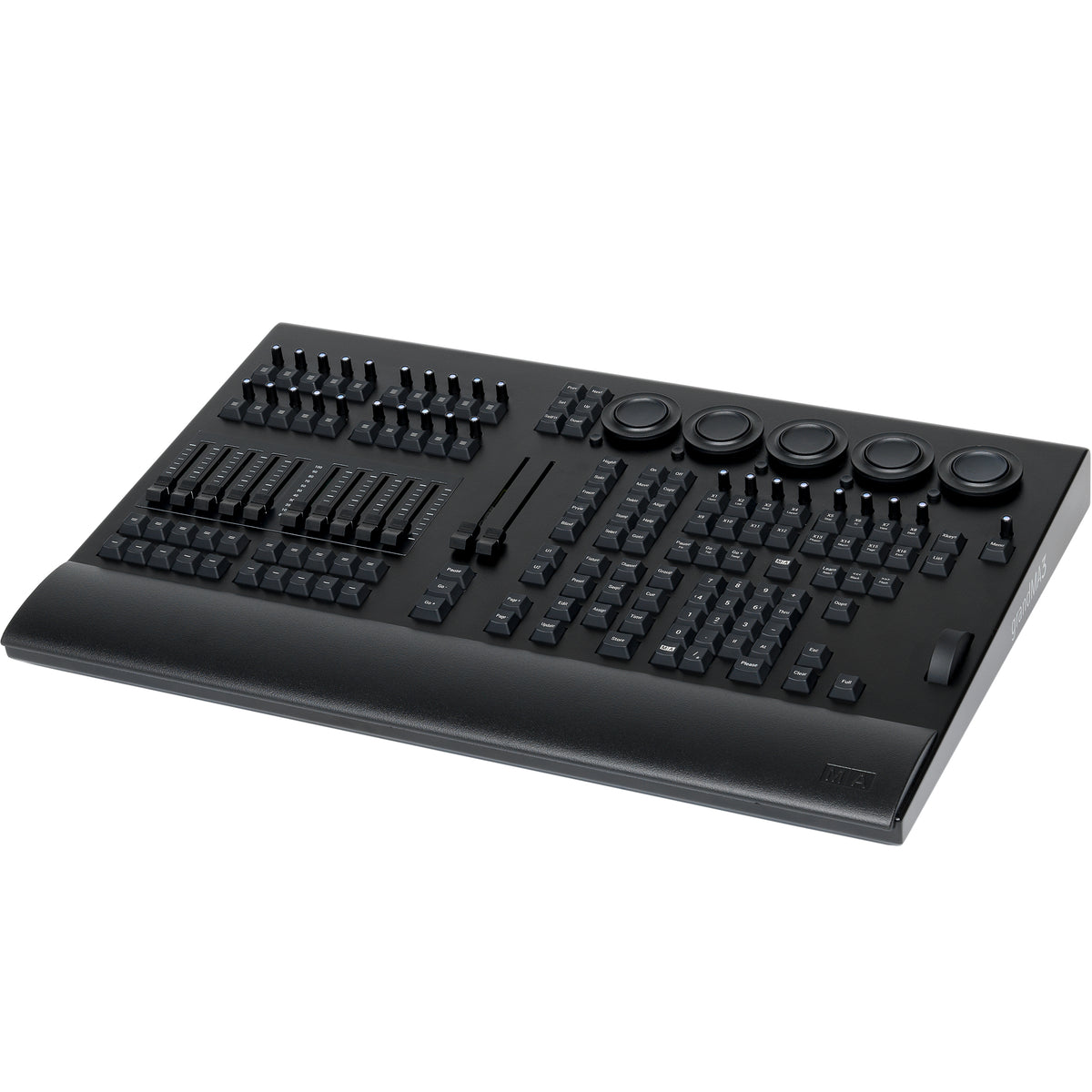

MA Lighting grandMA3 onPC Command Wing Lighting Console

MA Lighting grandMA3 onPC Command Wing Lighting Console

SoundPro Item: 35521 | Part Number: MA4010511

$8,697.50
$11,596.67 $8,697.50
Your Price Sold out
MSRP: $11,596.67 | MAP: $8,697.50

Usually ships in 5-7 business days

  • Real-time control for 2,048 parameters in combination with grandMA3 onPC
  • Expandable up to 4,096 parameters with onPC products and grandMA3 onPC
  • Command section similar to grandMA3 compact layout
  • 29 rotary RGB backlit encoder
  • 5 dual encoders
  • 10 motorized 60mm faders
  • 40 separate playbacks
  • 16 assignable x-keys
  • 2 motorized A/B faders 100mm
  • 1 Level-Wheel
  • Individually backlit and dimmable silent (clickless) keys
  • Just connect via USB to any PC running grandMA3 onPC
Log in or register for YOUR best price

The grandMA3 onPC command wing is the ultimate grandMA3 mobile solution. In combination with the free of charge grandMA3 onPC software, the grandMA3 onPC command wing is a portable 2,048 parameter control solution that can be used in nearly any location - and all for an affordable price! It offers two built-in DMX ports as well as the possibility to send two additional DMX universes via Ethernet protocols with grandMA3 onPC software.

Designed as the perfect hardware expansion to the grandMA3 onPC software, the grandMA3 onPC command wing enables the look and feel of the software to be as close to a real grandMA3 console as possible.

Thanks to the grandMA3 onPC command wing incorporating the command section of the grandMA3 consoles, it has never been easier to use the grandMA3 onPC software. With a simple USB connection between the grandMA3 onPC command wing and the computer running the grandMA3 onPC software, all inputs and outputs of a grandMA3 console are available to the user. DMX, MIDI, Timecode, and Remote Control are all on hand directly at the grandMA3 onPC command wing.

View full details

Specifications

Dimensions
Dimensions (WxDxH)
25x17x4" (620x427x102mm)
Weight
Net Weight
10 kg / 22 lbs
Electrical
Operating voltage/ Supply Voltage
AC 100 - 240 V; 50/60 Hz
Connectivity
Connectors
1 x IEC-60320 C14 cord, 2 x DMX512-A Out (5pin XLR female), 1 x DMX512-A In (5pin XLR male), 1 x MIDI In (5pin DIN female), 1 x MIDI Out (5pin DIN female), 1 x Linear Timecode (3pin XLR female), 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control, 1 x USB 2.0 (type B), 1 x LED desk light (4pin XLR female)
Environmental
Operating Temperature
0 °C up to 40 °C / 32 °F up to 104 °F
General
Parameters
4 096 (HTP/LTP)
Parameters Mode2
not applicable (no Mode2)
Power
Power
max. 50 VA
