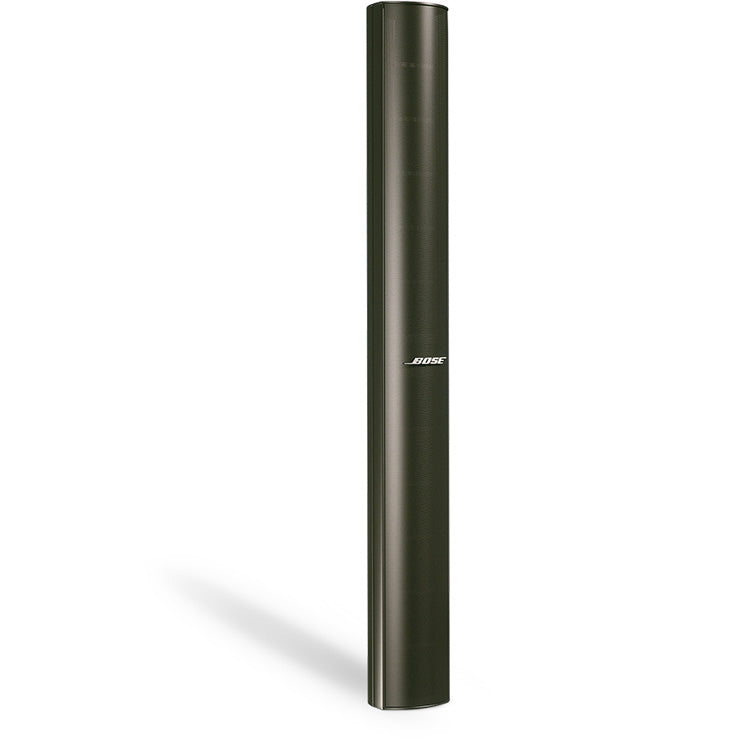

• Bose MA12 modular column Array Loudspeaker, Black
1 1

Bose MA12 modular column Array Loudspeaker, Black

Bose MA12 modular column Array Loudspeaker, Black

SoundPro Item: 106930 | Part Number: 40189

$899.00
$999.00 $899.00
Your Price Sold out
MSRP: $999.00 | MAP: $899.00

Usually ships in 5-7 business days

  • Twelve 2.25-inch (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
  • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
  • 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration.
  • Mid/high configuration allows bass management and design flexibility. Use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement.
  • Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Log in or register for YOUR best price
The Bose Professional MA12 mid/high frequency column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wide 145° horizontal coverage. The slim column enclosure blends with almost any décor.
View full details

Specifications

COMPLIANCE
EN 54-24 Certified
No
PHYSICAL
Colors
Black, white
Enclosure Material
Extruded-aluminum sidewalls with steel top & bottom endcaps, all powder-coated
Grille
Aluminum, powder-coated finish
Suspension/Mounting
4 x M6 threaded inserts
Product Dimensions (HxWxD)
38.8 in x 4.2 in x 5.0 in (984 mm x 105 mm x 128 mm)
Net Weight
19.0 lb (8.5 kg)
PERFORMANCE
Frequency Range (-10 dB)
100 Hz - 16,000 Hz
Coverage, Horizontal
145°
Calculated Maximum SPL @ 1 m
113 dB continuous, 119 dB peak
Nominal Impedance
8 Ω
Power Handling, long-term continuous
300 W
Power Handling, Peak
1200 W
Recommended Signal Processing
Bose Professional loudspeaker EQ
Sensitivity (SPL/1 W at 1 m)
88 dB
Transformer Taps, 100V
CVT-MA12 transformer available
Transformer Taps, 70V
CVT-MA12 transformer available
Coverage, Vertical
20°
TRANSDUCERS
Driver Protection
Overload protection
Low-Frequency
12 x 2.25 in (57 mm) high-excursion mid/high-frequency drivers
