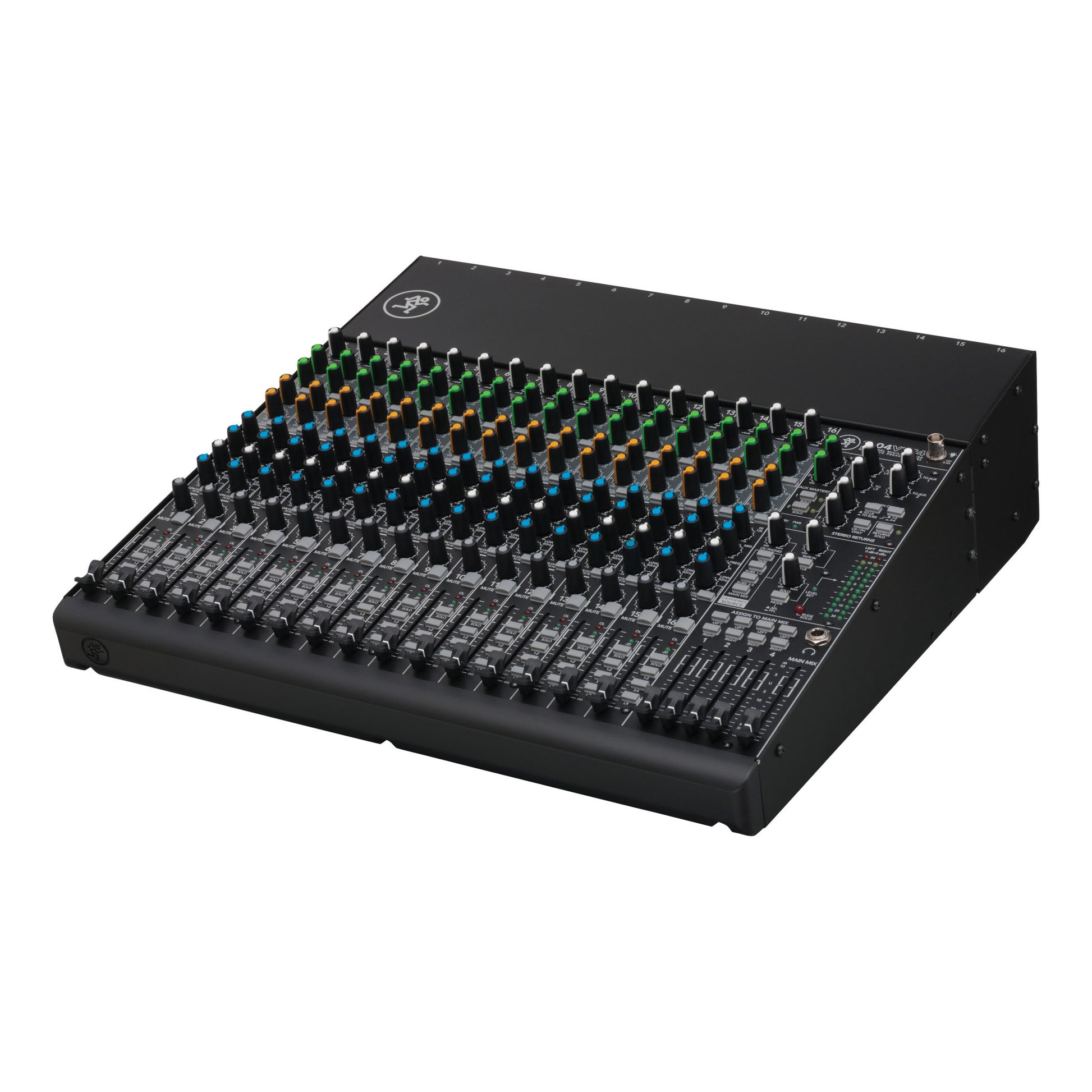

Mackie 1604VLZ4 16-Channel 4-Bus Compact Analog Mixer

Mackie 1604VLZ4 16-Channel 4-Bus Compact Analog Mixer

SoundPro Item: 43580 | Part Number: 1604VLZ4

$1,049.99
$1,049.99 $1,049.99
Your Price Sold out
MSRP: $1,049.99 | MAP: $1,049.99

Usually ships in 5-7 business days

  • 16 boutique-quality Onyx mic preamps
  • Ultra-wide 60 dB gain range
  • 128.5 dB dynamic range
  • +22 dBu line input handling
  • Extended frequency response
  • Distortion under 0.0007% (20Hz - 20 kHz)
  • Improved RF rejection perfect for broadcast applications
  • Phantom power for condenser mics
  • 16 high-headroom line inputs
  • 16 balanced inserts perfect for integrating outboard gear
  • 3-band EQ (80Hz, 2.5 kHz, 12kHz)
  • 18 dB/oct 100Hz low-cut filter on mic input channels
  • 4 aux sends, level, pan and PFL solo on each channel
  • 60mm long-wearing log-taper faders
  • 4 stereo returns for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls resist dust and grime
  • "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
  • High-visibility, high contrast controls deliver convenient "at-a-glance" visual feedback
  • Rack-mountable design using optional rack ear kit
  • Multi-voltage power supply for worldwide use
Log in or register for YOUR best price

From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time. VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and the best sounding compact mixer ever created.

View full details

Specifications

Dimensions
Dimensions (HxDxW)
17" x 5.1" x 17.3"
Electrical
Power Consumption
50 watts
Audio
THD
(1kHz @ 35dB gain, 20Hz - 20kHz bandwidth)
Channel Gain Knob Down
-84 dBu
Frequency Response
Mic input to main output (gain @ unity), +0, -1 dB, 20Hz to 50kHz, +0, -3 dB, <10Hz to >100kHz
Low Cut Filter
18 dB/octave, -3 dB @ 75 Hz
Connectivity
All Other Inputs
+22 dBu
All Other Outputs
+22 dBu
Construction
Mic in to Insert Send
<0.0007%
Channel Insert Return
2.5 kΩ
Environmental
Operating Temperature
32° to 104°F (0° to 40°C)
Shipping
Weight
20 pounds
General
Main Mix Noise
(20Hz - 20kHz bandwidth, 1/4" main out, channel gains @ unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right.), (92dB signal to noise ratio, ref +4 dBu), Main mix fader @ unity, channel faders @ unity: -82.5 dBu
Main Mix Fader Unity, Channel Faders Down
-88.5 dBu
Mic in to Main Out
<0.005%
Attenuation/Crosstalk
(1kHz relative to 0 dBu, 20Hz - 20kHz bandwidth, line in, 1/4" main out, gain @ unity)
Channel Mute Switch Engaged
-84 dBu
EIN
(Mic input to insert send out, max gain), 150 Ω termination
CMRR @ 1kHz
better than -70 dB
Mic in
+22 dBu
Main Mix TRS Out
+28 dBu
Tape Out
1.1 kΩ
High Shelving
±15 dB @ 12kHz
Mid Peaking
±15 dB sweep 100Hz - 8kHz
Low Shelving
±15 dB @ 80 Hz
US, JP
100-120 VAC, 50-60Hz
EU, UK, AU, CN
200-240 VAC, 50-60 Hz
100-120V
1A slo blo, 5x20mm
220-240V
0.5A slo blo, 5x20mm
