• Mackie 1642VLZ4 16-Channel Compact Analog Mixer
1 1

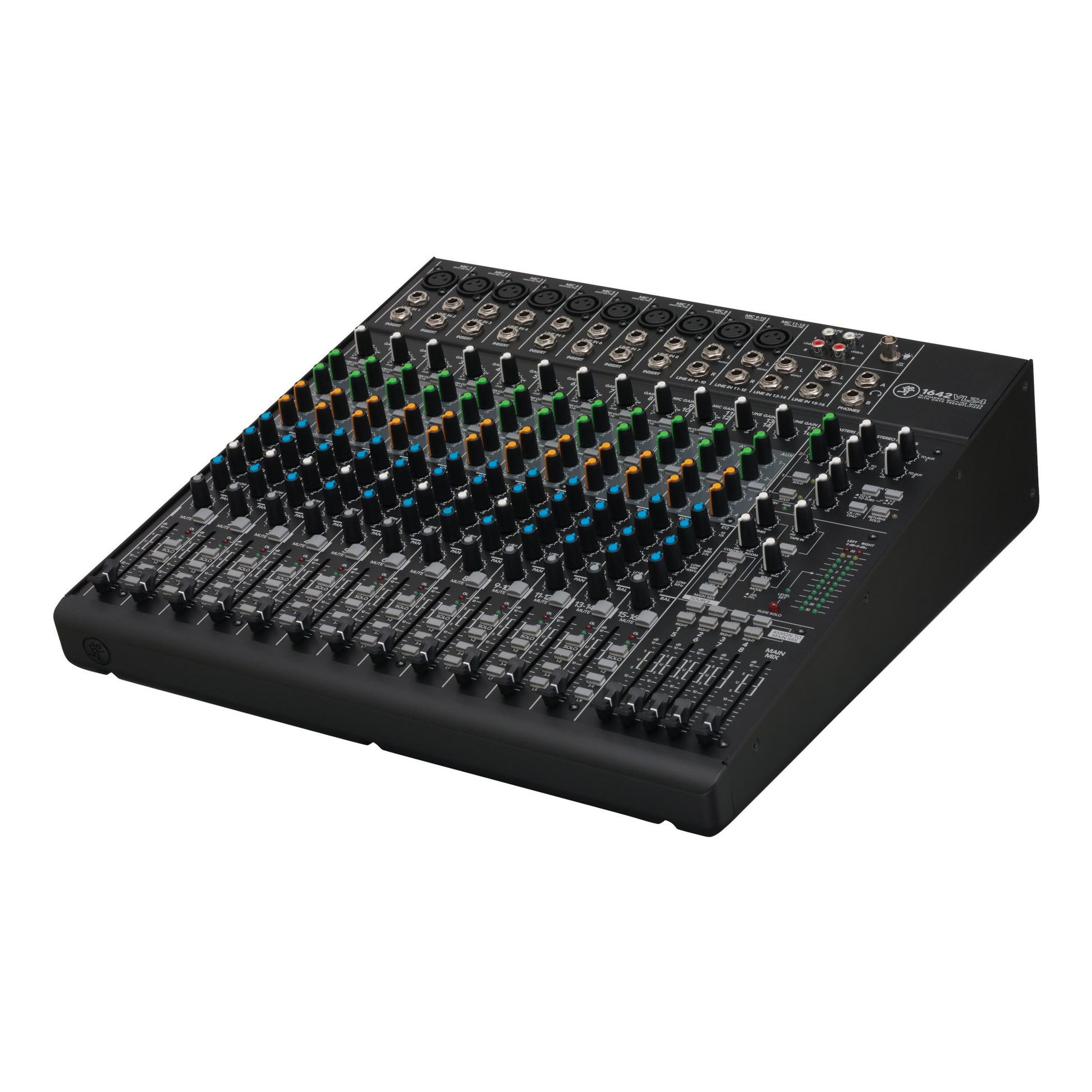

Mackie 1642VLZ4 16-Channel Compact Analog Mixer

Mackie 1642VLZ4 16-Channel Compact Analog Mixer

SoundPro Item: 43583 | Part Number: 1642VLZ4

$799.99
$799.99 $799.99
Your Price Sold out
MSRP: $799.99 | MAP: $799.99

Usually ships in 5-7 business days

  • 16-channel mixer with high-headroom, low-noise design
  • 10 boutique-quality Onyx mic preamps
  • Improved RF rejection perfect for broadcast applications
  • Phantom power for condenser mics
  • 16 high-headroom line inputs
  • 3-band EQ (80Hz, 2.5 kHz, 12kHz)
  • 18 dB/oct 100Hz low-cut filter on mic input channels
  • 4 aux sends, level, pan and PFL solo on each channel
  • 60mm long-wearing log-taper faders
  • 4 stereo returns for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls resist dust and grime
  • "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
  • High-visibility, high contrast controls deliver convenient "at-a-glance" visual feedback
  • Rack-mountable design using optional rack ear kit
  • Multi-voltage power supply for worldwide use
Log in or register for YOUR best price

The 1642VLZ4 delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, perfect for bands, clubs, and more. Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and the best sounding compact mixer ever created.

From every input to every output, the 1642VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. It is truly "Built-Like-A-Tank" with an impressively rugged solid-steel chassis that includes high-contrast controls for ultimate tactile control. And with features like an expanded return section for no-hassle system integration, plus a dedicated control room section, the 1642VLZ4 is the go-to mixer choice for any application that demands flexibility and professional performance.

View full details
  • Main Mix Noise
    • 20Hz - 20kHz bandwidth, 1/4" main out, channel gains @ unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right
    • Main Mix Fader Unity, Channel Faders Down: -86.5 dBu
    • Main Mix Fader @ Unity, Channel Faders @ Unity: -86 dBu
  • THD, Mic In to Insert Send<0.0007%
  • Attenuation / Crosstalk
    • 1kHz relative to 0 dBu, 20Hz - 20kHz bandwidth, line in, 1/4" main out, gain @ unity
    • Channel Mute Switch Engaged: -82 dBu
    • Channel Gain Knob Down: -82 dBu
  • Frequency Response
    • Mic input to main output (gain @ unity)
    • +0, -1 dB, 20Hz to 50kHz
    • +0, -3dB, <10Hz to >100kHz
  • EIN (mic input to insert send out, max gain)150Ω termination: -128.5 dBu 20Hz - 20kHz
  • CMRR (1kHz)better than -70 dB
  • Max. Levels
    • Mic In: +22 dBu
    • All Other Inputs: +22 dBu
    • Main Mix TRS Out and XLR Out: +28 dBu
    • All Other Outputs: +22 dBu
  • Impedances
    • Mic In: 2.5 kΩ
    • Channel Insert Return: 2.5 kΩ
    • All Other Inputs: 10 kΩ or greater
    • Tape Out: 1.1 kΩ
    • All Other Outputs: 120 Ω
  • 3-Band EQ (Channels 1-8)
    • High Shelving: ±15 dB @ 12kHz
    • Mid Peaking: ±15 dB sweep 100Hz - 8kHz
    • Low Shelving: ±15 dB @ 80Hz
    • Low Cut Filter: 18 dB/octave, -3 dB @ 75Hz
  • 4-Band EQ (Channels 9-16)
    • High Shelving: ±15 dB @ 12kHz
    • Hi Mid Peaking: ±15 dB @ 2.5kHz
    • Low Mid Peaking: ±15 dB @ 400Hz
    • Low Shelving: ±15 dB @ 80Hz
    • Low Cut Filter: 18 dB/octave, -3 dB @ 75Hz
  • AC Power Requirements
    • Power Consumption: 50 watts
    • US, JP: 100-120 VAC, 50-60Hz
  • Fuse Rating (100-120V)1A slo blo, 5 x 20 mm
  • Operating Temperature32°F to 104°F (0°C to 40°C)
  • Dimensions (HxDxW)16.7" x 5.2" x 16.6"
  • Weight18.2 pounds
