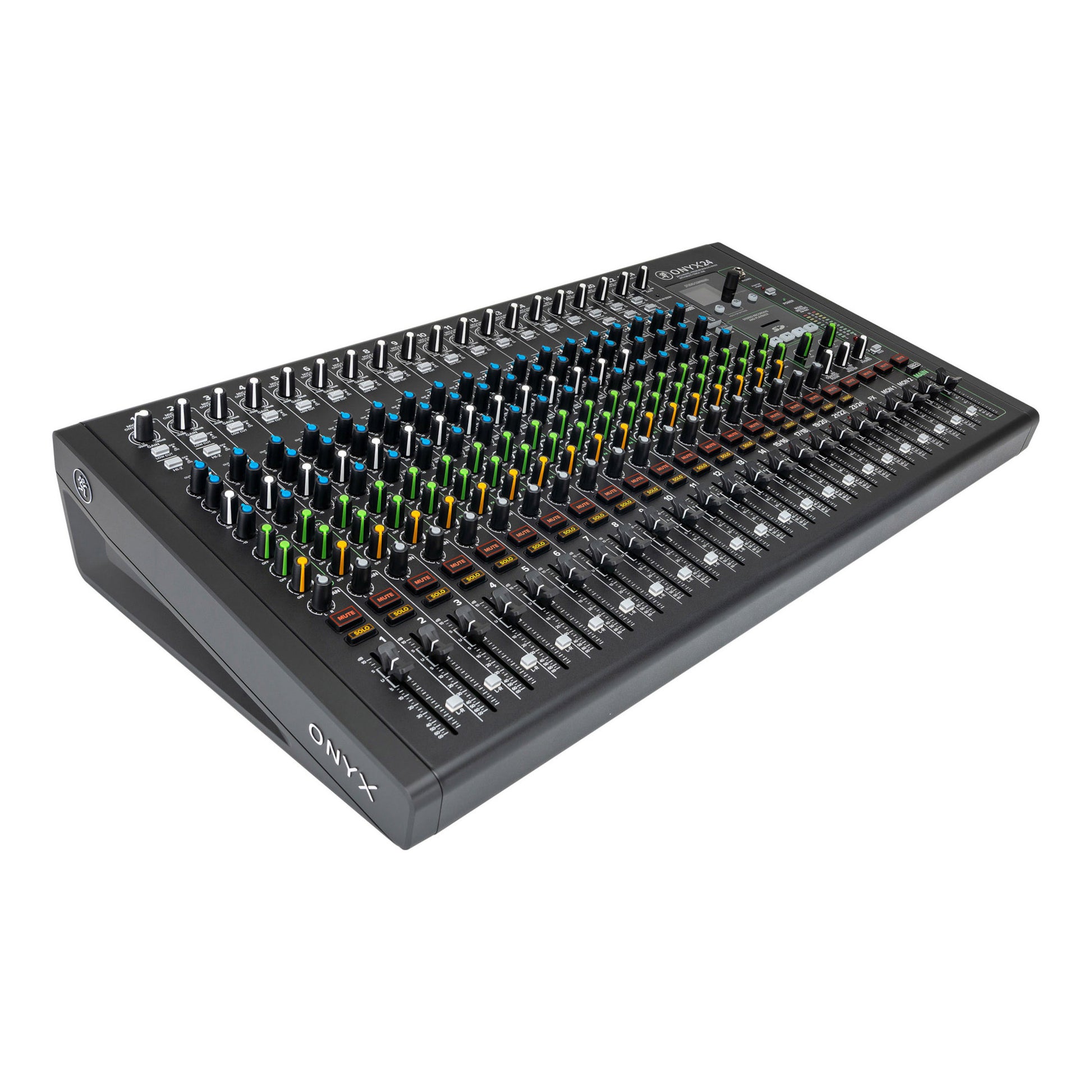

Mackie ONYX24 24-Channel Analog Mixer with Multitrack USB
Mackie ONYX24 24-Channel Analog Mixer with Multitrack USB
SoundPro Item: 109733 | Part Number: ONYX24
Usually ships in 5-7 business days
- 24x4 analog mixer with 18 low-noise Onyx preamps that provide 60dB of gain
- 3-band British-Style Perkins EQ with On/Off hard bypass switch for dialing in the perfect tone
- High-resolution multitrack recording to Mac/PC via USB at up to 24-Bit / 96 kHz
- Seamless stereo recording directly to an SD card
- Professional, customizable Dynamic FX, with Multi-Parameter Adjustment
- Studio Command—full-color LCD for easy FX control and SD card management
- Bluetooth®-enabled for streaming music directly into any channel, with streamed audio routed to Aux Sends or Main Mix
- Switchable hi-Z inputs for guitars, bass, and other instruments
- Built-Like-A-Tank™ rugged steel chassis for added protection
Meet the new centerpiece of your studio or live rig. The Mackie Onyx24 is a premium 24-channel USB mixer for professional multitrack recording and live sound applications. With incredible sound and a powerful digital FX engine, you’ll have the ultimate solution at your fingertips. The Mackie Onyx24 features 18 low-noise microphone preamps with 60dB of clean gain. Combined with sophisticated analog circuitry, you’ll get rich sound for studio production, theatre and house of worship.
The Mackie Onyx24 features an enhanced 3-Band “British Style” Perkins EQ based on the same circuit used on classic mixing consoles from the ‘60s and ‘70s. This version designed by Mackie offers greater filter control, minimum phase shift and allows you to pinpoint specific frequency ranges. Creating the Perkins EQ started with the Wien Bridge circuit topology, then determined capacitor and resistor values to give the EQ an extra 6dB (±15dB) of control without excessively narrowing the "Q" or bandwidth of the filters.
Working on an album? Have a big video project on the horizon? Get high-resolution multitrack recording through your DAW. Connect your Mackie Onyx24 mixer to Mac or PC via USB to record at resolutions up to 24-Bit / 96kHz. To keep it simple, you also have the option of recording a full stereo mix straight to an SD card.
The more plugins the better, right? Get creative and customize your sound with professional built-in effects. The professional high-resolution FX processor gives you limitless control over a robust collection of unique digital effects, including a dedicated equalizer to shape your mix to perfection.
It's important to feel in control of your workstation. Mackie Onyx24 mixers feature powerful full-color LCDs with dedicated physical transport controls. Apply FX and recall up to six customizable presets using an intuitive single-knob interface. Record a stereo mix, browse files and play music direct to/from an SD card, all via Studio Command.
A 24-channel mixer can be pretty hefty, but rugged QuickGrip side handles make it easy to carry your mixer between gigs. Mackie Onyx24 mixers are road-ready and built to last, thanks to the heavy-duty steel chassis and sealed rotary knobs.
Specifications
