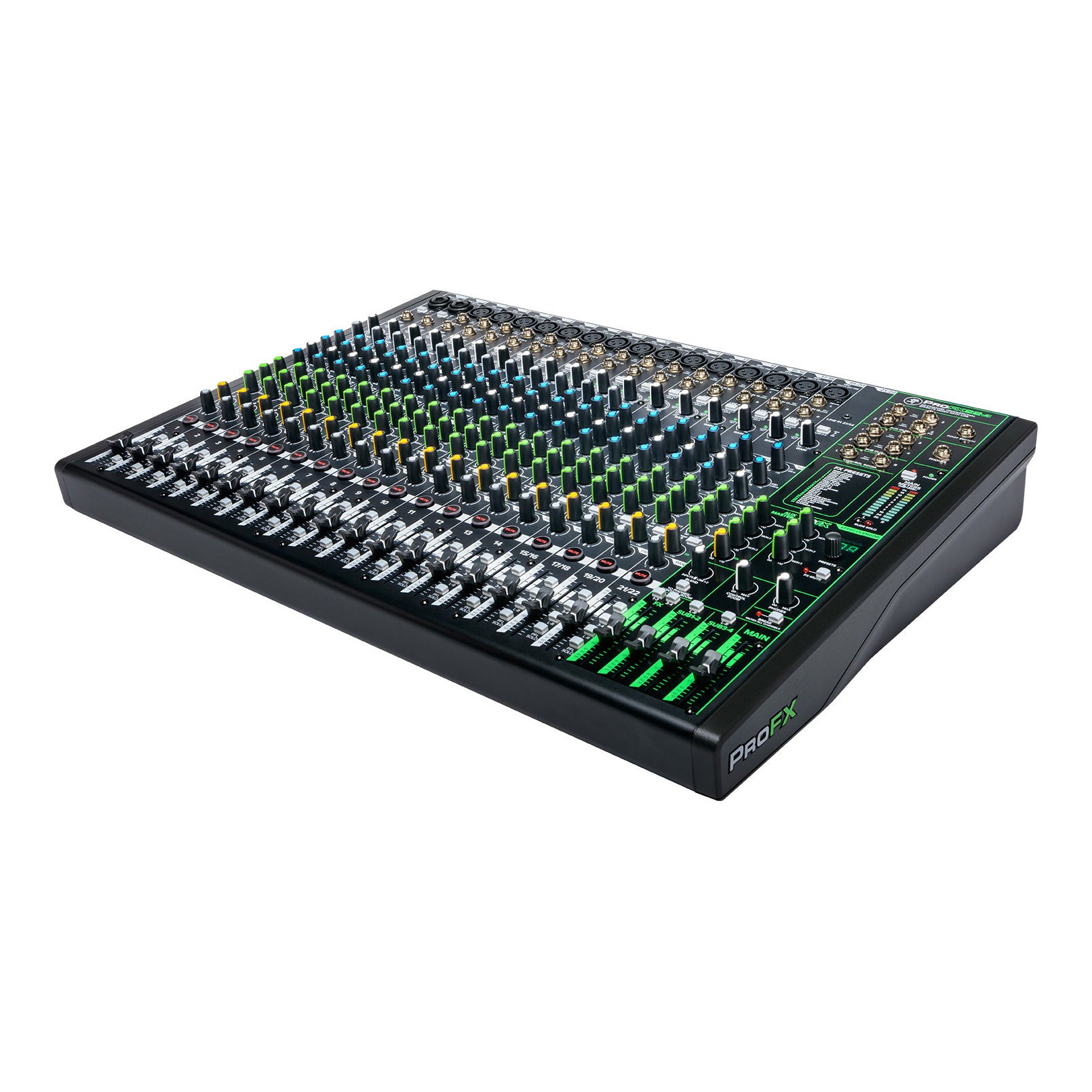

Mackie ProFX22v3 Effects Mixer with USB

Mackie ProFX22v3 Effects Mixer with USB

SoundPro Item: 42529 | Part Number: ProFX22v3

Regular price $799.99
Regular price $799.99 Sale price $799.99
Your Price Sold out
MSRP: $799.99 | MAP: $799.99

Usually ships in 5-7 business days

  • 22 Channels
  • Mix / Record / Create
  • Renowned Onyx Mic Preamps
  • High-Resolution GigFX™ Effects Engine
  • 24-Bit / 192kHz 2x4 USB Recording Interface
  • Effortless Latency-Free Monitoring
  • Single-Knob Compression
  • Record and Product Like a Pro
  • Signature Rugged Design

Get the best-in-class of professional analog USB mixers with effects and take your content to the next level with the 22-channel Mackie ProFX22v3. This 22-channel effects mixer is designed to provide studio-quality performance for recording artists, live performers, and content creators. Seven Onyx preamps and a versatile GigFX effects engine allow colorful high-res recordings with sample rates up to 192kHz. A Waveform OEM software bundle is also included for recording, mixing, and editing projects to perfection.

Onyx mic preamps are central to the ProFX22v3’s ability to create ultra-clean, transparent audio. Mackie’s award-winning Onyx Mic Preamps deliver analog warmth that makes sure everything you do sounds great.

Use the GigFX high-resolution effects engine in the ProFX22v3 mixer to add the perfect touch to your sound. With 24 awesome effects to choose from, it’s easy to shape your sound for things like adding reverb to a guitar track or giving your podcast a creative edge.

The USB port on the ProFX22v3 optimizes the mixer for USB recording at sample rates up to 192kHz. Send separate mixers from your computer to your headphones using the 2x4 I/O.

A dedicated compression knob on every channel makes the need for a compression plugin a thing of the past. All it takes is the turn of a knob to compress highly dynamic audio sources like podcast conversations, vocalists, guitars, and more.

Real-time monitoring is critical; thanks to latency-free direct monitoring capabilities in the ProFX22v3, the monitoring process is easy. A dedicated control can be used to blend between your DAW and channel inputs.

The Waveform OEM software adds to the capabilities of the ProFX22v3. This award-winning workstation gives you powerful and creative tools to bring your inspiration into the mixer’s performance.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
4.4x24.1x17.1"
Electrical
Max. Voltage Gain (EQ Flat)
Mic Input Channel to, Mono Line Input Channel to, Stereo Line Input Channel to, 1/8" Input to
Power Consumption
45 watts
Universal AC Power Supply
100-240VAC, 50-60Hz
Audio
Mic in to Insert Send Out, Max Gain
-128dBu
Frequency Response
Mic Input to Any Output (gain at unity, +0dB/-1dB): 20Hz to 30,000Hz
Distortion
(22Hz to 80kHz bandwidth)
Mic in to Main Out, Max Gain, 1kHz
70 dB
Low Cut Filter
18 dB/octave @ 100Hz
Phantom Power
48 VDC to all mic channels simultaneously
Connectivity
Mic in to Main Out (+4 Dbu output)
<0.01%
Adjacent Inputs @1kHz
-90dB
Inputs to Outputs @1kHz
-80dB
All Inputs
+22dBu
Main Mix XLR
+28dBu
All Other Outputs
+22dBu
All Other Inputs
≥20kΩ
USB Input to XLR Main Output
46 dB
Power Connector
3-pin IEC line cord
Construction
Channel Insert Return
10kΩ
Shipping
Weight
19.8 lbs
General
Noise Characteristics
EIN (150Ω source impedance, 20Hz to 20kHz), Residual Output Noise
Fader Off @1kHz
-75dB
Mute Switch/Break Switch Mute @1kHz
-100dB
Mic in
3.3kΩ
Phones Out
25 Ω
Equalization
All Channels (except 1/8" stereo channel)
Low
±15 dB @ 80Hz
Mid
±15 dB 100Hz - 8kHz
High
±15 dB @ 12kHz
Number of Presets
24
Meters
Main L/R Mix
Two Columns of 12 Segments Each
0L, +15, +10, +6, +3, 0 (0dBu), -2, -4, -7, -10, -20, -30
Format
USB 2.0
I/O
1 stereo input, 2 stereo outputs
A/D/A
24 bit, 44.1kHz, 48kHz, 96kHz, 192kHz
