Specifications
Acoustic Performance
Frequency Response (-10 dB)
45 Hz - 18 kHz
Frequency Response (-3 dB)
53 Hz - 16 kHz
Horizontal Coverage
90°
Vertical Coverage
60°
Maximum SPL Peak
129 dB (distortion-limited)

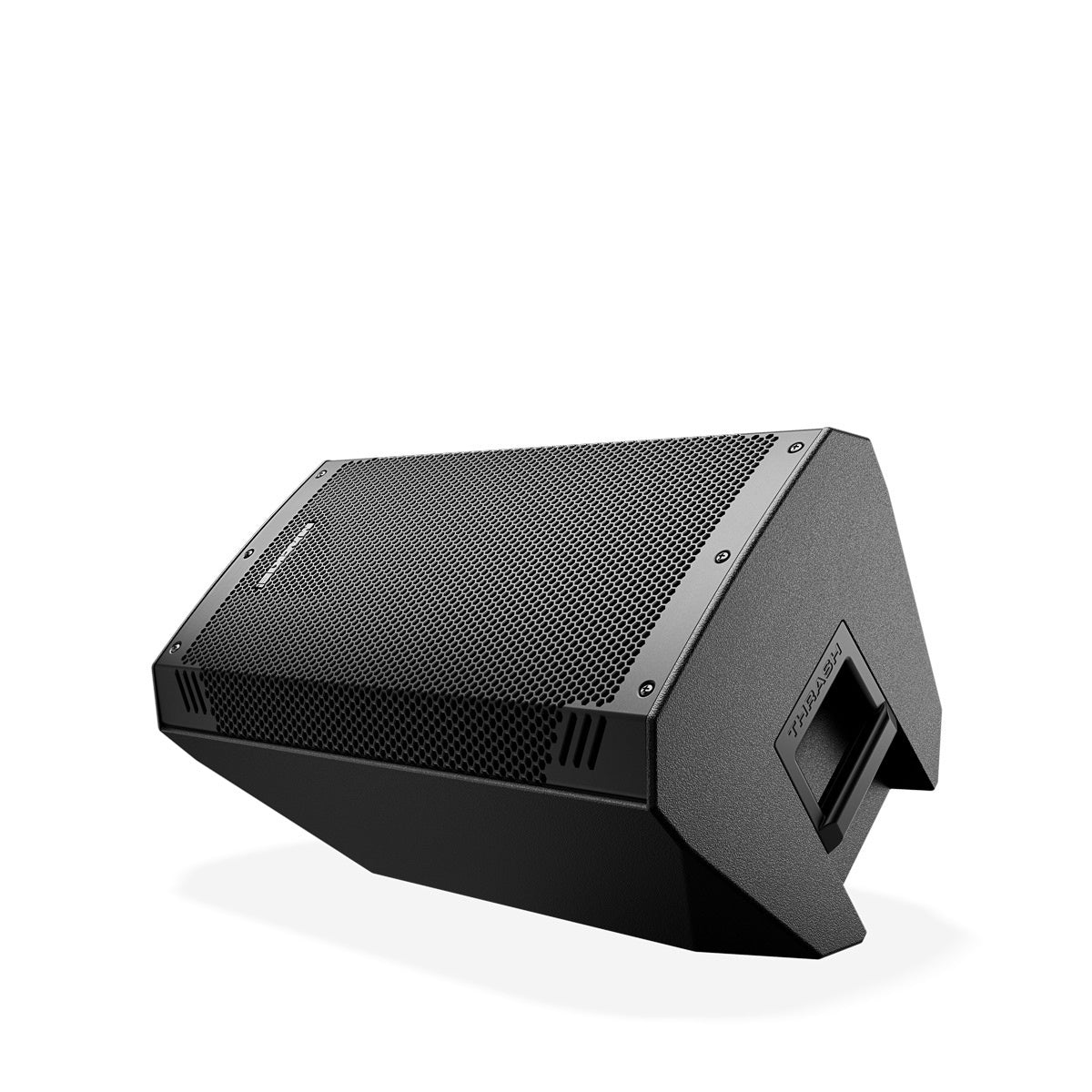

Monitor Angle
45°
Transducers
Low Frequency
12 in / 305 mm woofer with ferrite
High Frequency
1.0 in / 25 mm polymer compression driver
Power Amplifiers
System Power Amplification
1300 watts peak
Low Frequency Amp
1000 W peak / 320 W RMS, <1% THD, Convection cooling, Class D
High Frequency Amp
300 W peak / 180 W RMS, <1% THD, Convection cooling, Class D
Connectivity
Input Type
Female XLR - 1/4" Balanced TRS combo jack and Bluetooth
Mic/Line Impedance
10 kΩ Balanced
Mix Out
Male XLR Balanced
Mix Out Impedance
150 Ω Balanced
Audio
Crossover Frequency
2.0 kHz
Bluetooth
Bluetooth Protocol
5.0
Bluetooth Function
Audio streaming
Electrical
Detachable Line Cord
100-240V~, 50-60 Hz, 300W
AC Connector
3-pin IEC 250 VAC, 10 A male
Power Supply Type
Switchmode Universal mains regulated power supply with PFC integrated

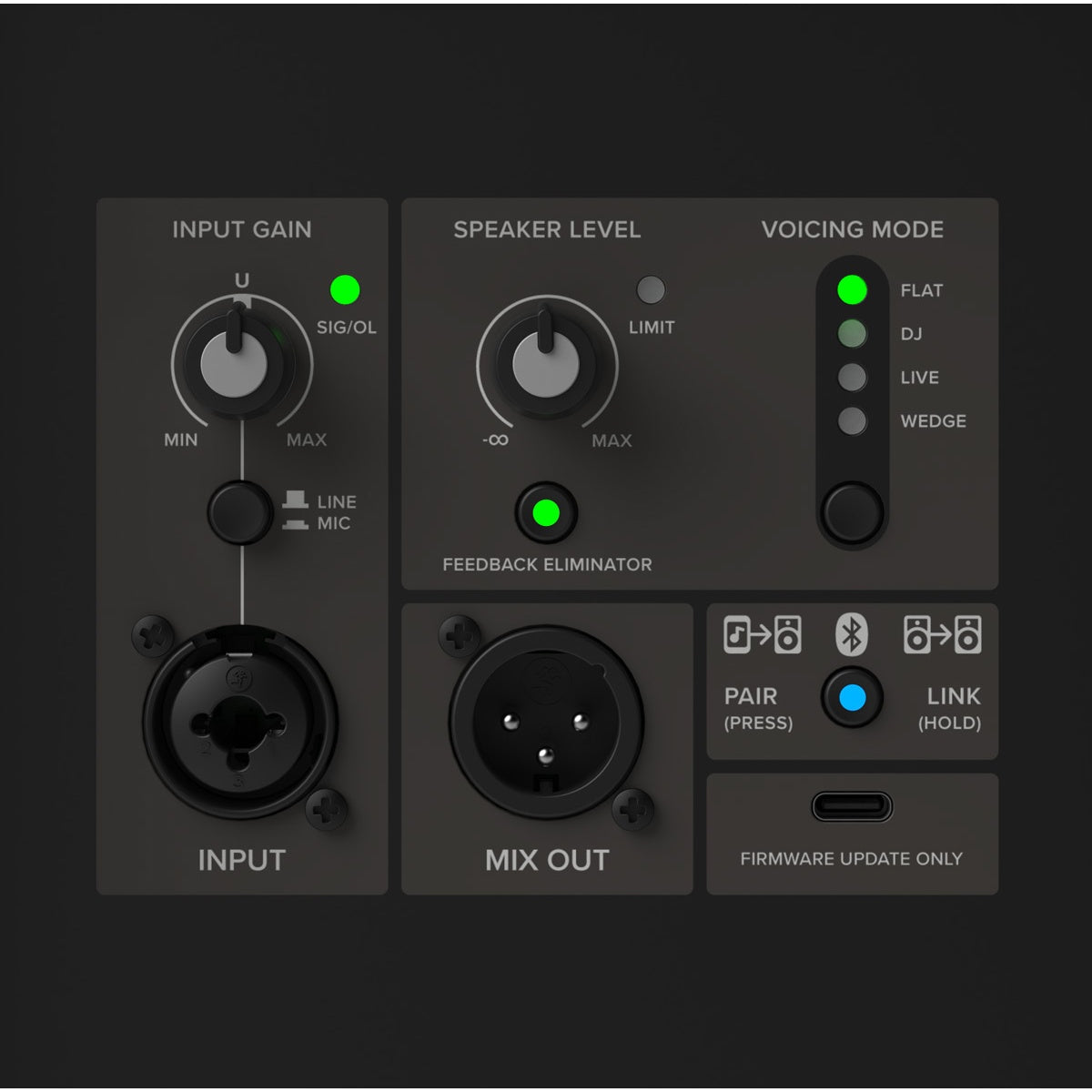

Controls
Voicing Mode
Four modes: Flat, DJ, Live, Wedge
Transducer Protection
Peak and RMS limiting
Environmental Protection
Power supply and amplifier thermal protection
Feedback Eliminator
On / Off
Display LEDs
Voicing Mode, Bluetooth Status, Link Status, Signal/Overload, Limit, Feedback Eliminator
Dimensions
Height (Product)
24.2 in / 614 mm
Width (Product)
13.9 in / 353 mm
Depth (Product)
13.7 in / 348 mm
Height (Packaged)
26.5 in / 673 mm
Width (Packaged)
15.7 in / 399 mm
Depth (Packaged)
15.7 in / 399 mm
Weight
Product Weight
30.6 lb / 13.9 kg
Packaged Weight
35.3 lb / 16.0 kg
