Specifications
Audio
Frequency Response (-10 dB)
40 Hz - 18 kHz
Frequency Response (-3 dB)
48 Hz - 16 kHz
Maximum SPL Peak
129 dB (distortion-limited)
Horizontal Coverage
90°
Vertical Coverage
60°
Monitor Angle
45°
Crossover Frequency
2.0 kHz
Transducers
Low Frequency Driver
15 in / 381 mm woofer with ferrite
High Frequency Driver
1.0 in / 25 mm polymer compression driver
Electrical
System Power Amplification
1300 W peak
Low Frequency Amp
1000 W peak / 320 W RMS, <1% THD, Class D, convection cooling
High Frequency Amp
300 W peak / 180 W RMS, <1% THD, Class D, convection cooling
AC Input
100-240V~, 50-60 Hz, 300 W
AC Connector
3-pin IEC 250 VAC, 10 A male
Power Supply Type
Switchmode universal mains regulated with PFC integrated
Connectivity
Input Type
Female XLR / 1/4" balanced TRS combo jack and Bluetooth
Mic/Line Impedance
10 kΩ balanced
Mix Out
Male XLR balanced
Mix Out Impedance
150 Ω balanced
Bluetooth Protocol
5.0
Bluetooth Function
Audio streaming

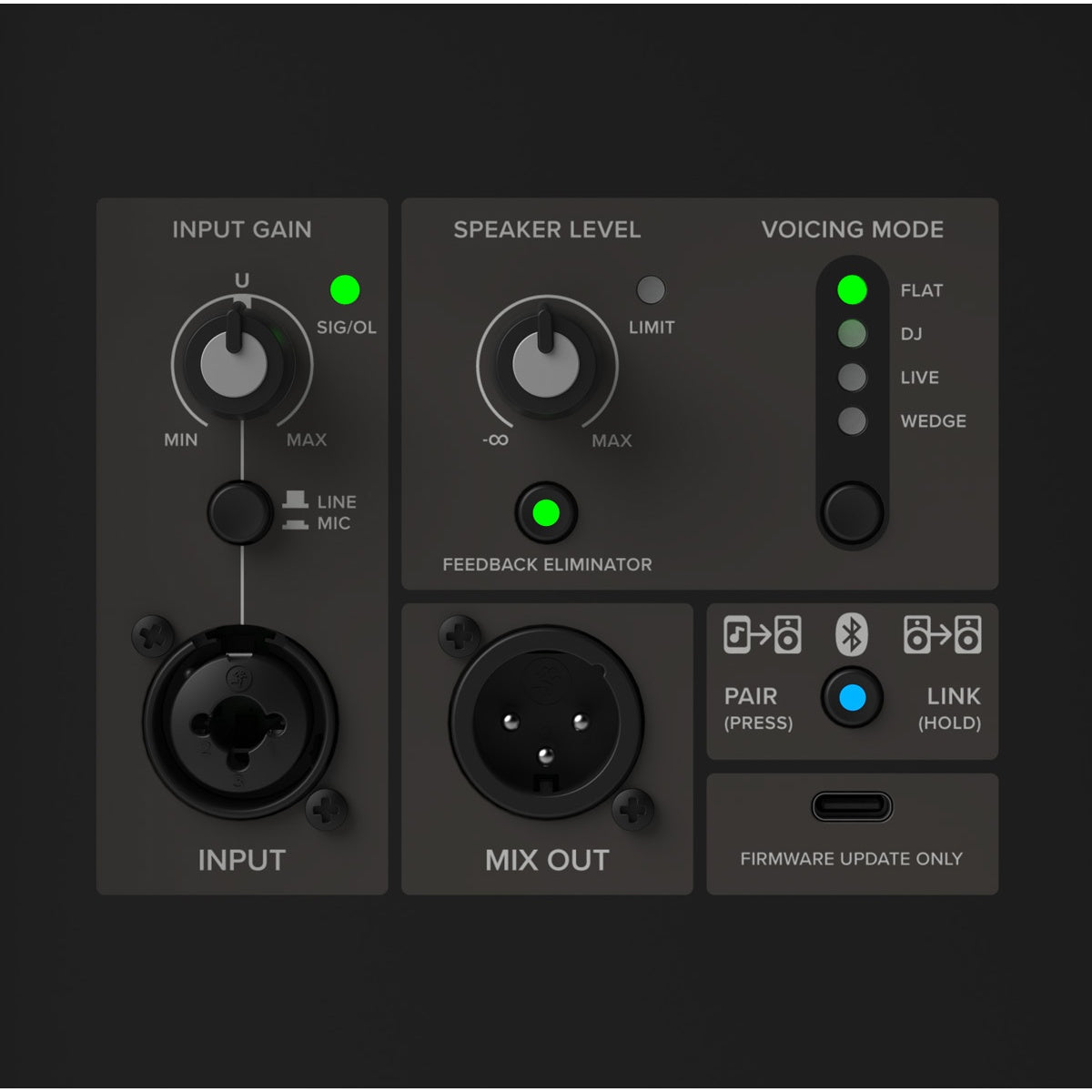

Controls
Voicing Modes
Flat, DJ, Live, Wedge
Feedback Eliminator
On / Off
Display LEDs
Voicing Mode, Bluetooth Status, Link Status, Signal/Overload, Limit, Feedback Eliminator
Transducer Protection
Peak and RMS limiting
Environmental Protection
Power supply and amplifier thermal protection
Dimensions
Product Height
27.2 in / 691 mm
Product Width
16.5 in / 420 mm
Product Depth
15.0 in / 381 mm
Packaged Height
29.5 in / 749 mm
Packaged Width
16.9 in / 429 mm
Packaged Depth
18.3 in / 465 mm
Weight
Product Weight
36.4 lbs / 16.5 kg
Packaged Weight
42.6 lbs / 19.3 kg
Shipping
Package Weight
42.5 lbs
Package Width
19.3"
Package Length
16.2"
Package Height
30"
