LD Systems MAILA Compact Line Array System | 15 kW

LD Systems MAILA Compact Line Array System | 15 kW

SoundPro Item: 204614 | Part Number: LDS-MAILAL

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 15 kW RMS Output For Medium-Size Event Coverage
  • Ground-Stack Design When Flying Is Not Practical

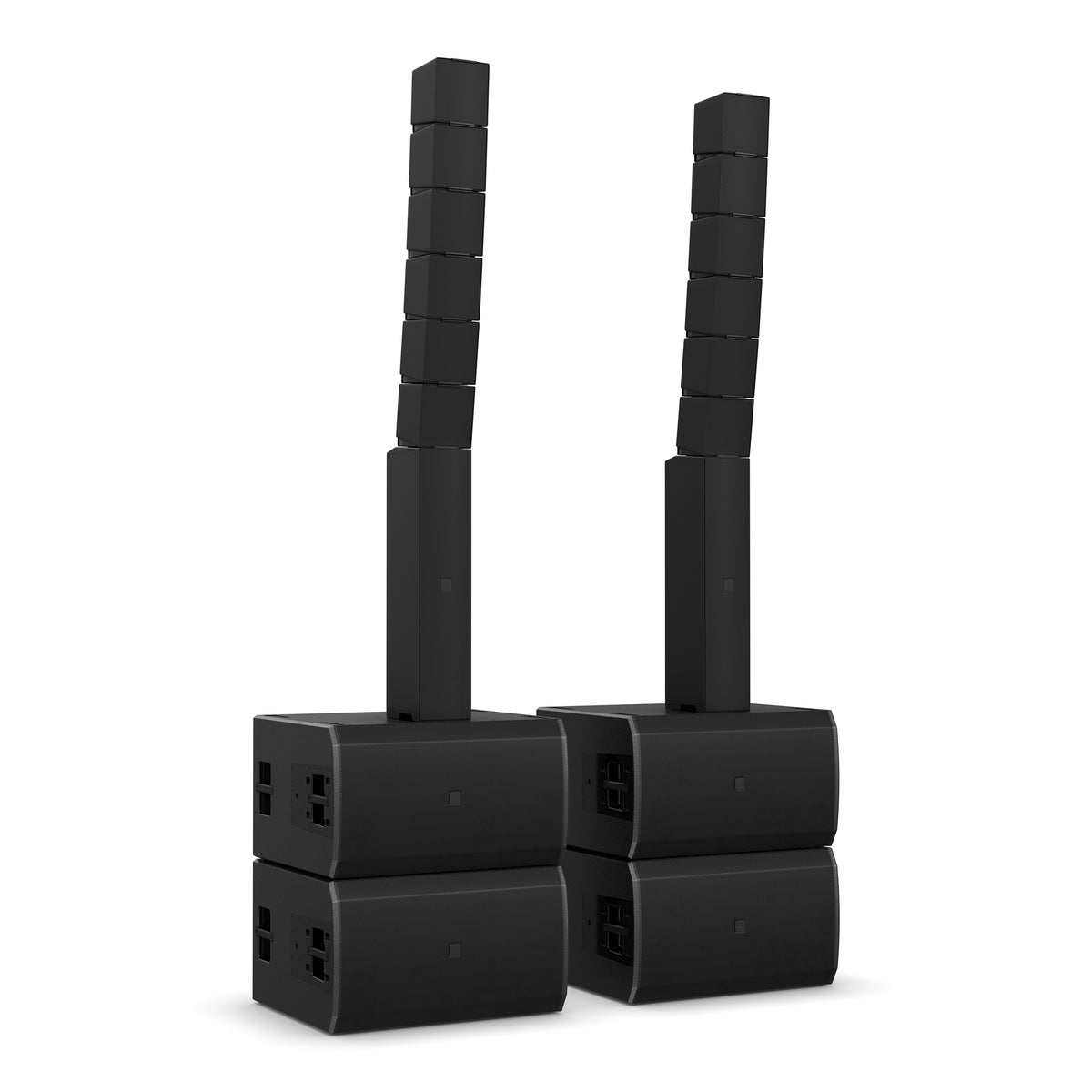

  • EasySplay® Aiming Helps Match Vertical Coverage
  • SmartLink+® Reduces Cabling Between Modules
  • App Control Speeds Setup And System Adjustment
  • Four 2x15" Subs Deliver Strong Low-Frequency Output
Log in or register for YOUR best price

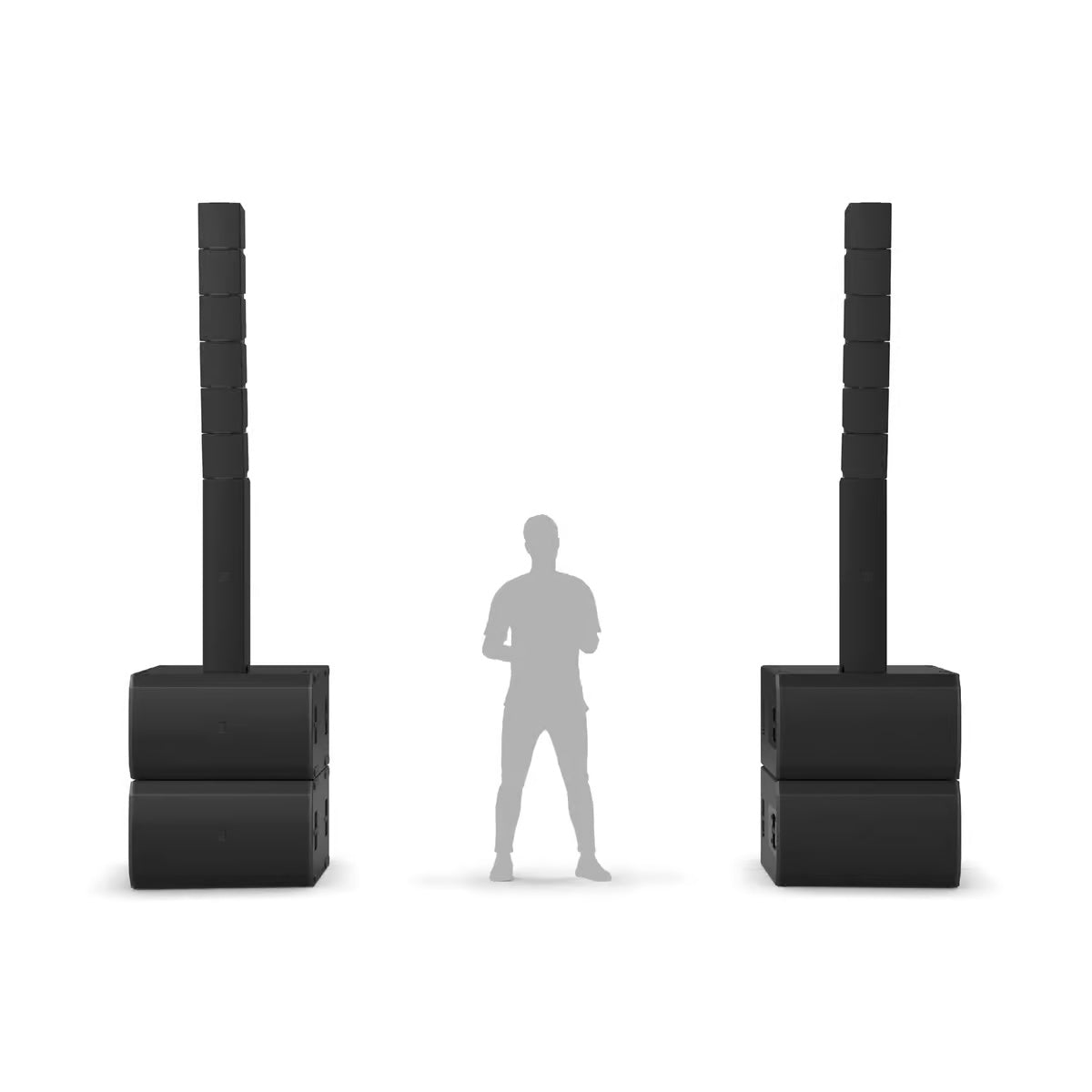

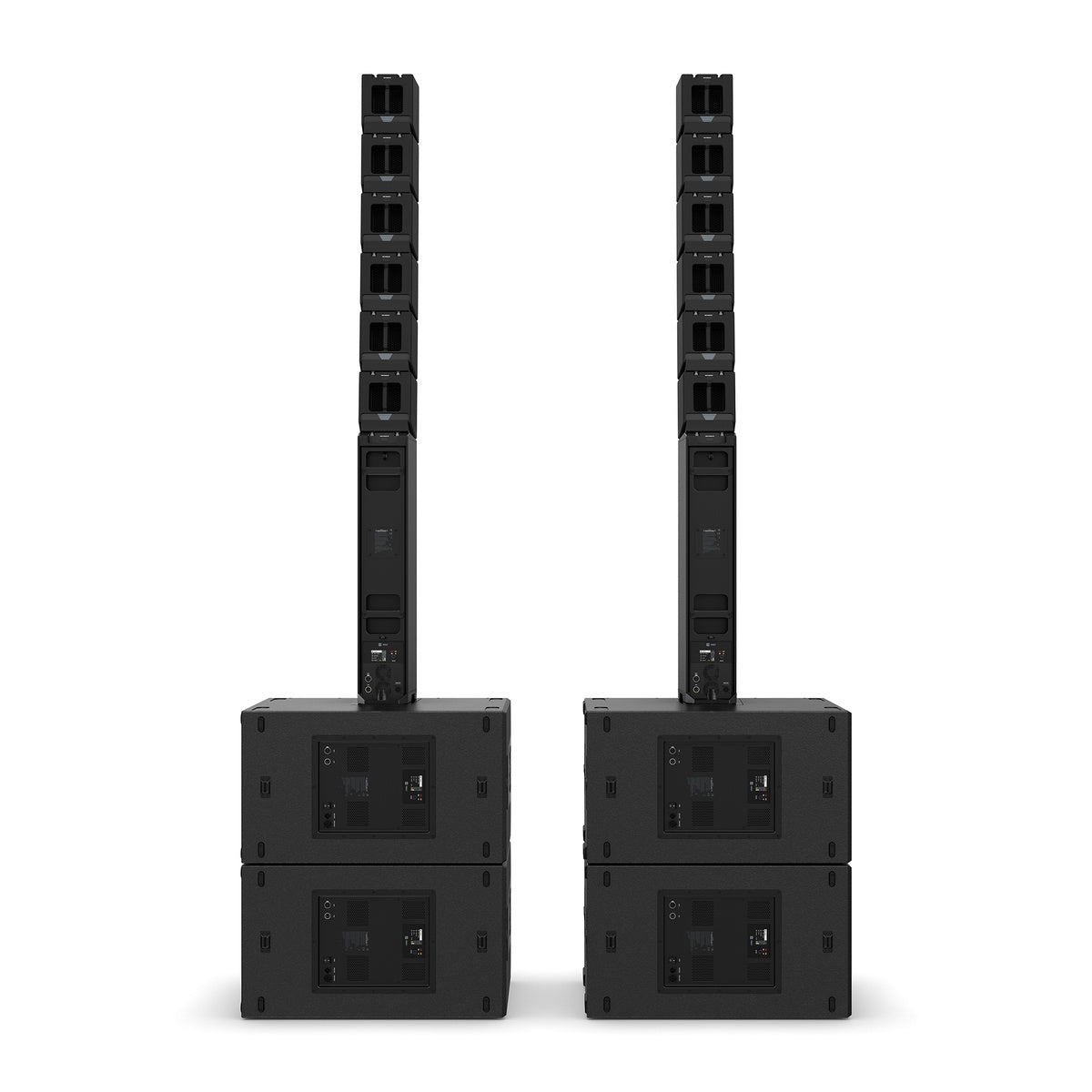

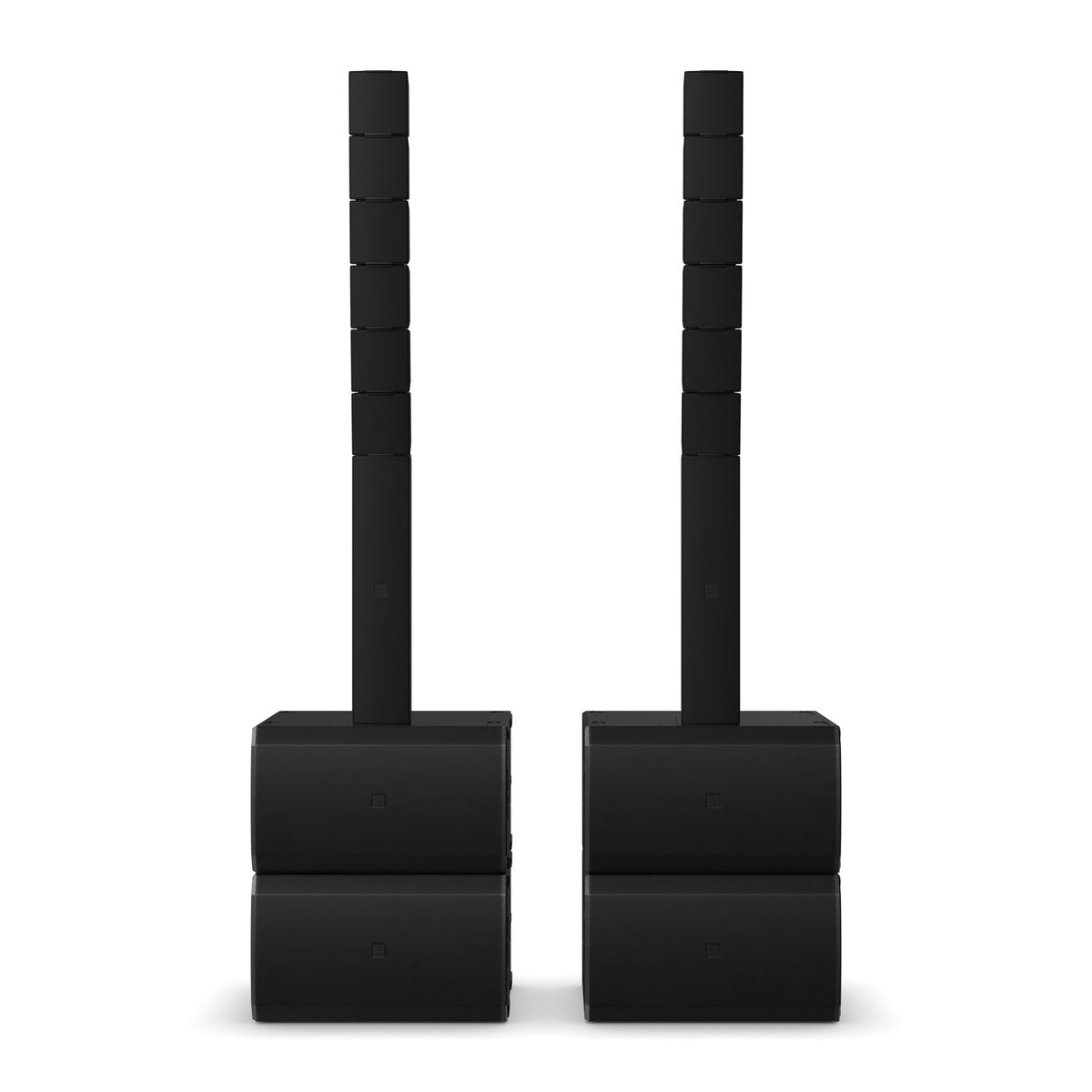

The LD Systems LDS-MAILAL is a complete portable column array PA system built for medium-sized live sound, club reinforcement, and corporate event production where a flown system is not practical. This ground-stack stereo configuration combines four MAILA SUB 2x15" powered bandpass subwoofers, two MAILA COL powered column modules, and twelve MAILA SAT passive array satellites into a scalable system that blends the footprint advantages of a column speaker with the coverage behavior of a line array.

With 15,000 W RMS output power and a stated frequency response of 34 Hz to 20 kHz (-6 dB, relative average), the system is designed to deliver high-impact low end, controlled horizontal coverage, and flexible vertical aiming. Each MAILA COL includes a 2,500 W Class D amplifier and onboard processing, while SmartLink+® provides cable-free connection between the column module and satellites. System setup and adjustment can be handled directly on the device or through the dedicated MAILA Quick Setup App for iPadOS, with wireless connectivity supported through integrated LogoLink® antennas.

The package includes 12 x MAILA SAT, 2 x MAILA COL, 4 x MAILA SUB, 1 x MAILA FC1, 2 x MAILA FC2, 4 x MAILA SUB CB, 4 x MAILA SUB PC, and 6 x mains cable. For production teams and event providers needing a transportable high-output PA with configurable coverage, the LDS-MAILAL presents a complete MAILA L ground-stack solution.

View full details

Specifications

General
Scope of delivery
12 x MAILA SAT, 2 x MAILA COL, 4 x MAILA SUB,1 x MAILA FC1, 2 x MAILA FC2, 4 x MAILA SUB CB, 4 x MAILA SUB PC, 6 x Mains Cable
Material
Birch multiplex
RMS output power
15000 W
Frequency response (-6 dB, rel. Avg)
34 - 20,000 Hz
Beam angle
Hor.: 100° / Vert.: 8 - 48°
Colour
Black
Maximum height
3,370 mm
Weight
482.8 kg
MAILA COL
Type
Active
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
125.4 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
130 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
122 dB
Frequency response (-6 dB, rel. Avg)
105 - 500 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overvoltage, Overload
Colour
Black
Bluetooth® version
Bluetooth® 4.2
Features
App control
Number of line inputs
1
Line-In connector type
XLR 3-pole female
Input impedance (balanced)
20,000 Ω
Mixer
Yes
Mixer channels
4
Audio processing
3 band EQ (High, Mid, Low), Delay Line, Dynamics, Reverb
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
6.5 "
Quantity
4
Magnet
Neodymium
Voice coil
2 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
800 W
Design
Bass reflex
Number of handles
2
Number of mounting points
3
Cabinet material
Aluminum continuous casting
Front grille material
Aluminium
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
205 mm
Height
1,028 mm
Depth
354 mm
Weight
36.195 kg
MAILA SUB
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
137 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
132 dB
Low frequency limit (-6 dB, rel. Avg.)
33 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overload
Colour
Black
Bluetooth® version
Bluetooth® 5.0
Features
App control
Input impedance (balanced)
20,000 Ω
Mixer
No
Audio processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
15 "
Quantity
2
Magnet
Neodymium
Voice coil
4 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
1,300 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bandpass
Number of handles
6
Cabinet material
Birch multiplex
Material thickness
18 mm
Coating
Polyurea
Front grille material
Aluminium
Cooling system
Convection cooling
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
540 mm
Height
934 mm
Depth
803 mm
Weight
89.8 kg
Included accessories
Mains cable
MAILA SAT
Type
Passive
Power handling (AES)
LF: 170 W / HF: 50 W
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
128.2 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
129.1 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
115 dB
Frequency response
100 - 20,000 Hz
Speaker system
2-way system
Beam angle
Hor.: 100° / Vert.:8°
Input connector types
SmartLink+®
Colour
Black
Size
6.5 "
Magnet
Neodymium
Voice coil
1.8 "
Driver size
1 "
Quantity
5
Design
Bass reflex
Number of handles
1
Cabinet material
Die-cast aluminium
Width
205 mm
Height
234 mm
Depth
226 mm
Weight
7.65 kg
