LD Systems MAILA Compact Line Array System | 10 kW

LD Systems MAILA Compact Line Array System | 10 kW

SoundPro Item: 204615 | Part Number: LDS-MAILAM

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Scalable Stereo System For Flexible Deployment
  • EasySplay® Satellite Aiming For Faster Coverage Tuning
  • SmartLink+® Connection Reduces Visible Cabling
  • App-Based Setup Supports Quicker System Configuration
  • Dual 15" Bandpass Subs Deliver Strong Low-End Output
  • Aluminium Housings Support Durable Touring Use
Log in or register for YOUR best price

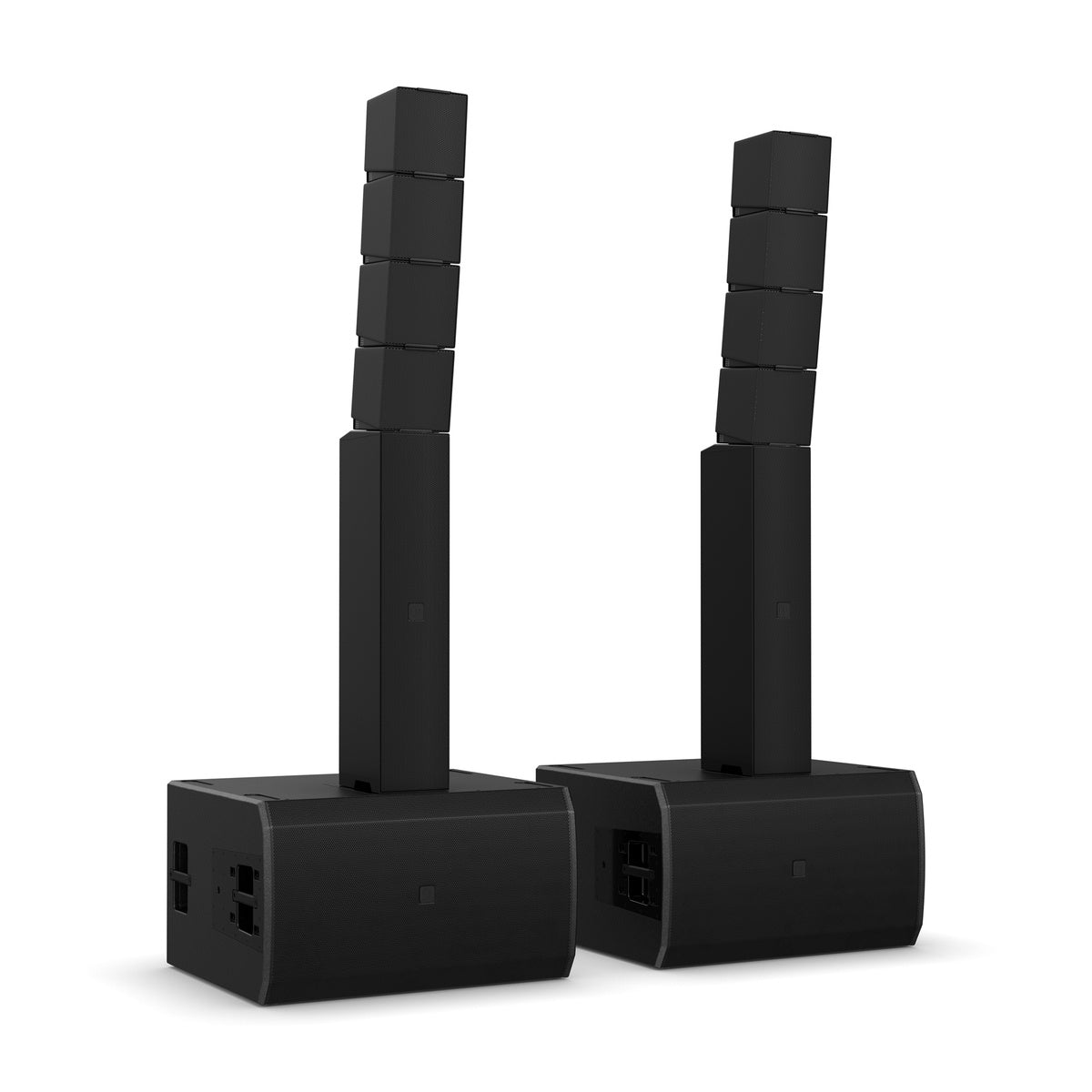

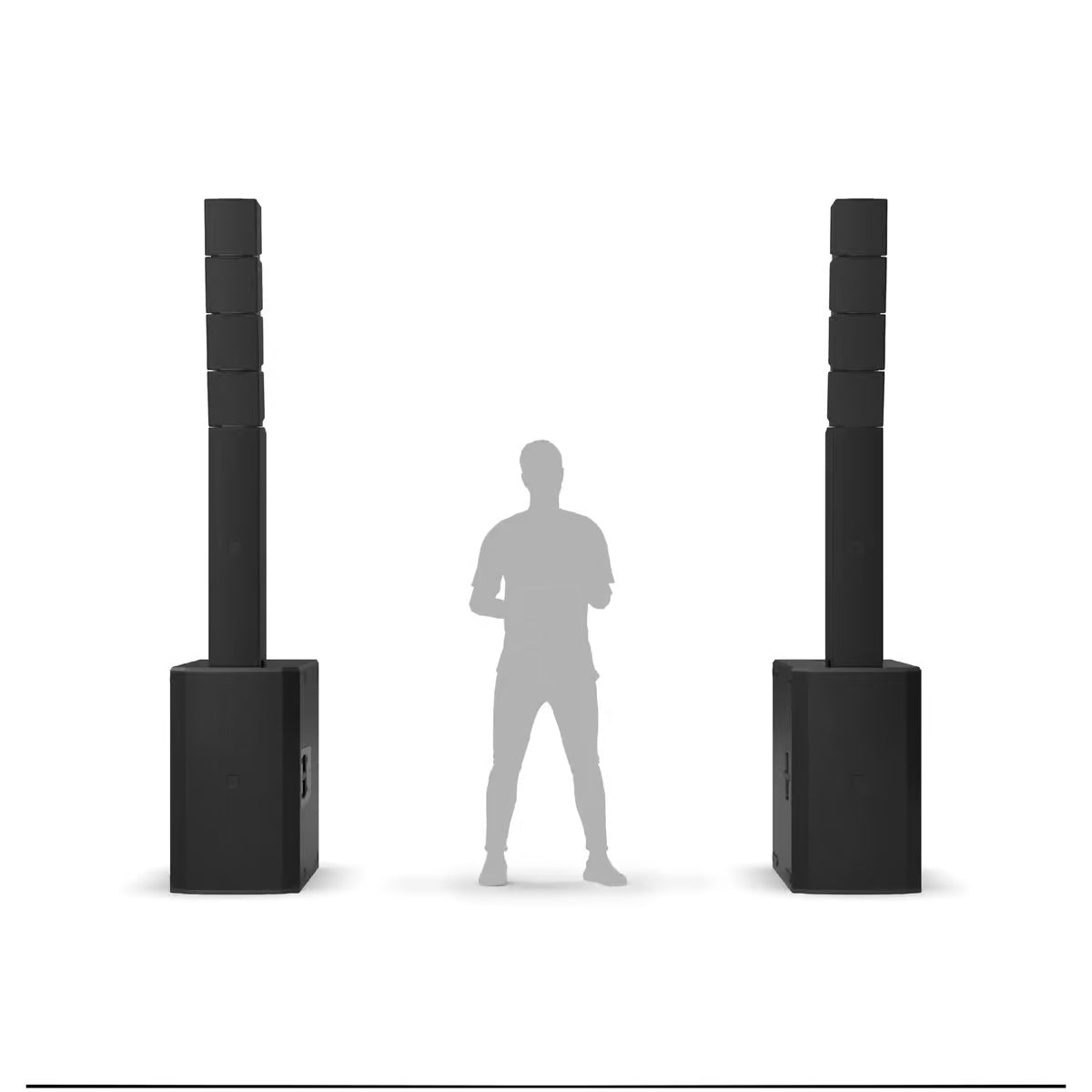

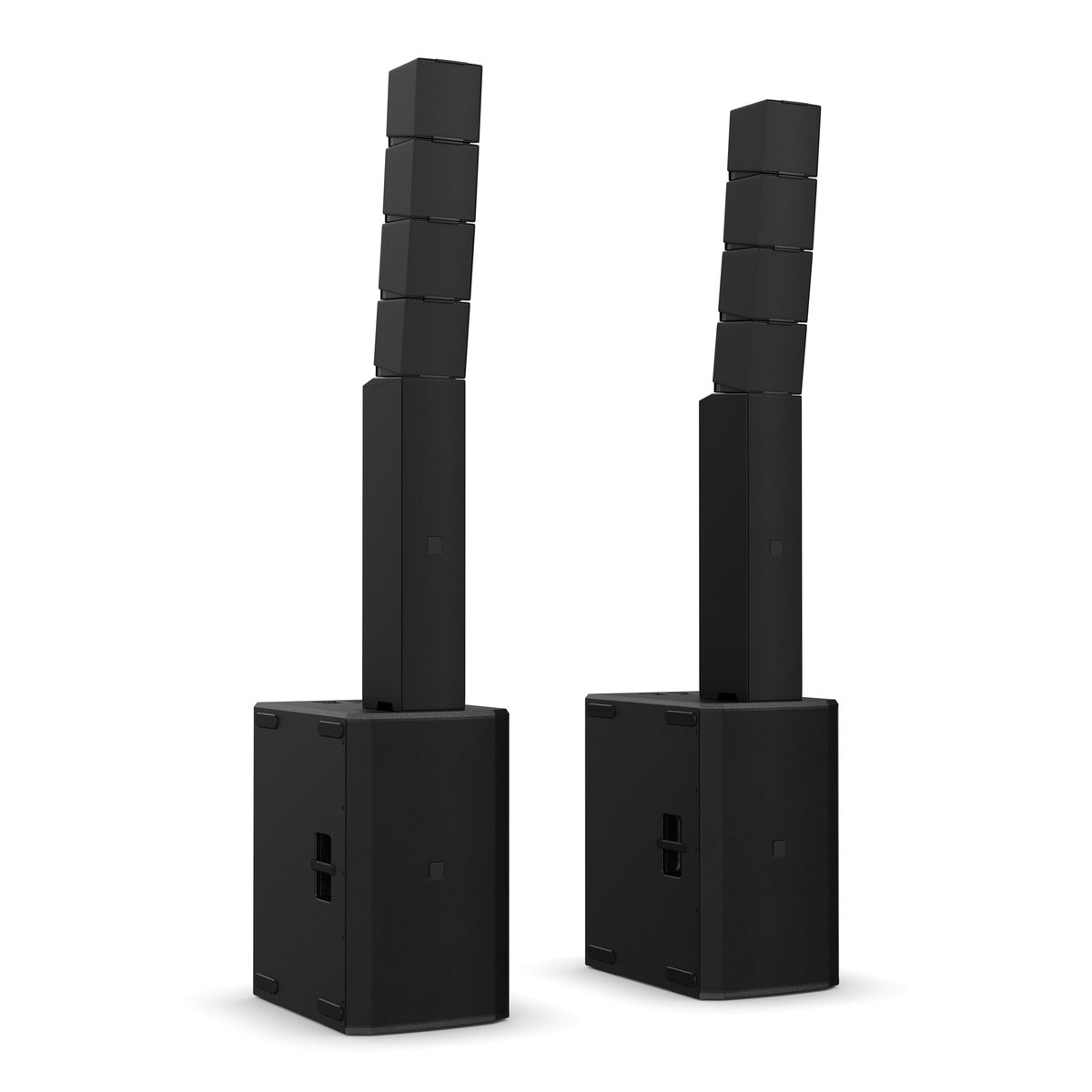

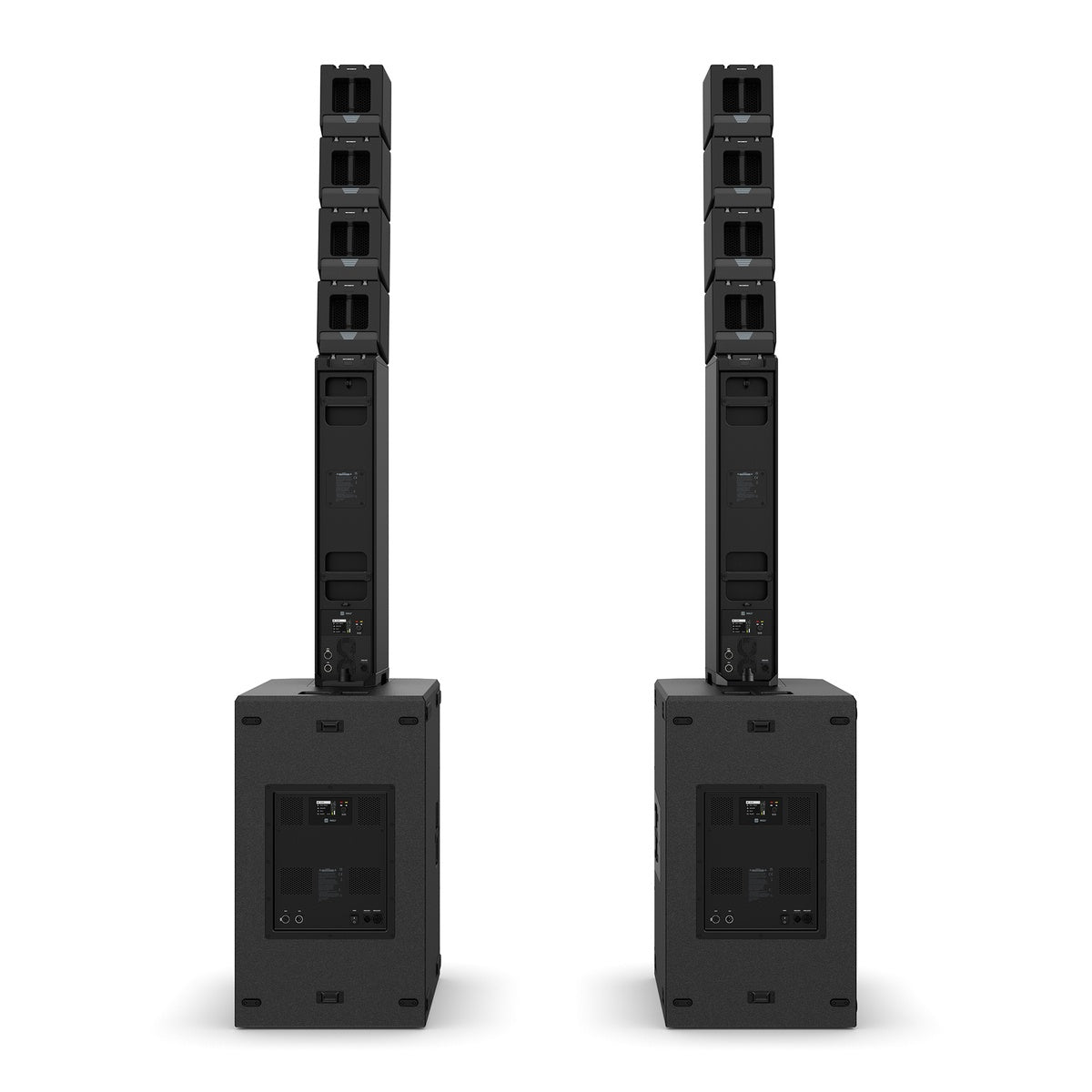

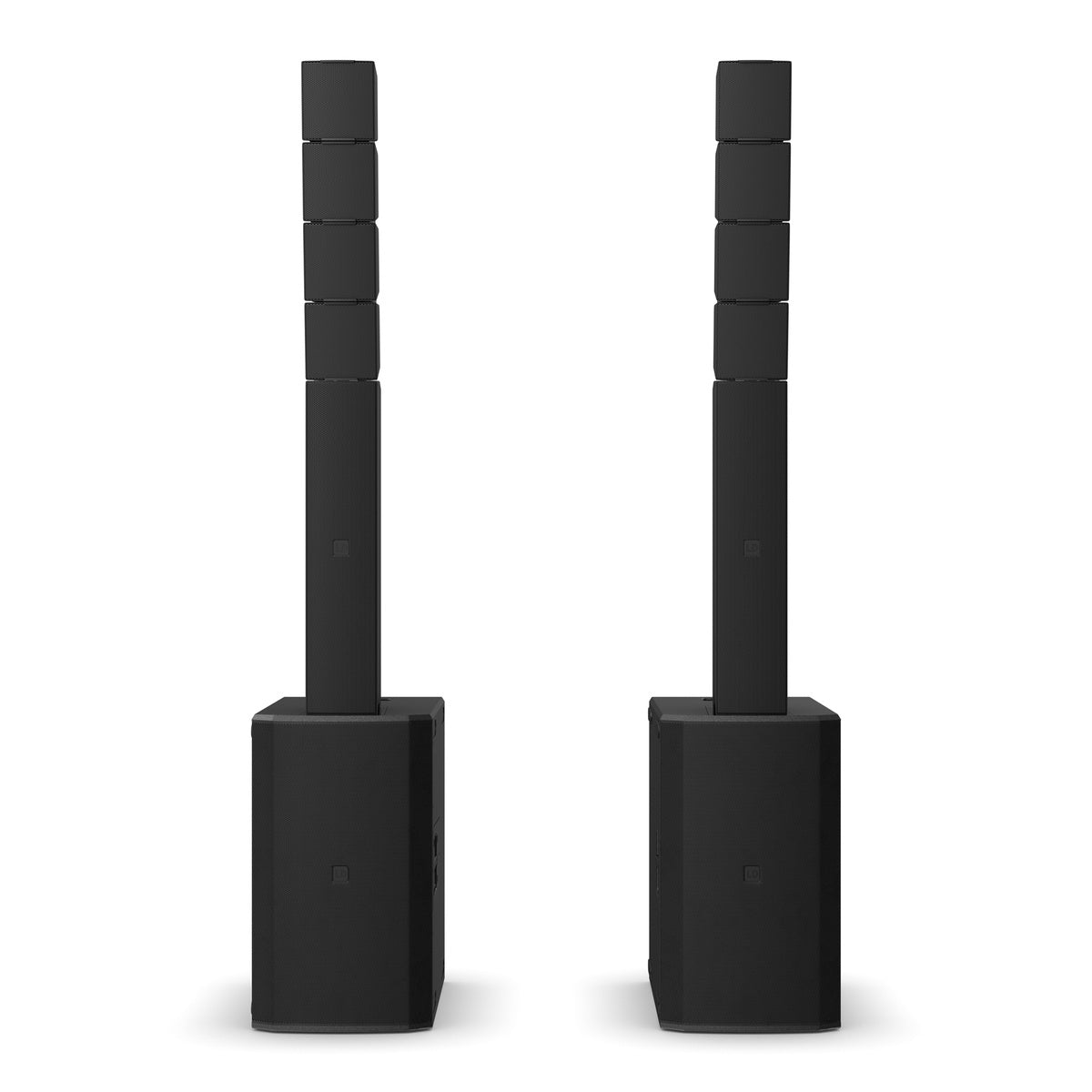

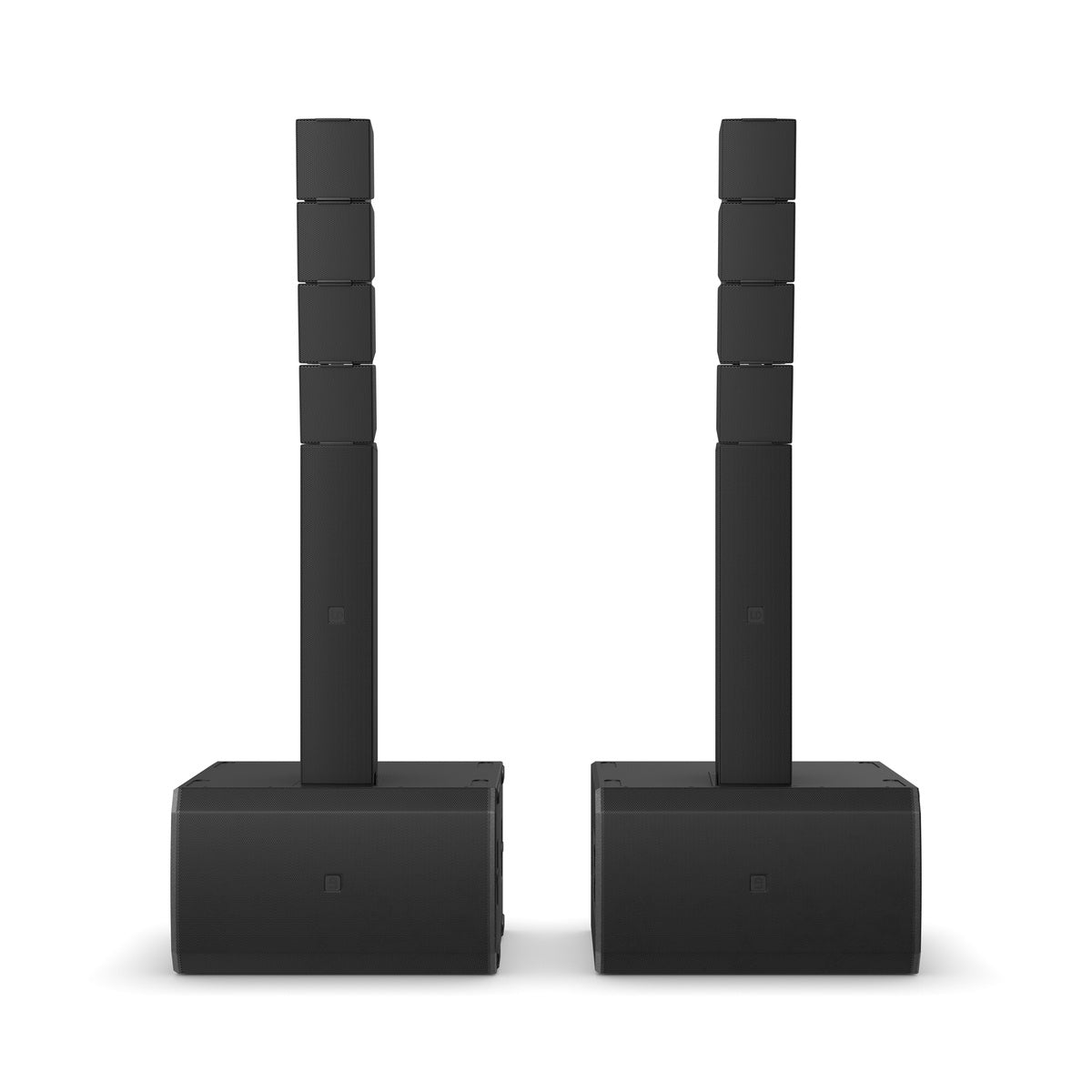

The LD Systems LDS-MAILAM is a scalable portable column PA stereo system built around the MAILA platform for production teams, rental inventories, and event providers who need flexible deployment without committing to a single loudspeaker format. This M configuration combines two powered 2x15" bandpass subwoofers, two column modules, and eight passive array satellites into a full-range stereo setup that can serve ground stack applications while supporting broader system design options within the MAILA ecosystem. With total RMS output rated at 10000 W and frequency response down to 34 Hz (-6 dB, relative average), it is positioned for audiences that demand substantial output and full-bandwidth reinforcement.

The system architecture blends several acoustic approaches in one package: a bandpass subwoofer foundation, a low-mid column section with integrated amplification and DSP, and compact satellites that use a WaveAhead® arrangement with SonicGuide® coupling and EasySplay® angle adjustment from 0° to 8°. SmartLink+® enables cable-free connection between the column module and satellites, helping streamline physical assembly. Wireless control is available through the MAILA Quick Setup App on iPadOS, with LogoLink® antenna integration supporting practical remote operation and system setup. Coverage is specified at 100° horizontal with vertical control from 8° to 36°, making the system relevant for clubs, small festival stages, and speech-driven corporate events where coverage shaping matters.

View full details

Specifications

General
Scope Of Delivery
8 x MAILA SAT, 2 x MAILA COL, 2 x MAILA SUB, 2 x MAILA FC2, 2 x MAILA SUB CB, 2 x MAILA SUB PC, 4 x Mains Cable
Material
Birch multiplex
RMS Output Power
10000 W
Frequency Response (-6 dB, Rel. Avg)
34 - 20,000 Hz
Beam Angle
Hor.: 100° / Vert.: 8 - 36°
Colour
Black
Maximum Height
2,920 mm
Weight
293.2 kg
MAILA COL
Type
Active
RMS Output Power
2500 W
Amp Class
Class D
Max. SPL Peak (Sine Burst, Fullspace/1 m, THD≤10 %)
125.4 dB
Max. SPL Peak (Pink Noise, Fullspace/1 m, CF 4)
130 dB
Max. SPL Average (Sine Burst, BW, Fullspace/1 m, THD≤10 %)
122 dB
Frequency Response (-6 dB, Rel. Avg)
105 - 500 Hz
Number Of Inputs
1
Input Connector Types
XLR 3-pole female
Number Of Outputs
1
Output Connector Types
XLR 3-pole male
Protection Features
Limiter, Overheating, Overvoltage, Overload
Colour
Black
Bluetooth® Version
Bluetooth® 4.2
Features
App control
Number Of Line Inputs
1
Line-In Connector Type
XLR 3-pole female
Input Impedance (Balanced)
20,000 Ω
Mixer
Yes
Mixer Channels
4
Audio Processing
3 band EQ (High, Mid, Low), Delay Line, Dynamics, Reverb
AD/DA Converter Bit Depth
24 Bit
AD/DA Converter Sampling Rate
48 kHz
Size
6.5 "
Quantity
4
Magnet
Neodymium
Voice Coil
2 "
Operation Voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power Supply Type
Switched-mode power supply (SMPS)
Rated Power
800 W
Design
Bass reflex
Number Of Handles
2
Number Of Mounting Points
3
Cabinet Material
Aluminum continuous casting
Front Grille Material
Aluminium
Ambient Temperature
0 - 40°C
Maximum Air Humidity (Non-Condensing)
80 %
Width
205 mm
Height
1,028 mm
Depth
354 mm
Weight
36.195 kg
MAILA SUB
RMS Output Power
2500 W
Amp Class
Class D
Max. SPL Peak (Pink Noise, Halfspace/1 m, CF 4)
137 dB
Max. SPL Average (Sine Burst, BW, Halfspace/1 m, THD≤10 %)
132 dB
Low Frequency Limit (-6 dB, Rel. Avg.)
33 Hz
Number Of Inputs
1
Input Connector Types
XLR 3-pole female
Number Of Outputs
1
Output Connector Types
XLR 3-pole male
Protection Features
Limiter, Overheating, Overload
Colour
Black
Bluetooth® Version
Bluetooth® 5.0
Features
App control
Input Impedance (Balanced)
20,000 Ω
Mixer
No
Audio Processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA Converter Bit Depth
24 Bit
AD/DA Converter Sampling Rate
48 kHz
Size
15 "
Quantity
2
Magnet
Neodymium
Voice Coil
4 "
Operation Voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power Supply Type
Switched-mode power supply (SMPS)
Rated Power
1,300 W
Mains Connector
Mains socket indoor power in male & powerCON®
Design
Bandpass
Number Of Handles
6
Cabinet Material
Birch multiplex
Material Thickness
18 mm
Coating
Polyurea
Front Grille Material
Aluminium
Cooling System
Convection cooling
Ambient Temperature
0 - 40°C
Maximum Air Humidity (Non-Condensing)
80 %
Width
540 mm
Height
934 mm
Depth
803 mm
Weight
89.8 kg
Included Accessories
Mains cable
MAILA SAT
Type
Passive
Power Handling (AES)
LF: 170 W / HF: 50 W
Max. SPL Peak (Sine Burst, Fullspace/1 m, THD≤10 %)
128.2 dB
Max. SPL Peak (Pink Noise, Fullspace/1 m, CF 4)
129.1 dB
Max. SPL Average (Sine Burst, BW, Fullspace/1 m, THD≤10 %)
115 dB
Frequency Response
100 - 20,000 Hz
Speaker System
2-way system
Beam Angle
Hor.: 100° / Vert.:8°
Input Connector Types
SmartLink+®
Colour
Black
Size
6.5 "
Magnet
Neodymium
Voice Coil
1.8 "
Driver Size
1 "
Quantity
5
Design
Bass reflex
Number Of Handles
1
Cabinet Material
Die-cast aluminium
Width
205 mm
Height
234 mm
Depth
226 mm
Weight
7.65 kg
