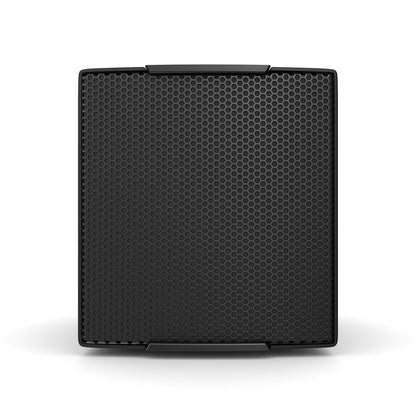

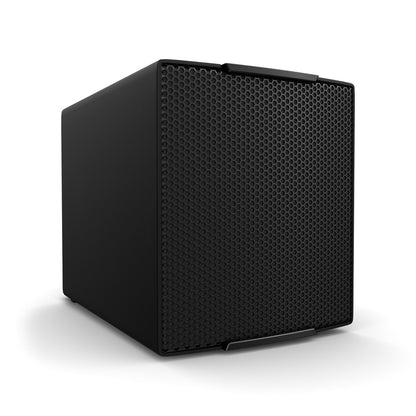

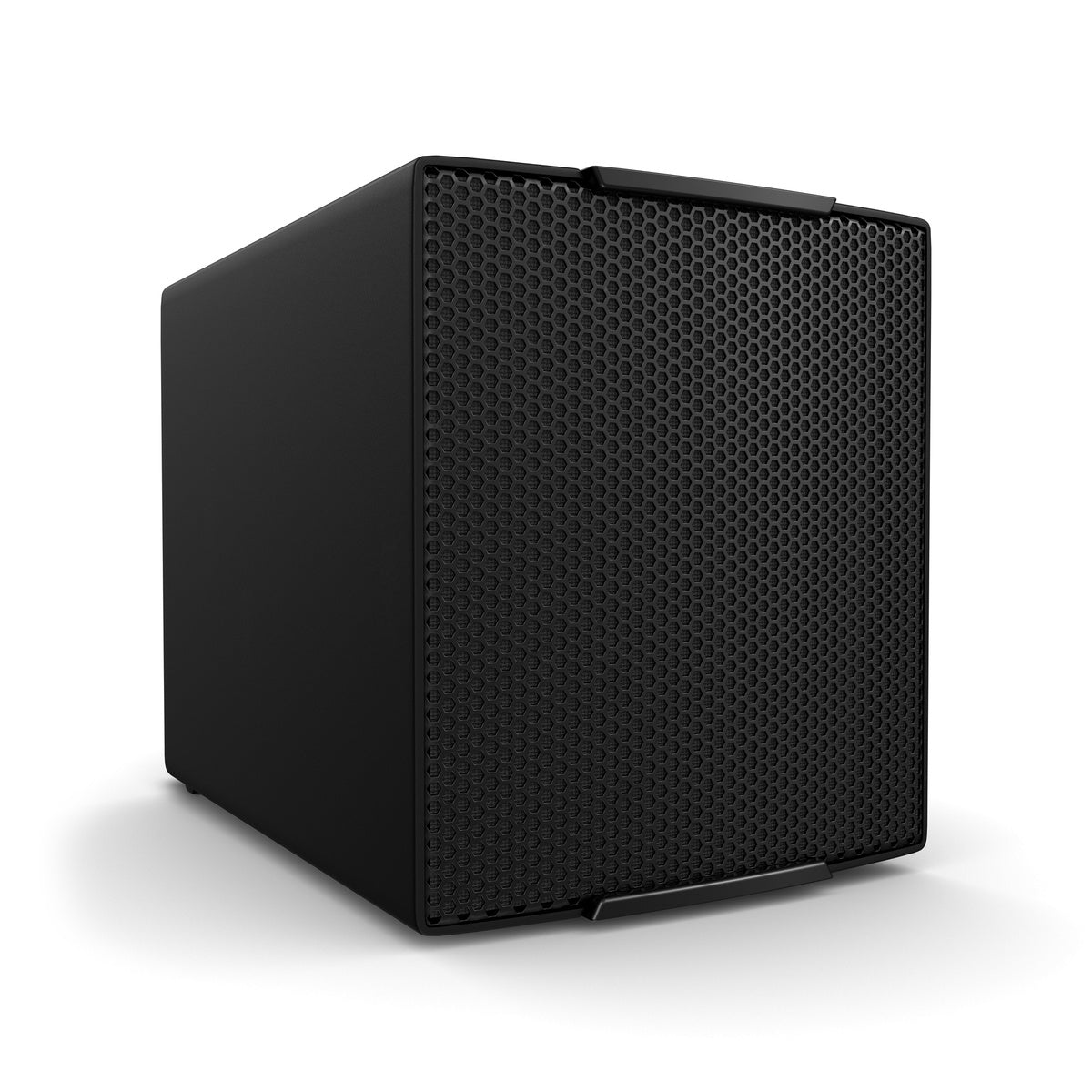

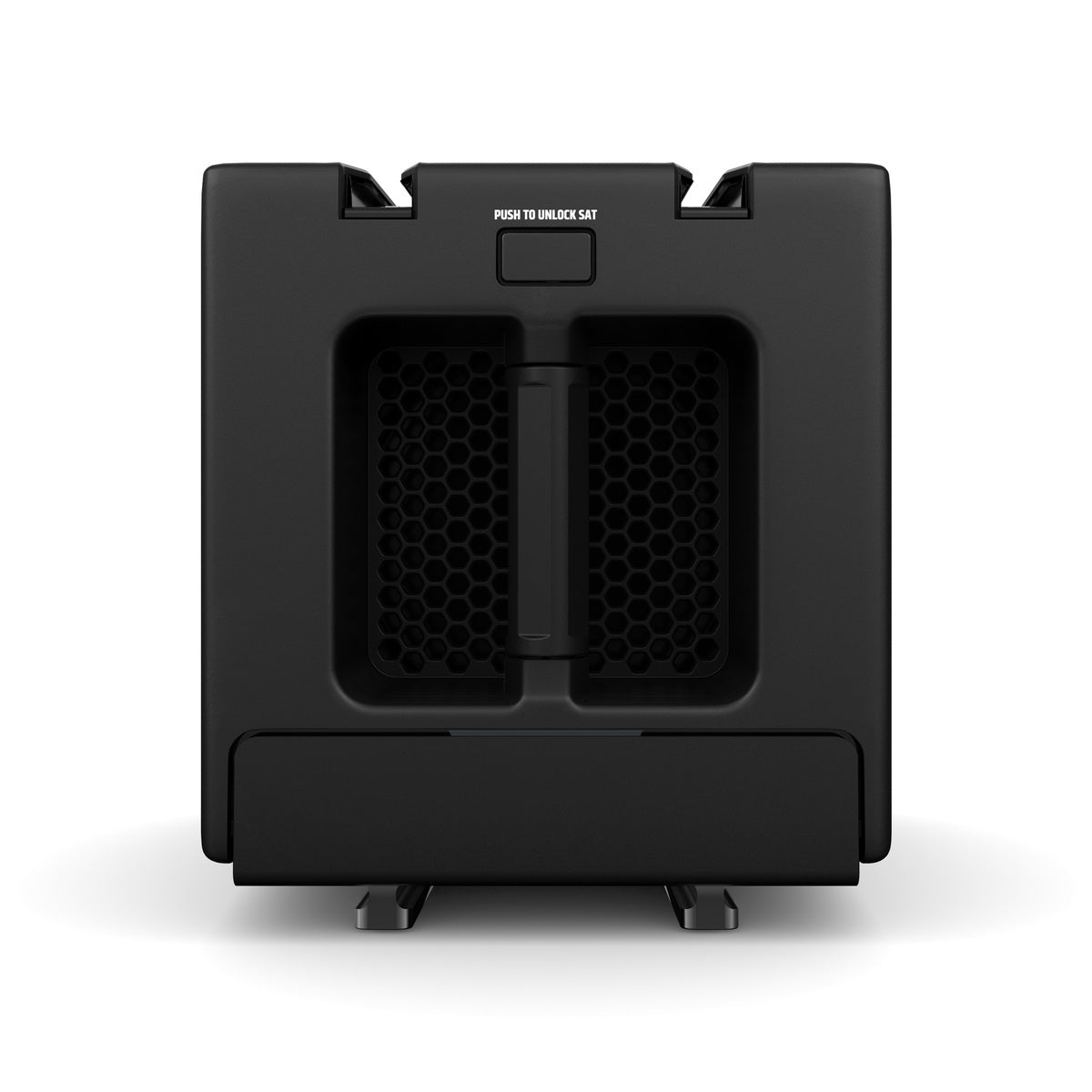

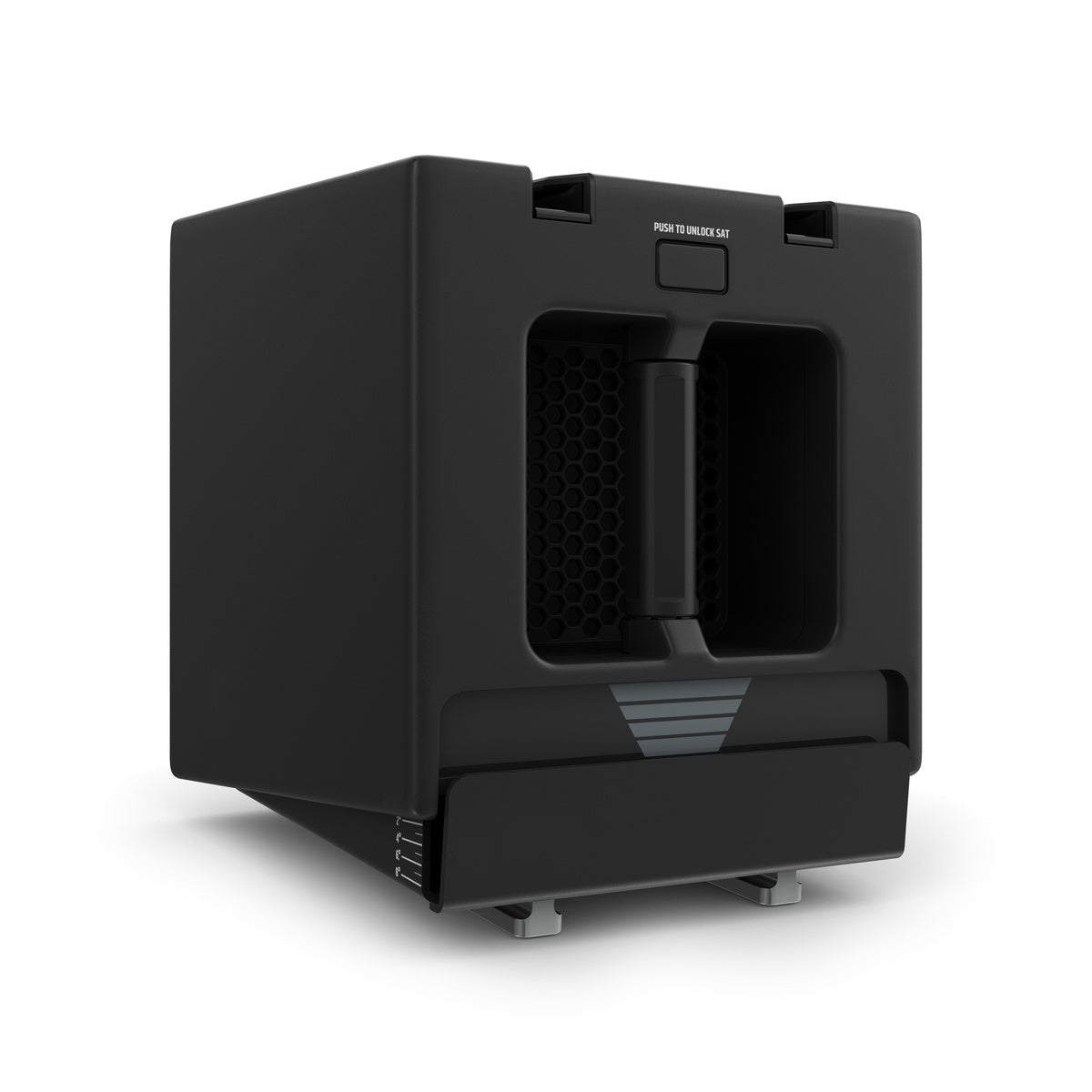

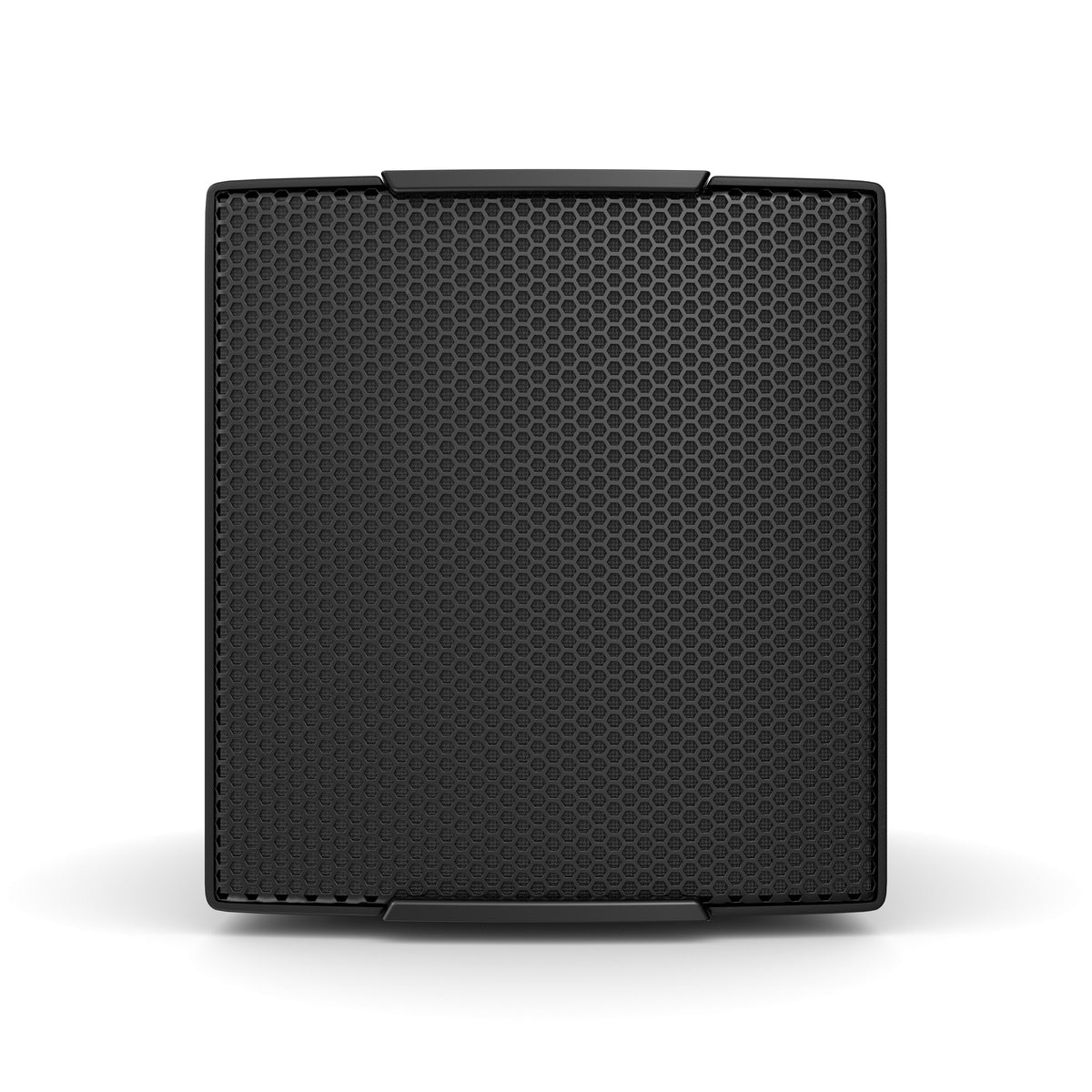

LD Systems MAILA Series Passive Line Array Satellite Module

LD Systems MAILA Series Passive Line Array Satellite Module

SoundPro Item: 204617 | Part Number: LDS-MAILASAT

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Compact Format For Flexible Array Builds
  • One-Hand Splay Adjustment Speeds Deployment
  • Cable-Free Linking Simplifies System Assembly
  • Scales To Eight Modules For Wider Coverage
  • Aluminium Housing Supports Touring Durability

The LD Systems LDS-MAILASAT is an ultra-compact passive line array satellite designed for modular MAILA system builds in portable production and installed sound environments. Its coaxial array architecture combines a 6.5" midrange driver with five 1" tweeters to support controlled coverage and consistent projection from a compact enclosure. For integrators and system techs building adaptable arrays, this module is intended to work in multiples and link into a larger beam-shaping system.

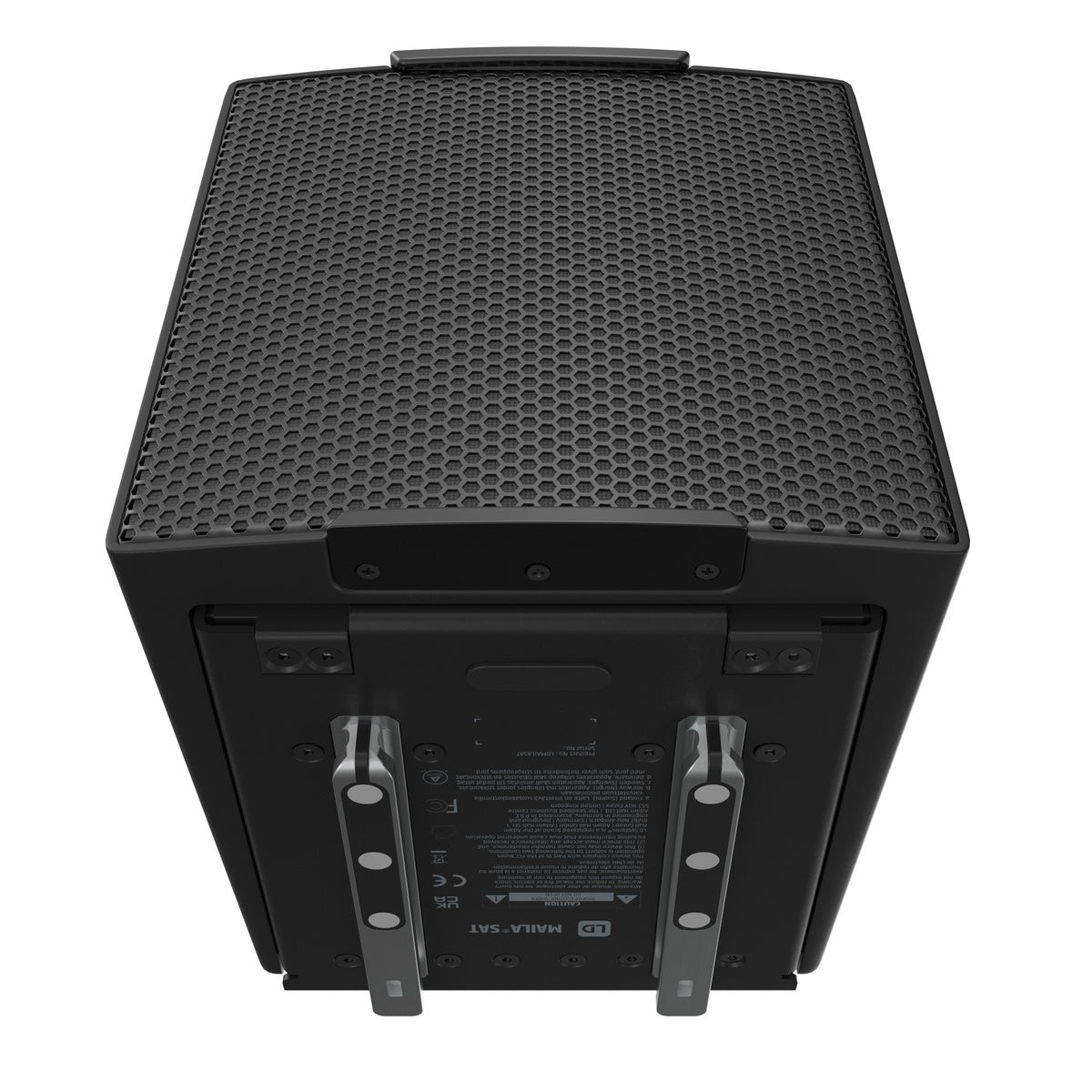

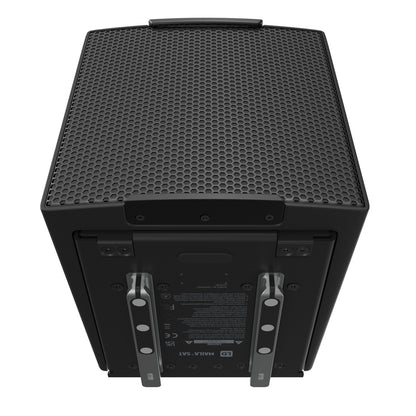

The enclosure uses a durable die-cast aluminium construction suited to repeated deployment while maintaining a clean, streamlined profile. MAILA SAT also incorporates the EasySplay® mechanism, allowing each element to be adjusted from 0° to 8° with one hand, including when the array is under load. This gives crews a practical way to tailor vertical coverage on site without slowing setup.

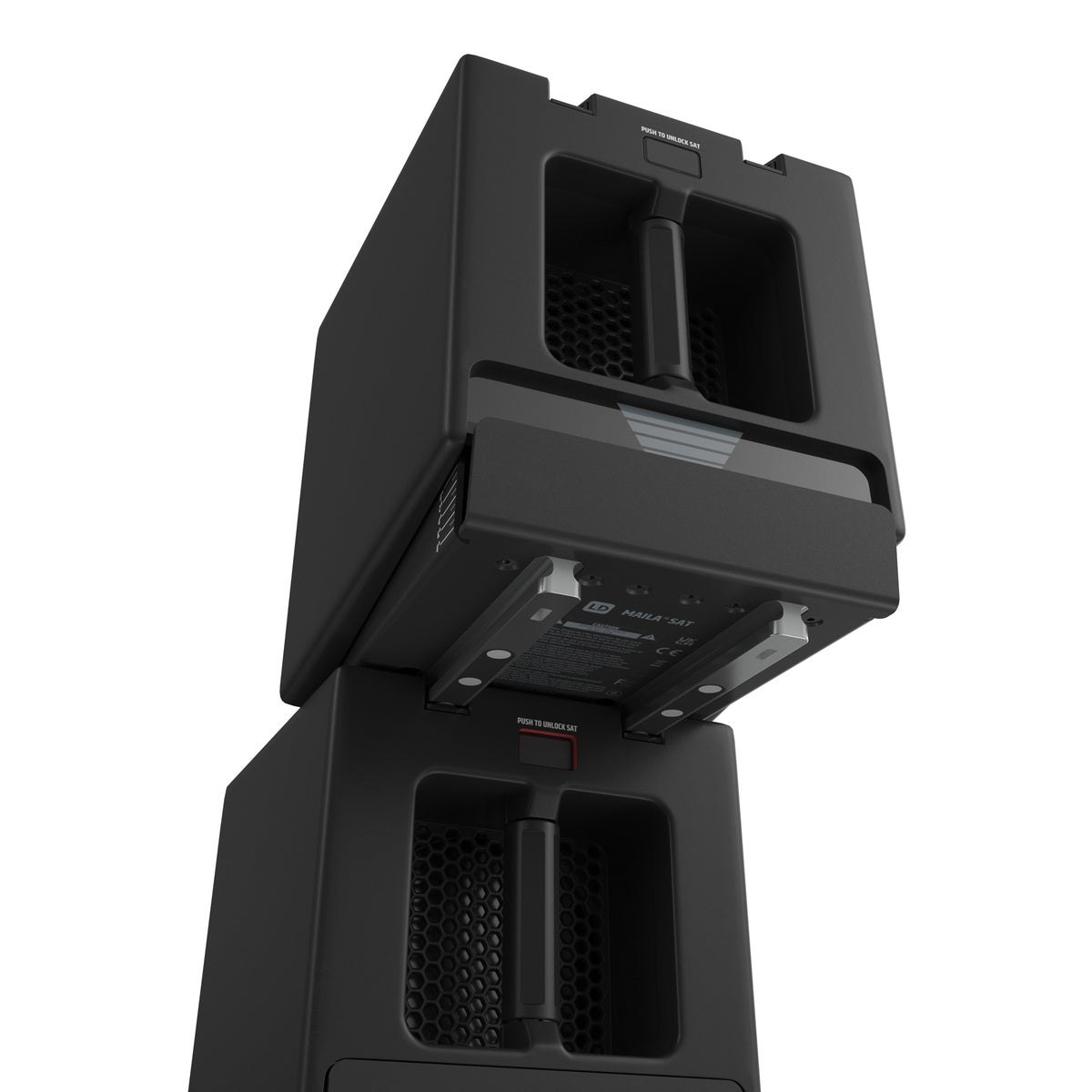

Within the MAILA ecosystem, SmartLink+® provides the connection path between satellites and compatible MAILA components, enabling cable-free linking through the mechanical rail structure. The module is scalable to arrays of up to eight MAILA SAT satellites, making it a strong fit for users who need compact line array behavior, flexible deployment, and straightforward system expansion.

View full details

Specifications

General
Type
Passive
Power handling (AES)
LF: 170 W / HF: 50 W
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
128.2 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
129.1 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
115 dB
Frequency response
100 - 20,000 Hz
Speaker system
2-way system
Beam angle
Hor.: 100° / Vert.:8°
Input connector types
SmartLink+®
Colour
Black
Bass driver
Size
6.5 "
Magnet
Neodymium
Voice coil
1.8 "
Tweeter
Driver size
1 "
Quantity
5
Housing
Design
Bass reflex
Number of handles
1
Cabinet material
Die-cast aluminium
Dimensions & weight
Width
205 mm
Height
234 mm
Depth
226 mm
Weight
7.65 kg
