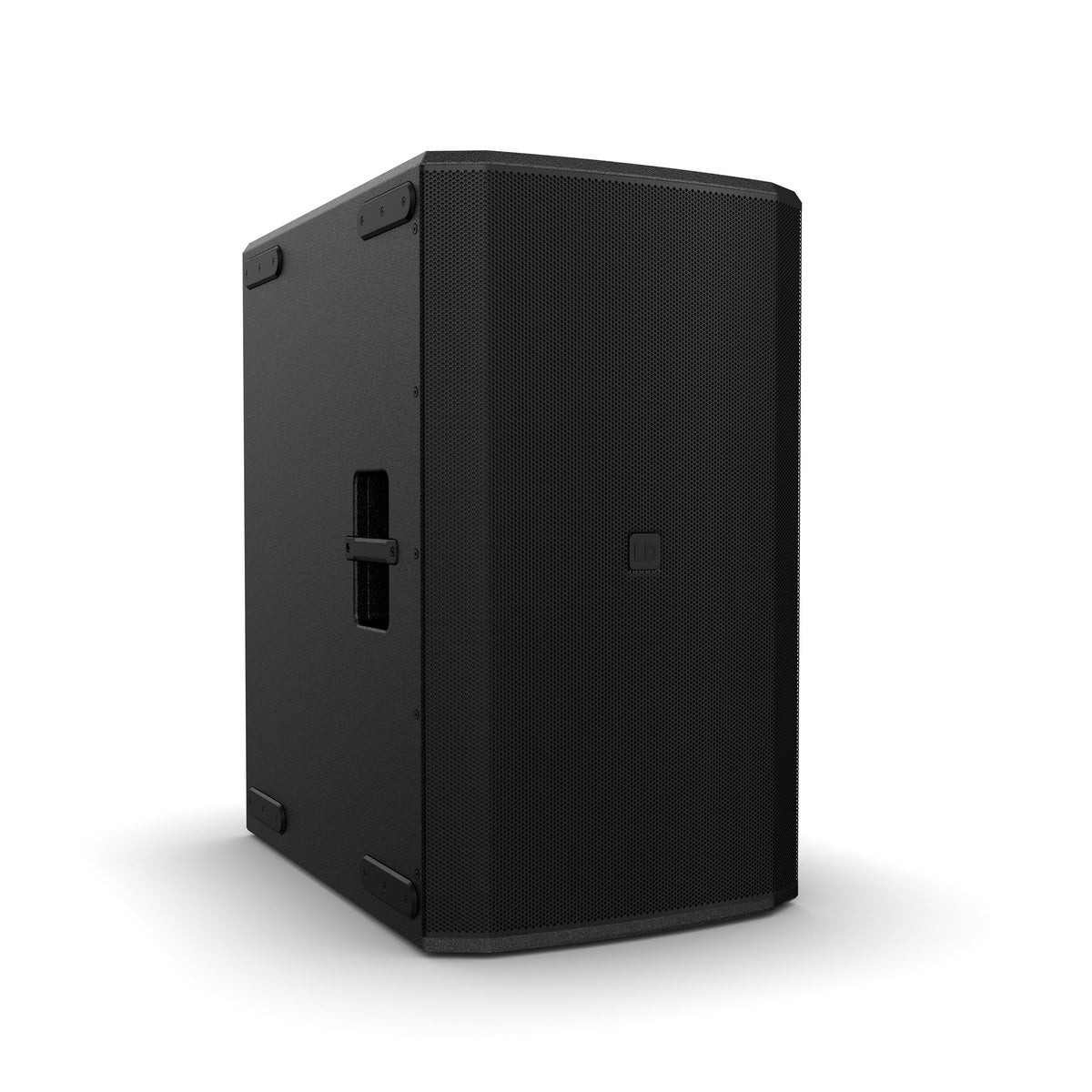

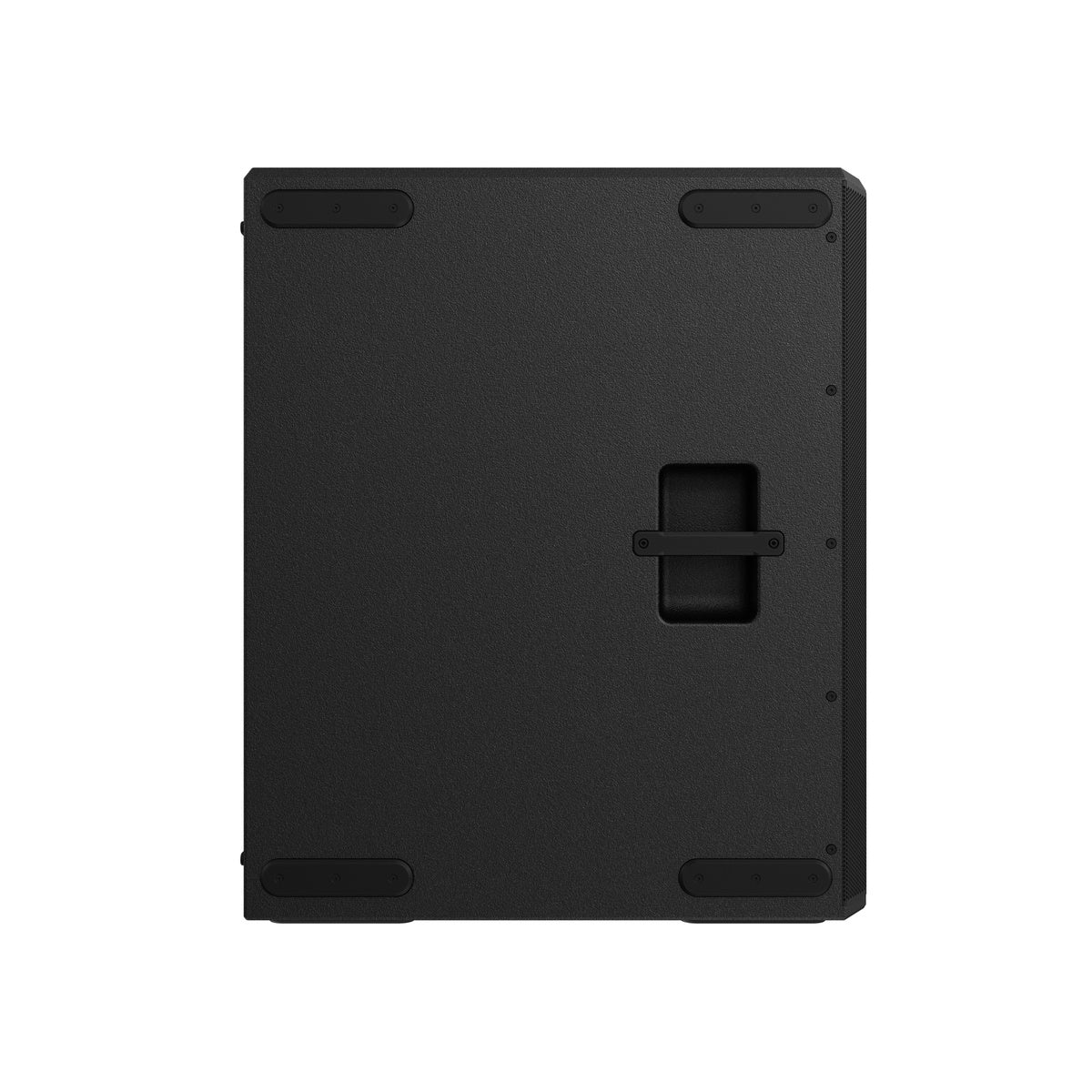

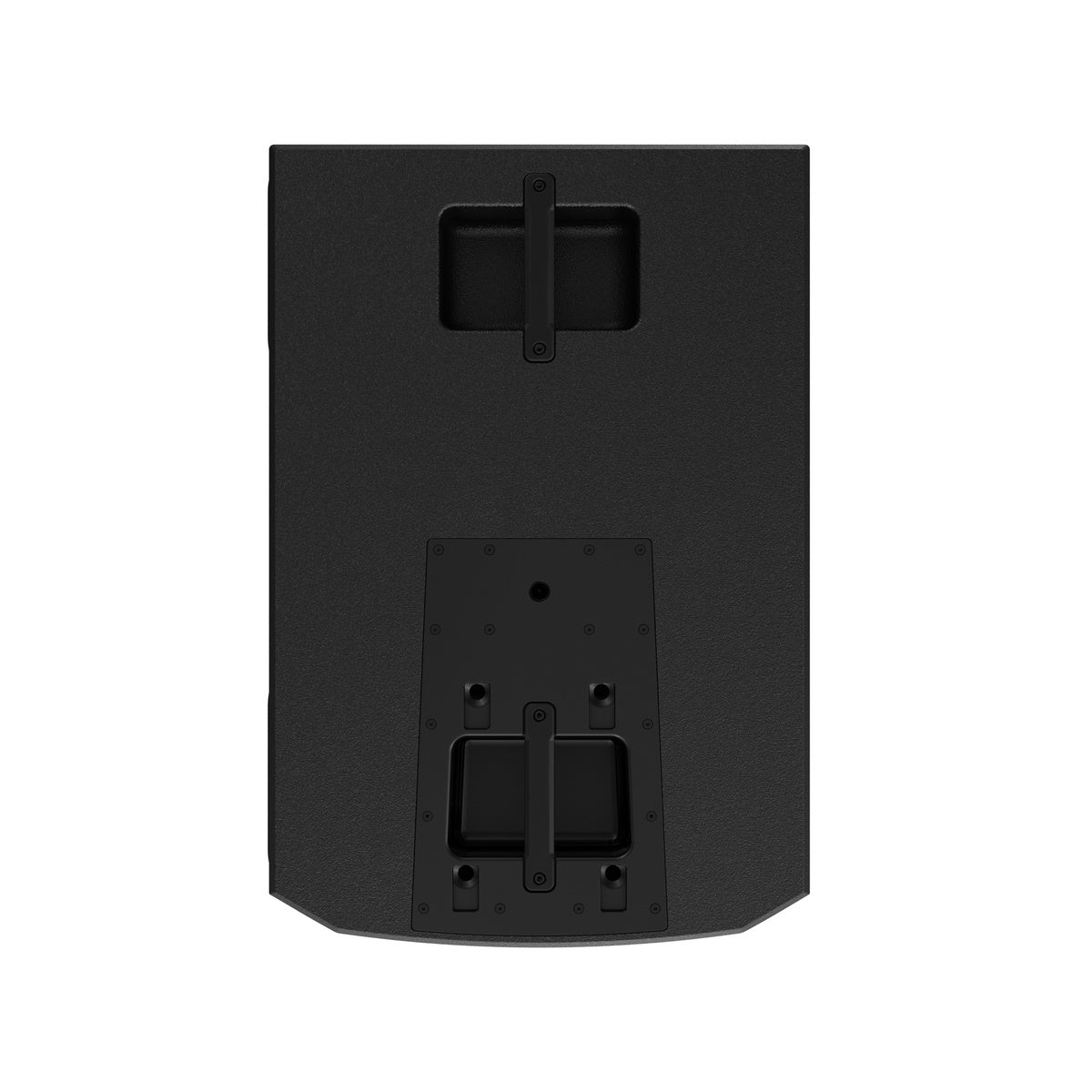

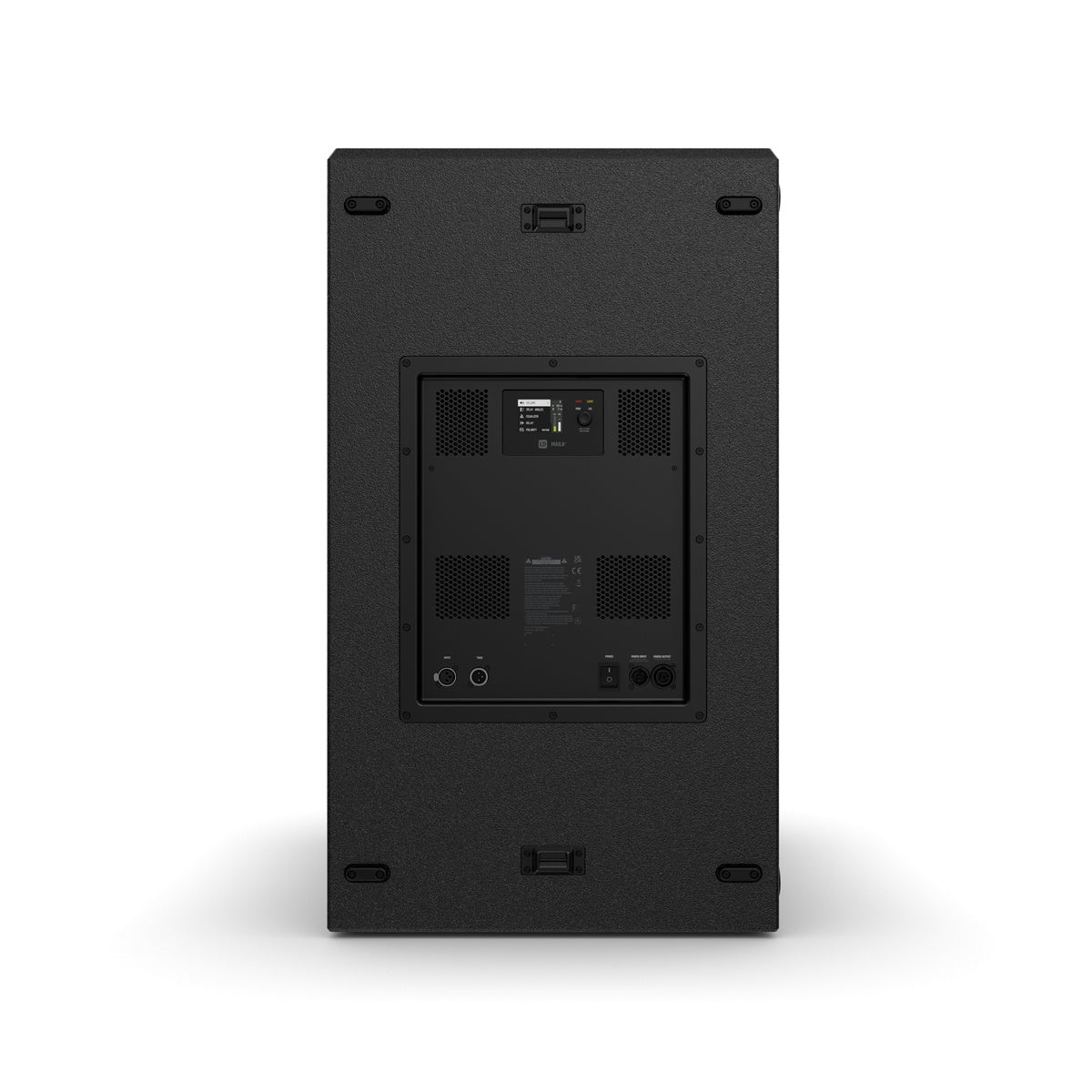

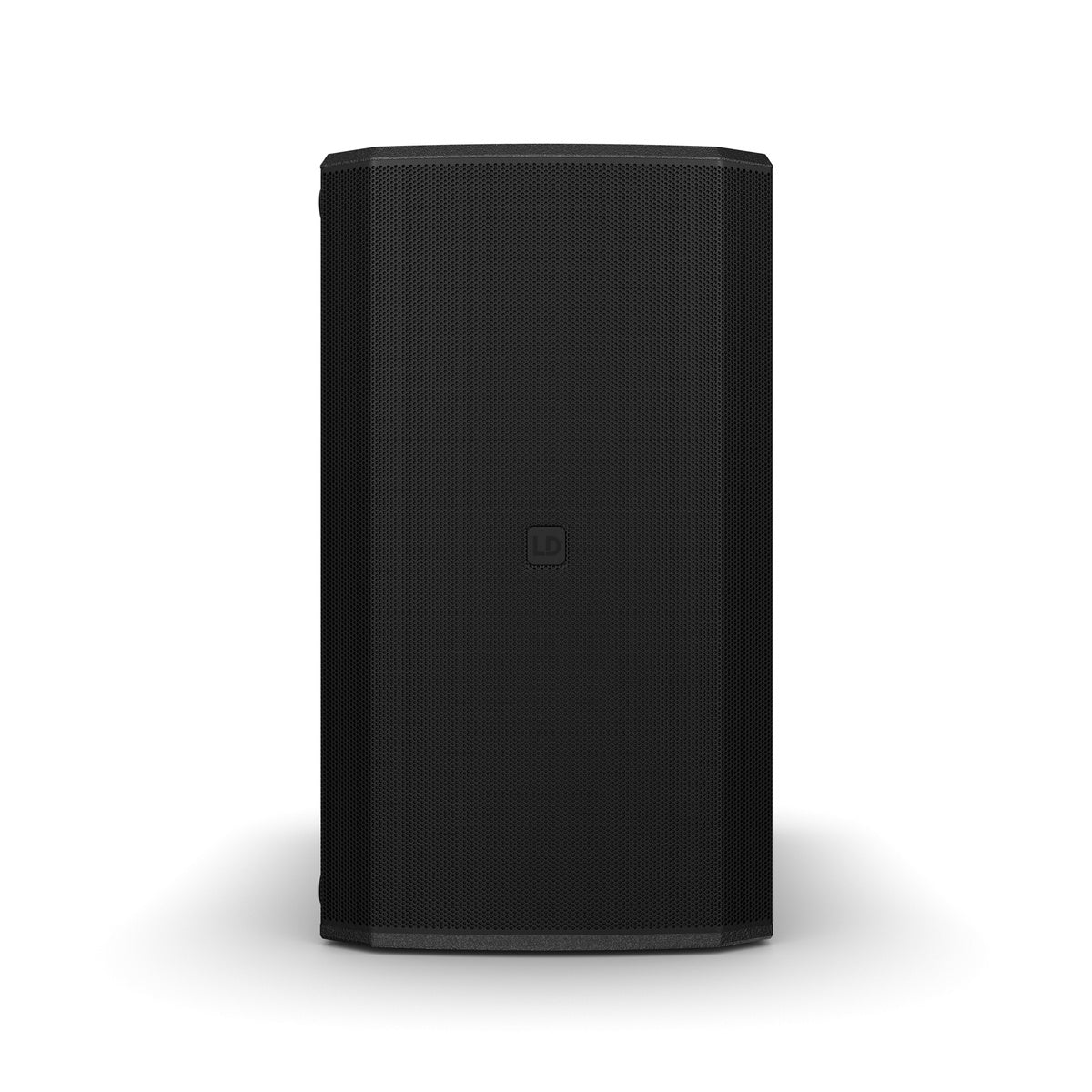

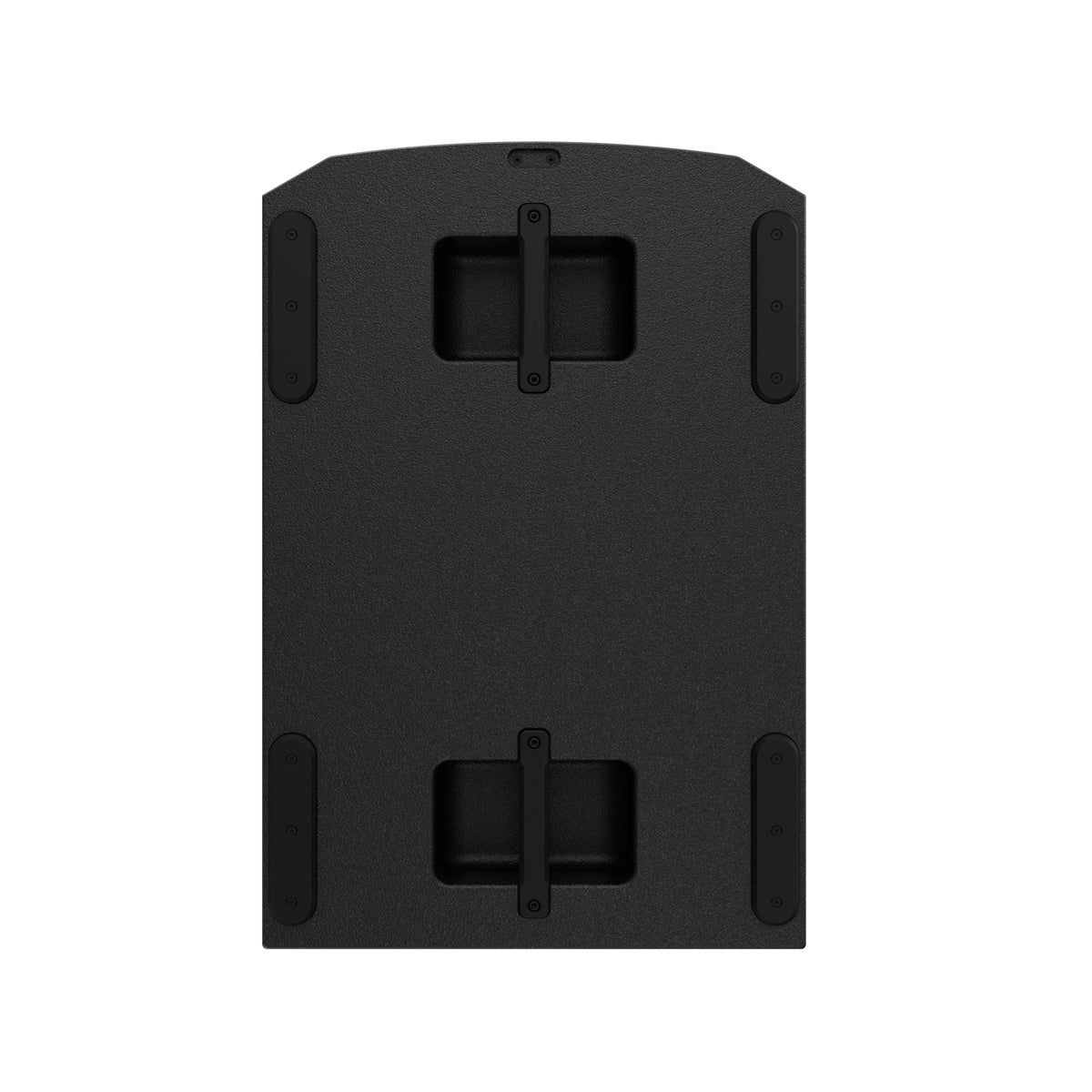

LD Systems MAILA Series 2 x 15" Powered Line Array Subwoofer

LD Systems MAILA Series 2 x 15" Powered Line Array Subwoofer

SoundPro Item: 204619 | Part Number: LDS-MAILASUB

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 2x15" Bandpass Design For Strong LF Output
  • 2500 W RMS Power For Demanding System Builds
  • SysCore DSP Enables Fast System Optimization
  • Cardioid Presets Help Reduce Rear Sound Radiation
  • App Control Supports Streamlined MAILA Setup
  • Birch Cabinet With Polyurea Finish For Touring
  • Six Handles Improve Load-In And Deployment

The LD Systems LDS-MAILASUB is the foundation of a MAILA system, combining a powered 2x15" subwoofer format with a high-output bandpass enclosure built for professional live sound deployment. Its planar wave bandpass concept uses a quarter-wave horn approach and symmetrical driver placement to support strong low-frequency impact with controlled, precise response. For production companies, rental inventories, and event providers building scalable array systems, this model is designed to serve as the low-end anchor in both vertical and horizontal MAILA configurations.

An integrated 2-channel Class D amplifier delivers 2500 W RMS, while SysCore DSP provides onboard processing and preset-based system optimization. Cardioid presets help reduce rear sound radiation when deployment conditions call for better stage rejection or tighter audience coverage control. Setup and tuning can be handled directly on the enclosure or through the free MAILA app for iPadOS, with LogoLink wireless connectivity built into the cabinet branding for a clean exterior design.

The enclosure uses 18 mm birch multiplex construction with a polyurea coating for road-ready durability. Four bass reflex ports are designed to support airflow efficiency in either orientation, and six handles assist with load-in and strike. Optional accessories mentioned for transport include the MAILA SUB CB castor board and a protective cover.

View full details

Specifications

General
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
137 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
132 dB
Low frequency limit (-6 dB, rel. Avg.)
33 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overload
Colour
Black
Bluetooth®
Bluetooth® version
Bluetooth® 5.0
Features
App control
Line input performance
Input impedance (balanced)
20,000 Ω
Signal processing
Mixer
No
Audio processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Bass driver
Size
15 "
Quantity
2
Magnet
Neodymium
Voice coil
4 "
Mains operation
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
1,300 W
Mains connector
Mains socket indoor power in male & powerCON®
Housing
Design
Bandpass
Number of handles
6
Cabinet material
Birch multiplex
Material thickness
18 mm
Coating
Polyurea
Front grille material
Aluminium
Cooling
Cooling system
Convection cooling
Environmental
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Dimensions & weight
Width
540 mm
Height
934 mm
Depth
803 mm
Weight
89.8 kg
Other properties
Included accessories
Mains cable
