LD Systems MAILA Series 15" Powered Subwoofer With DSP

LD Systems MAILA Series 15" Powered Subwoofer With DSP

SoundPro Item: 204620 | Part Number: LDS-MAILASUB15

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Delivers Controlled Low-End For Modern Live Sound
  • App Control Speeds Setup And System Changes
  • Cardioid Presets Help Reduce Rear Radiation
  • Top Dock Supports Pole Or MAILA COL Mounting
  • Ground-Stack Up To Three Units For Scalability
  • Rugged Polyurea Finish Handles Daily Transport

The LD Systems LDS-MAILASUB15 is a compact powered 15" subwoofer built for low-frequency reinforcement within the active MAILA system. Its bass reflex design and 1.25 kW total output support strong, controlled sub performance for modern live sound applications where footprint, setup speed, and system integration matter. With support for ground stacks of up to three units, it fits well in portable rigs, small-to-mid production systems, and scalable event deployments.

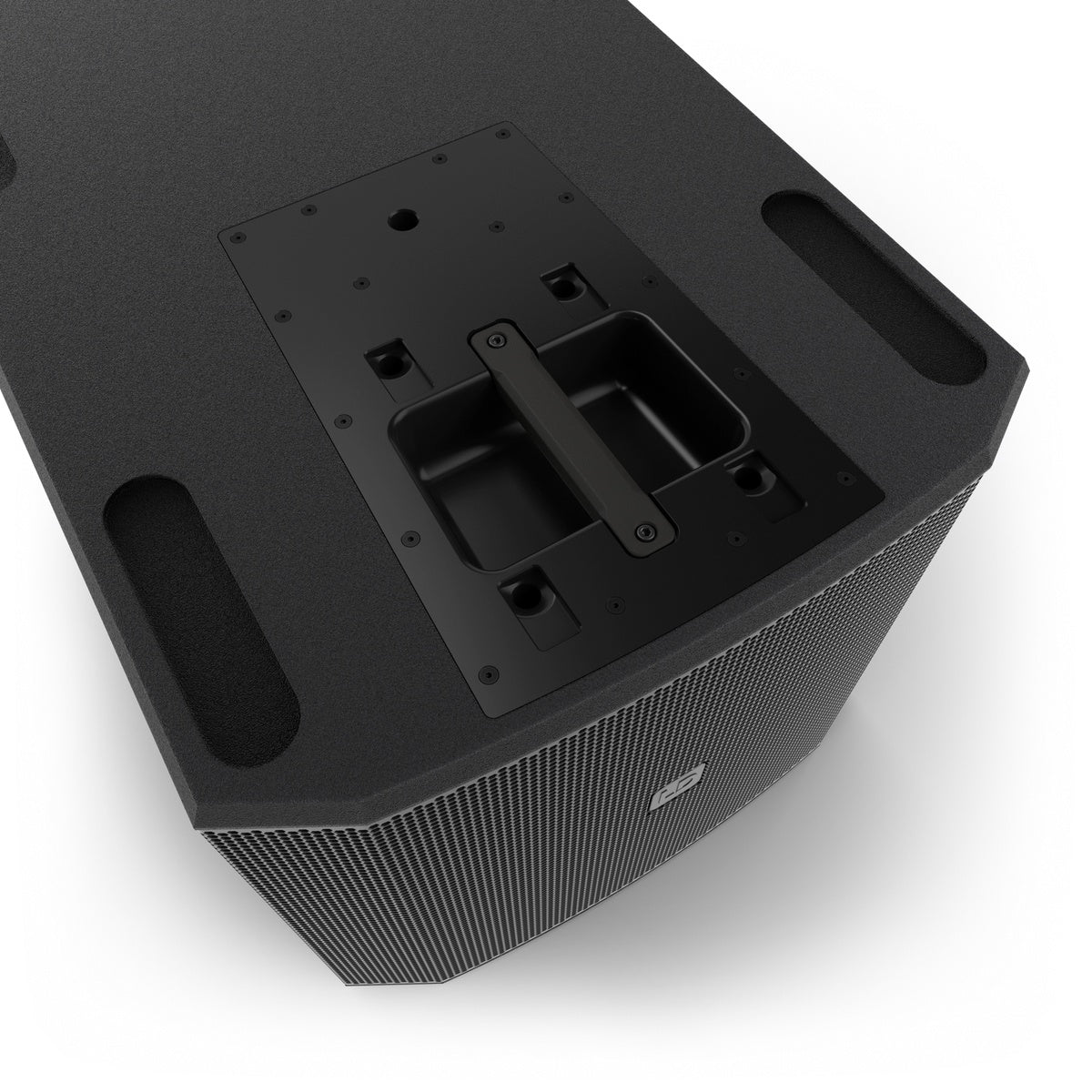

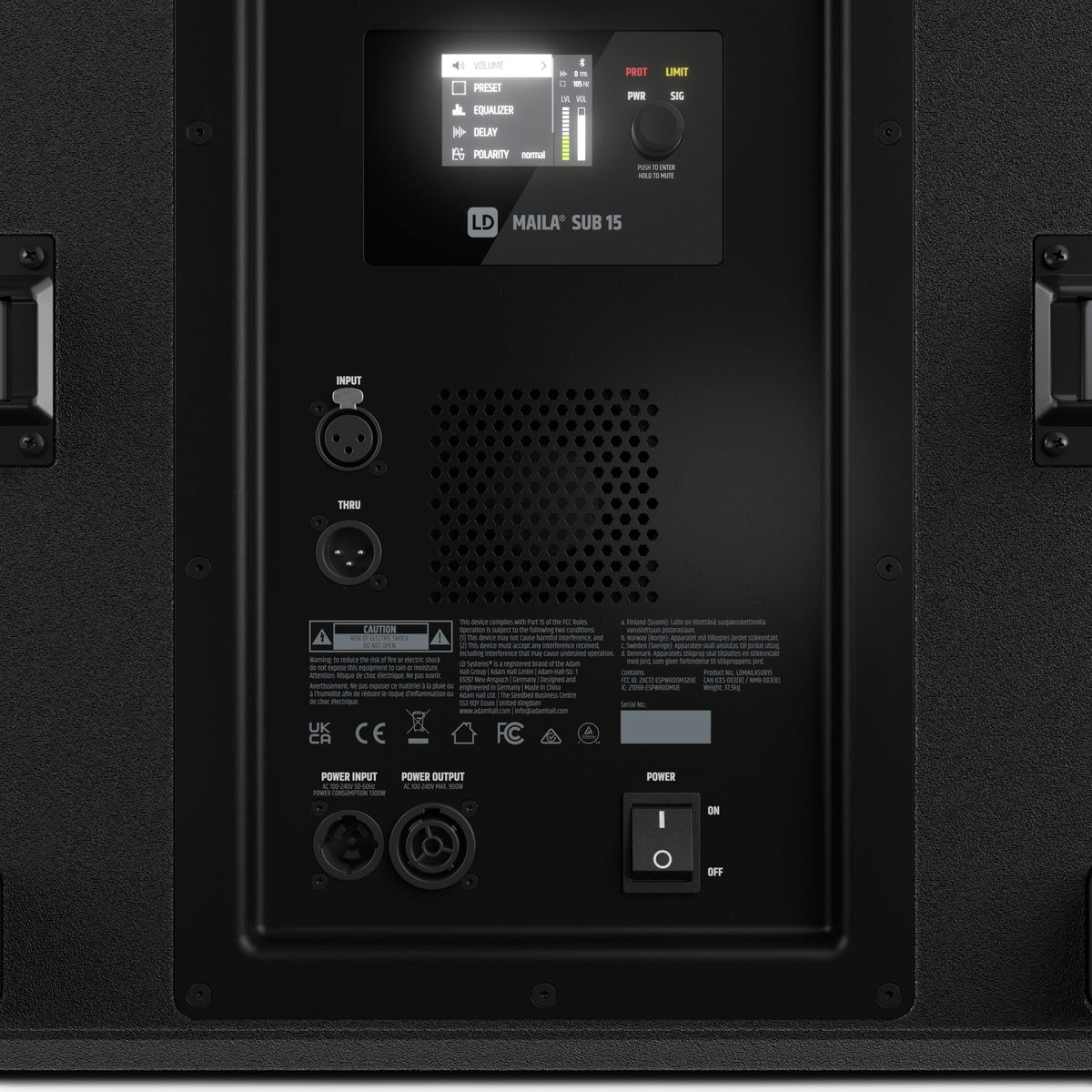

For system configuration, the subwoofer offers onboard DSP control as well as wireless connection to the MAILA app on iPadOS using integrated LogoLink technology. This streamlines setup, helps identify individual speakers, and supports fast adjustment in real-world event environments. A top docking plate allows direct mounting of either an M20 speaker pole or a MAILA COL, making the enclosure practical for compact column-style and satellite-based system builds.

The wooden cabinet uses a touring-grade polyurea coating for durability in repeated transport and day-to-day use. Combined with convection cooling, integrated protection features, and a straightforward XLR signal path, the LDS-MAILASUB15 is suited to professionals who need reliable low-end extension in a portable powered format.

View full details

Specifications

General
RMS output power
1250 W
Amp class
Class D
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %)
126 dB
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
132 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
124 dB
Low frequency limit (-3 dB, rel. Avg.)
37 Hz
Low frequency limit (-6 dB, rel. Avg.)
34 Hz
Low frequency limit (-10 dB, rel. Avg.)
31 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overload
Colour
Black
Bluetooth®
Bluetooth® version
Bluetooth® 4.2
Features
App control
Signal processing
Audio processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Bass driver
Size
15 "
Magnet
Neodymium
Voice coil
4 "
Mains operation
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Mains connector
Mains socket indoor power in male & powerCON®
Housing
Design
Bass reflex
Number of handles
3
Cabinet material
Birch multiplex
Coating
Polyurea
Cooling
Cooling system
Convection cooling
Environmental
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Dimensions & weight
Width
540 mm
Height
474 mm
Depth
761 mm
Weight
38 kg
