LD Systems MAILA Compact Line Array System | 17.5 kW

LD Systems MAILA Compact Line Array System | 17.5 kW

SoundPro Item: 204624 | Part Number: LDS-MAILAXL

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Scalable Stereo Rig For Flexible Deployment
  • Cable-Free SAT Linking Speeds System Build
  • One-Hand Splay Adjustment Simplifies Coverage
  • App-Based Setup Supports Faster Preparation
  • Flown Or Ground Stack Use Expands Options
  • Slim Design Suits Theatres And Clean Sightlines
Log in or register for YOUR best price

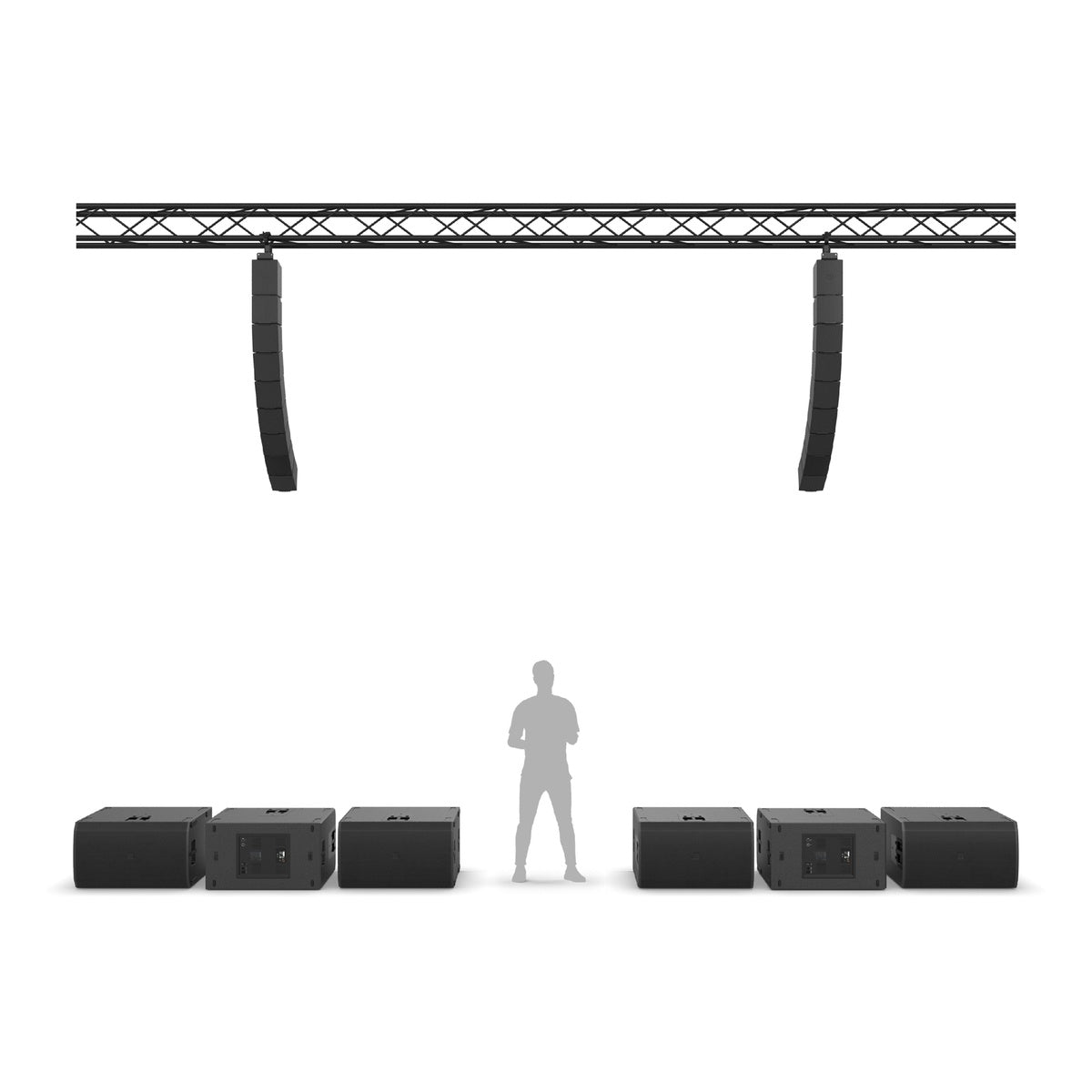

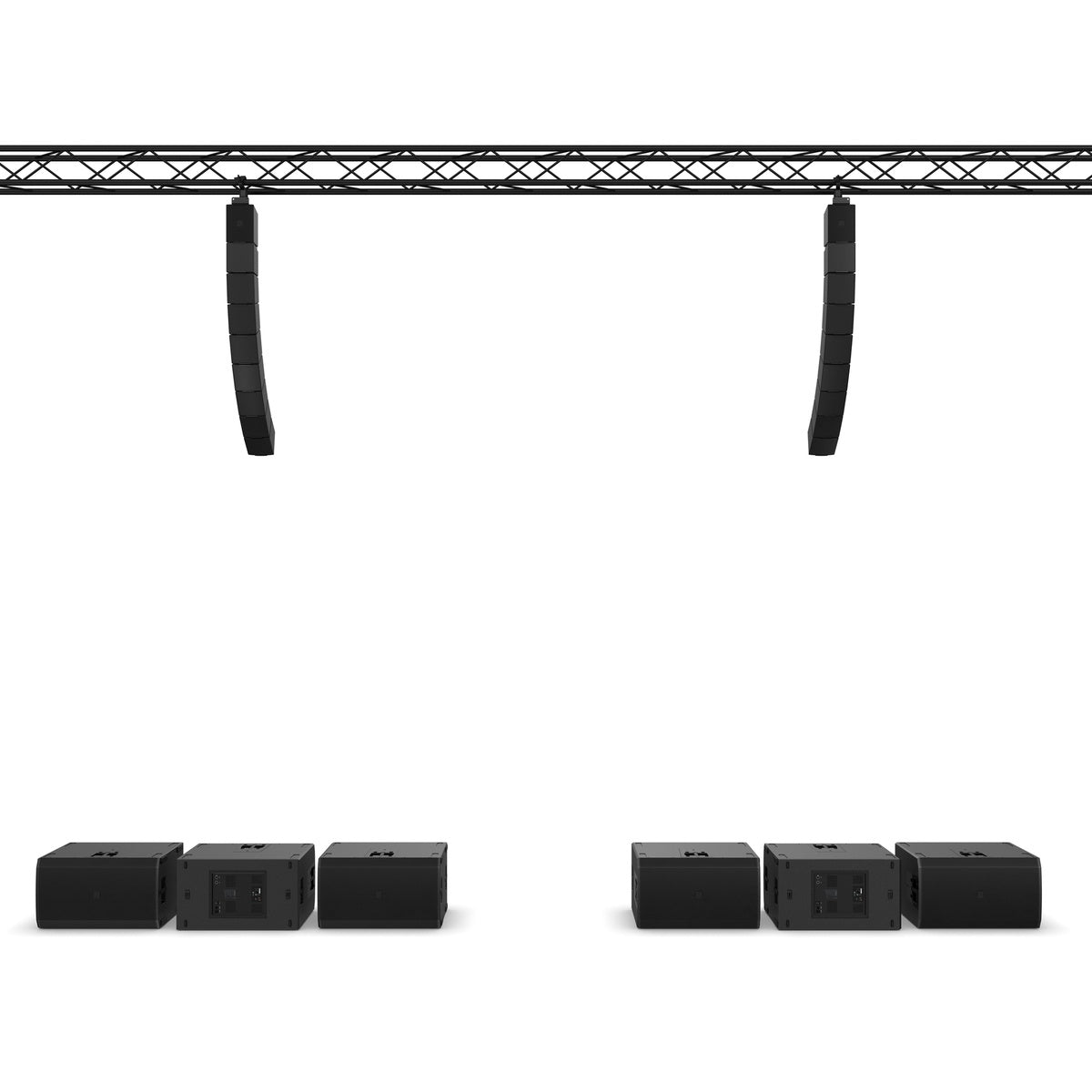

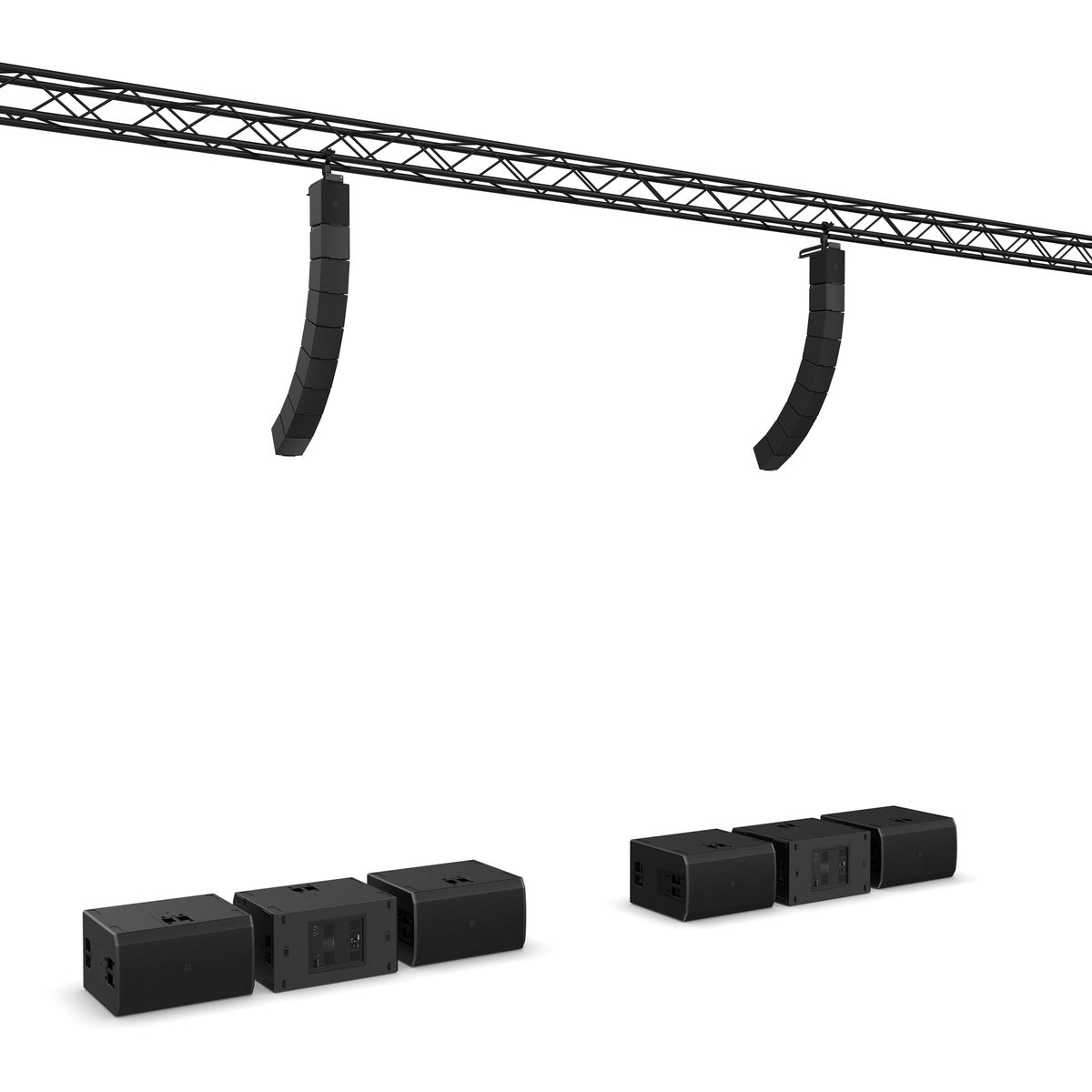

The LD Systems LDS-MAILAXL MAILA XL is a scalable stereo line array system built for professional live sound, club installs, conference production, and theatre applications where high output, controlled coverage, and flexible deployment matter. Designed primarily for flown use but adaptable for ground stack configurations, the system combines multiple acoustic elements into one coordinated solution with six powered 2x15" bandpass subwoofers, two flown amplifier modules, and sixteen passive array satellites.

MAILA XL is engineered for users who need broad system configurability without committing to a single fixed format. SmartLink+® enables cable-free physical connection between the amplifier module and satellites, while the EasySplay® mechanism allows continuous satellite angle adjustment from 0° to 8° with one hand, even under load. Control and setup can be handled directly on the system or through the MAILA Quick Setup App for iPadOS, using integrated LogoLink® wireless connectivity for fast component detection and system preparation.

With a stated total RMS output power of 17,500 W, frequency response down to 34 Hz (-6 dB, rel. avg), and horizontal coverage of 100°, the LDS-MAILAXL is positioned for demanding reinforcement work that requires throw, dispersion consistency, and deployment flexibility in a professional-format package.

View full details

Specifications

General
Scope of delivery
16 x MAILA SAT, 2 x MAILA SPA, 6 x MAILA SUB, 2 x EasyMount+®, 2 x MAILA FC3, 6 x MAILA SUB CB, 6 x MAILA SUB PC, 8 x Mains Cable
Material
Birch multiplex
RMS output power
17500 W
Frequency response (-6 dB, rel. Avg)
34 - 20,000 Hz
Beam angle
Hor.: 100° / Vert.: 8 - 64°
Colour
Black
Maximum height
2,200 mm
Weight
672.4 kg
MAILA SUB
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
137 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
132 dB
Low frequency limit (-6 dB, rel. Avg.)
33 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overload
Colour
Black
Bluetooth® version
Bluetooth® 5.0
Features
App control
Input impedance (balanced)
20,000 Ω
Mixer
No
Audio processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
15 "
Quantity
2
Magnet
Neodymium
Voice coil
4 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
1,300 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bandpass
Number of handles
6
Cabinet material
Birch multiplex
Material thickness
18 mm
Coating
Polyurea
Front grille material
Aluminium
Cooling system
Convection cooling
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
540 mm
Height
934 mm
Depth
803 mm
Weight
89.8 kg
Included accessories
Mains cable
MAILA SPA
RMS output power
1250 W
Amp class
Class D
Protection features
Limiter, Overheating, Overload
Bluetooth® version
Bluetooth® 4.2
Features
App control
Bluetooth® range
≤70 m (Class 1-2)
Number of line inputs
1
Line-In connector type
XLR 3-pole female
Input impedance (balanced)
20 kΩ
Number of line outputs
1
Line outputs connector type
XLR 3-pole male
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
400 W
Mains connector
Mains socket indoor power in male & powerCON®
Cabinet material
Aluminum continuous casting
Coating
Powder coated
Colour
Black
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
205 mm
Height
282 mm
Depth
226 mm
Weight
7.45 kg
MAILA SAT
Type
Passive
Power handling (AES)
LF: 170 W / HF: 50 W
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
128.2 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
129.1 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
115 dB
Frequency response
100 - 20,000 Hz
Speaker system
2-way system
Beam angle
Hor.: 100° / Vert.:8°
Input connector types
SmartLink+®
Colour
Black
Size
6.5 "
Magnet
Neodymium
Voice coil
1.8 "
Driver size
1 "
Quantity
5
Design
Bass reflex
Number of handles
1
Cabinet material
Die-cast aluminium
Width
205 mm
Height
234 mm
Depth
226 mm
Weight
7.65 kg
EasyMount+®
Mounting
Clamp
Maximum load
105 kg
Material
Steel
Coating
Powder coated
Colour
Black
Tilt angle
15°
Clamp range
35 mm
Width
149 mm
Height
356.5 mm
Depth
458.9 mm
Weight
5.41 kg
