LD Systems MAILA Compact Line Array System | 20 kW

LD Systems MAILA Compact Line Array System | 20 kW

SoundPro Item: 204625 | Part Number: LDS-MAILAXXL

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 20 KW System Output For Large-Scale Reinforcement
  • Cable-Free SmartLink+® Speeds Array Assembly
  • EasySplay® Aids Fast One-Hand Angle Changes
  • App-Based Setup Simplifies System Configuration
  • Flown-First Design Supports Flexible Deployment
  • Slim Array Format Suits Theatre Sightlines
Log in or register for YOUR best price

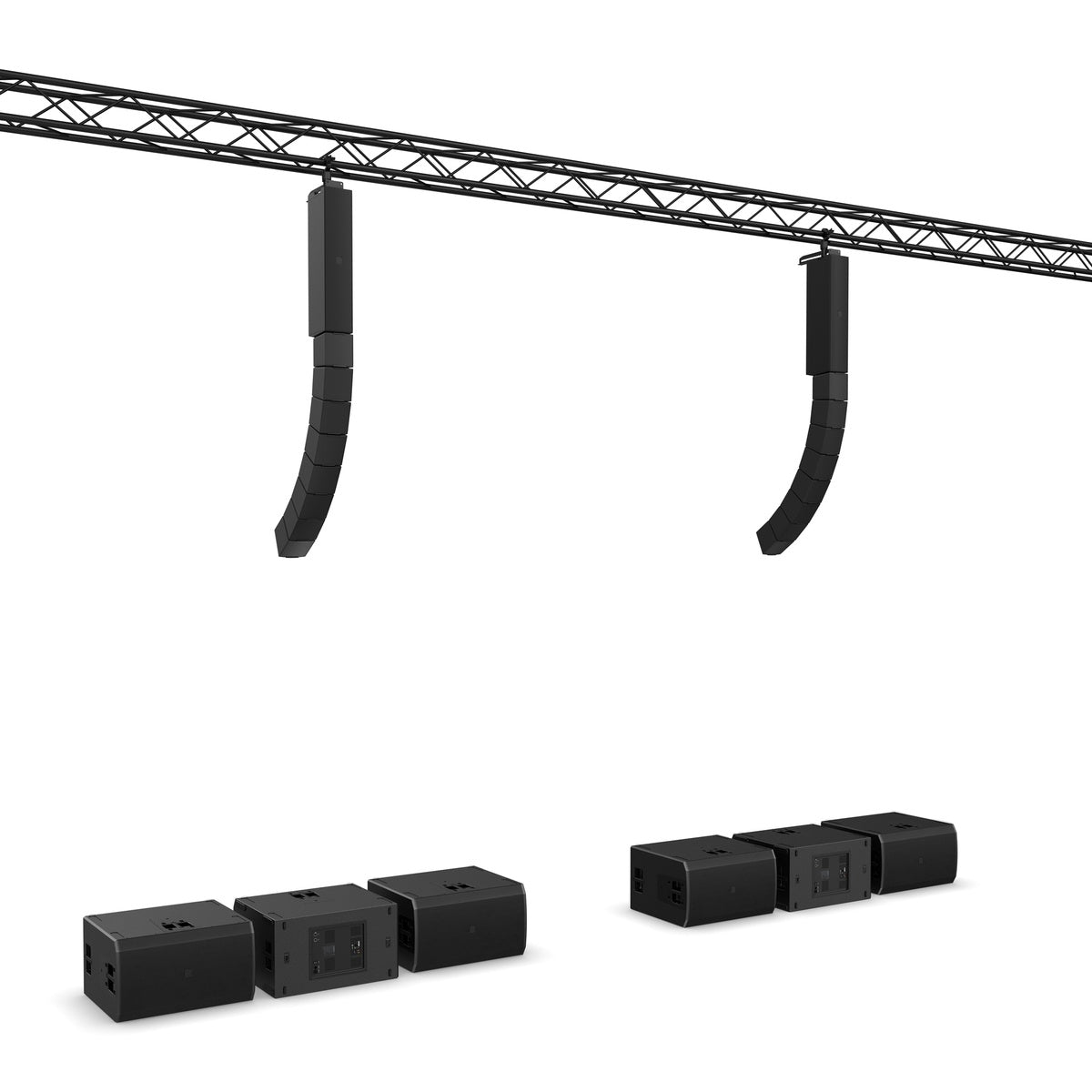

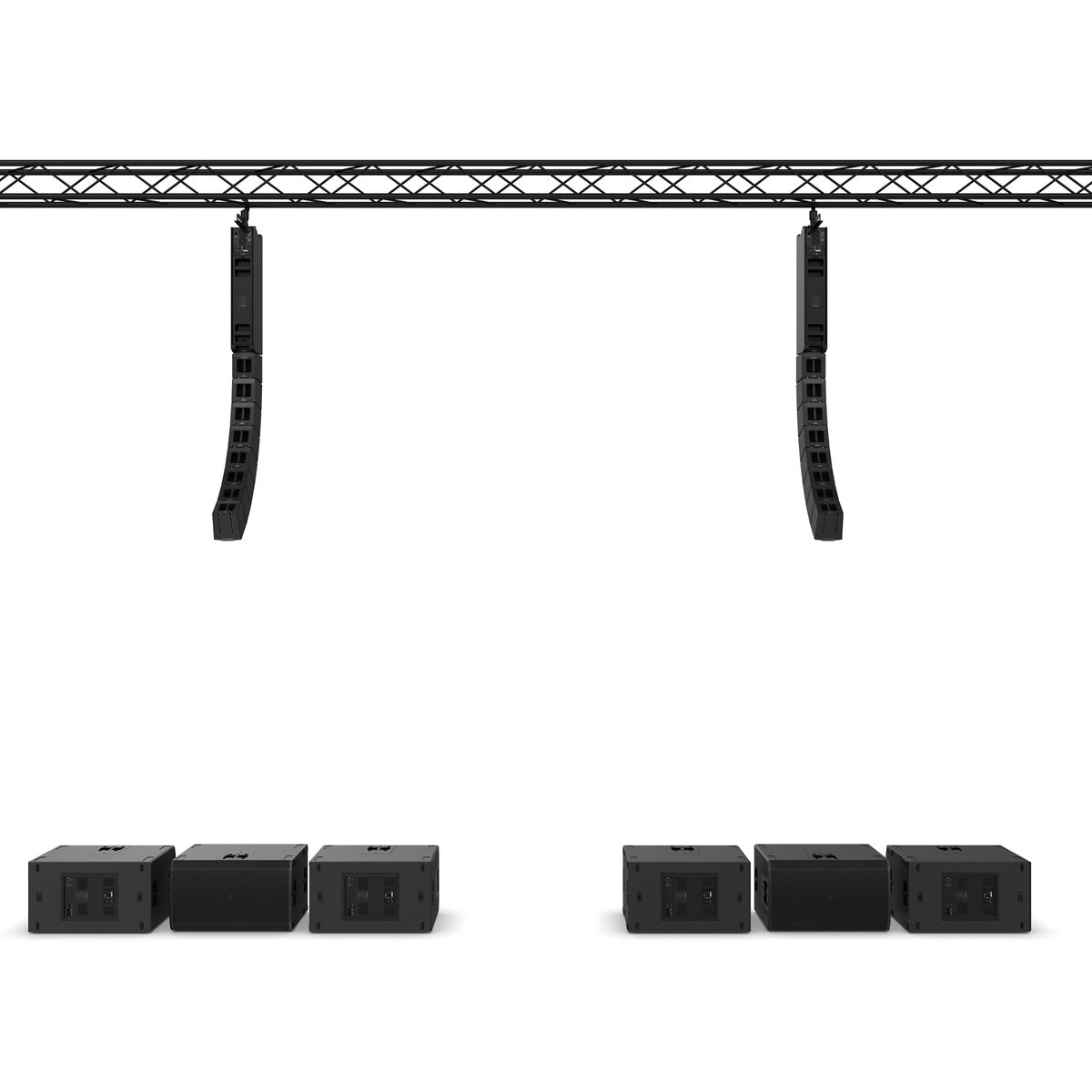

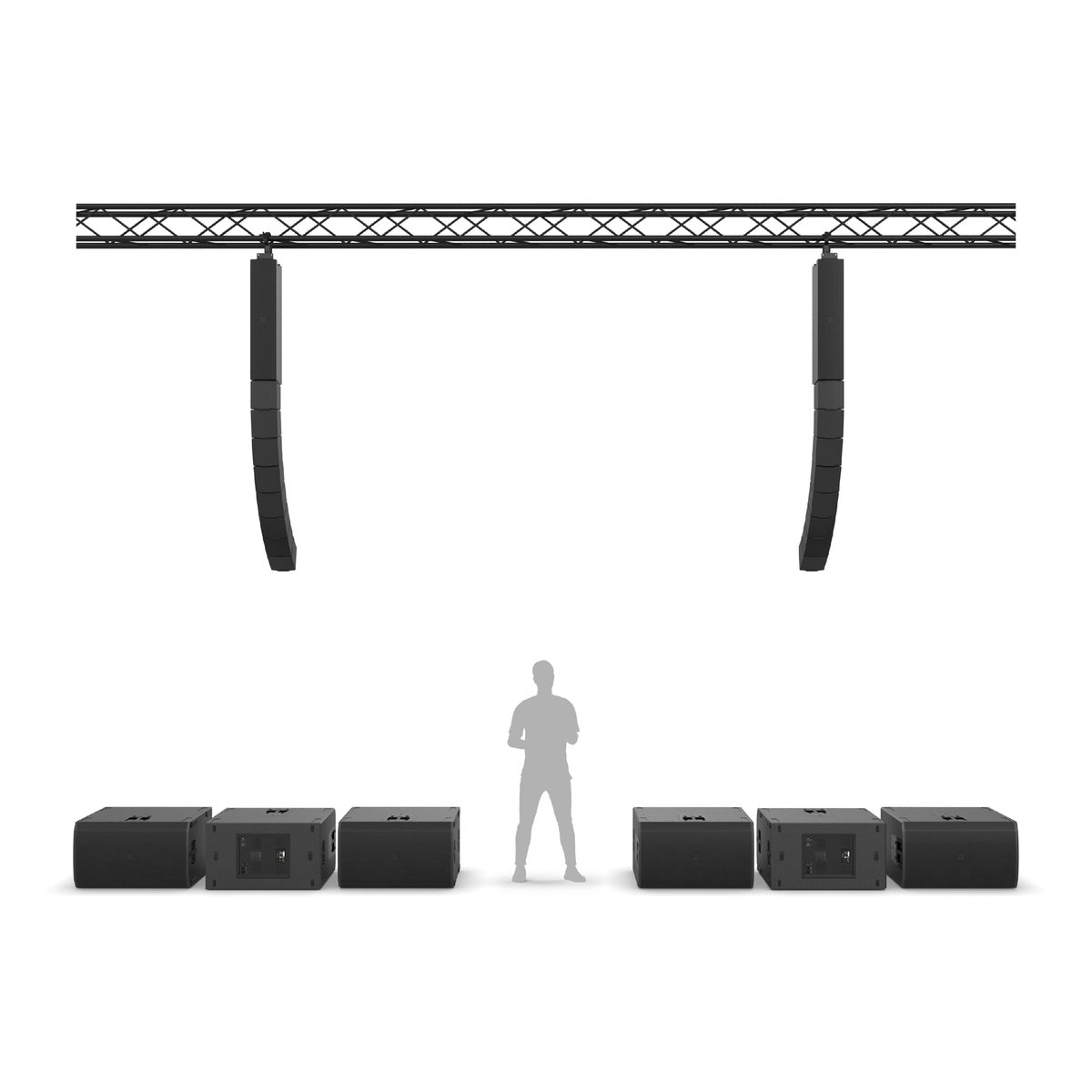

The LD Systems LDS-MAILAXXL is a scalable stereo line array system built for professional live sound, rental inventories, theatres, clubs, and large halls that need substantial output with controlled coverage. The system combines six dual 15" bandpass subwoofers, two powered low-mid column modules, and sixteen passive array satellites into a flown-first configuration that can also be reconfigured as a MAILA L ground stack system when needed. For production teams balancing performance with deployment efficiency, its slim format and integrated system approach support high-impact reinforcement without the visual bulk of conventional large-format arrays.

MAILA XXL is designed around flexible coverage shaping and streamlined rigging. SmartLink+® provides cable-free connection between the column and satellite elements, while the EasySplay® mechanism allows quick one-handed angle adjustment from 0° to 8° on each satellite, even under load. Control and setup can be handled directly on the system or through the MAILA Quick Setup App for iPadOS, using LogoLink® wireless connectivity for system detection, configuration, and SAT angle calculation. This makes the package especially relevant for crews that need repeatable deployment across varying rooms and event formats.

View full details

Specifications

General
Scope of delivery
16 x MAILA SAT, 2 x MAILA COL, 6 x MAILA SUB, 1 x MAILA FC3, 2 x EasyMount+®, 2 x MAILA FC2, 6 x MAILA SUB CB, 6 x MAILA SUB PC, 8 x Mains Cable
RMS output power
20000 W
Frequency response (-6 dB, rel. Avg)
34 - 20,000 Hz
Beam angle
Hor.: 100° / Vert.: 8 - 64°
Colour
Black
Maximum height
2,730 mm
Weight
782 kg
Column Module
Type
Active
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
125.4 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
130 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
122 dB
Frequency response (-6 dB, rel. Avg)
105 - 500 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overvoltage, Overload
Colour
Black
Bluetooth® version
Bluetooth® 4.2
Features
App control
Number of line inputs
1
Line-In connector type
XLR 3-pole female
Input impedance (balanced)
20,000 Ω
Mixer
Yes
Mixer channels
4
Audio processing
3 band EQ (High, Mid, Low), Delay Line, Dynamics, Reverb
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
6.5 "
Quantity
4
Magnet
Neodymium
Voice coil
2 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
800 W
Design
Bass reflex
Number of handles
2
Number of mounting points
3
Cabinet material
Aluminum continuous casting
Front grille material
Aluminium
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
205 mm
Height
1,028 mm
Depth
354 mm
Weight
36.195 kg
Subwoofer
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
137 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
132 dB
Low frequency limit (-6 dB, rel. Avg.)
33 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overload
Colour
Black
Bluetooth® version
Bluetooth® 5.0
Features
App control
Input impedance (balanced)
20,000 Ω
Mixer
No
Audio processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
15 "
Quantity
2
Magnet
Neodymium
Voice coil
4 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
1,300 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bandpass
Number of handles
6
Cabinet material
Birch multiplex
Material thickness
18 mm
Coating
Polyurea
Front grille material
Aluminium
Cooling system
Convection cooling
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
540 mm
Height
934 mm
Depth
803 mm
Weight
89.8 kg
Included accessories
Mains cable
Satellite
Type
Passive
Power handling (AES)
LF: 170 W / HF: 50 W
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
128.2 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
129.1 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
115 dB
Frequency response
100 - 20,000 Hz
Speaker system
2-way system
Beam angle
Hor.: 100° / Vert.:8°
Input connector types
SmartLink+®
Colour
Black
Size
6.5 "
Magnet
Neodymium
Voice coil
1.8 "
Driver size
1 "
Quantity
5
Design
Bass reflex
Number of handles
1
Cabinet material
Die-cast aluminium
Width
205 mm
Height
234 mm
Depth
226 mm
Weight
7.65 kg
Mounting Bracket
Mounting
Clamp
Maximum load
105 kg
Material
Steel
Coating
Powder coated
Colour
Black
Tilt angle
15°
Clamp range
35 mm
Width
149 mm
Height
356.5 mm
Depth
458.9 mm
Weight
5.41 kg
