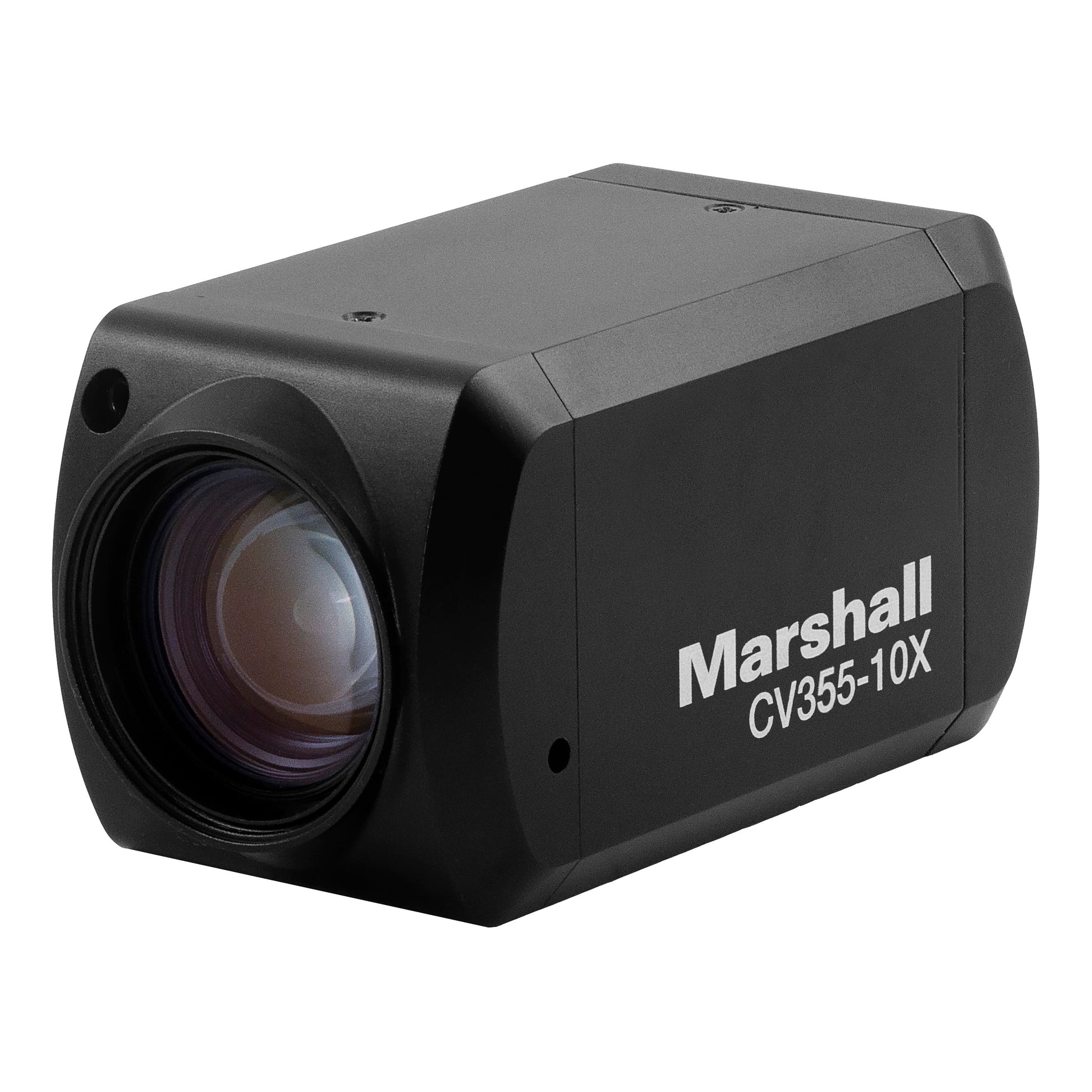

• Marshall CV355-10X Compact 10x Zoom 2.5MP Camera - Angled Left
1 1

Marshall CV355-10X Compact 10x Zoom 2.5MP Camera

Marshall CV355-10X Compact 10x Zoom 2.5MP Camera

SoundPro Item: 55203 | Part Number: CV355-10X

$922.95
$983.95 $922.95
Your Price Sold out
MSRP: $983.95 | MAP: $922.95

Usually ships in 5-7 business days

  • 2 Megapixel HD (16:9) Sensor (1/2.8")
  • 10x Optical zoom (4.7~47mm) starting at 60° H.AOV - 12x Digital zoom
  • 3GSDI, HDSDI, and HDMI simultaneous outputs
  • Hirose Breakout Cable included
  • 1920x1080p, 1920x1080i and 1280x710p
  • 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (7V~15V, 4.5W max)
Log in or register for YOUR best price

Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920x1080 at 60fps. Remote adjust and match settings include Iris, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

Presenting 3GSDI and HDMI simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.

Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

The CV355-10X is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation applications.

View full details

Specifications

Dimensions
Pixel Size
2.9(μm) x 2.9(μm)
Dimensions
104.55 (D) x 56 (W) x 56 (H) mm
Electrical
Power Consumption
12v power supply, can operate 12V+/-10% with a 6 watt draw
Audio
Sample Rate
16/24/32 Bits
Optics
Zoom
10x optical zoom / 12x digital zoom
Focus
Auto/ Manual
Connectivity
HDMI 1920 X 1080p
60, 59.94, 50, 30, 29.97, 25, 24, 23.981920 x 1080i: 60, 59.94, 501280 x 720p: 60, 59.94, 50
HDSDI Output 1920 X 1080i
60, 59.94, 501280 x 720p: 60, 59.94, 50
3GSDI Output
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Input
3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
Power Input
12VDC (7V to 15VDC)
Construction
Lens
10x Optical Zoom, f=4.7~47mm, F1.6 ~ F3.0
Environmental
Operation Temperature
-10°C ~ 50°C
General
Image Sensor
1/2.8” Progressive 2.1 Megapixel CMOS
Effective Pixel
1920(H) x 1080(V)
Min. Illumination
0.1Lux (Day-color), 0.01Lux (Night-b/w), 0.001Lux (DSS on)
Angle of View (H)
60 degrees (wide end) to 6 degrees (tele end)
Minimum Working Distance
100mm (wide open), 900mm (tele end)
Exposure
Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright
White Balance
Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
Light Modes
DAY (color), NIGHT (b/w), AUTO switch
Electronic Shutter
NTSC: 1/30~1/10000, PAL: 1/25~1/10000
Adjustable Features
Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct
Control Interface
RS485: SONY-VISCA protocols, PELCO-P/D
Mass
0.8 lbs (camera only), 1.02 lbs (with breakout cable)
