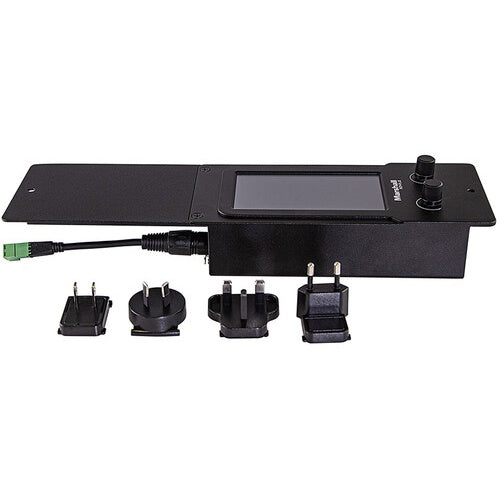

• RCP-PLUS camera remote control panel with touchscreen and two rotary knobs, shown with attached cable and four interchangeable AC plug adapters, Marshall Electronics

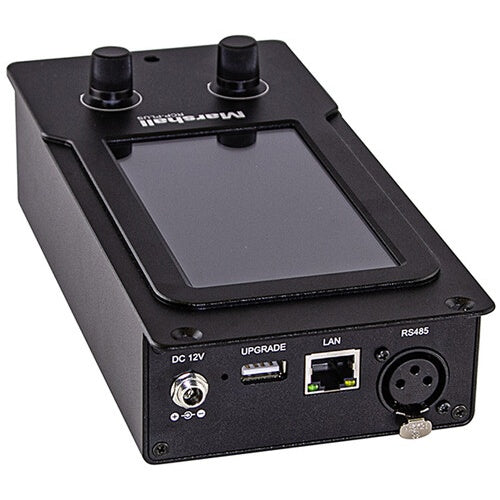

  • RCP-PLUS camera remote control panel angled rear view showing DC 12V input, USB upgrade port, LAN jack and RS485 XLR connector below the touchscreen, Marshall Electronics
1 2

Marshall Electronics RCP-PLUS Camera Remote Control Panel With Touchscreen

Marshall Electronics RCP-PLUS Camera Remote Control Panel With Touchscreen

SoundPro Item: 209573 | Part Number: RCP-PLUS

$877.49
$1,051.83 $877.49
Your Price Sold out
MSRP: $1,051.83 | MAP: $877.49

Usually ships in 5-7 business days

  • Multi-Protocol Support For Both VISCA Over IP And RS485 Serial Control Environments
  • PoE Power Input Eliminates Dedicated Power Drops For Cleaner AV Installations
  • Favorites And Save Settings Speed Up Configuration Across Multiple Events
  • Fine-Tune Adjustment Knobs Provide Tactile Control During Live Production
  • Compatible With Marshall CV300 And CV500 Series PTZ Camera Lines
Log in or register for YOUR best price

The Marshall Electronics RCP-PLUS is a professional remote control panel built for broadcast engineers, live production directors, and AV integrators who need reliable, multi-camera PTZ control from a single operator position. Designed to work with Marshall CV300 and CV500 series cameras, it bridges both IP-based and serial control environments without requiring a separate controller for each protocol.

In live production environments where camera counts, cable runs, and operator ergonomics all matter, the RCP-PLUS consolidates control into a touchscreen-driven interface powered over a standard network connection. PoE eliminates the need for a dedicated power drop at the operator position, keeping installations clean in houses of worship, broadcast studios, and corporate AV setups. The intelligent menu system supports favorites and saved settings, reducing setup time between events and minimizing operator error during live broadcasts.

Where comparable controllers lock operators into a single protocol, the RCP-PLUS accommodates both RS485 serial and VISCA over IP deployments, making it a future-proof choice as facilities migrate from legacy serial infrastructures to networked camera systems. Fine-tune adjustment knobs alongside the touchscreen give operators tactile control during critical moments, a practical advantage over purely touch-based interfaces in high-pressure live production environments.

Downloads

View full details

Specifications

Connectivity
RS485 Interface
3-pin XLR Receptacle
USB
USB 2.0 (for firmware upgrade)
Network
LAN RJ-45 (VISCA-over-IP control and PoE power supply)
Controls
Control Type (IP)
VISCA-over-IP
Control Type (Serial)
VISCA RS485
RS485 Serial Baud Rates
4800, 9600 (default), 19200
Display
Screen Size
5"
Display Type
TFT LCD Touchscreen
Resolution
800 x 480
Power
PoE
Yes
DC Input
12VDC
Compatibility
Supported Camera Models
CV574, CV570, CV374, CV370, CV420Ne, CV420e, CV355-27X-IP
Camera Series
CV300 Series, CV500 Series
Identifiers
MPN
RCP-PLUS
