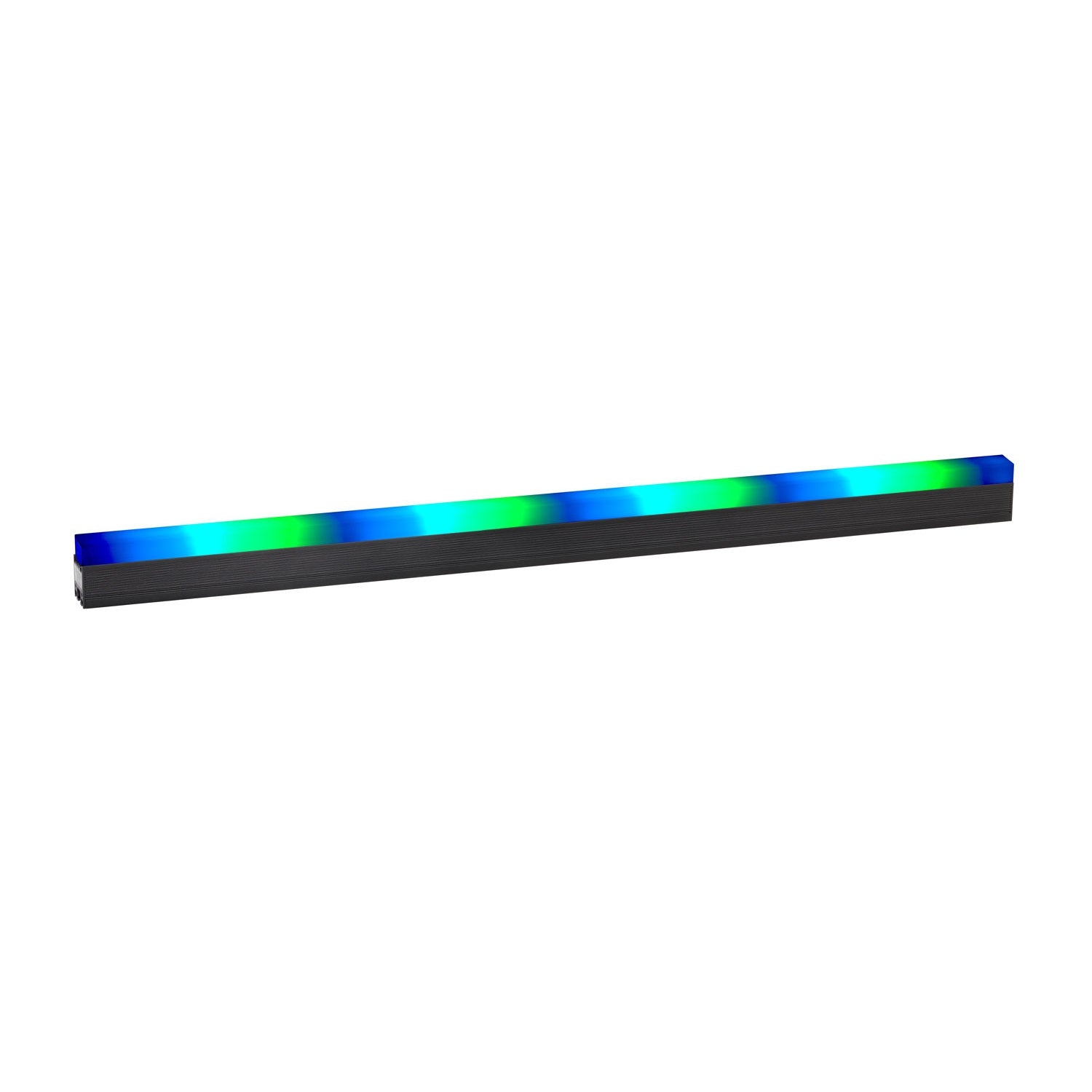

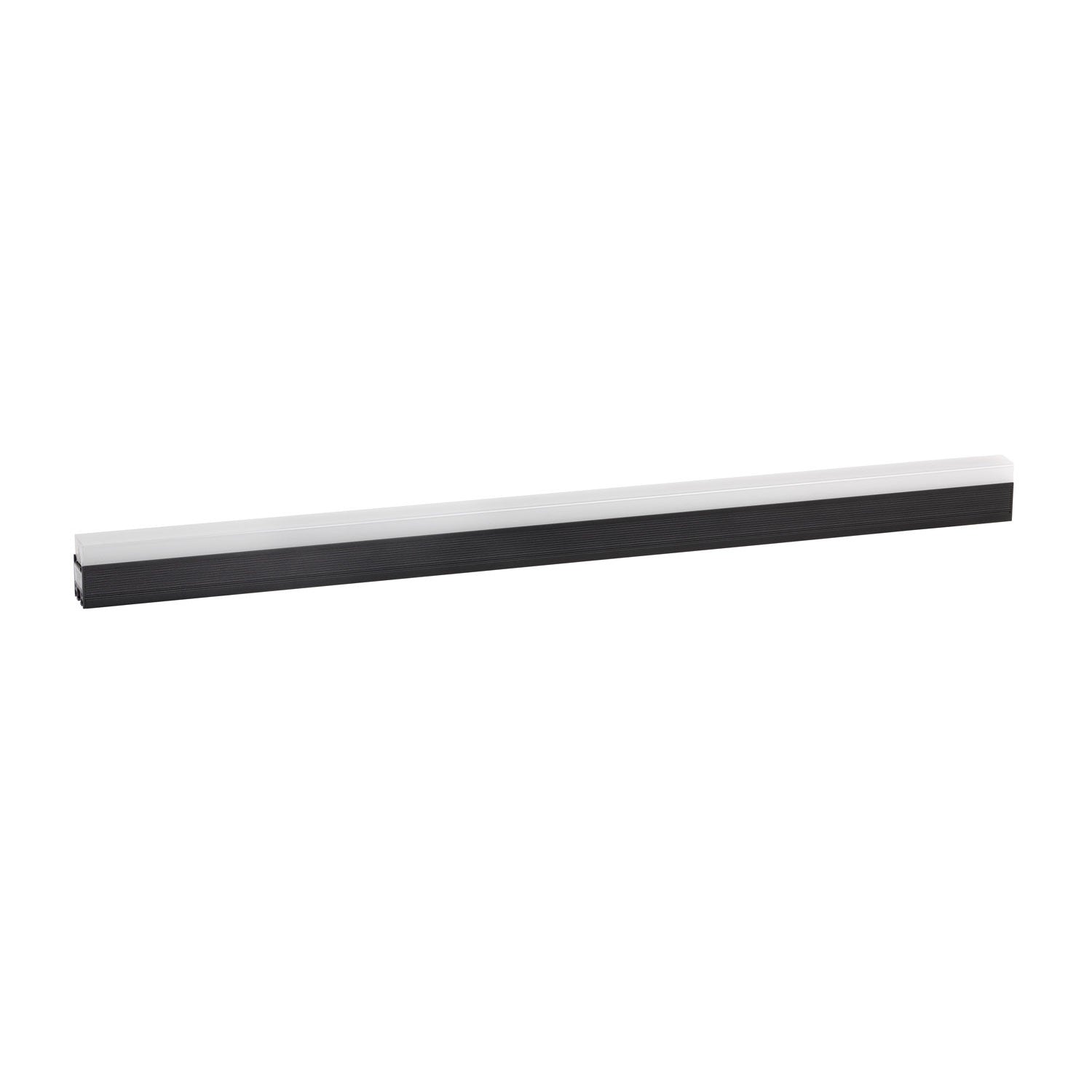

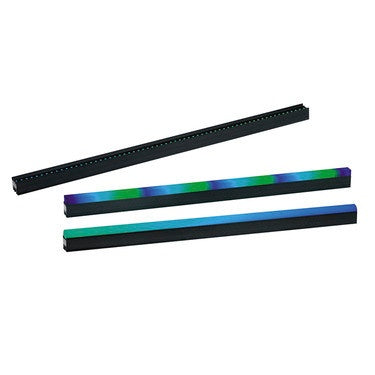

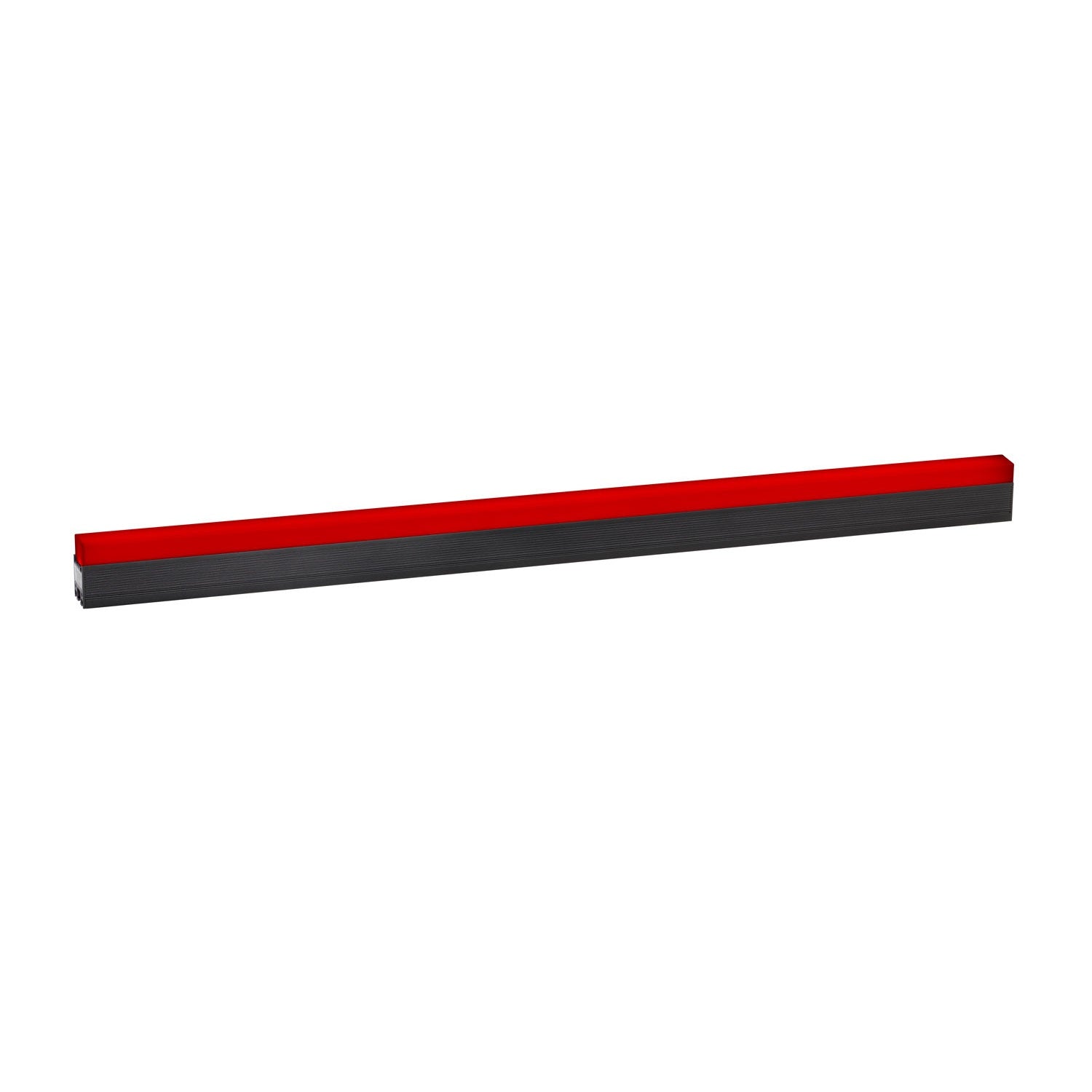

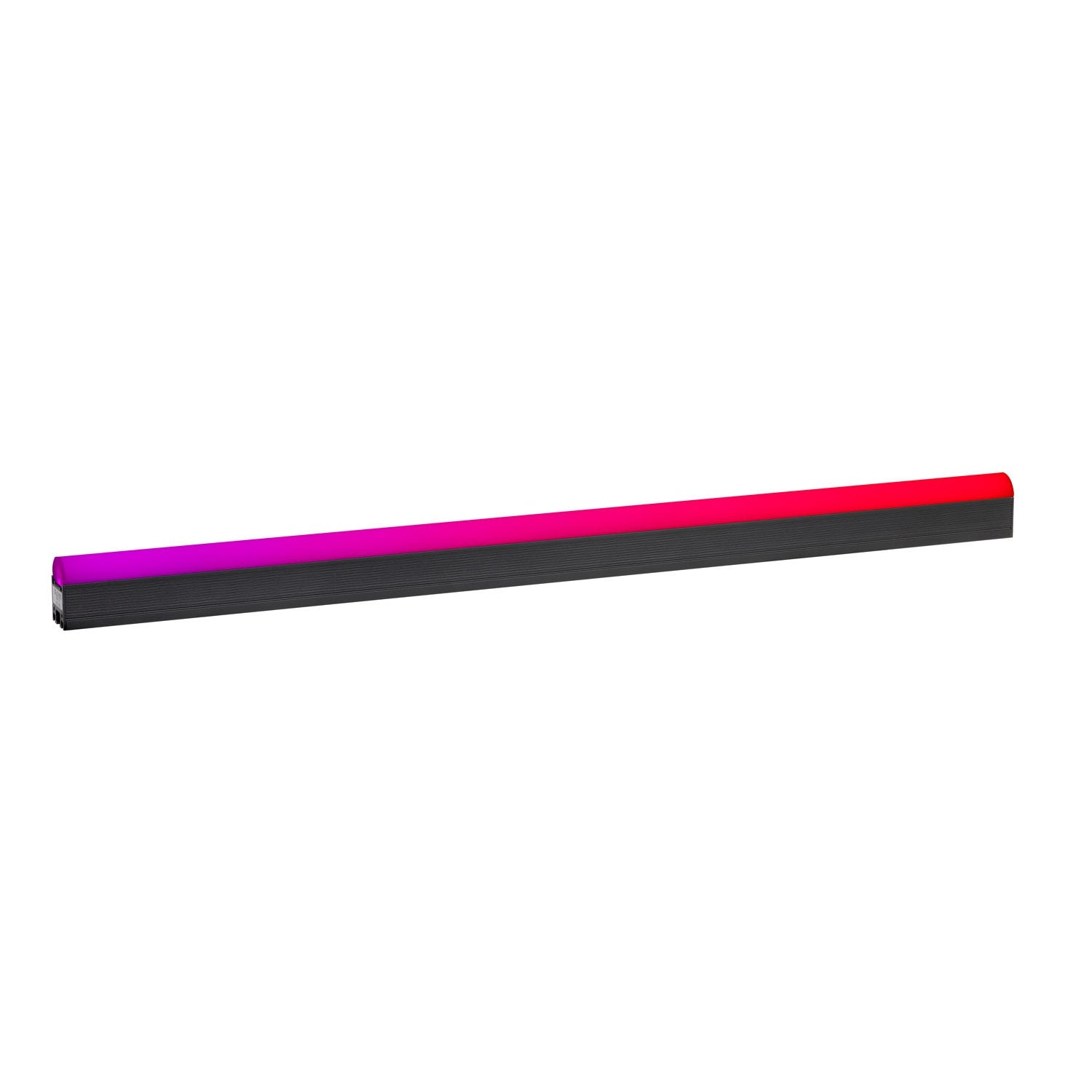

Martin Lighting VDO Sceptron 10 Outdoor Linear LED Video Fixture | 1000mm
Martin Lighting VDO Sceptron 10 Outdoor Linear LED Video Fixture | 1000mm
SoundPro Item: 96306 | Part Number: 90357655HU
Usually ships in 5-7 business days
- IP65 Protection Enables Permanent Outdoor Installation And All-Weather Rental Use

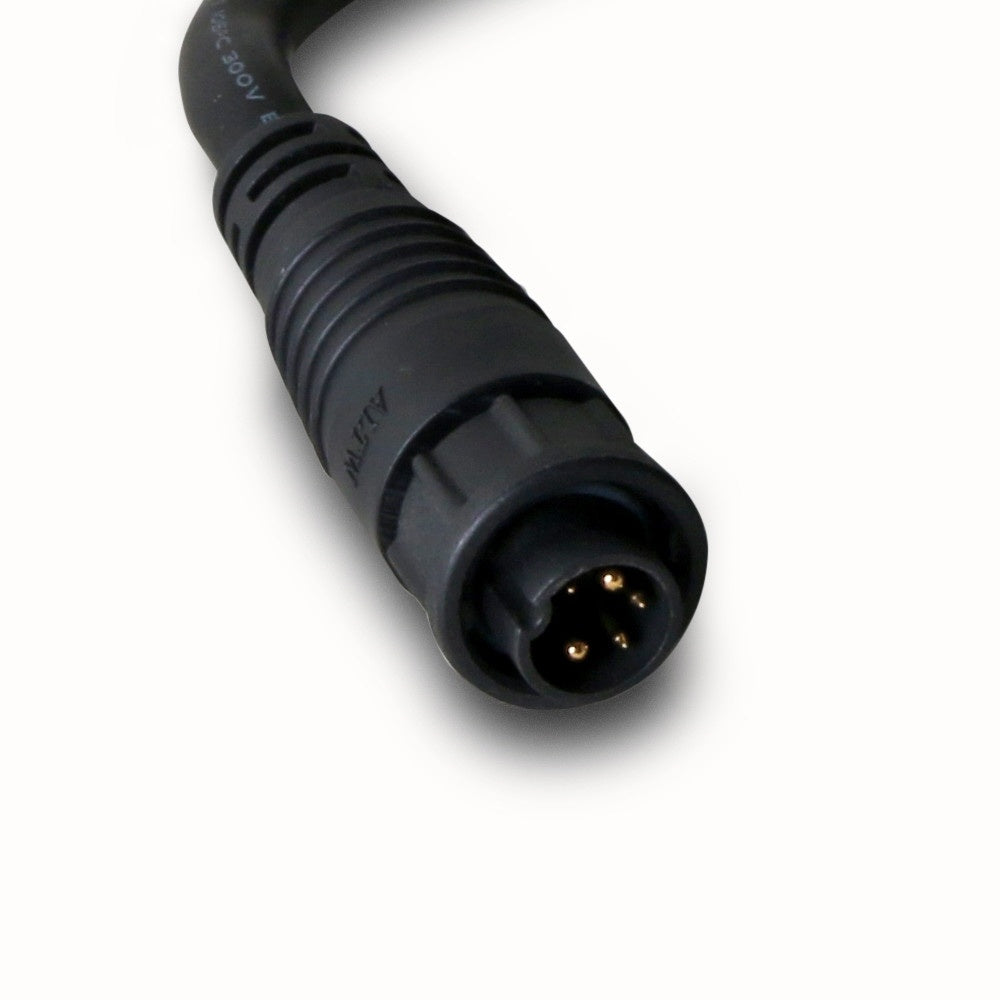

- Combined Power And Data Cabling Supports Long Daisy-Chains With Backstage Power Supply Placement
- Hybrid DMX And P3 Control Allows Real-Time Toggle Between DMX, PixelMapping, And VideoMapping
- Pixel-Level Full Gamut Calibration Ensures Consistent Output Across Mixed Fixture Arrays
- Field-Exchangeable Optical Accessories Clip On Without Tools For Fast On-Site Look Changes
- Magnetic Pushbutton Interface Enables Local Test Pattern And Device Reset Without External Controller
- Extruded Aluminum Profile Mounts In Any Orientation Via M6 Captive Nut Channel System
The VDO Sceptron 10 is purpose-built for rental production companies, lighting designers, and touring crews who need a reliable, outdoor-rated linear LED video fixture that scales cleanly across large rigs. The combined power and data cabling architecture eliminates the need for per-fixture driver boxes and allows long daisy-chains from a single cable run, with the power supply located backstage — a critical advantage when cleanliness of trim and speed of deployment are priorities on festival stages, broadcast sets, and architectural installs.
Control flexibility sets this fixture apart from fixed-protocol alternatives. The VDO Sceptron 10 supports native Martin P3 control with full VideoMapping and PixelMapping, direct DMX operation, and a hybrid mode that allows real-time toggling between all three via the P3 Switch channel — without rewiring or reconfiguring the rig. The P3 System Controller family handles intuitive addressing and mapping, while RDM compliance allows integration with third-party controllers. Pixel-level brightness and color calibration across the entire LED array ensures consistent output when fixtures are used in continuous surfaces or mixed with VDO Fatron and VDO Dotron products.
The extruded aluminum profile mounts in any orientation using M6 captive nut channels, with a full ecosystem of coupler, spigot, and floorstand accessories for fast reconfiguration between venues. Field-exchangeable diffusers and lenses — including flat, round, tube, NoBlend, and asymmetric wall-washing options — clip directly onto the fixture without tools, giving crews the ability to change the fixture's visual output to match production requirements on site.
Specifications
