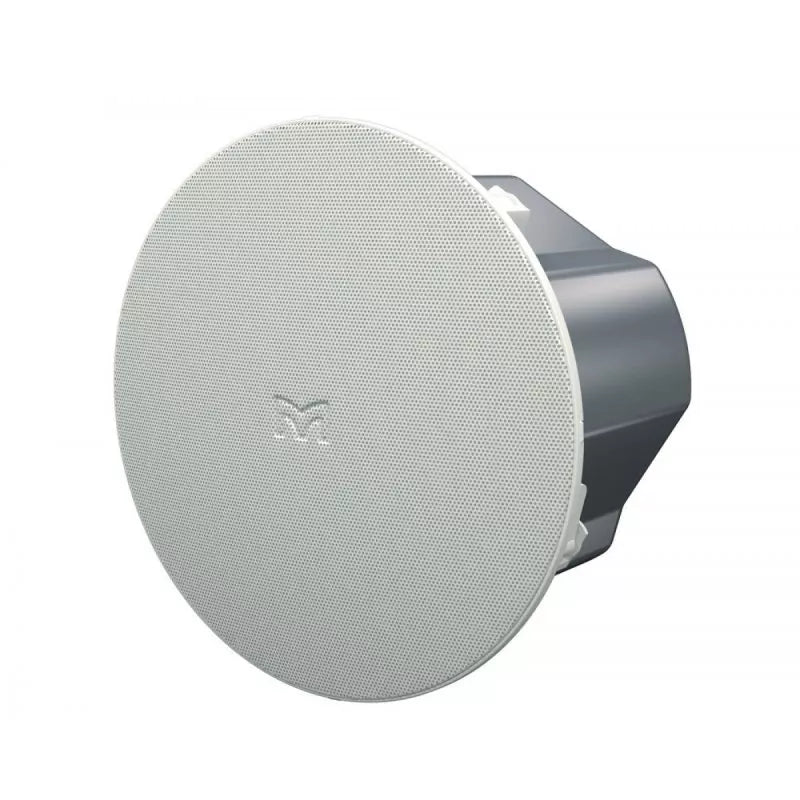

Martin Audio ACS-55T-W

Martin Audio ACS-55T-W

SoundPro Item: 110838 | Part Number: ACS-55T-W

$370.00
$370.00 $370.00
Your Price Sold out
MSRP: $370.00 | MAP: $370.00

Usually ships in 5-7 business days

  • High performance two-way ceiling speaker
  • 5.25” (135mm) LF driver and 0.75” (19mm) HF dome tweeter
  • Wide 150° conical coverage pattern reduces speaker count required for even coverage
  • 70V/100V multitap line transformer or 16 ohm low-impedance operation
  • Low and high-frequency overload protection
  • UL94V-0 rated baffle with zinc-plated steel backcan
  • Quick release, bezel-less grille
  • Tile rails and C-ring included
  • 5-year warranty
  • UL 1480A, UL 2043 and CSA C22.2 No. 205-17 compliant
Log in or register for YOUR best price

As part of the ADORN commercial series, the ACS-55T is a compact, two-way ceiling speaker designed for background and foreground applications that require premium performance and cost competitiveness.

View full details

Specifications

Type
Compact, passive two-way ceiling speaker, ported bass reflex
Frequency Response
98Hz-20kHz ± 3dB -10dB @ 62Hz
Drivers
LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassisHF: 0.75” silk dome, neodymium motor
Rated Power (2)
50W AES, 200W peak
Recommended Amplifier
VIA2004 (for low-impedance operation)
Sensitivity(4)
90dB / 1W(4V) / 1m
Maximum Spl (9)
113dB peak
Nominal Impedance
16Ω
Dispersion (-6Db)
150° conical up to 7kHz
Crossover
3kHz passive (LF and HF auto-resetting fuses)
Transformer Taps
70V: 30w / 15w / 7.5w / 3.75w100V: 30w / 15w / 7.5w
Recommended High-Pass Filter
65Hz 24dB/oct
Enclosure
UL 94V-0 rated ABS baffle with steel backcan
Finish
Baffle and grille: RAL9016 white Backcan: zinc plated
Grille
Perforated steel, powder-coated, bayonet fitting
Connectors
Ceramic connector (in and link) located behind fire-retardant steel cover
Accessories (Included)
2 tile railsC-ring backing plateCut-out template
Dimensions
(OD) 245mm x (D) Back Can 192mm, (D) Inc. Grille 209mm(OD) 9.7in x (D) Back Can 7.55in, (D) Inc. Grille 8.23in
Hole Cut-Out Dimension
222mm (8.74”) diameter
Weight
3kg (6.6lbs)
Ceiling Safety Standards
Certified compliant: UL 1480A, UL 2043, CSA C22.2 No. 205-17
