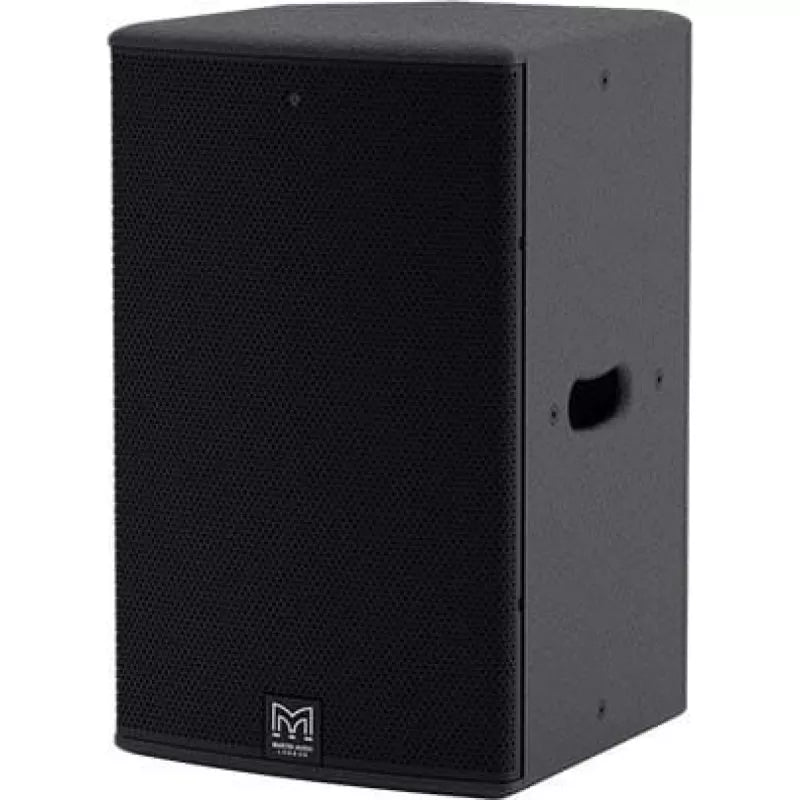

Martin Audio CDD-LIVE12B

Martin Audio CDD-LIVE12B

SoundPro Item: 74698 | Part Number: CDD-LIVE12B

$3,450.00
$3,450.00 $3,450.00
Your Price Sold out
MSRP: $3,450.00 | MAP: $3,450.00

Usually ships in 5-7 business days

  • Compact, self-powered two-way system
  • Coaxial Differential Dispersion™ technology
  • Onboard Class D amplification and DSP
  • Dante™ Digital Audio networking
  • Global mains operation with Power Factor Correction
  • User-rotatable CDD™ driver
  • Vertical and horizontal mounting options
  • Tour-grade, multi-angle plywood enclosure
  • IP24 rating option with rain cowl
  • Comprehensive mounting accessories
Log in or register for YOUR best price

The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure. With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements - from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.

View full details

Specifications

'Acoustics
Type
Compact, Coaxial Differential Dispersion powered two-way system
Frequency Response
62Hz - 20kHz ±3dB, -10dB @ 50Hz
Driver
LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
Input Sensitivity
-30dBu for 100dB SPL
Maximum Spl (2)
122dB continuous / 128dB peak
Dispersion
110°-60° horizontal, 60° vertical (user-rotatable)
Crossover
1.5kHz Active LR8 with low latency HF FIR equalisation Balance presets for pole mount/ pole mount with sub/ stage monitor
ModuleAudio input
Connectors
Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
Analogue Input Impedance
20 kΩ balanced to ground
Maximum Analogue Input Level
24.6 Vpp (+21dBu), over voltage protected
Internal Processing
Multi-channel DSP, programmable via TCP/IP using VU-Net software PEQ/shelving filters Up to 48dB/Oct HPF Low latency HF FIR filters Up to 200ms input delay Pre-set selection via rear panel switch
Network
Connectors
2xNeutrik® Ethercon
Protocol
TCP/IP and UDP/IP
Amplifier
Type
2 channel switch-mode, class D, Bridged Tied Load + 1 channel switch-mode, class D
Peak Output Power
2500W total 2000W LF, 500W HF
Average Efficiency
89%
Cooling
External convection cooled, with internal fan
Maximum Ambient Temperature
40°C (104°F) for full output
Power Supply
Type
Switch mode, fixed frequency with PFC
Ac Input Operating Range
85 - 265V ~ AC, 50 - 60Hz
Power Factor
> 0.98
Nominal Power Consumption
550W
Mains Connector
Neutrik® Powercon True1
Mechanical
Enclosure
Extensively braced multi-laminate plywood.
Finish
Textured black PU coating.
Protective Grille
HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth.
Fittings
Top hat for pole mounting 15 x M8 mounting points Two side pocket handles Optional weather protection cowl
Ip Rating
IP24 factory option available
Dimensions
(W) 359mm x (H) 580mm x (D) 373mm (W) 14.13in x (H) 22.83in x (D) 14.69in
Weight
28kg (61.6lbs) excluding Transit cover
Accessories
Transit Cover Optional wall, yoke and universal brackets
