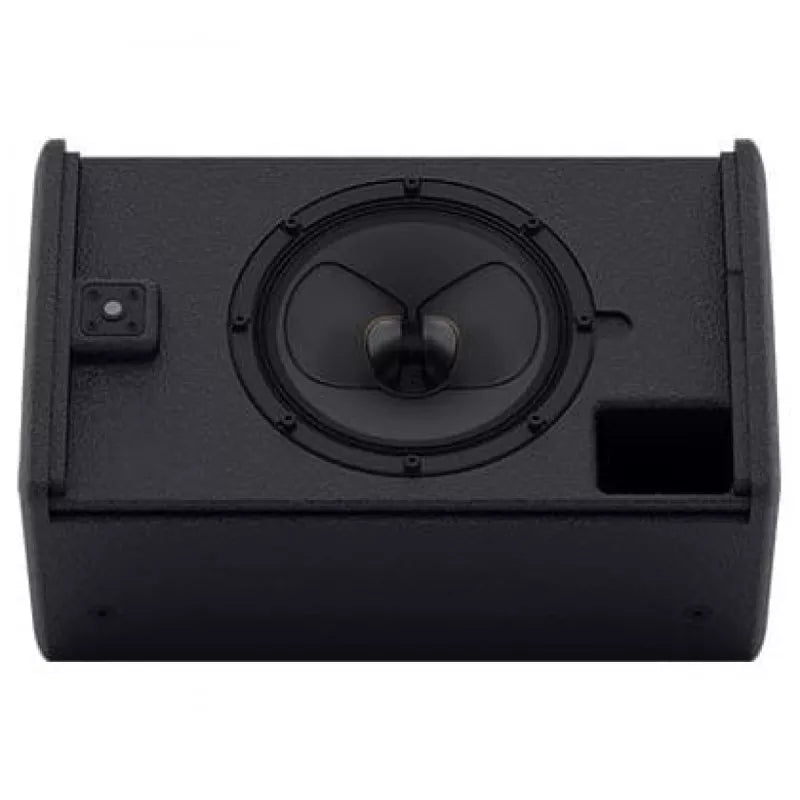

Martin Audio CDD-LIVE8B

Martin Audio CDD-LIVE8B

SoundPro Item: 74697 | Part Number: CDD-LIVE8B

$2,750.00
$2,750.00 $2,750.00
Your Price Sold out
MSRP: $2,750.00 | MAP: $2,750.00

Usually ships in 5-7 business days

  • Ultra-Compact, self-powered two-way system
  • Coaxial Differential Dispersion™ technology
  • Onboard Class D amplification and DSP
  • Dante™ Digital Audio networking
  • Global mains operation with Power Factor Correction
  • User-rotatable CDD™ driver
  • Vertical and horizontal mounting options
  • Tour-grade, multi-angle plywood enclosure
  • IP24 rating option with rain cowl
  • Comprehensive mounting accessories
Log in or register for YOUR best price

The CDD-LIVE 8 is an ultra-compact, self-powered, two-way system featuring an 8" (200mm) LF/1" (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation. Its small size gives no indication of its high output capability and exceptional fidelity. As a stand-alone loudspeaker, it has a multitude of professional applications - from small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor.

View full details

Specifications

' Acoustics
Type
Ultra-Compact, Coaxial Differential Dispersion powered two-way system
Frequency Response
70Hz - 20kHz ±3dB, -10dB @ 50Hz
Driver
LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
Input Sensitivity
-26dBu for 100dB SPL
Maximum Spl (2)
117dB continuous / 123dB peak
Dispersion
110°-80° horizontal, 60° vertical (user-rotatable)
Crossover
2.3kHz Active LR8 Balance presets for pole mount/ pole mount with sub/ stage monitor
Module Audio Input
Connectors
Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
Analogue Input Impedance
20 kΩ balanced to ground
Maximum Analogue Input Level
24.6 Vpp (+21dBu), over voltage protected
Internal Processing
Multi-channel DSP, programmable via TCP/IP using VU-Net software PEQ/shelving filters Up to 48dB/Oct HPF Low latency HF FIR filters Up to 200ms input delay Pre-set selection via rear panel switch
Network
Connectors
2x Neutrik ® Ethercon RJ45
Protocol
TCP/IP and UDP/IP
Amplifier
Type
2 channel switch-mode, class D
Peak Output Power
1300W total 1000W LF, 300W HF
Average Efficiency
89%
Cooling
External convection cooled, with internal fan
Maximum Ambient Temperature
40°C (104°F) for full output
Power Supply
Type
Switch mode, fixed frequency with PFC
Ac Input Operating Range
85 - 265V ~ AC, 50 - 60Hz
Power Factor
> 0.98
Nominal Power Consumption
550W
Mains Connector
Neutrik® Powercon True1
Mechanical
Enclosure
Extensively braced multi-laminate plywood.
Finish
Textured black PU coating.
Protective Grille
HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth
Fittings
Top hat for pole mounting 15 x M8 mounting points Single pocket handle Optional weather protection cowl
Ip Rating
IP24 factory option available
Dimensions
(W) 258mm x (H) 428mm x (D) 254mm (W) 10.16in x (H) 16.85in x (D) 10.00in
Weight
14kg (30.8lbs) excluding Transit cover
Accessories
Transit Cover Optional wall, yoke and universal brackets
