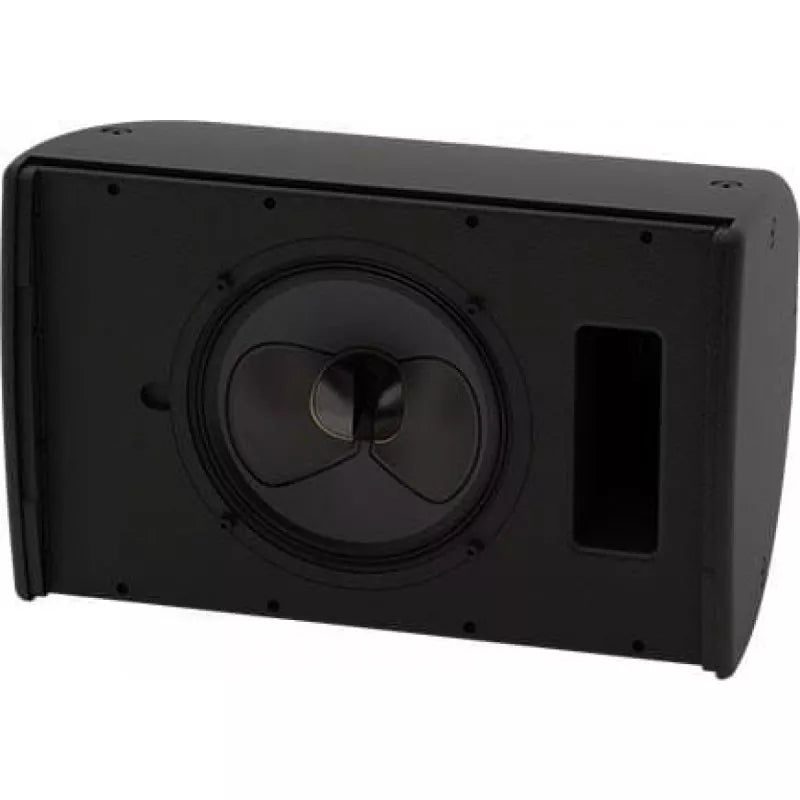

Martin Audio CDD10B

Martin Audio CDD10B

SoundPro Item: 30415 | Part Number: CDD10B

$1,400.00
$1,400.00 $1,400.00
Your Price Sold out
MSRP: $1,400.00 | MAP: $1,400.00

Usually ships in 5-7 business days

  • Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Discreet mounting accessories
  • Integral inserts for eyebolt suspension
  • Black or white standard colour options
Log in or register for YOUR best price

The CDD10 is a very compact two-way passive loudspeaker system which utilises a 10" (250mm) LF/1" (25mm) exit HF Coaxial Differential Dispersion driver. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a SX118 or CX218 subwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.

View full details

Specifications

Type
Compact, Coaxial Differential Dispersion passive two-way system
Frequency Response
65Hz-20kHz ± 3dB, -10dB @ 55Hz
Driver
LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
Rated Power (2)
250W AES, 1000W peak
Sensitivity (8)
96dB
Maximum Spl (9)
120dB continuous, 126dB peak
Nominal Impedance
8Ω
Dispersion (-6Db)
110°-75° horizontal, 60° vertical (user-rotatable)
Crossover
2kHz passive
Enclosure
28 litre, composite material
Finish
Black or white textured paint
Protective Grille
Black or white perforated steel with scrim cloth backing
Connectors
Low profile 20A push-lock
Pin Connections
Left to right: Input+, Input -, Link -, Link+
Fittings
6 x M8 inserts for wall bracket 10 x M8 fly points
Dimensions
(W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.2ins x (D) 12.2ins
Weight
15.3kg (33.7lbs)
