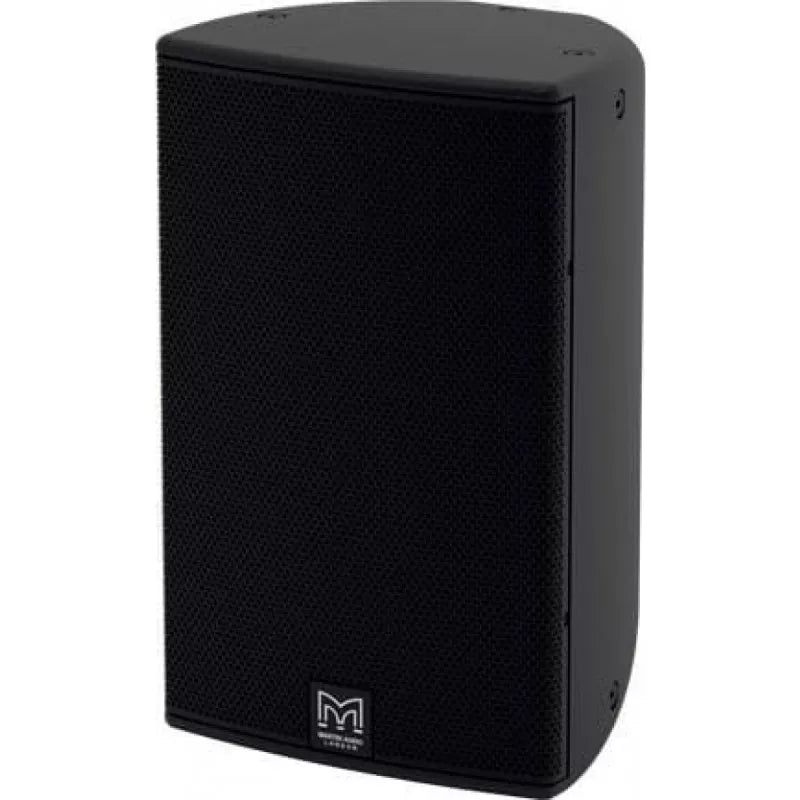

Martin Audio CDD12B-WR

Martin Audio CDD12B-WR

SoundPro Item: 200239 | Part Number: CDD12B-WR

$2,100.00
$2,100.00 $2,100.00
Your Price Sold out
MSRP: $2,100.00 | MAP: $2,100.00

Usually ships in 5-7 business days

  • Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • Outdoor operation when sheltered from direct exposure to elements
  • Operating temperature -20°C to +70°C
  • Environmentally tested to meet IP54
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free water and particle resistant grille
  • 8Ω nominal impedance
  • Integral inserts for eyebolt suspension
  • Discreet weatherised mounting accessories
  • Black or white standard colour options
Log in or register for YOUR best price
The CDD12-WR is a weatherised compact, passive two-way system designed for installations that require high output levels suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. Its high-specification 12" (300mm) LF /1" exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances. It features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
View full details

Specifications

Type
Compact, high-output, Coaxial Differential Dispersion passive two-way system
Frequency Response
62Hz-20kHz ± 3dB -10dB @ 50Hz
Driver
LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
Rated Power (2)
300W AES, 1200W peak
Sensitivity (8)
97dB
Maximum Spl (9)
122dB continuous, 128dB peak
Nominal Impedance
8Ω
Dispersion (-6Db)
110°-60° horizontal, 60° vertical (user-rotatable)
Crossover
1.9kHz passive
Enclosure
38 litre, composite material
Finish
Black or white as standard
Protective Grille
Zinc plated mild steel with powder coated finish and weatherised backing
Environmental
Rated at IP54
Connectors
Low profile 20A push-lock, weatherproof input panel cover with cable gland
Pin Connections
Left to right: Input+, Input -, Link -, Link+
Fittings
6 x M8 inserts for wall bracket 10 x M8 fly points
Dimensions
(W) 360mm x (H) 571mm x (D) 350mm (W) 14.2ins x (H) 22.5ins x (D) 13.8ins
Weight
19.8kg (43.65lbs)
