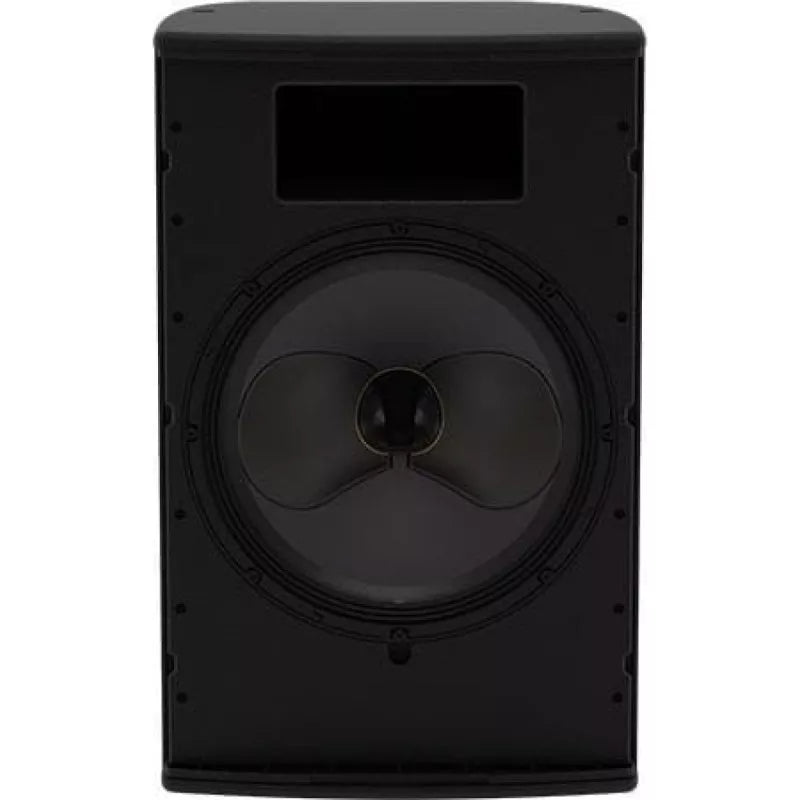

Martin Audio CDD15B

Martin Audio CDD15B

SoundPro Item: 31180 | Part Number: CDD15B

$2,500.00
$2,500.00 $2,500.00
Your Price Sold out
MSRP: $2,500.00 | MAP: $2,500.00

Usually ships in 5-7 business days

  • High-output, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant birch plywood enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Integral inserts for eyebolt suspension
  • Black or white standard colour options
Log in or register for YOUR best price

Ideal for medium-to-large rooms, the CDD15 is a very high-power, passive two-way system designed for installations that demand the ultimate in sonic performance from a single enclosure. It combines very high output capability with exceptional fidelity and coverage consistency. Its coaxial drive unit comprises a powerful 15" (380mm)/3" (75mm) voice coil LF driver and a 1.4" (35mm) exit HF compression driver with a 3" (75mm) pure titanium diaphragm.

View full details

Specifications

Type
High-output, Coaxial Differential Dispersion passive two-way system
Frequency Response
55Hz-18kHz ± 3dB, -10dB @ 45Hz
Driver
LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
Rated Power (2)
400W AES, 1600W peak
Sensitivity (8)
100dB
Maximum Spl (9)
126dB continuous, 132dB peak
Nominal Impedance
8Ω
Dispersion (-6Db)
100°-60° horizontal, 60° vertical (user-rotatable)
Crossover
1.6kHz passive
Enclosure
68 litre, birch plywood
Finish
Black or white textured paint
Protective Grille
Black or white perforated steel with scrim cloth backing
Connectors
Low profile 20A push-lock
Pin Connections
Left to right: Input+, Input -, Link -, Link+
Fittings
10 x M8 fly points
Dimensions
(W) 432mm x (H) 685mm x (D) 413mm (W) 17.01ins x (H) 26.97ins x (D) 16.26ins
Weight
26kg (57.32lbs)
