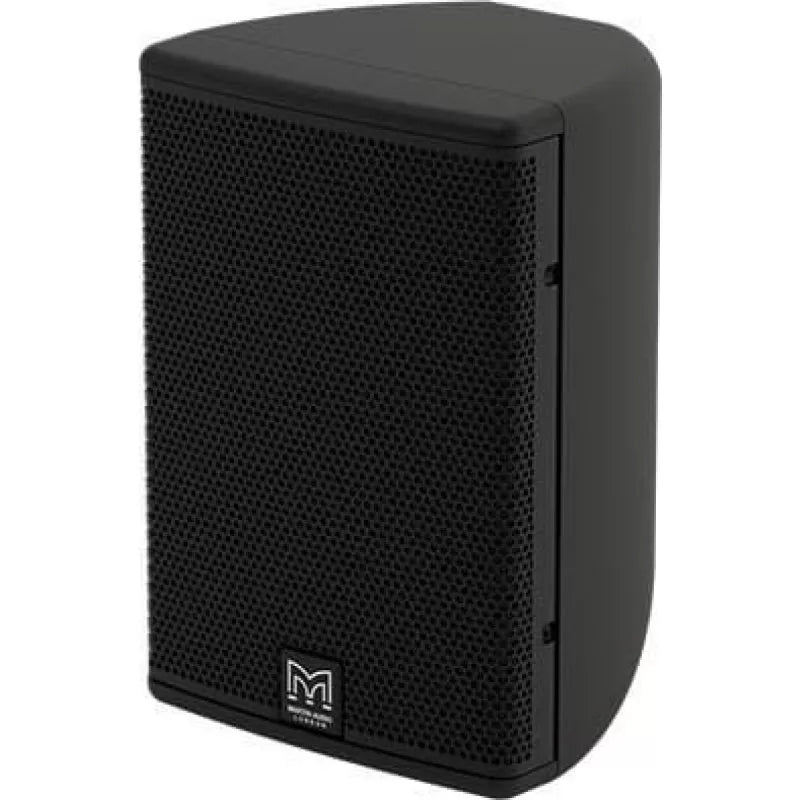

Martin Audio CDD5B

Martin Audio CDD5B

SoundPro Item: 30257 | Part Number: CDD5B

$630.00
$630.00 $630.00
Your Price Sold out
MSRP: $630.00 | MAP: $630.00

Usually ships in 5-7 business days

  • Ultra-Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant ABS moulded enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Discreet mounting accessories
  • Black or white standard colour options
  • 70V/100V line transformer option
Log in or register for YOUR best price

The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations - including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5" (125mm) LF/0.7" (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.

View full details

Specifications

Type
Ultra-Compact, Coaxial Differential Dispersion passive two-way system
Frequency Response
100Hz-20kHz ± 3dB, 10dB @ 70Hz
Driver
LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
Rated Power (2)
100W AES, 400W peak
Sensitivity (8)
90dB
Maximum Spl (9)
110dB continuous, 116dB peak
Nominal Impedance
8Ω
Dispersion (-6Db)
120°-90° horizontal, 80° vertical (user-rotatable)
Crossover
2.5kHz passive
Enclosure
3 litre, ABS
Finish
Black or white
Protective Grille
Black or white perforated steel with scrim cloth backing
Connectors
Low profile 13A push-lock
Pin Connections
Left to right: Input+, Input -, Link -, Link +
Fittings
6 x M5 inserts for wall/ceiling brackets
Dimensions
(W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
Weight
3kg (6.6lbs)
