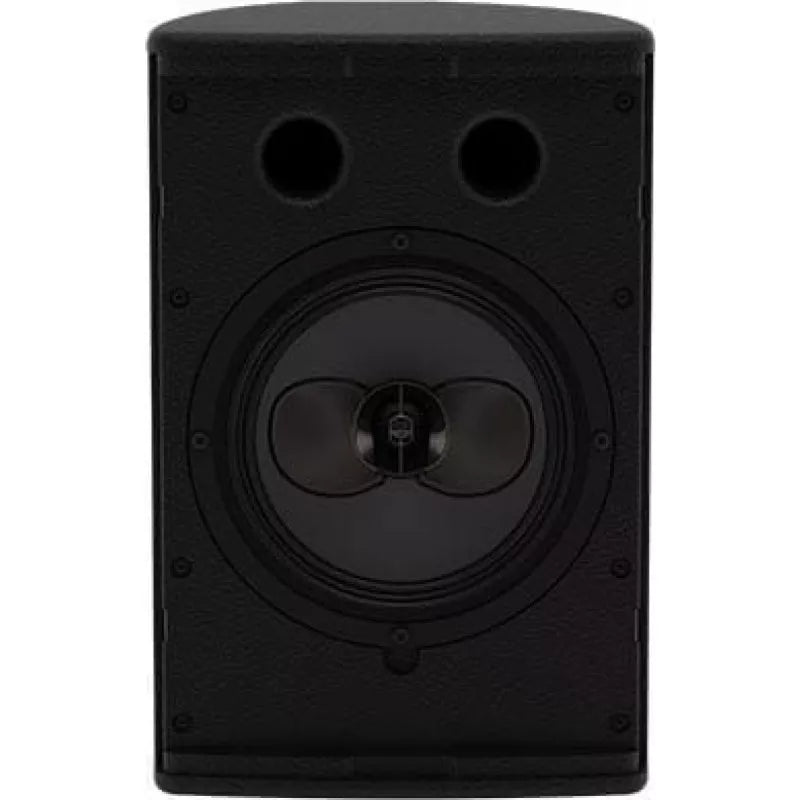

Martin Audio CDD6B

Martin Audio CDD6B

SoundPro Item: 30341 | Part Number: CDD6B

$1,100.00
$1,100.00 $1,100.00
Your Price Sold out
MSRP: $1,100.00 | MAP: $1,100.00

Usually ships in 5-7 business days

  • Ultra-Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Discreet mounting accessories
  • Black or white standard colour options
Log in or register for YOUR best price

The ultra-compact CDD6 is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5" (165mm) LF/1" (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.

View full details

Specifications

Type
Ultra-Compact, Coaxial Differential Dispersion passive two-way system
Frequency Response
80Hz-20kHz ± 3dB, -10dB @ 70Hz
Driver
LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system
Rated Power (2)
150W AES, 600W peak
Sensitivity (8)
91dB
Maximum Spl (9)
113dB continuous, 119dB peak
Nominal Impedance
8Ω
Dispersion (-6Db)
110°-80° horizontal, 80° vertical (user-rotatable)
Crossover
2.5kHz passive
Enclosure
9 litre, composite material
Finish
Black or white textured paint
Protective Grille
Black or white perforated steel with scrim cloth backing
Connectors
Low profile 13A push-lock
Pin Connections
Left to right: Input+, Input -, Link -, Link +
Fittings
4 x M6 inserts for wall/ceiling brackets
Dimensions
(W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins
Weight
5.69kg (12.54lbs)
