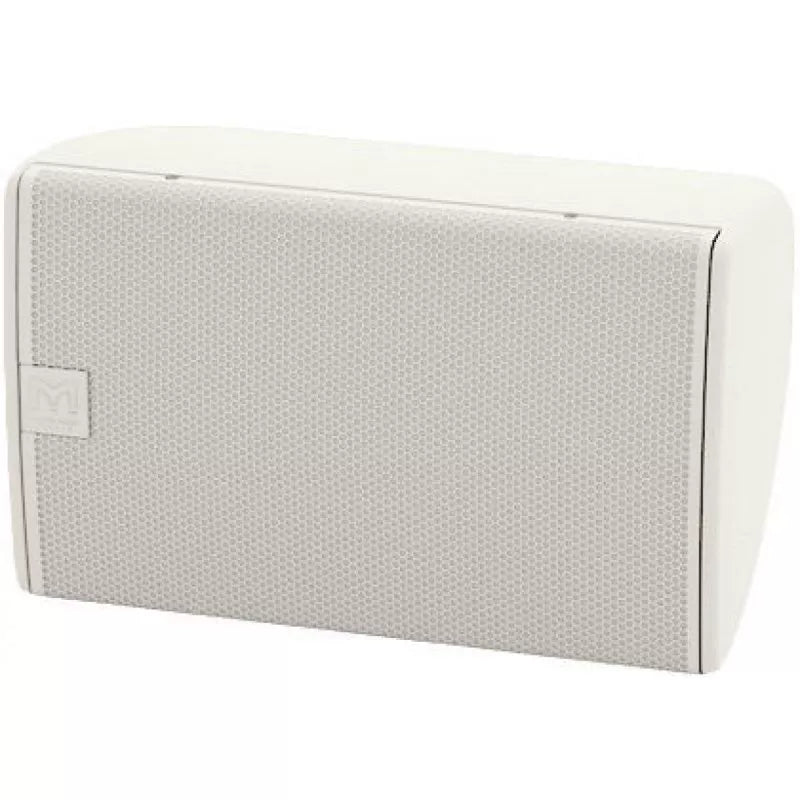

Martin Audio CDD8W

Martin Audio CDD8W

SoundPro Item: 30413 | Part Number: CDD8W

$960.00
$960.00 $960.00
Your Price Sold out
MSRP: $960.00 | MAP: $960.00

Usually ships in 5-7 business days

  • Ultra-Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Discreet mounting accessories
  • Black or white standard colour options
Log in or register for YOUR best price

The CDD8 is an ultra-compact two-way passive loudspeaker system with an integrated 8" (200mm) LF/1" (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.

View full details

Specifications

Type
Ultra-Compact, Coaxial Differential Dispersion passive two-way system
Frequency Response
70Hz-20kHz ± 3dB, -10dB @ 55Hz
Driver
LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
Rated Power (2)
200W AES, 800W peak
Sensitivity (8)
94dB
Maximum Spl (9)
117dB continuous, 123dB peak
Nominal Impedance
8Ω
Dispersion (-6Db)
110°-80° horizontal, 60° vertical (user-rotatable)
Crossover
2.3kHz passive
Enclosure
14 litre, composite material
Finish
Black or white textured paint
Protective Grille
Black or white perforated steel with scrim cloth backing
Connectors
Low profile 13A push-lock
Pin Connections
Left to right: Input+, Input -, Link -, Link +
Fittings
6 x M6 inserts for wall/ceiling brackets
Dimensions
(W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
Weight
9.5kg (21lbs)
