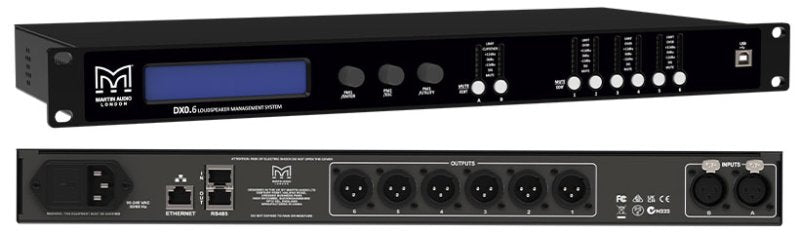

Martin Audio DX0.6 2x6 Dsp loudspeaker processor

Martin Audio DX0.6 2x6 Dsp loudspeaker processor

SoundPro Item: 139344 | Part Number: DX0.6

$1,200.00
$1,200.00 $1,200.00
Your Price Sold out
MSRP: $1,200.00 | MAP: $1,200.00

Usually ships in 5-7 business days

  • Professional 2-input, 6-output system processor for a wide range of system applications.
  • Comprehensive, sophisticated processing options including EQ, gate, delay and limiting to optimise and protect a system.
  • Fully assignable matrix routing of both inputs to any output with attenuation option on each routing node.
  • Two balanced XLR inputs with up to 12dB of gain, polarity invert, 600ms of delay, 10 band parametric EQ with a choice of 14 filter types individually selectable for each band.
  • Six balanced XLR outputs with 12dB of gain, polarity invert, 200ms delay, high and low pass filters with cut-off slopes from -6dB/oct to -48dB/oct using either Bessel, Butterworth or Linkwitz Riley filters. 8 band parametric EQ with up a choice of 14 filter types, Independent Program and Peak Limiters
  • Convenient front panel controls and LCD display with an intuitive menu system for setting or modifying settings. One press mute buttons for all inputs and outputs.
Log in or register for YOUR best price

The DX0.6 is the ideal processing tool to partner the ADORN, CDD and BlacklineX ranges or indeed any system where comprehensive system control and protection is required perhaps where there may be budget constraints.

View full details

Specifications

'General
Input Impedance:
20k Ohm balanced
Output Imp:
100R
Max Input Level:
+20dBu
Max Output Level:
+18dBu
Crosstalk:
<-95dB
Sample Rate:
96kHz
Signal To Noise Ration
>113dB (A weighted)
Noise Floor:
<-94dB (A weighted)
Common Mode Rejection Ratio
60dB
Frequency Response:
20Hz - 40kHz +0.3dB
Input A/D Dynamic Range:
118dB
Output D/A Dynamic Range:
118dB
Thd (+4Dbu 1Khz):
<0.003%
Mains Voltage Range:
85-230VAC 50-60Hz
Nominal Power Consumption:
30W
Connectors
Audio Input:
2 x 3 pin female XLR
Audio Output:
6 x 3 pin male XLR
Ethernet:
Shielded RJ45, Dynamic or Static IP
Rs485:
2 x RJ45
Usb:
1 x USB B (Front Panel)
Mains:
3 pin IEC
Processing
Signal Generator:
White/pink noise, -30dBu to +10dBu
Gain:
-18dB to +12dB, step accuracy 0.1dB
Input Equaliser:
10 band PEQ, gain range +15dB14 x Filter types
Input Gate:
Threshold: -40 to -80dBuAttack: 1 to 1,000msRelease: 1 to 1,000ms
Routing:
Freely assignable 2-in, 6 out Up to 30dB attenuation on each node
Delay:
Input: 600ms Output: 200ms Steps: 20us, Units: milliseconds, metres, feet
Output Filters:
High & Low Pass, -6dB/Octave to -48dB/Octave Slope types: Butterworth, Bessel, Linkwitz Riley
Output Equalisation:
8 band PEQ, gain +15dB 14 x filter types FIR Filter Import
Program Limiter:
Threshold: -10 to +20dBu Attack: 1 to 1,000msRelease: 10 to 3,000ms
Peak Limiter:
Threshold: 0 to 12dB above Program Limiter Threshold Release: Fast (91ms), Medium (350ms), Slow (800ms)
Dimensions
Height:
1U (44mm) [1.75”]
Width:
482mm [19”]
Depth:
230mm [9.1”]
Weight:
3.0kg [6.6lb]
