Martin Audio FP6 Rack Mount 19" Mixer w/ 10U Sl

Martin Audio FP6 Rack Mount 19" Mixer w/ 10U Sl

SoundPro Item: 139795 | Part Number: FP6

$1,250.00
$1,250.00 $1,250.00
Your Price Sold out
MSRP: $1,250.00 | MAP: $1,250.00

Usually ships in 5-7 business days

  • Ultra-compact, passive two-way loudspeaker
  • Versatile, multi-angle enclosure with flexible mounting options
  • Coaxial Point Source configuration with user-rotatable drive unit
  • 6” (150mm)/1.75” (44mm) voice coil, low distortion, neodymium LF driver
  • 1.4” (36mm) polymer diaphragm/0.7” (18mm) exit HF driver
  • 100° H x 80° V dispersion
  • Quick-release steel grille
  • 3D prediction software [DISPLAY 3]
  • Powered by iKON or VIA amplifiers
Log in or register for YOUR best price

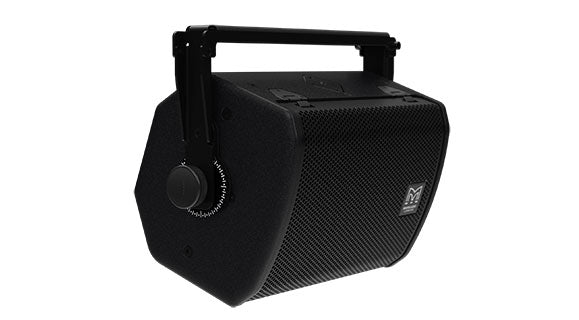

The FP6 is a premium, ultra-compact point-source loudspeaker designed for short-throw applications which require superb sonic performance and coverage consistency from an extremely small enclosure. With full-frequency response and exceptional output capabilities for its size, it is ideal for installation in small spaces and areas which require spot and fill coverage.

View full details

Specifications

Product Name
FP6
Type
Coaxial passive 2-way
Crossover Frequency
2.3kHz
Frequency Response - 4? (5)
73Hz - 20kHz ± 3dB, -10dB @57Hz with preset
Drivers
LF: 6", 1.75" Voice coil, Neodymium Motor with flux stabilising ringsHF: 0.7" exit, 1.4" Voice coil, Coaxial HT polymer dome compression driver
Sensitivity (4V 1M Free-Field)
91dB
Nominal Impedance
16 Ohms
Rated Power
150W AES, 600W peak
Maximum Spl
113dB Cont, 119dB Peak (6dB)
Dispersion (-6Db)
100° H, 80° V
Connectors
NLT4MPXX-BAG speakons (pair)
Pin Connections (Input)
1+ / 1-
Pin Connections (Link)
1+/- and 2+/-
Enclosure
Durable birch plywood
Finish
Black hardwearing paint
Grille
Quick release steel grille with triple-layer polyester backing Access to quick release rotatable driver
Ip Rating
IP54 when fitted with two speakON NLT4FXX connectors
Fittings
4 x M10, 15 x M6 fixing points, 1 x 3/8” (mic stand) fixing point
Dimensions
(W) 321mm, (H) 220mm, (D) 197mm (W) 12.6ins, (H) 8.7ins, (D) 7.8ins
Weight
5.5kg (12.1lbs)
Volume
7L
