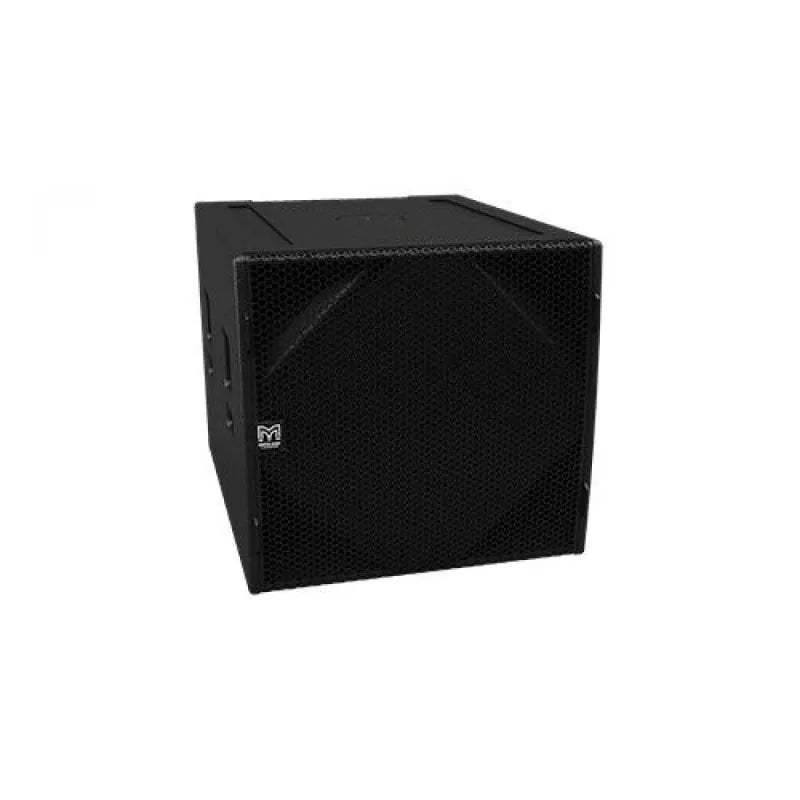

Martin Audio SXC118

Martin Audio SXC118

SoundPro Item: 123441 | Part Number: SXC118

$5,250.00
$5,250.00 $5,250.00
Your Price Sold out
MSRP: $5,250.00 | MAP: $5,250.00

Usually ships in 5-7 business days

  • Compact, cardioid subwoofer
  • Front facing 18” (460mm)/4” (100mm) voice coil driver
  • Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
  • Cardioid dispersion pattern
  • 28dB rear rejection at 75Hz
  • High output capability
  • Tour-grade plywood enclosure with flying inserts
Log in or register for YOUR best price

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18" (460mm) forward facing driver and a 14" (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.

View full details

Specifications

Type
Compact, cardioid subwoofer
Frequency Response
43Hz - 150Hz ±3dB, -10dB @ 34Hz
Drivers
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
Rated Power (2)
18”: 1000W AES, 4000W peak14”: 800W AES, 3200W peak
Sensitivity (10)
104dB
Maximum Spl (9)
140dB peak
Nominal Impedance
18”: 8Ω14”: 8Ω
Dispersion (-6Db)
Cardioid
Enclosure
Multi-laminate birch and poplar ply
Finish
Textured black paint
Protective Grille
Black HEX perforated steel
Connectors
2 x NL4
Pin Connections (Input)
18”: +1, -1; 14”: +2, -2
Pins Connections (Link)
18”: +1, -1; 14”: +2, -2
Fittings
Two skids on base, with mating channels on topM20 top-mounted thread plate for pole mountingTwo bar handles on each sideFour fittings for optional transit cover16 x M10 Mounting Points16 x M8 inserts for optional castorsTwo bar handles on each side
Dimensions (Incl Skids)
(W) 650mm x (H) 603mm x (D) 812mm (940mm incl castors) (W) 25.6in x (H) 23.7in x (D) 32in (37in incl castors)
Weight
69kg (152lbs) 73kg (161lbs) incl castors
