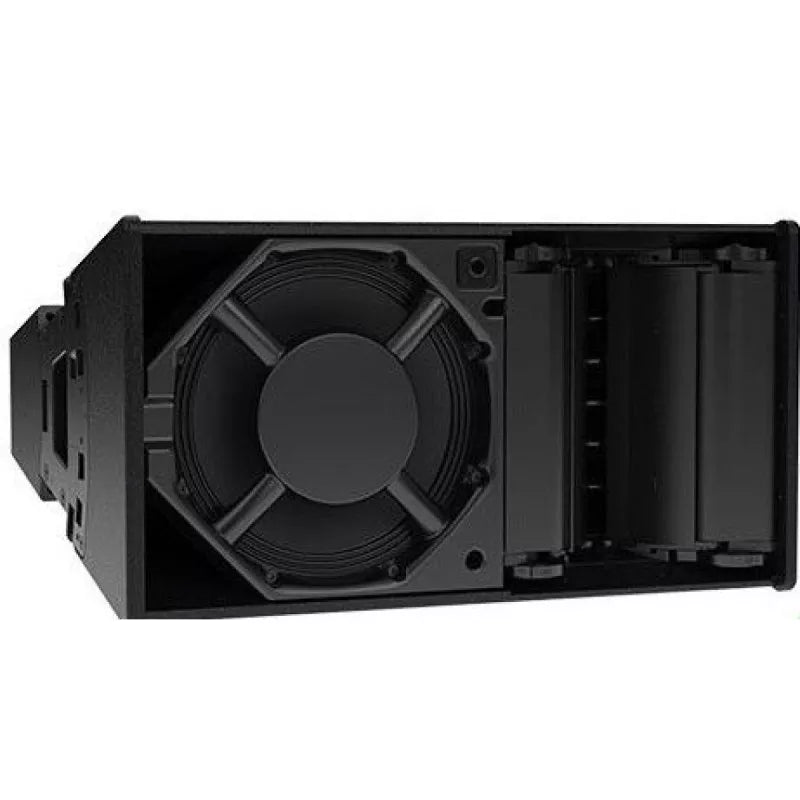

Martin Audio T1230

Martin Audio T1230

SoundPro Item: 123453 | Part Number: T1230

$4,500.00
$4,500.00 $4,500.00
Your Price Sold out
MSRP: $4,500.00 | MAP: $4,500.00

Usually ships in 5-7 business days

  • Two-way passive, constant curvature array element
  • Compact enclosure with high output capability
  • 1 x 12” (300mm) LF driver plus 3 x 1.4” (35mm)/1” (25mm) exit HF drivers
  • Dynamic Horn Flare™ manually adjustable between 90° and 60° or 75° (asymmetrical) for flexible horizontal coverage
  • Fixed 30° vertical dispersion pattern
  • Phase plug for increased mid-band output
  • Easy-to-use integral rigging for quick set-up
  • Integral fittings to facilitate pole-mounting
  • Optimised coverage via DISPLAY 3
  • Powered by iKON amplifiers
Log in or register for YOUR best price

For applications that typically require a throw between 15-30m (50-100ft), a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL.

View full details

Specifications

Product Name
TORUS 12: T1230
Type
Passive 2-way Constant Curvature 30° enclosure
Frequency Response (With Ikon Settings)
65Hz - 18kHz ± 3dB, -10dB @ 50Hz
Drivers
LF: 12”, 3” Voice Coil, Neodymium HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver
Sensitivity
(2.83V 1m free-field) 99dB
Nominal Impedance
8 ohms
Rated Power
AES 400W, PEAK 1600W
Maximum Spl (System)
126dB continuous, 132dB peak*
Dispersion
60-75-90° horizontal, 30° vertical
Pin Connections (Input)
1+/- or 2+/-
Pin Connections (Link)
1+/- and 2+/-
Dimensions
(W) 650mm, (H) 350mm, (D) 442mm (W) 25.59ins, (H) 13.76ins, (D) 17.40ins
Weight
26kg (57.32 lbs)
*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak.
