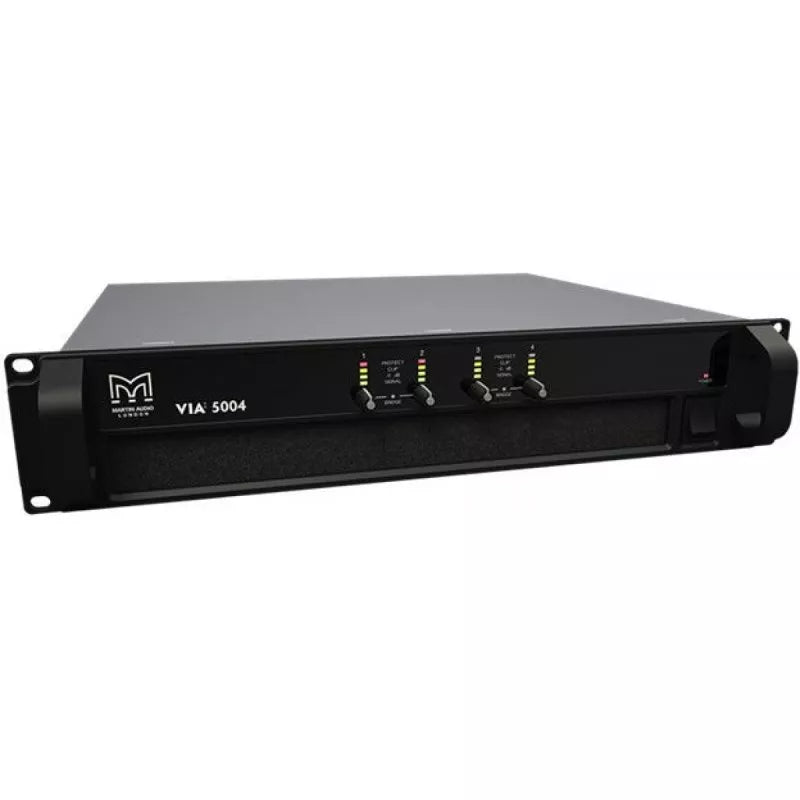

Martin Audio VIA5004

Martin Audio VIA5004

SoundPro Item: 123467 | Part Number: VIA5004

$3,000.00
$3,000.00 $3,000.00
Your Price Sold out
MSRP: $3,000.00 | MAP: $3,000.00

Usually ships in 5-7 business days

  • Four channels of efficient Class D amplification
  • 5000 Watts total power output
  • 2U rack height
  • Exceptionally lightweight
  • Switch mode power supply
  • Variable speed cooling fan with front-to-back airflow
  • Global mains operation, 115V to 230V auto-sensing
  • Comprehensive protection systems
  • Signal and clip limiter LEDs
Log in or register for YOUR best price

The VIA5004 is an advanced 4-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 4 x 1250 watts into 2 ohms, or 2 x 2500 watts into 4 ohms bridged, it is ideal for powering BlacklineQ, CDD and V.Series systems in small to medium-scale installations and portable sound applications. It can also be configured for 3-channel operation, for perfect compatibility with TH Series 3-way systems.

View full details

Specifications

' General
Type
Four-channel Class D amplifier
Power Output
4 x 1250W into 2 ohms4 x 800W into 4 ohms4 x 450W into 8 ohms2 x 2500W bridged into 4 ohms
Gain
32 dB (38 dB when bridged)
Cooling
Vari-speed fans, front-to-back airflow
Maximum Ambient Temperature
40°C (105°F)
Audio Inputs/Outputs
Analogue In/Link (4 Channels)
4 x female, 4 x male Neutrik™ XLR
Analogue Input Impedance
10KΩ balanced
Maximum Analogue Input Level
+20dBu
Amplifier Outputs
4 x Neutrik Speakon™ NL4
Audio Performance
Output Noise
-113dBA, referenced to max output (22kHz bandwidth)
Frequency Response
<10Hz ->20kHz +/- 0.25dB
Total Harmonic Distortion
<0.05% typical @ 1kHz, -3dB output (22kHz bandwidth)
Slew Rate
> 80V per microsecond
Damping Factor
120 ref 8 ohms
Power Supply
Type
2 x high current, high frequency switch-mode
Ac Operating Range
100-240V +/-10% 45 - 65Hz
Total System Efficiency
> 90% typical
Mains Connector
1 x Neutrik Powercon™
Physical
Dimensions
(W) 482 x (H) 2U/88mm x (D) 441mm(W) 19in x (H) 2U/3.5in x (D) 17.4in incl handles and optional rear support
Weight
10kg (22lbs)
