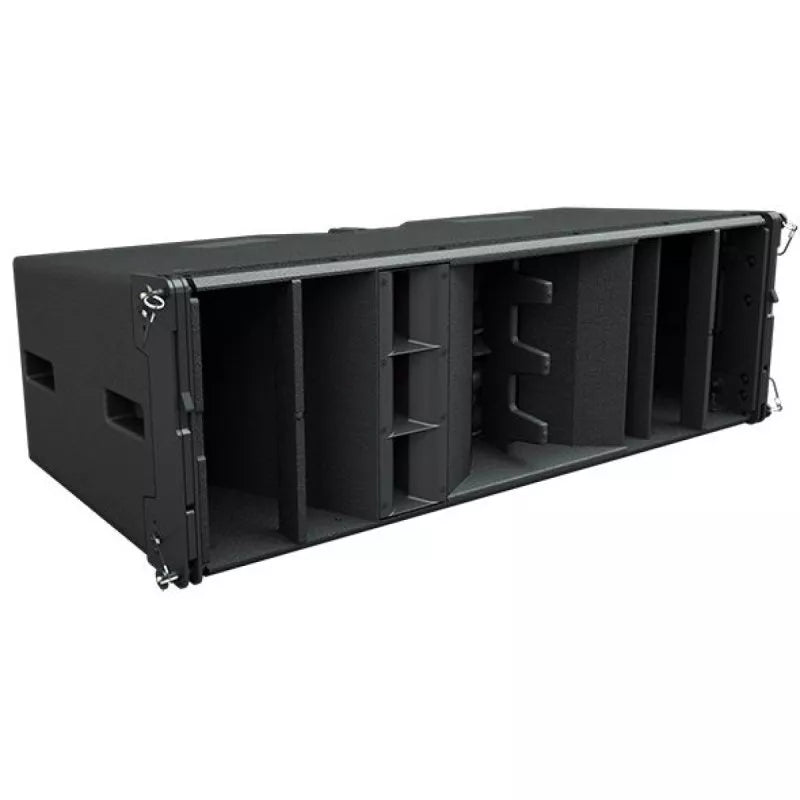

Martin Audio WPL

Martin Audio WPL

SoundPro Item: 123477 | Part Number: WPL

$12,000.00
$12,000.00 $12,000.00
Your Price Sold out
MSRP: $12,000.00 | MAP: $12,000.00

Usually ships in 5-7 business days

  • 3-way bi-amp, 2 x 12” large format line array
  • All-horn, maximum-efficiency design
  • Exceptional signature sonic performance
  • Exemplary 90° horizontal constant directivity pattern control
  • External, dedicated, multi-channel Class D amplification
  • Scalable resolution for flexible optimisation of coverage, consistency and control
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
  • Fast, integral 3-point rigging for up to 24 enclosures
  • Compact and light weight design with discreet side handles for ease of handling
Log in or register for YOUR best price

WPL is a 3-way, bi-amped, large-format line array with dual 12" LF, scalable resolution optimisation, and the ability to deliver stadium-level and large festival output with extraordinary control.

View full details

Specifications

Type
Three-way, bi-amp line array element
Frequency Response
52Hz-18kHz ± 3dB
Drivers
LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded
System Amplifier
iKON iK42
System Resolution
1 or 2 enclosures per pair of amplifier channels (Bi-amp)
Rated Power (2)
LF: 800 W AES, 3200 W peak MF/HF: 500 W AES, 2000 W peak
Maximum Spl (9)
LF: 139dB MF: 140dB HF: 145dB
Nominal Impedance
LF: 8 ohms, MF + HF: 8 ohms
Dispersion
90º horizontal (-6dB), 120º horizontal (-10dB)
7.5° vertical
Crossover
320Hz active, 4kHz internal passive
Enclosure
Vertical trapezoid with 3.75º wall angle, multi-laminate birch and poplar-ply construction
Finish
Black or white hardwearing paint
Protective Grille
Black or white HEX-perforated steel grille with LED
Environmental Testing (For Details Click Here)
IP 54 MIL-STD-810H ISO 4892-2 Solar Radiation ISO 12944-6 Category C3 Corrosion resistance
Connectors
2 x NL4 type
Pin Connections
LF: 1+/1-, MF + HF: 2+/2-
Fittings
3-point rigging system 4 x side pocket handles
Flown Array Maximum
24 enclosures in single array
Dimensions (Ex. Pins)
(W) 1136mm x (H) 371mm x (D) 526mm (W) 44.7in x (H) 14.6in x (D) 20.7in
Weight
64kg (141lbs)
Accessories
Touring flying frame Install flying frame Dolly for 4 enclosures Ground stack outrigger Flying Pin
