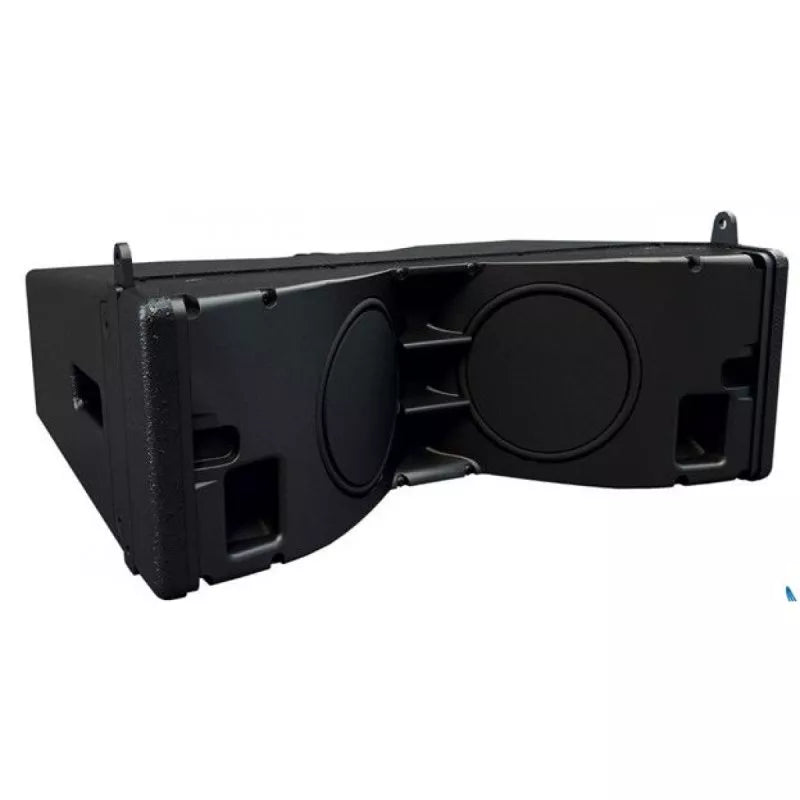

Martin Audio WPM

Martin Audio WPM

SoundPro Item: 24864 | Part Number: WPM

$4,000.00
$4,000.00 $4,000.00
Your Price Sold out
MSRP: $4,000.00 | MAP: $4,000.00

Usually ships in 5-7 business days

  • 2-way passive, 2 x 6.5” mini line array
  • Scalable resolution for advanced array control
  • External, dedicated, multi-channel Class D amplification
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
  • Fast, integral 3-point flying systems for up to 16 enclosures
  • Side and rear handles for ease of handling and setting splay angles
  • 100° horizontal constant directivity pattern control
Log in or register for YOUR best price

WPM is a highly versatile, ultra-compact Wavefront Precision line array, engineered for small to medium-scale venues where superb fidelity, consistent coverage and precise control are essential. Despite its small footprint, WPM delivers peak SPL of 130 dB (136 dB with crest factor 4) and can project over 35 metres (115 ft), making it capable of filling up to 3,000-seat venues with live music, corporate events, AV installations and Houses of Worship.

View full details

Specifications

Type
Two-way, passive line array element
Frequency Response
76Hz-18kHz ± 3dB
Drivers
LF: 2 x 6.5” (165mm) contoured-diaphragm /2” (50mm) edge- wound CCAW voice coil, neodymium magnet drivers, reflex loaded HF: 3 x 1.4” (35mm) aluminium dome /1.4” (35mm) voice coil, neodymium magnet compression drivers on constant- directivity waveguide
System Amplifier
iKON iK41, iK42 or iK81
System Resolution
1 to 4 enclosures per amplifier channel
Rated Power (2)
300 W AES, 1200 W peak
Maximum Spl (9)
130dB peak (1 cabinet)
Nominal Impedance
16 ohms
Dispersion
100º horizontal (-6dB), 125º horizontal (-10dB)
10° vertical
Crossover
1.2kHz passive
Enclosure
Vertical trapezoid with 5º wall angle,
Multi-laminate birch and poplar-ply construction
Finish
Black or white hardwearing paint
Protective Grille
Black or white HEX-perforated steel grille with LED
Environmental Testing (For Details Click Here)
IP 54 MIL-STD-810H ISO 4892-2 Solar Radiation ISO 12944-6 Category C3 Corrosion resistance
Connectors
2 x NL4 type
Pin Connections (Input)
1+/1-
Fittings
Integral 3-point rigging system 2 x side pocket handles 2 x rear grip handles
Flown Array Maximum
16 enclosures in single array
Dimensions
(W) 500mm x (H) 185mm x (D) 377mm
(W) 19.7in x (H) 7.3in x (D) 14.8in
Weight
14kg (30.9lbs)
Accessories
Touring flying frame Install flying frame Dolly for 4 enclosures Ground stack outrigger Flying Pin
