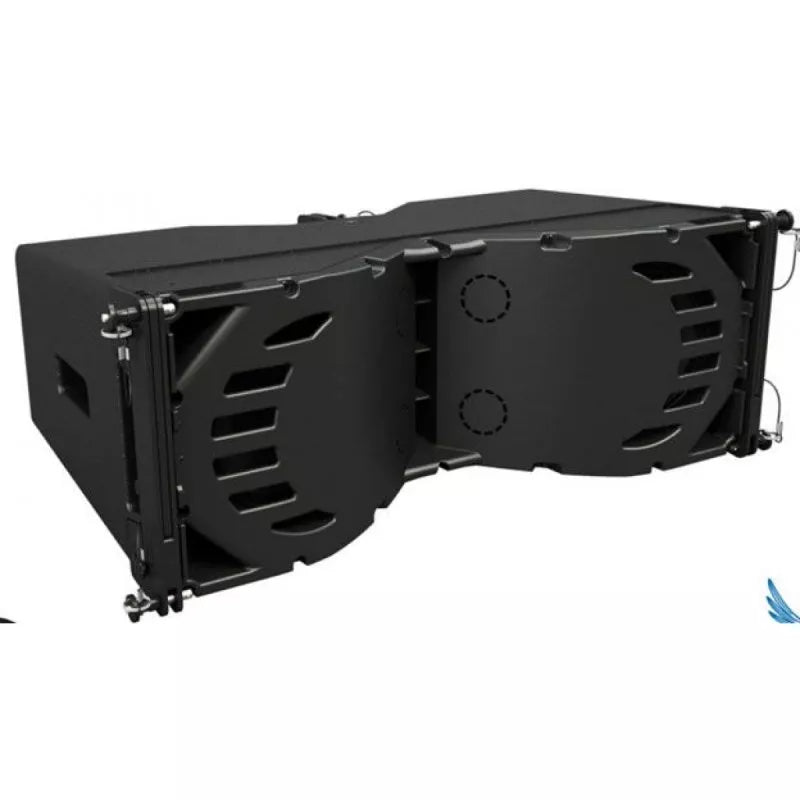

Martin Audio WPS

Martin Audio WPS

SoundPro Item: 123488 | Part Number: WPS

$5,400.00
$5,400.00 $5,400.00
Your Price Sold out
MSRP: $5,400.00 | MAP: $5,400.00

Usually ships in 5-7 business days

  • 3-way passive, 2 x 8” small line array
  • Scalable resolution for advanced array control
  • External, dedicated, multi-channel Class D amplification
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
  • Fast, integral 3-point flying systems for up to 16 enclosures
  • Side and rear handles for ease of handling and setting splayangles
  • 100° horizontal constant directivity pattern control
Log in or register for YOUR best price

WPS is a state-of-the-art, medium-compact Wavefront Precision line array, engineered for small to medium-scale touring and install applications where high output, pattern control and deployment flexibility are required. With a peak SPL of 133 dB (139 dB with crest factor 4), WPS delivers full-spectrum clarity, consistent coverage and reliable performance from compact enclosures, making it ideal for theatres, concert halls, Houses of Worship and corporate AV events.

View full details

Specifications

Type
Three-way, passive line array element
Frequency Response
70Hz-18000Hz ± 3dB
Drivers
LF: 2 x 8” (200mm)/2” (50mm) voice coil, long excursion, vented yoke, neodymium magnet drivers MF: 4 x 4” (100mm)/1” (25mm) coil, neodymium magnet drivers, compression loaded HF: 4 x 1” (25mm) exit/1.4” (35mm) HT Polymer diaphragm, neodymium magnet compression drivers
System Amplifier
iKON iK42
System Resolution
1 to 3 enclosures per amplifier channel (iK42)
Rated Power (2)
500 W AES, 2000 W peak
Maximum Spl (9)
133dB peak
Nominal Impedance
6 ohms
Dispersion
100º horizontal (-6dB), 120º horizontal (-10dB), 10° vertical
Crossover
520Hz, 1.6kHz internal passive
Enclosure
Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
Finish
Black or white hardwearing paint
Protective Grille
Black or white HEX-perforated steel grille with LED
Environmental Testing (For Details Click Here)
IP 54 MIL-STD-810H ISO 4892-2 Solar Radiation ISO 12944-6 Category C3 Corrosion resistance
Connectors
2 x NL4 type
Pin Connections
1+/1-
Fittings
3-point rigging system, 2 x side pocket handles 2 x rear grip handles
Flown Array Maximum
16 (installation) and 24 (touring) enclosures in a single array
Dimensions
(W) 650mm x (H) 261mm x (D) 400mm
(W) 25.6in x (H) 10.3in x (D) 15.8in
Weight
27kg (60lbs)
Accessories
Install flying frame, Touring flying frame, Flying Pin
Flown Array Maximum
24 enclosures in single array
Dimensions (Ex. Pins)
(W) 1136mm x (H) 371mm x (D) 526mm (W) 44.7in x (H) 14.6in x (D) 20.7in
Weight
64kg (141lbs)
Accessories
Touring flying frame Install flying frame Dolly for 4 enclosures Ground stack outrigger Flying Pin
