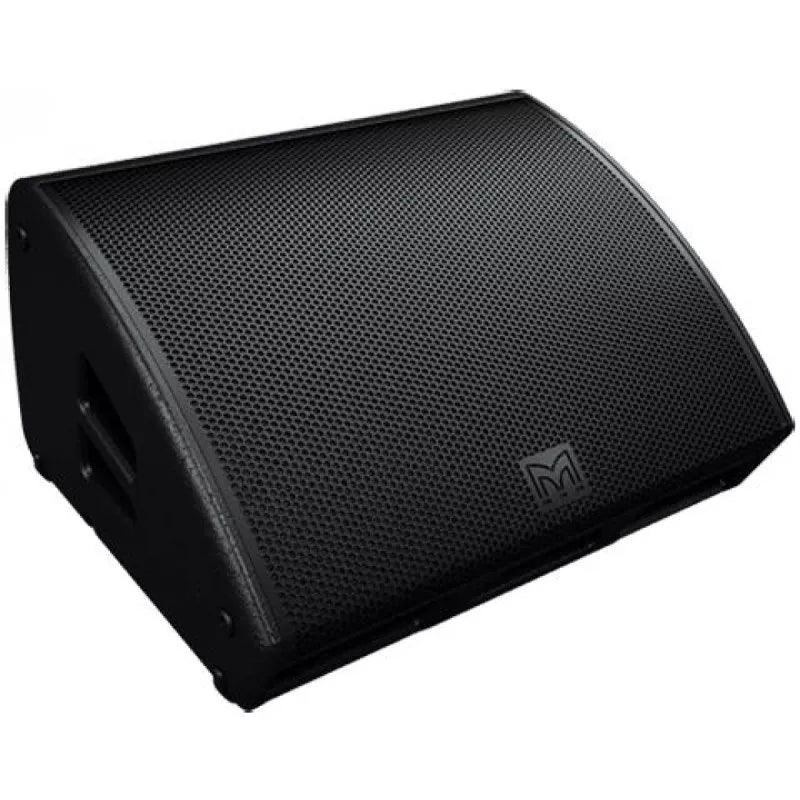

Martin Audio XE500

Martin Audio XE500

SoundPro Item: 200916 | Part Number: XE500

$4,250.00
$4,250.00 $4,250.00
Your Price Sold out
MSRP: $4,250.00 | MAP: $4,250.00

Usually ships in 5-7 business days

  • Very high-SPL, compact two-way stage monitor
  • Coaxial ‘point source' performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, rectangular coverage plane at head-height
  • Complete system with iK42 for consistent high performance
  • Visually-appealing, low-profile plywood enclosures
  • Built-in risers for steeper monitor angle when required
  • Side panel rubber feet for extra protection when up-ended
  • Easy to carry and manoeuvre
  • M8 rigging inserts
Log in or register for YOUR best price

Combining very high output capability with exceptional sonic performance, coverage control and consistency, the XE500 is the ultimate, high SPL stage monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15" (380mm) LF driver with a 3.5" (89mm) voice coil, and a 1.4" (35mm) exit HF compression driver with a 3" (75mm) pure titanium diaphragm. Both drivers feature powerful neodymium magnet structures to maximise performance and reduce weight.

View full details

Specifications

Type
Two-way, bi-amp, Coaxial Differential Dispersion Stage Monitor
Frequency Response
62Hz-18kHz ± 3dB, -10dB @ 45Hz
Drivers
LF: 15” (380mm)/3.5” (89mm) voice coil, dual-gap neodymium motor systemHF: 1.4” (35mm) exit/3” (75mm) voice coil, titanium dome compression driver
Rated Power (2)
LF: 550W AES, 2200W peakHF: 80W AES, 320W peak
Maximum Spl (9)
143dB peak
System Amplifier
iKON® iK42
Nominal Impedance
LF: 4ΩHF: 8Ω
Dispersion (-6Db)
60-30° horizontal, 70° vertical
Crossover
1.1kHz active
Enclosure
Birch/beech ply and hardwood
Finish
Textured black paint
Protective Grille
Black perforated steel with scrim cloth backing
Baffle Angle
30° (40° with risers)
Connectors
4 x NL4 type
Pin Connections
LF: 1+/-, HF: 2+/-
Fittings
2 x pocket handlesProtective rubber feet on base and sidesBuilt-in risers4 x M8 inserts
Dimensions
(W) 635mm x (H) 364mm x (D) 583mm (W) 25.0ins x (H) 14.3ins x (D) 22.9ins
Dimensions Incl Feet
(W) 641mm x (H) 367mm x (D) 583mm (W) 25.2ins x (H) 14.4ins x (D) 22.9ins
Weight
29kg (63.9lbs)
