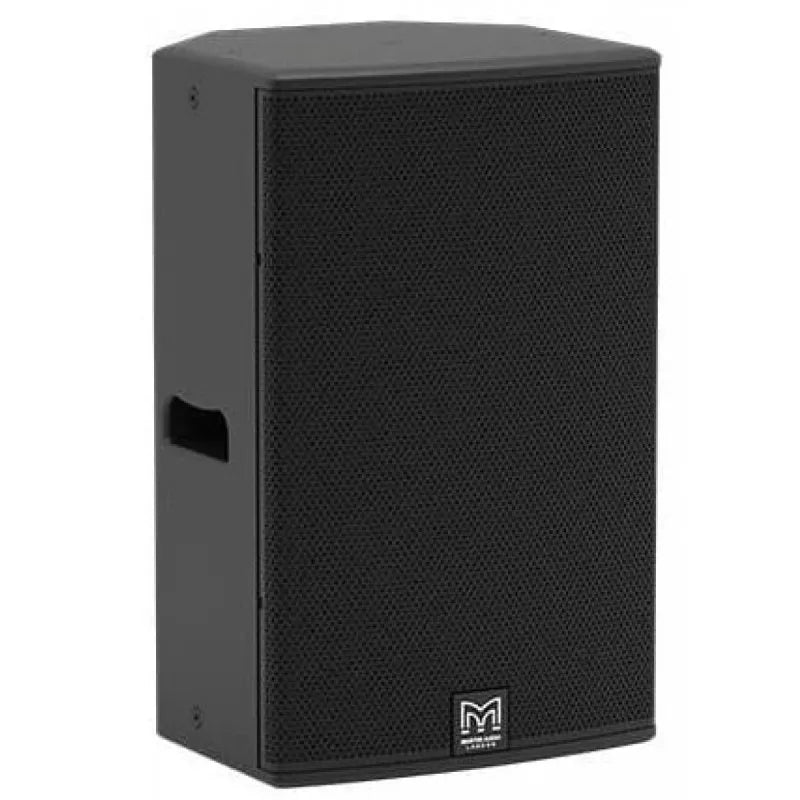

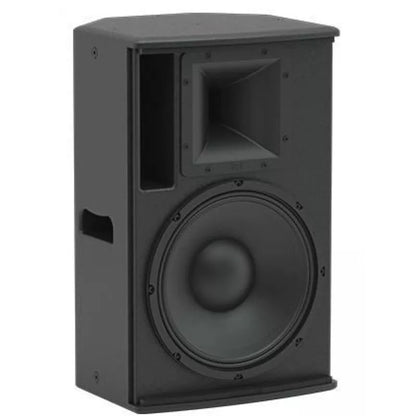

Martin Audio XP12 A compact, powered, two-way system

Martin Audio XP12 A compact, powered, two-way system

SoundPro Item: 106066 | Part Number: XP12

$1,700.00
$1,700.00 $1,700.00
Your Price Sold out
MSRP: $1,700.00 | MAP: $1,700.00

Usually ships in 5-7 business days

  • Compact self-powered, portable two-way system
  • 1300W of Class D amplification
  • Global power supply with PFC (Power Factor Correction)
  • Onboard DSP with rotary control interface
  • Multi-function display for metering, control and function selection
  • Three-channel mixer
  • Three-band channel EQ, plus HPF (Ch1/2)
  • Independent LF and HF peak and RMS limiters
  • Three speaker mode and voicing presets
  • Bluetooth® control and streaming option
  • Durable plywood enclosure
  • User-rotatable 80° x 50° HF horn
  • Vertical and horizontal mounting options
  • Symmetrical multi-angle enclosure for PA or stage monitor use
  • Screw-free, cloth-backed steel grille
  • Integral ergonomic handles
  • Mounting options include pole-mount, wall bracket and flying inserts
Log in or register for YOUR best price

The XP12 is a compact, powered, two-way system designed by leading acoustic engineers. It can be used either as a stand- alone system, stage monitor or in conjunction with the XP118 powered subwoofer.

View full details

Specifications

'Acoustics
Type
Compact self-powered two-way system
Frequency Response
62Hz - 20kHz ±3dB, -10dB @ 50Hz
Drivers
LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor systemHF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
Maximum Spl (9)
122dB continuous, 128dB peak
Dispersion (-6Db)
80° H x 50° V (user-rotatable)
Crossover
2.3kHz active, 24dB/octave
Module Audio In/Out
Input Connectors
2 x female XLR/ 1?4” jack combo
Mic/Line Input Impedance
8 kΩ balanced
1?4” Jack Ts Input Impedance
1 MΩ unbalanced
Mix Output Connector
1 x male XLR
Mix Output Impedance
600Ω balanced
Internal Processing
Input Channel Eq
3-band on each channel plus HPF (Ch1/2)
Speaker Eq
3 speaker mode/voicing presets
Protection
LF and HF Peak and RMS limiting, amplifier thermal protection
Amplifier Module
Type
2 channel switch-mode, class D
Peak Output Power
1300W total 1000W LF, 300W HF
Average Efficiency
89%
Cooling
External convection cooled
Maximum Ambient Temperature
35°C (95°F) for full output
Power Supply
Type
Switch-mode, fixed frequency with PFC
Ac Input Operating Range
100-240V ~ AC, 50 - 60Hz
Power Factor
> 0.98
Nominal Power Consumption
550W Max
Mains Connector
3-pin IEC
Mechanical
Enclosure
Multi-angle birch/poplar ply
Finish
Black textured paint
Protective Grille
Black perforated steel with scrim cloth backing
Fittings
17 x M8 inserts, pole-mount socket, 2 x pocket handle
Dimensions
(W) 358mm x (H) 574mm x (D) 318mm (W) 14.1in x (H) 22.6in x (D) 12.5in
Weight
18kg (40lbs)
