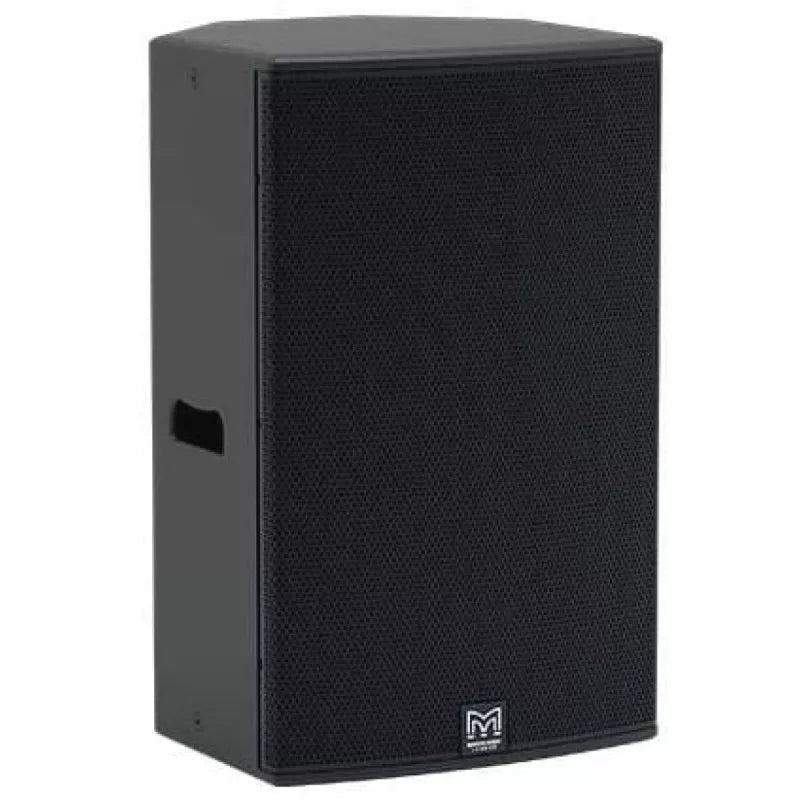

Martin Audio XP15 A self-powered two-way system

Martin Audio XP15 A self-powered two-way system

SoundPro Item: 106067 | Part Number: XP15

$1,950.00
$1,950.00 $1,950.00
Your Price Sold out
MSRP: $1,950.00 | MAP: $1,950.00

Usually ships in 5-7 business days

  • High output, self-powered, portable two-way system
  • 1300W of Class D amplification
  • Global power supply with PFC (Power Factor Correction)
  • Onboard DSP with rotary control interface
  • Multi-function display for metering, control and function selection, Three-channel mixer
  • Three-band channel EQ, plus HPF (Ch1/2)
  • Independent LF and HF peak and RMS limiters
  • Three speaker mode and voicing presets
  • Bluetooth® control and streaming option
  • Durable plywood enclosure
  • User-rotatable 80° x 50° HF horn
  • Vertical and horizontal mounting options
  • Symmetrical multi-angle enclosure for PA or stage monitor use
  • Screw-free, cloth-backed steel grille
  • Integral ergonomic handles
  • Mounting options include pole-mount and flying inserts
Log in or register for YOUR best price

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.

View full details

Specifications

'Acoustics
Type
High output, self-powered two-way system
Frequency Response
55Hz - 20kHz ±3dB -10dB @ 45Hz
Drivers

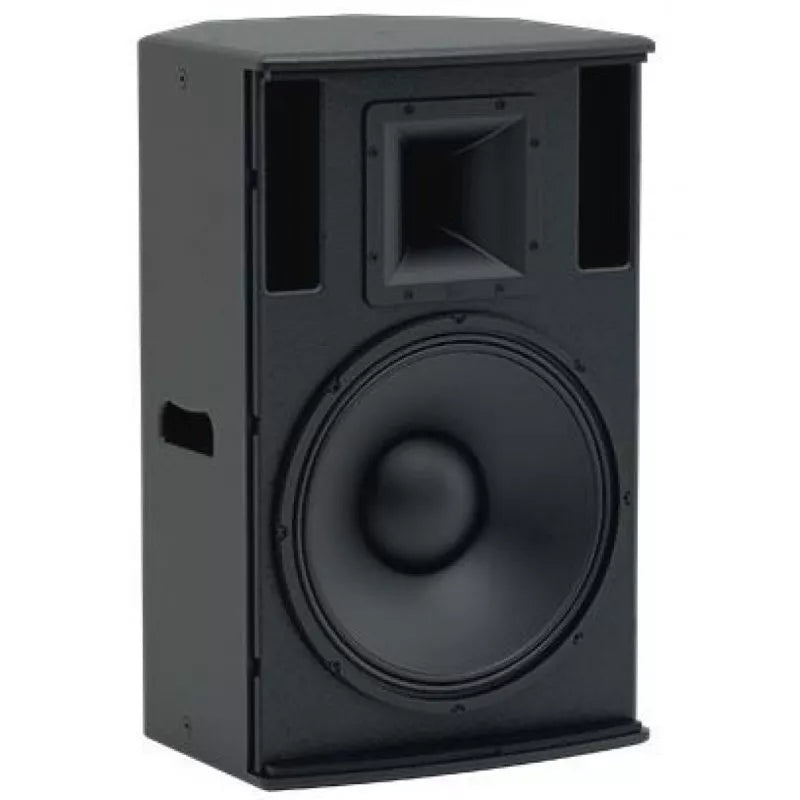

LF: 15” (380mm)/3” (75mm) voice coil ferrite motor systemHF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
Maximum Spl (9)
125dB continuous / 131dB peak
Dispersion
80° H x 50° V (user-rotatable)
Crossover
2kHz active, 24dB/octave

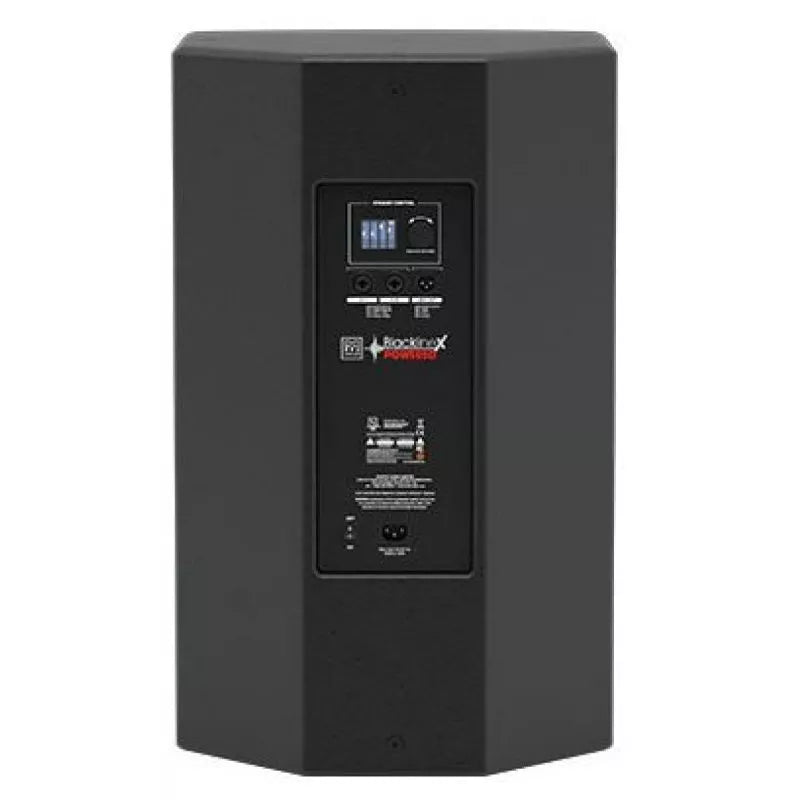

Module Audio In/Out
Input Connectors
2 x female XLR/ 1?4” jack combo
Mic/Line Input Impedance
8 kΩ balanced
1?4” Jack Ts Input Impedance
1 MΩ unbalanced
Mix Output Connector
1 x male XLR
Mix Output Impedance
600Ω balanced
Internal Processing
Input Channel Eq
3-band on each channel plus HPF (Ch1/2)
Speaker Eq
3 speaker mode/voicing presets
Protection
LF and HF Peak and RMS limiting, amplifier thermal protection
Amplifier Module
Type
2 channel switch-mode, class D
Peak Output Power
1300W total 1000W LF, 300W HF
Average Efficiency
89%
Cooling
External convection cooled
Maximum Ambient Temperature
35°C (95°F) for full output
Power Supply
Type
Switch-mode, fixed frequency with PFC
Ac Input Operating Range
100-240V ~ AC, 50 - 60Hz
Power Factor
> 0.98
Nominal Power Consumption
550W Max
Mains Connector
3-pin IEC
Mechanical
Enclosure
Multi-angle birch/poplar ply
Finish
Black textured paint
Protective Grille
Black perforated steel with scrim cloth backing
Fittings
13 x M8 inserts, pole-mount socket, 2 x pocket handles
Dimensions
(W) 427mm x (H) 690mm x (D) 407mm (W) 16.8in x (H) 27.2 x (D) 16.0in
Weight
26kg (57lbs)
