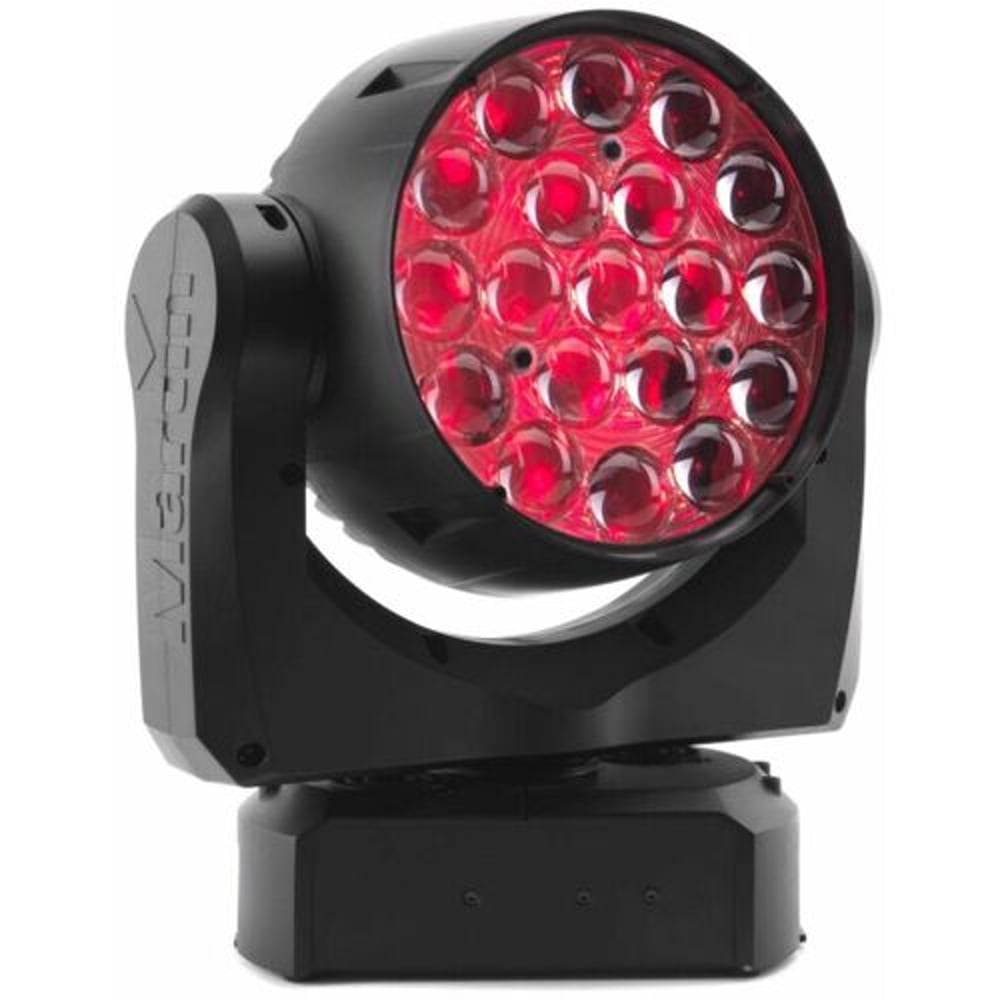

Martin Lighting 90232105HU Mac Aura Xb White In Cardboard

Martin Lighting 90232105HU Mac Aura Xb White In Cardboard

SoundPro Item: 95610 | Part Number: 90232105HU

$5,125.50
$5,695.00 $5,125.50
Your Price Sold out
MSRP: $5,695.00 | MAP: $5,125.50

Usually ships in 5-7 business days

  • Super-bright single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixing
  • Eye-candy Aura Effect™
  • Uniform shades
  • Built-in FX engine
  • 10 to 60° uniform zoom
  • 6000 Lumens output
  • Rapid movement
  • Compact, low weight design (6.5 kg)
  • High efficiency, low power consumption, long lifetime
Log in or register for YOUR best price

EXTRA-BRIGHT VERSION OF THE SUCCESSFUL MAC AURA

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.

  • Super bright single lens wash with fully premixed color
  • Compact design and low weight
  • High efficiency, low power consumption, long service life
View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
90232105HU
Brand Name
Martin
Product Line
MAC Aura XB
Product Name
MAC Aura XB Special Effect Light
Product Type
Special Effect Light
Technical Information
Bulb/Tube Type
LED
Maximum Bulb Power
15 W
Physical Characteristics
Product Color
Black
Product Material
Thermoplastic
Form Factor
Surface Mountable
Length
11.9"
Miscellaneous
Package Contents
MAC Aura XB Special Effect Light User manual M12 Bolt Suitable for Use with Martin Rigging Clamps
Additional Information
in Cardboard Box DYNAMIC EFFECTS: Beam color mixing: RGBW Aura (secondary lens array illumination) color mixing: RGB Beam color temperature control: CTO, variable 10,000 - 2500 K Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined Electronic dimming: Independent beam and aura, four dimming curve options Pan: 540° Tilt: 232° Pan and tilt speed: Adjustable via onboard control panel and DMX CONTROL AND PROGRAMMING: Control systems: DMX, RDM Control options: Independent or synchronized Beam and Aura control Control resolution: 8-bit, with 16-bit control of pan & tilt DMX channels: 14/25 Setting and addressing: Control panel with backlit graphic display DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: RS-485 Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box OPTICS AND PHOTOMETRIC DATA: Light Source: 19x 15W RGBW LED Array System LED Refresh Rate Beam: 1200 Hz LED Refresh Rate Aura: 4395 Hz Total luminous output (wide, one-tenth peak): 6000 lumens Total luminous output (narrow, one-tenth peak): 4300 lumens Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration Color Modes: Extended Mode, Calibrated Mode and Raw Mode Video compatibility: Designed for use with HD/high-speed video cameras Minimum LED lifetime: 50,000 hours (to >70% luminous output) CONSTRUCTION: Protection rating: IP20 INSTALLATION: Mounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracket Minimum distance to combustible materials: 200 mm (8.0 in.) Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) CONNECTIONS: AC Power: Neutrik PowerCON TRUE1 NAC3PX dual socket AC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector AC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector DMX and RDM data in/out: 5-pin locking XLR ELECTRICAL: AC power: 100-240 V nominal, 50/60 Hz Typical half-cycle RMS inrush current: 10.7 A Power supply unit: Auto-ranging electronic switch mode Typical power consumption, all effects static, zero light output: <25 W Maximum total power consumption: 400 W THERMAL: Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr. APPROVALS: EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
REACH
Warranty
Limited Warranty
24 Month
