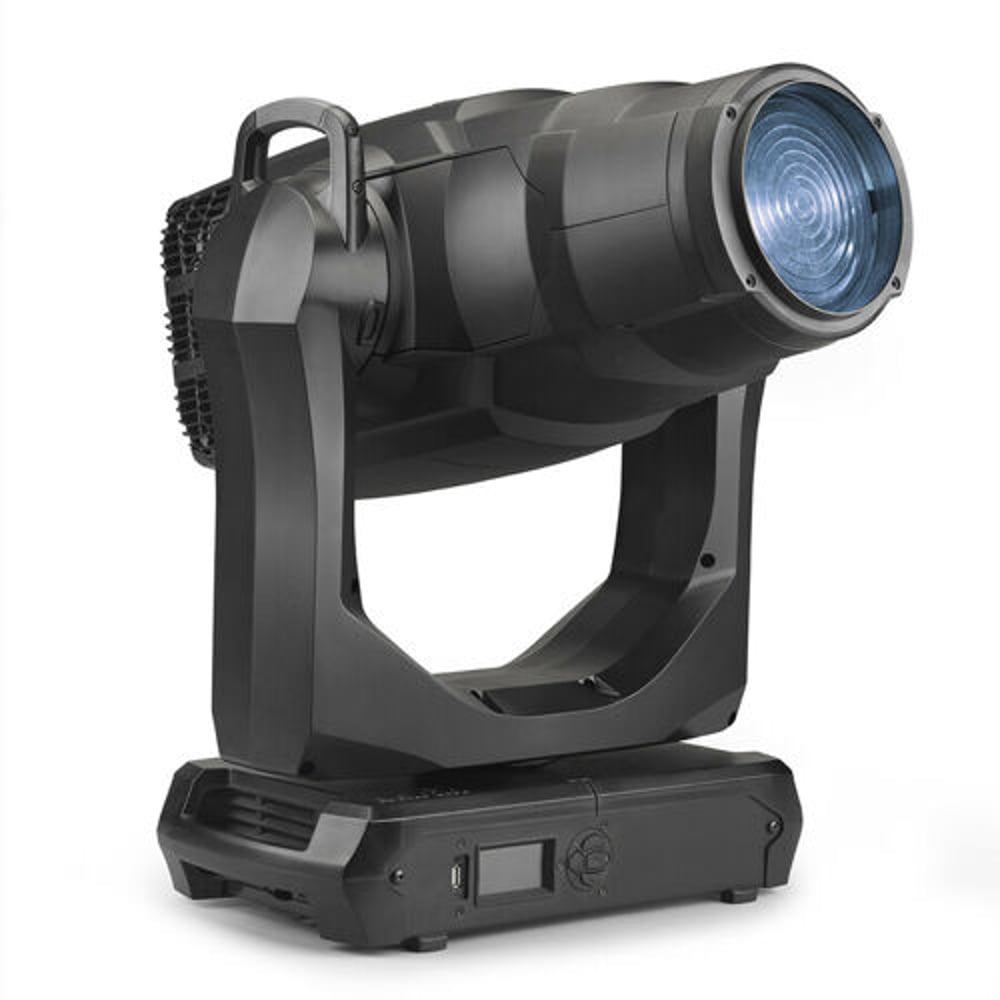

Martin Lighting 90234050HU Mac Encore Wash, Cld, Eps, White

Martin Lighting 90234050HU Mac Encore Wash, Cld, Eps, White

SoundPro Item: 95573 | Part Number: 90234050HU

$11,425.50
$12,695.00 $11,425.50
Your Price Sold out
MSRP: $12,695.00 | MAP: $11,425.50

Usually ships in 5-7 business days

  • Pure white LED engine with 6000 K CCT.
  • No color temperature variation during zoom and dimming.
  • Flicker-free operation-LED driver frequency suitable for all camera applications.
  • Whisper-silent-Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
  • Variable CTO-daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel-6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom-precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom-precise, silent and fast zoom.
Log in or register for YOUR best price

HIGH QUALITY COLD LIGHT SOFT EDGE MOVING HEAD

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

  • Unparalleled 6000 K cold white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio

Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head. High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

WHISPER-SILENT

This is the most silent, soft edge moving head we've ever built. All motorized effect operations-cooling fans, barndoors, iris, zoom, pan and tilt-are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash CLD is still a stealth operator.

COLOR PALETTE

Precise color temperature control with variable color temperature correction (CTO) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

OPTICS

A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

INTERNAL BARNDOORS

Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam's wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
90234050HU
Brand Name
Martin
Product Line
MAC Encore Wash CLD
Product Name
MAC Encore Wash CLD Special Effect Light
Product Type
Special Effect Light
Technical Information
Bulb/Tube Type
LED
Maximum Bulb Power
468 W
Color Temperature
10340.3°F (5726.8°C)
Power Source
AC Power
Physical Characteristics
Product Color
Black
Product Material
Thermoplastic
Form Factor
Surface Mountable
Length
17.8"
Miscellaneous
Package Contents
MAC Encore Wash CLD Special Effect Light 2 x Omega Brackets with 1/4 Turn Fasteners for Rigging Clamp Attachment
Additional Information
Protection rating: IP20 DYNAMIC EFFECTS: Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color Iris: Variable 0 - 100% Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Zoom: Motorized Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity CONTROL AND PROGRAMMING: DMX channels: 24 16-bit control: Dimming, pan and tilt Movement control options: Tracking and vector Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link OPTICS: Minimum LED lifetime: 50,000 hours (to >80% luminous output) Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4) Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5) PHOTOMETRIC DATA: Light engine luminous output: ≥ 39,400 lumens Fixture luminous output with Fresnel lens (standard): 11,000 lumens Fixture luminous output with PC lens (optional): 12,000 lumens CRI (Color Rendering Index): >80 CQS (Color Quality Scale): >80 TM-30 Rf (IES TM-30-15 Fidelity Index): >80 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TLCI (Television Lighting Consistency Index): >70 CCT: 6000 K (+/- 250 K) INSTALLATION: Mounting points: 4 pairs of 1/4-turn locks Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.) CONNECTIONS: AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) DMX and RDM data in/out: 5-pin locking XLR ELECTRICAL AC power: 120-240 V nominal, 50/60 Hz Power Consumption: 64 W Power supply unit: Auto-ranging electronic switch-mode Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Environmentally Friendly
Yes
Environmental Certification
RoHS
REACH
WEEE
Warranty
Limited Warranty
2 Year
