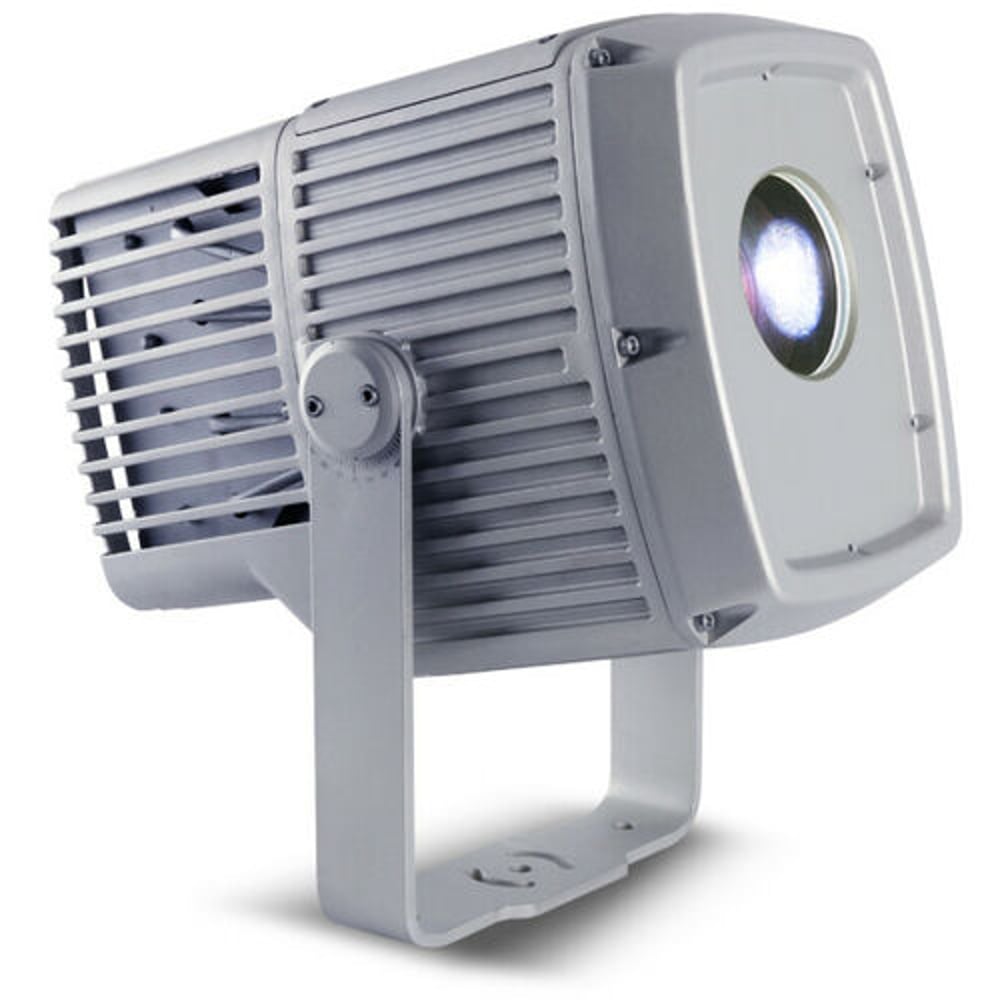

Martin Lighting 90506505 Exterior Projection 500, Medium, Eu, Aluminum

Martin Lighting 90506505 Exterior Projection 500, Medium, Eu, Aluminum

SoundPro Item: 96247 | Part Number: 90506505

$7,002.00
$7,780.00 $7,002.00
Your Price Sold out
MSRP: $7,780.00 | MAP: $7,002.00

Usually ships in 5-7 business days

  • Up to 6100 lumens output with 4 beam angles variants from narrow to wide
  • Powerful close-range and long-range projection
  • Flat-field, high-contrast image projection based on high-power LED engine
  • 4 layers of versatile dynamic effects (colors, gobo projection, gobo animation, prisms/frost)
  • Crisp image projection
  • Rugged IP66-rated housing
  • Minimal maintenance - low total cost of ownership
Log in or register for YOUR best price

The Exterior™ Projection 500 is a powerful fixture for integrating textures, patterns and graphics in outdoor lighting designs. The fixture can be used for bright and dynamic logo projection as well as precision framing. Using advanced LED technology, it offers outstanding energy efficiency, compact size and unlimited creative possibilities.From 12° to 51°, select the right beam angle for the specific installation allowing for best possible image projection.Allows a range of lighting effects creativity many different looks can be achieved with the same fixture.The accessible service lid decreases cost, time, and risk to change gobos and colors.Ideal for minimal maintenance, low total cost of ownership, and resiliency to weather and other environmental conditions.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
90506505
Brand Name
Martin
Product Line
Exterior Projection 500
Product Name
Outdoor Rated Medium Scale Image Projector
Product Type
Special Effect Light
Technical Information
Bulb/Tube Type
LED
Color Temperature
14480.3°F (8026.8°C)
Power Source
AC Power
Physical Characteristics
Product Color
Aluminium
Product Material
Cast Aluminum
Length
16.3"
Miscellaneous
Additional Information
DYNAMIC EFFECTS: Color wheel - 8 interchangeable colors + open Gobo wheel - 6 rotating gobos plus open, indexing, variable rotation Gobo animation - Variable speed linear animation effect Prism - Prism wheel with 2 interchangeable prisms, prism rotation and indexing Frost (wash effect) - Motorized variable Focus - Motorized, variable 3 m (9.8 ft.) to infinity Shutter - Strobe and pulse effects, instant open and blackout Dimming - Electronic, constantly variable 0-100%, 16-bit control CONTROL AND PROGRAMMING: Control options - DMX, RDM, standalone DMX channels - 13 Configuration, addressing and status - Onboard control panel with OLED display Control resolution - 8-bit DMX control 16-bit DMX control of intensity, focus and gobo rotation/indexing angle DMX compliance - USITT DMX512-A RDM compliance - ANSI/ESTA E1.20 OPTICS: Light source - 230 W white light LED engine LED manufacturer - Prolight Opto CRI (Color Rendering Index) - 72 LED lifetime - 20 000 hours (to >70% luminous output) CONSTRUCTION: Front glass - 5 mm (0.2 in.) anti-reflection coated tempered glass Ingress protection - IP66 Corrosion resistance - C5-M (very high corrosivity / marine, ISO 12944) CONNECTIONS: Power cable entry - IP68 cable gland Power connection - 1.8 m (5.9 ft.) cable tail with bare ends Power cable type - SJTW 14AWG, 300V, ⌀9.3 mm Data cable entry - IP68 cable gland Data connection - 1.8 m (5.9 ft.) combined input + output cable tail with bare ends ELECTRICAL: AC power - 100-240/277 V nominal, 50/60 Hz inrush current - 8.4 A Surge protection - 4 KV Idle power (zero intensity, no effects applied) - 32 W, 0.3 A TYPICAL POWER AND CURRENT: 110 V, 60 Hz - 320 W, 2.9 A, PF 0.977 230 V, 50 Hz - 310 W, 1.4 A, PF 0.971 277 V, 60 Hz - 305 W, 1.2 A, PF 0.950
Environmentally Friendly
Yes
Environmental Certification
RoHS
REACH
WEEE
