Martin Lighting 90512000 Exterior Projection 1000, Eu Std Finish

Martin Lighting 90512000 Exterior Projection 1000, Eu Std Finish

SoundPro Item: 96236 | Part Number: 90512000

$20,515.50
$22,795.00 $20,515.50
Your Price Sold out
MSRP: $22,795.00 | MAP: $20,515.50

Usually ships in 5-7 business days

  • Flat field, high contrast image projection based on high power LED engine
  • 0-100% electronic dimming
  • Full CMY color mixing + additional color wheel with 7 interchangeable colors

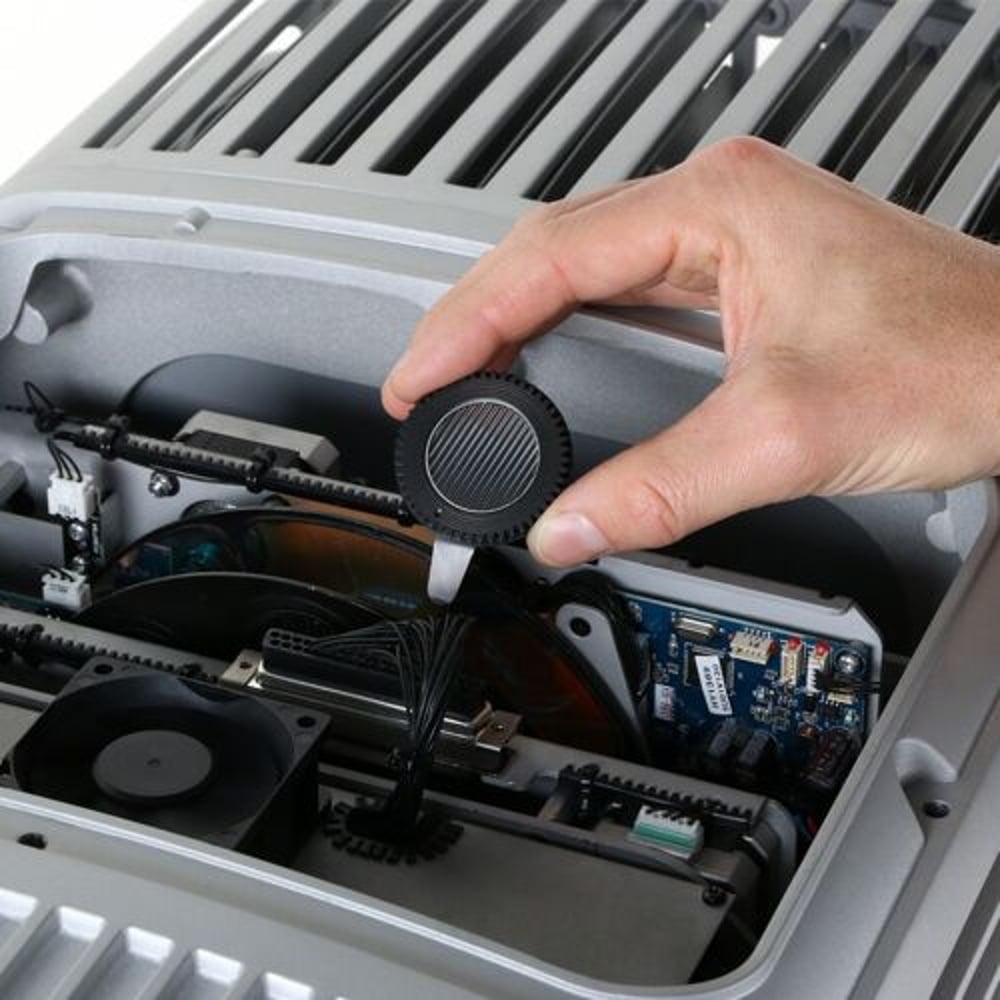

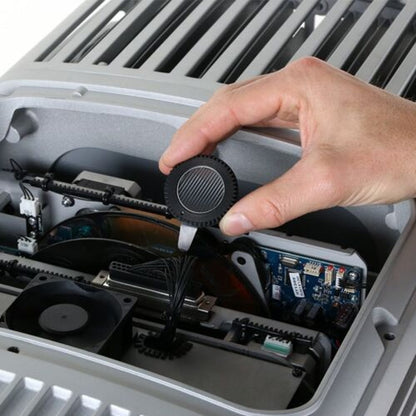

  • 7 gobo slots for projecting graphic images (gobos included)
  • Animation system for creating animated lighting effects (horizontal and vertical)
  • Zoom range from 10° - 44° for exact projection on desired surface
  • Variable frost for creating morphing effects and hybrid function as wash light
  • 2 rotating prisms for creating abstract multi patterns

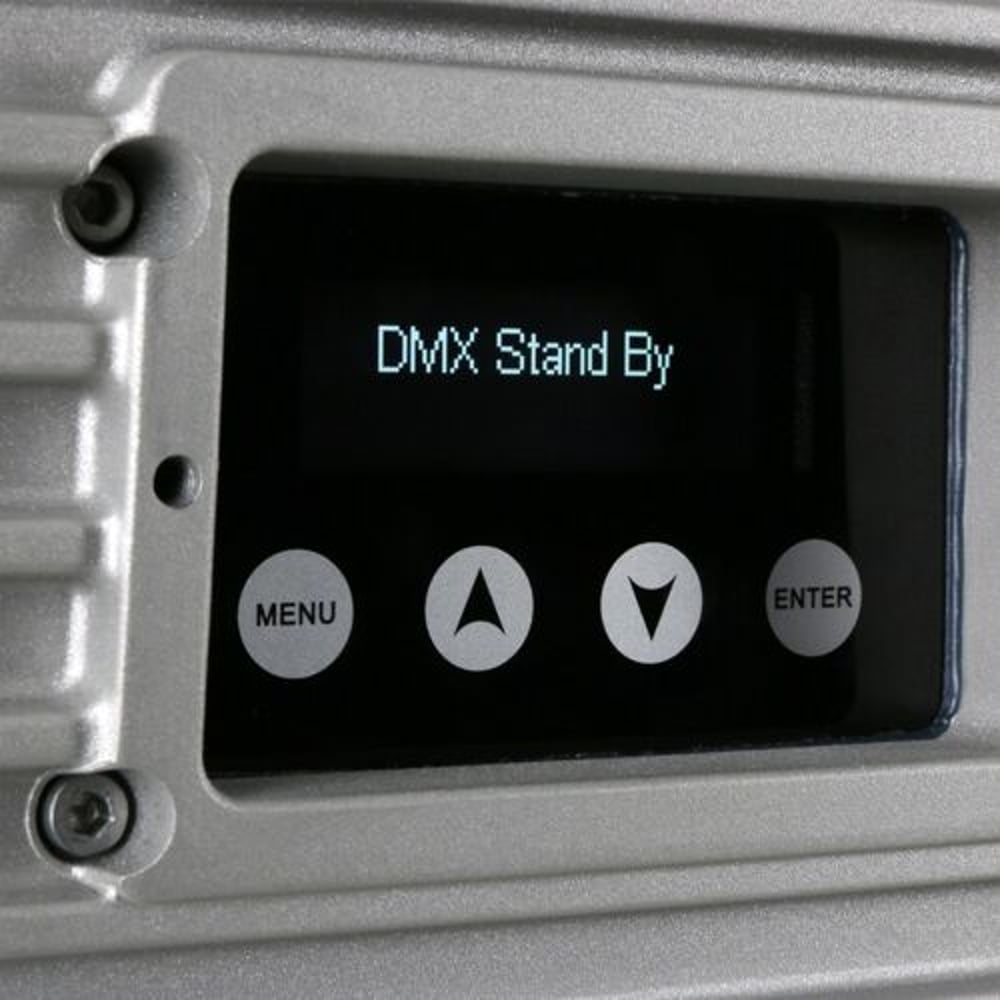

  • Intuitive setup, configuration and stand-alone programming via graphical OLED display
  • RDM and DMX control
Log in or register for YOUR best price

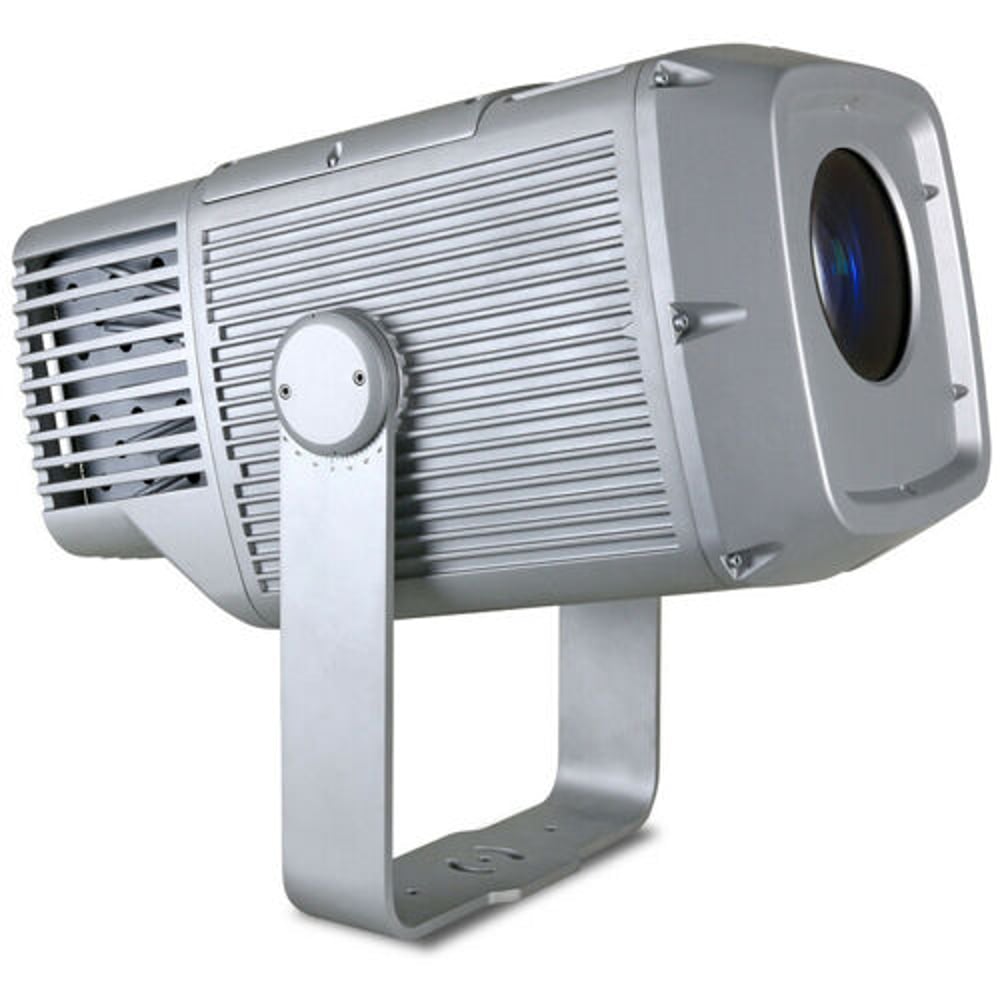

The Exterior™ Projection 1000 is an unparalleled, powerful tool for permanent outdoor installations to integrate textures, patterns and graphics for limitless creative exterior lighting designs.

Sporting high impact and low maintenance, this advanced, IP66-rated LED projector offers sharp image quality, dynamic features and great reach over huge distances.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
90512000
Brand Name
Martin
Product Name
Outdoor Rated Large Scale Image Projector
Product Type
Special Effect Light
Technical Information
Bulb/Tube Type
LED
Maximum Bulb Power
440 W
Color Temperature
11240.3°F (6226.8°C)
Power Source
AC Power
Physical Characteristics
Product Color
Aluminium
Product Material
Cast Aluminum
Length
27.6"
Miscellaneous
Package Contents
Outdoor Rated Large Scale Image Projector Silica Gel Desiccant Bag 2 x Gobo Retaining Springs
Additional Information
DYNAMIC EFFECTS: Color mixing: CMY, independently variable 0 - 100% Color wheel: 7 interchangeable colors + open Gobo wheel: 7 rotating gobos plus open, indexing, variable rotation Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing Frost filter: Motorized, variable Zoom: 10° - 44° (cut-off angles) Dimming: Electronic, constantly variable 0-100%, 16-bit control Shutter: Electronic, strobe and pulse effects, instant open and blackout Focus: Motorized, variable 3 m (9.8 ft.) to infinity CONTROL AND PROGRAMMING: Control options: DMX, RDM, standalone Stand-alone control: Up to 20 scenes with global fade/hold times Configuration, addressing and status: Onboard control panel with OLED display or via RDM DMX channels: 20 8-bit control: CMY, color selection, gobo selection, prism, frost, animation 16-bit control: Gobo indexing and rotation, zoom, focus and intensity DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 OPTICS: Light source: 440 W white light LED engine RI (Color Rendering Index): 72 LED lifetime: 20,000 hours (to >70% luminous output) LED manufacturer: Appotronics Binning: Tight color and flux binning PHOTOMETRIC DATA: Cut-off angle: 10° - 44° Luminous intensity: At 10° zoom: 11,500 lumens At 16° zoom: 15,000 lumens At 40° zoom: 16,800 lumens Center Peak: At 10° zoom: 731,000 cd At 16° zoom: 311,000 cd At 40° zoom: 42,000 cd CONSTRUCTION: Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass Ingress protection: IP66 Impact resistance: IK08 (with control panel display cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6) 0,7g RMS Random (IEC 60068-2-64) EPA (Effective Projected Area): 0.28m2 GOBOS: Suitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F) Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.) Maximum image diameter: 26 mm (1.02 in.) Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.) Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in. CONNECTIONS: Power cable entry: IP66 cable gland Power connection: 1.8 m (5.9 ft.) cable tail with bare ends Data cable entry: IP66 cable gland Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends THERMAL: Maximum surface temperature: 85° C (185 ° F) Cooling: Convection, internal forced air Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated): 2350 BTU/hr.
Application/Usage
Outdoor
Environmentally Friendly
Yes
Environmental Certification
RoHS
REACH
WEEE
