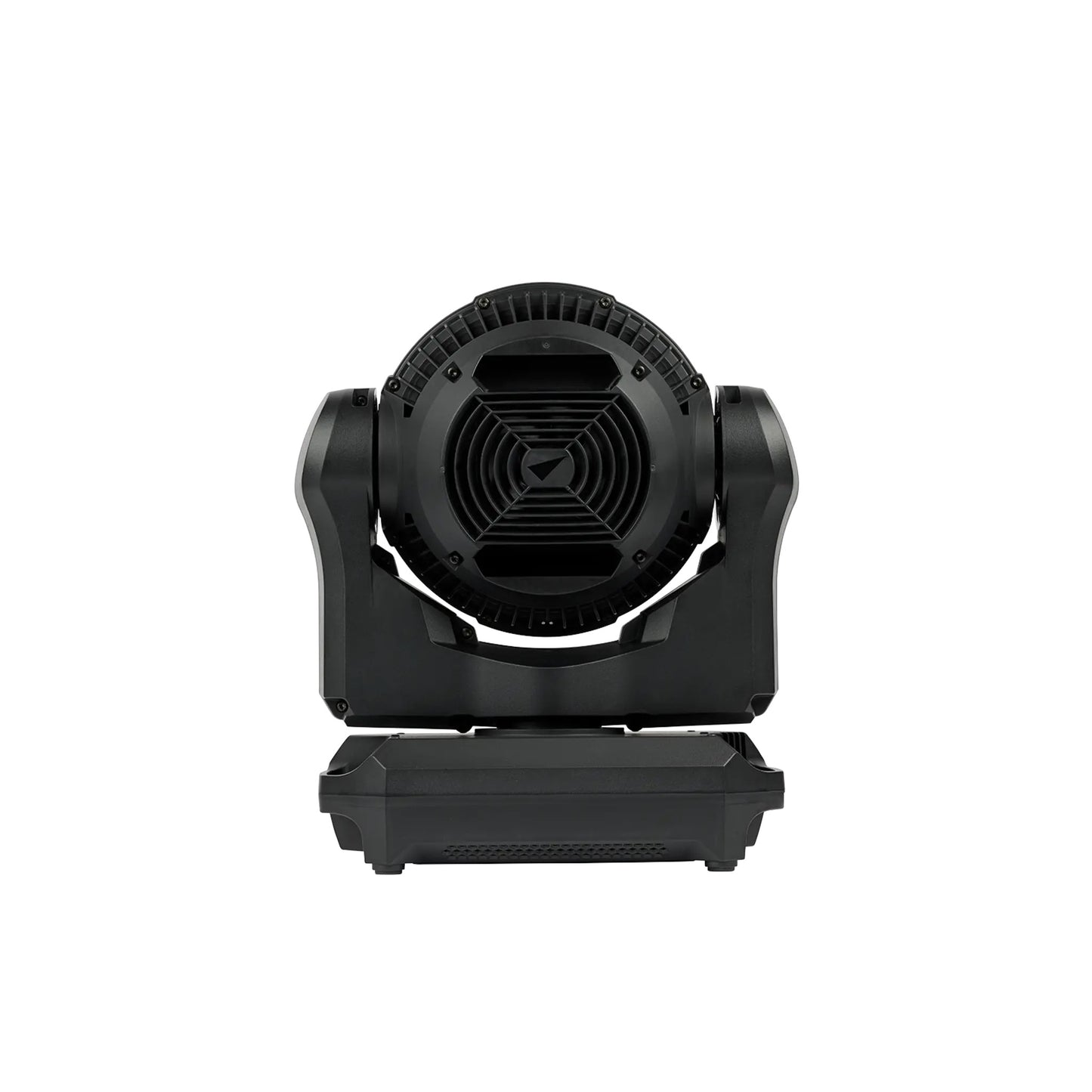

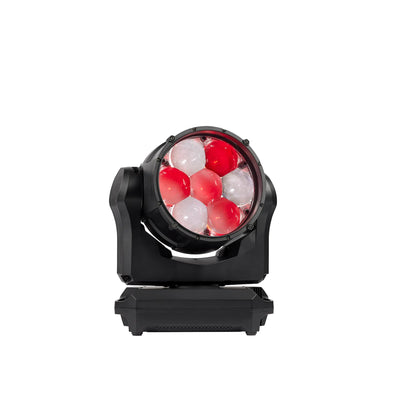

Martin Lighting MAC Aura XIP IP54 Outdoor Moving Head Wash Light | Cardboard | Black

Martin Lighting MAC Aura XIP IP54 Outdoor Moving Head Wash Light | Cardboard | Black

SoundPro Item: 142387 | Part Number: MAR-90250100HU

$5,999.00
$6,800.00 $5,999.00
Your Price Sold out
MSRP: $6,800.00 | MAP: $5,999.00

Usually ships in 5-7 business days

  • 6,000-Lumen RGBW Engine With 360,000 cd Peak Beam Intensity

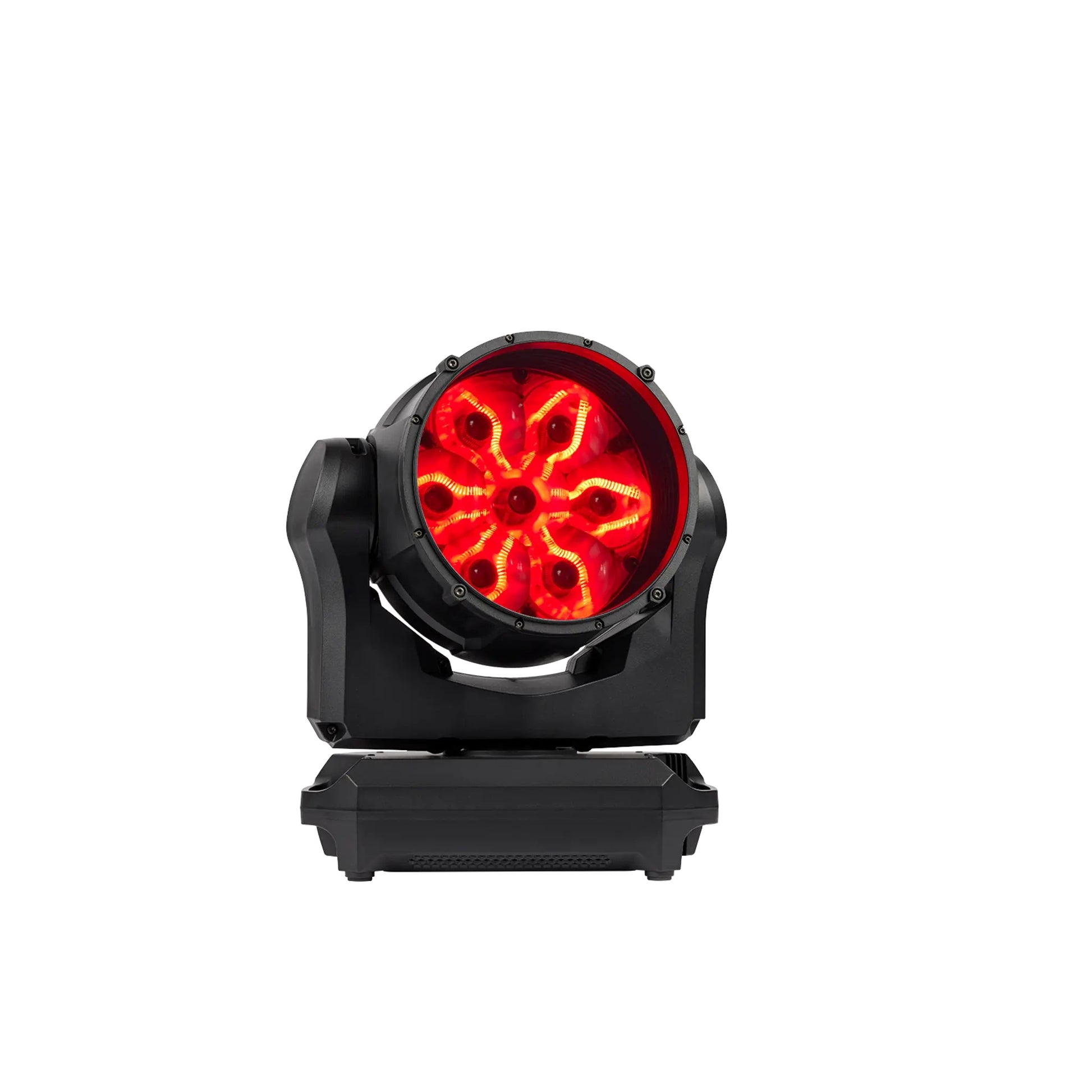

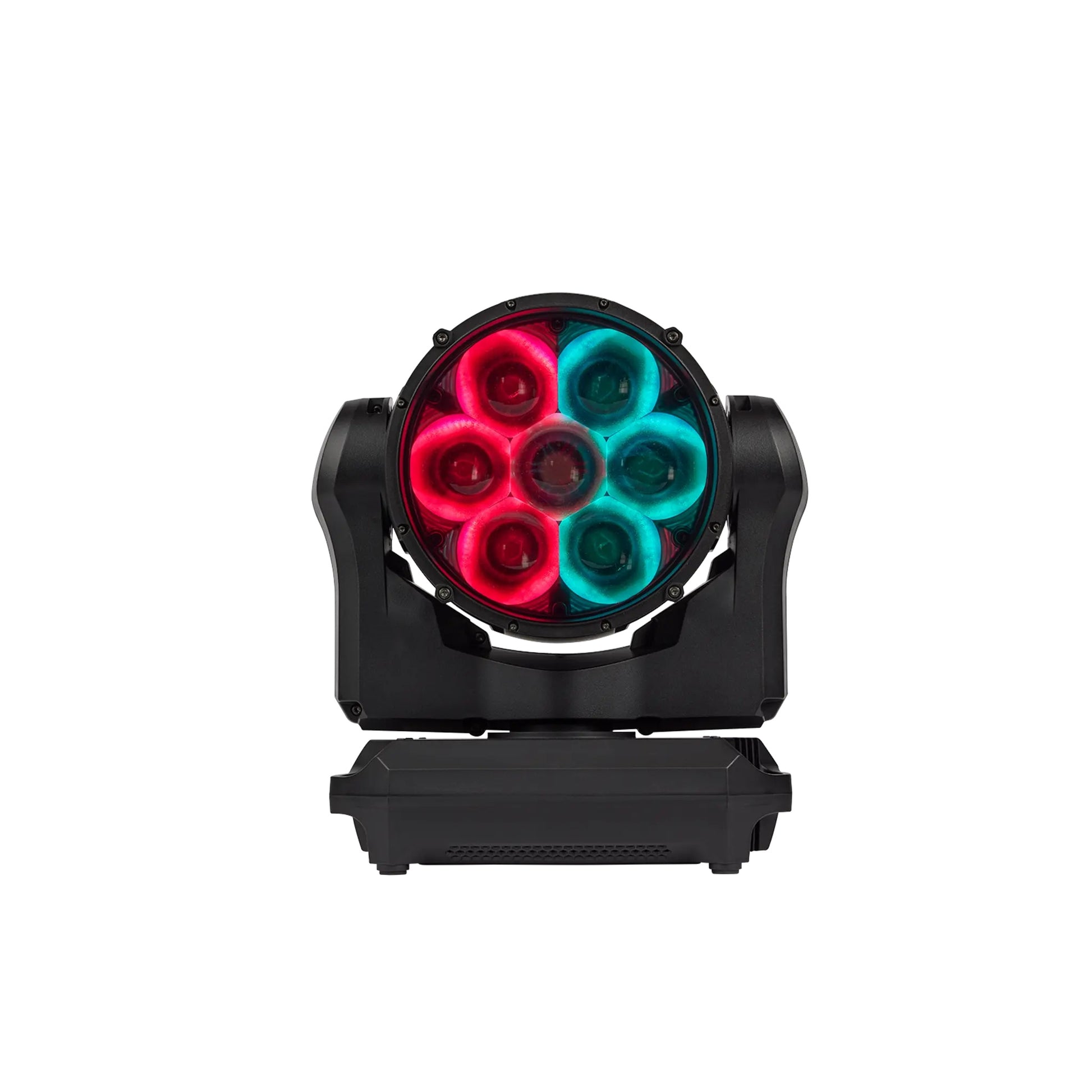

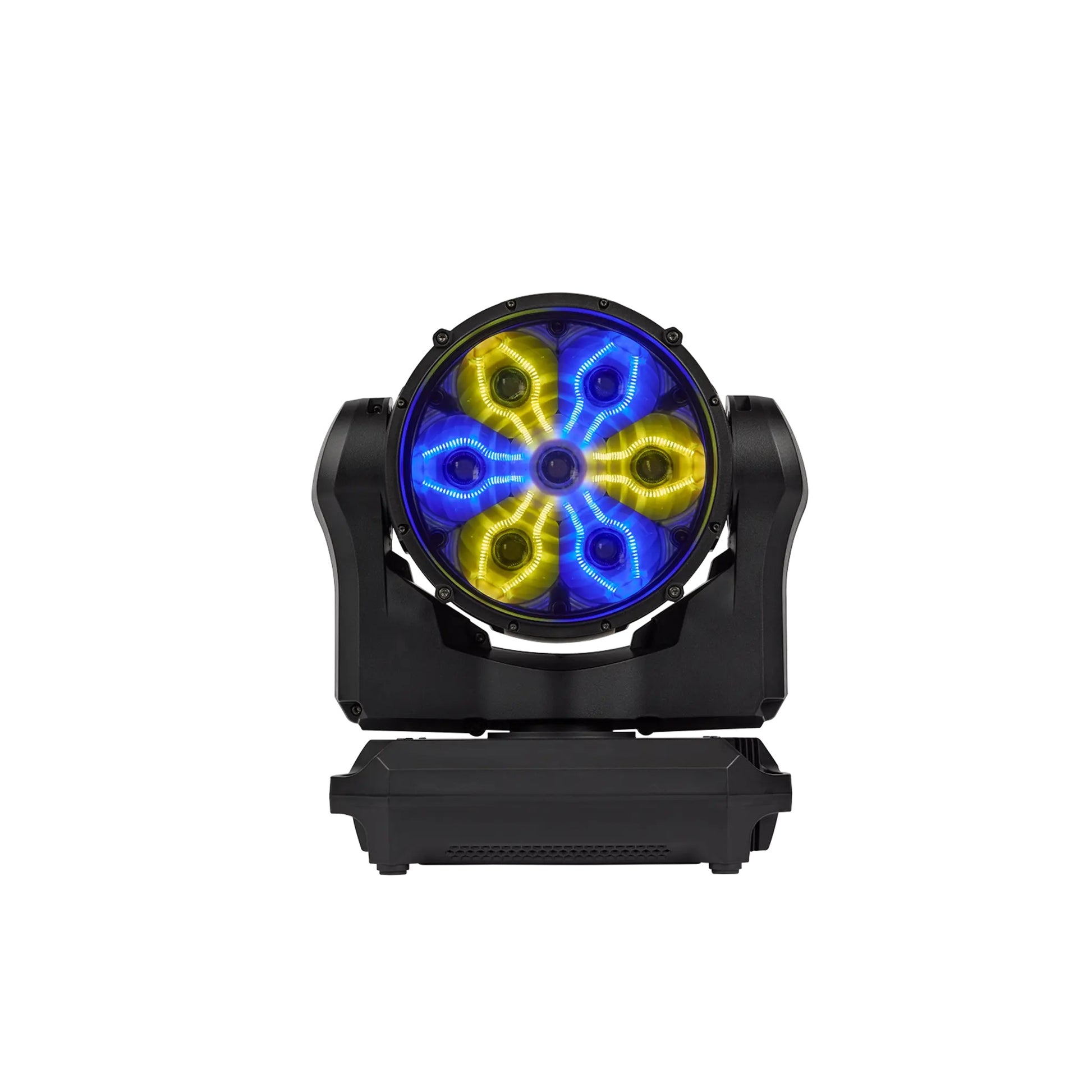

  • 12 Individually Controllable RGBW Aura Filament LEDs For Signature Halo Effect
  • IP54 XIP Smart Weatherproof Protection For Temporary Outdoor Deployment
  • 6.3°–50.4° Zoom With Even Zero-Hotspot Soft-Edge Wash Field
  • Full Gamut Color Calibration: CTC 1,000K–12,850K With Tint Control
  • 25.2 dB(A) Theater/Broadcast Ultra-Low Noise Mode For Silent Environments
  • Martin P3 Video Mapping On Beam And Aura With Independent Crossfade
Log in or register for YOUR best price

The Martin MAC Aura XIP is the first compact moving head wash in its class rated for outdoor use, combining Martin's XIP smart weatherproof technology with the MAC Aura family's distinctive filament Aura backlight effect. Delivering 6,000 lumens through a 196 mm lens at IP54 protection, it provides 360,000 cd peak beam intensity and a 6.3°–50.4° zoom range with an even, zero-hotspot wash field and minimal stray light. The RGBW engine supports Full Gamut Color Calibration across Direct, Extended Gamut, and Calibrated Color modes with CTC range from 1,000K to 12,850K.

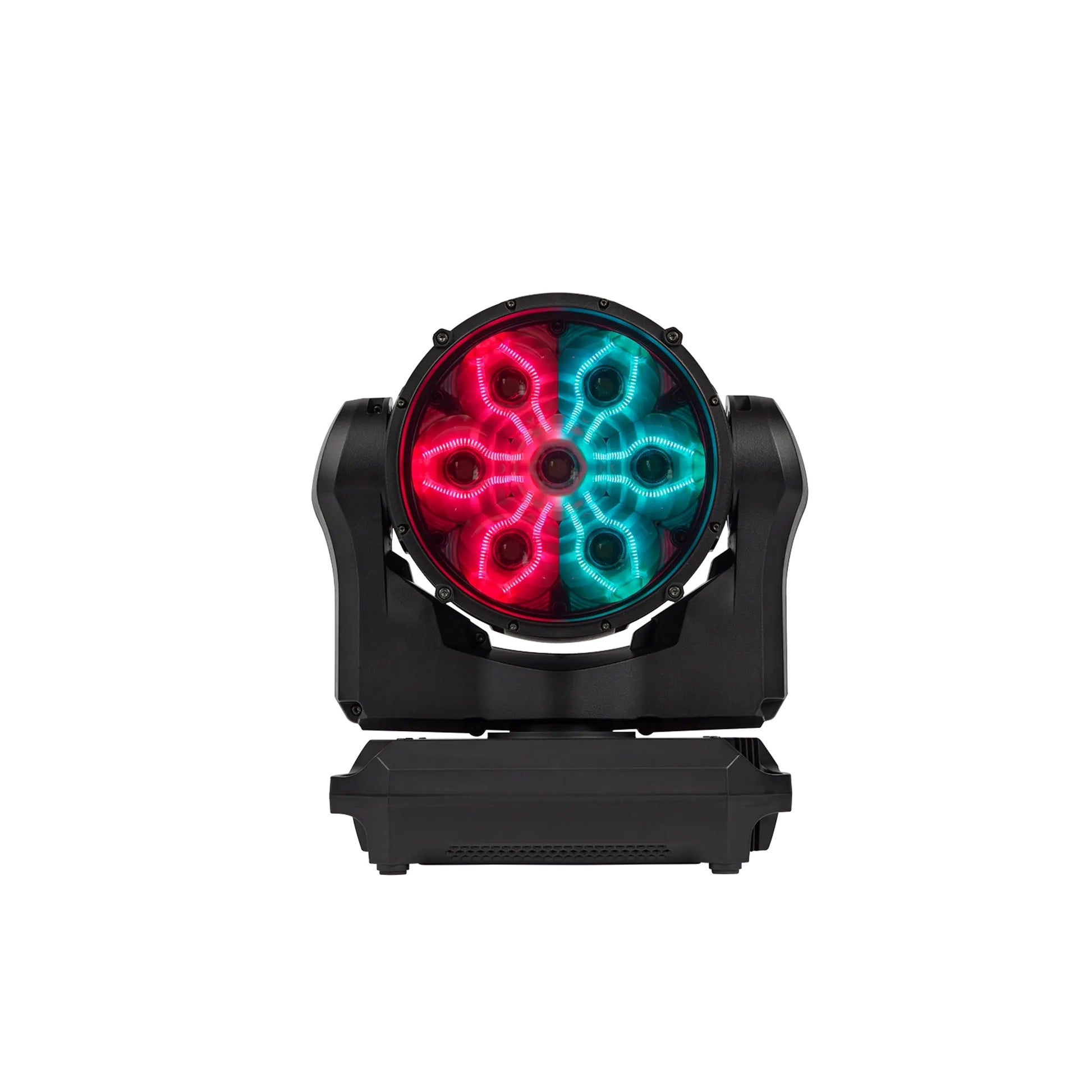

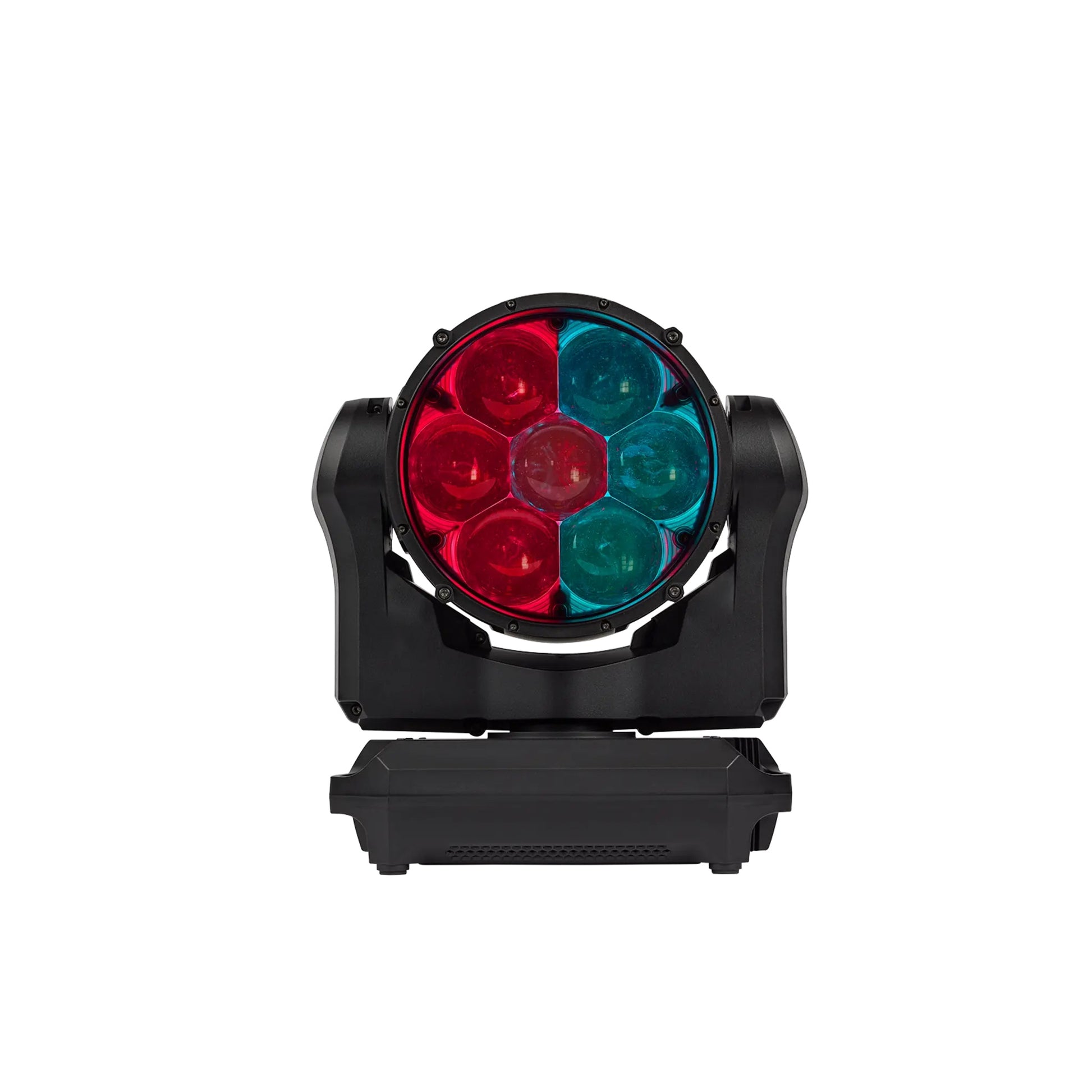

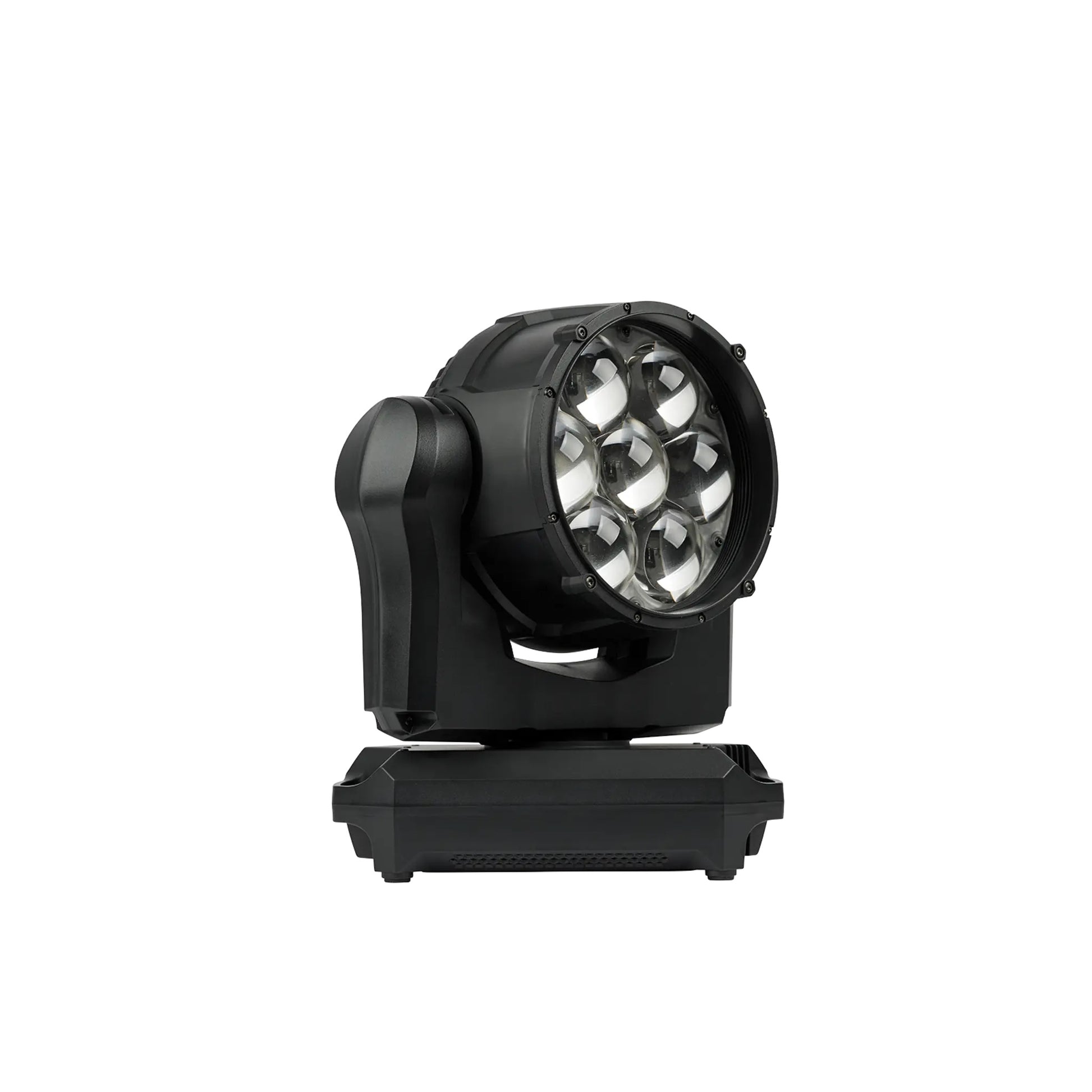

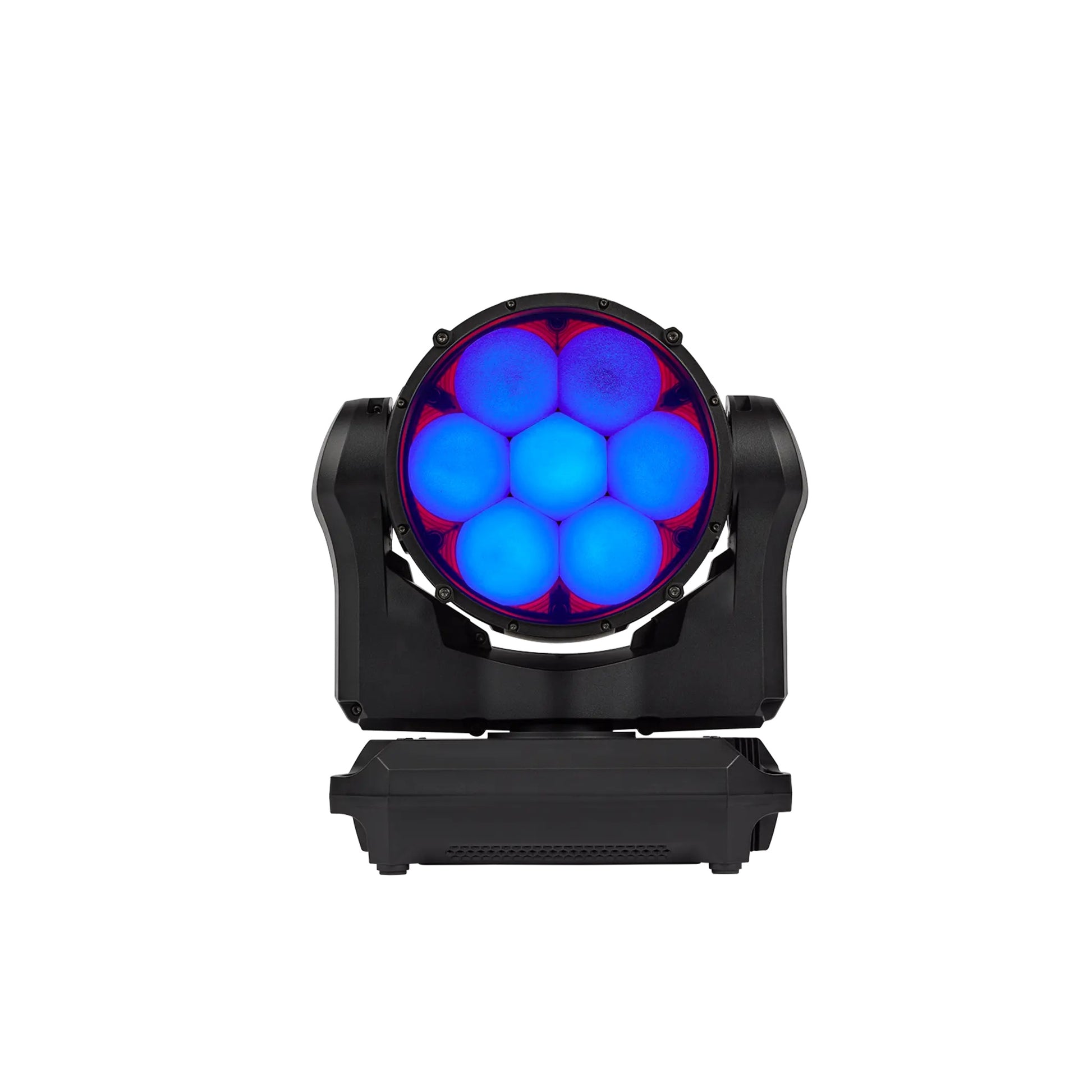

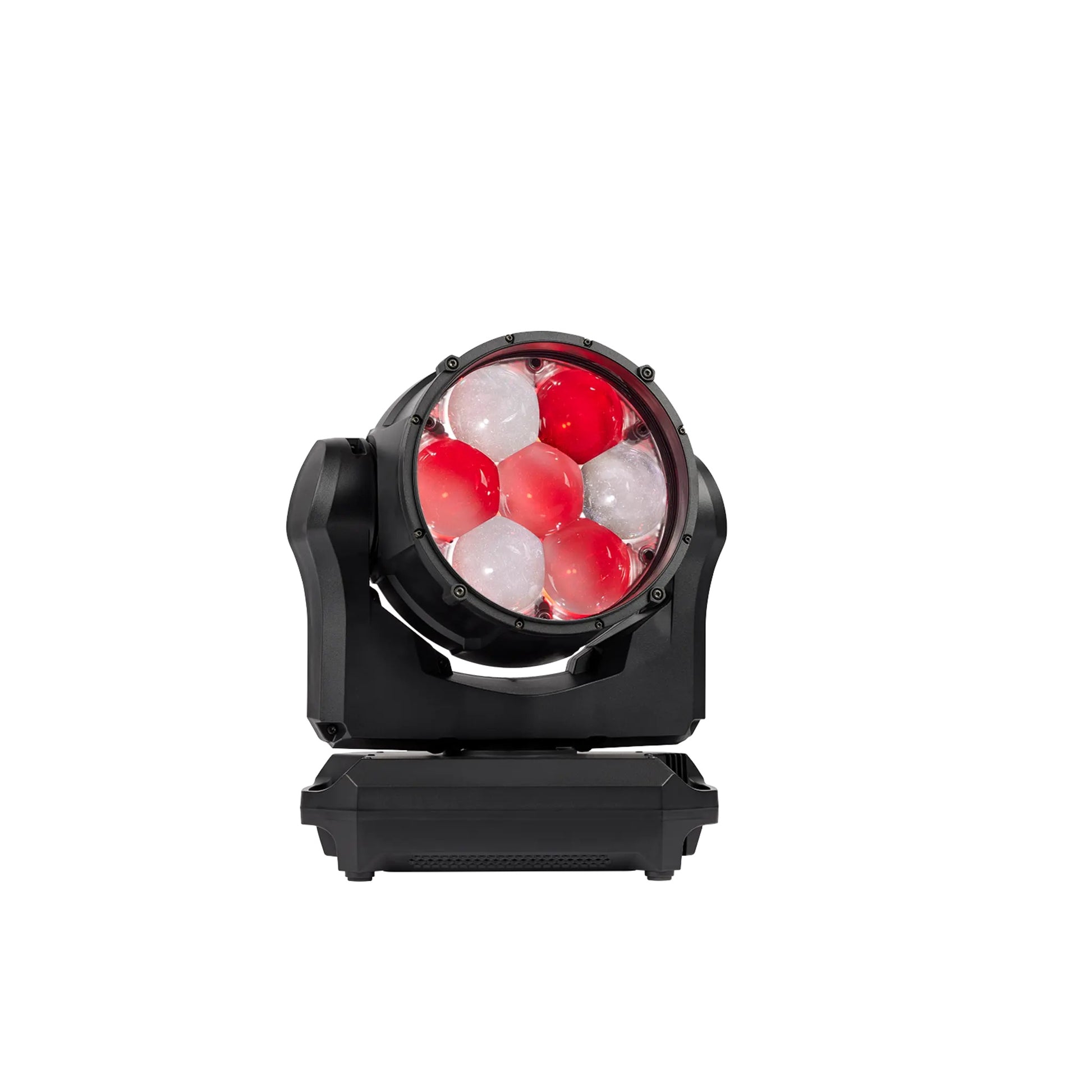

Seven individually addressable 60W RGBW beam LEDs provide the main output with per-pixel RGB control in Extended DMX mode. Twelve 4W RGBW Aura filament LEDs operate independently for the signature halo effect, each individually controllable via DMX or Martin P3 video mapping with crossfade between video and lighting cue control. Both systems support independent dimmer, strobe, color temperature, tint, and virtual color wheel parameters.

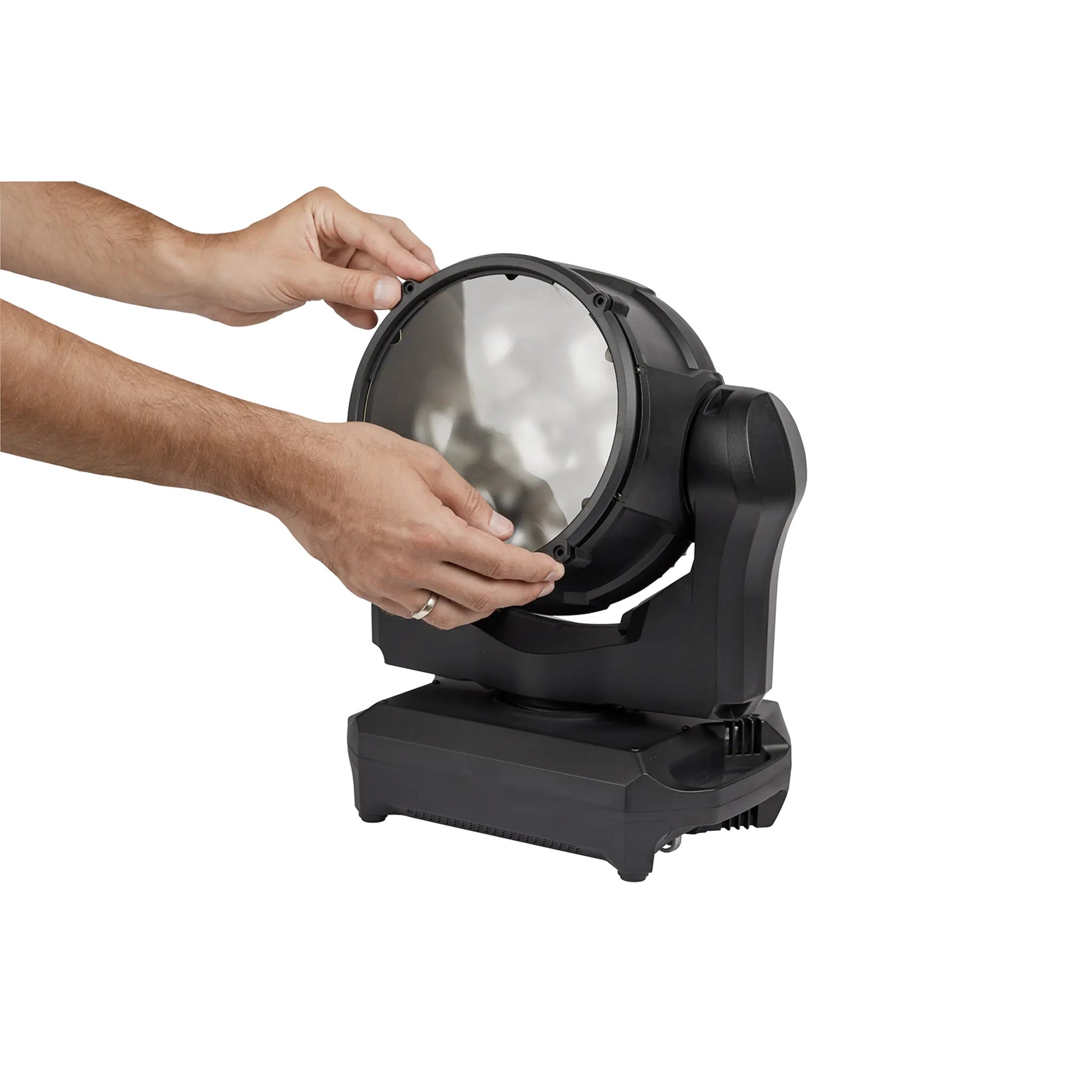

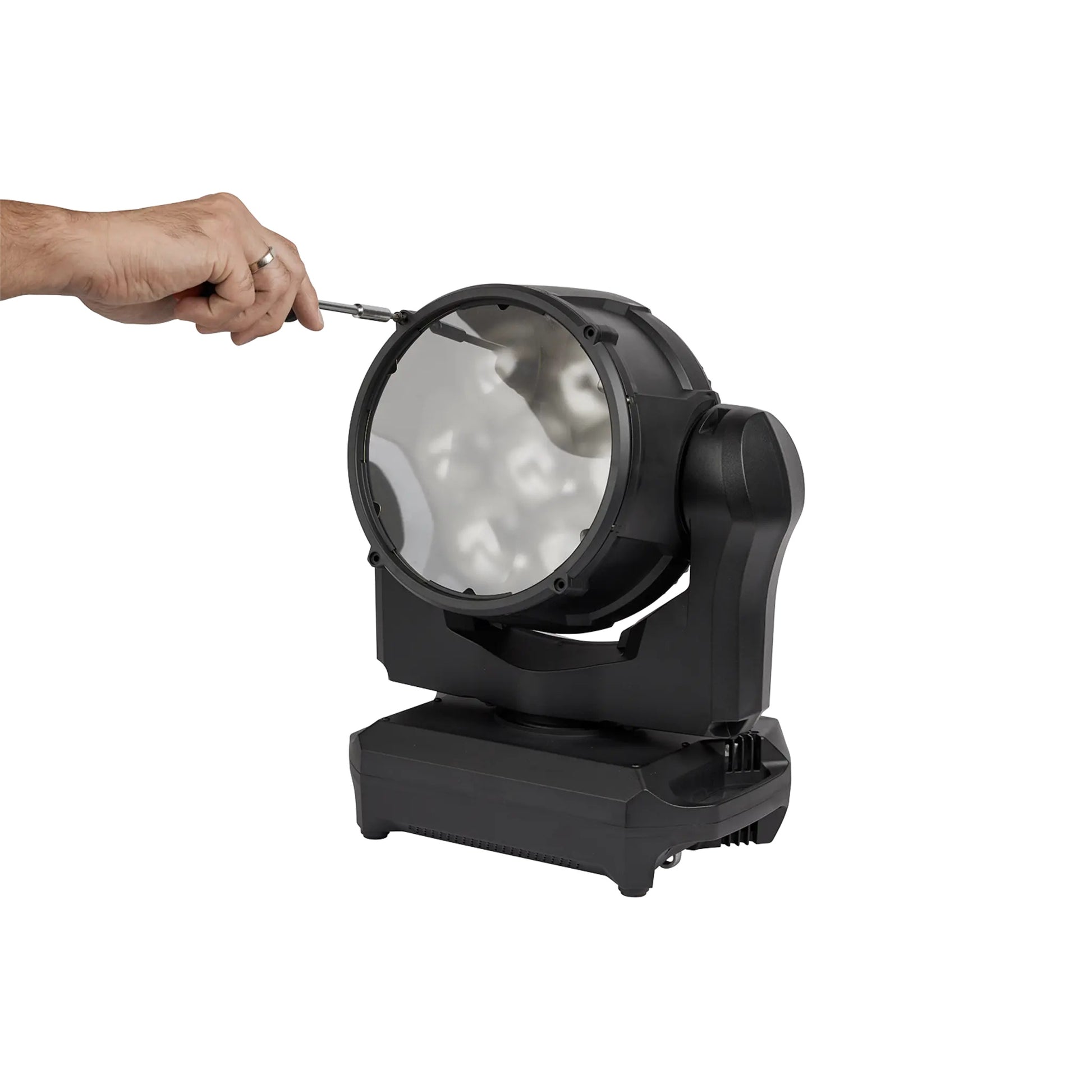

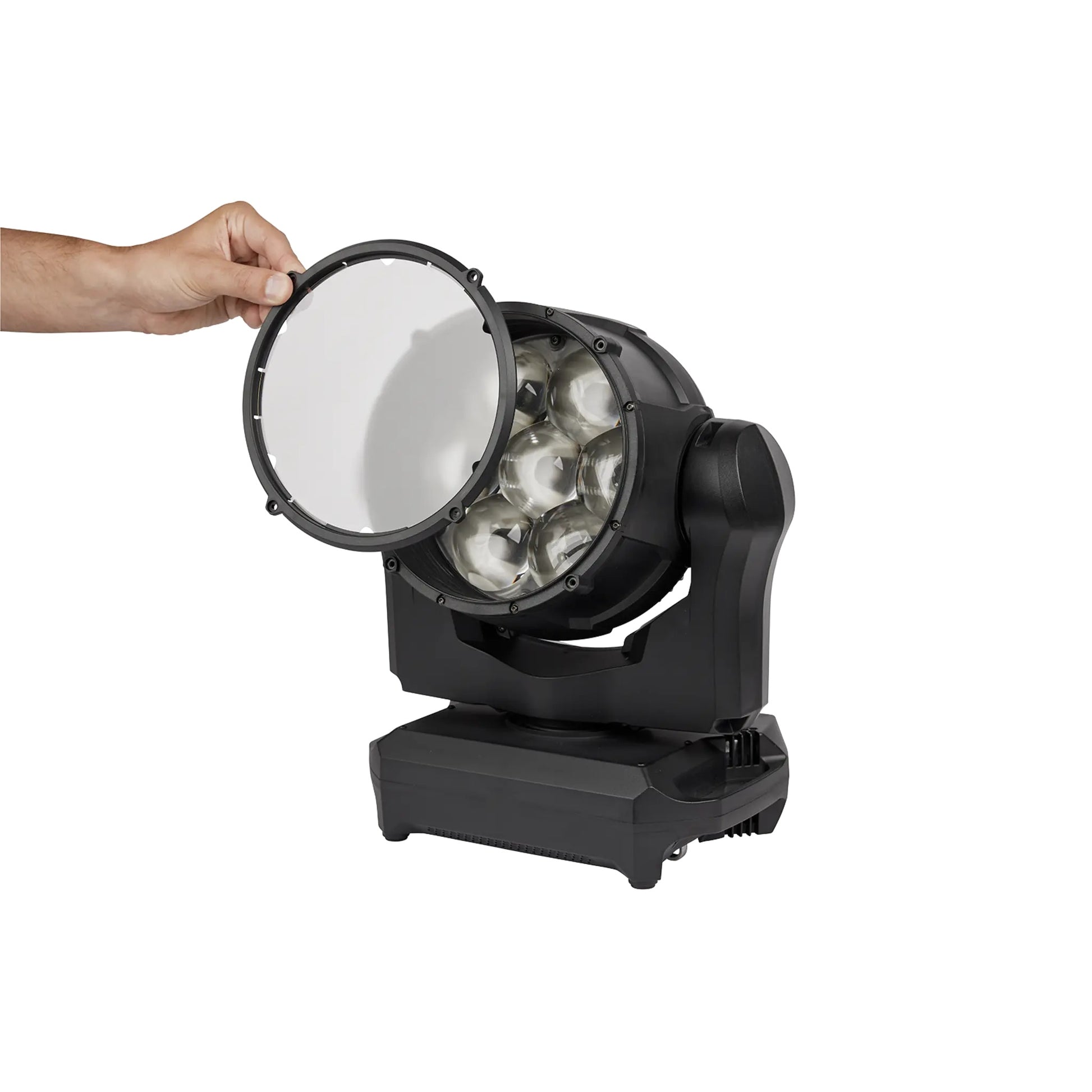

At 8.95 kg with a 25.2 dB(A) Theater/Broadcast noise mode, the MAC Aura XIP is deployable across festival outdoor stages and indoor theater or broadcast environments without acoustic compromise. Battery-powered control panel, RDM over DMX and Art-Net, seven DMX modes including XB crossbar-compatible modes, and Ethernet fail-safe bypass provide complete control system flexibility. The included SoftLens attaches to the front lens and remains installed inside the SiP flightcase during transport.

View full details

Specifications

Physical
Width (Across Yoke)
338 mm (13.31 in.)
Width (Base)
306 mm (12.05 in.)
Height (Head Forward)
387 mm (15.24 in.)
Height (Maximum)
421 mm (16.57 in.)
Depth (Head)
205 mm (8.07 in.)
Depth (Base)
226 mm (8.90 in.)
Weight
8.95 kg (19.73 lbs.)
Optics
Front Lens Diameter
196 mm (7.72 in.)
Zoom Range
1:6
Field Angle (Tenth Peak)
8.8° – 50.4°
Beam Angle (Half Peak)
6.3° – 35.3°
Beam Light Source
7 x 60 W RGBW LED
Aura Light Source
12 x 4 W RGBW LED
Max Beam LED Power
296.5 W
Max Aura LED Power
35.1 W
Minimum LED Lifetime
>50,000 hours (to >70% output)
Photometric
Light Engine Output
11,000 lumens
Fixture Output Wide
6,000 lumens
Fixture Output Narrow
4,500 lumens
Peak Intensity Narrow
360,000 cd
CCT Range
2,000 K – 12,850 K (±200 K)
CRI
≥71
CQS
≥80
TM-30 Rf
≥78
TM-30 Rg
≥117
TLCI
≥57
Beam LED Refresh Rate
2,400–3,000 Hz variable; 24,000 Hz mode
Aura LED Refresh Rate
1,200 Hz
Movement
Pan
Motorized 540°
Tilt
Motorized 220°
Control
Control Protocols
DMX, RDM, Art-Net, sACN, Martin P3
DMX Modes
Compact, Basic, Extended, Ludicrous, Compact Direct, XB Standard, XB Extended
DMX Channels
20, 36, 57, 93, 20, 14, 25
Electrical
AC Power
100–240 V AC, 50/60 Hz
Power Consumption (Max)
340 W
Power Consumption (Typical)
292 W
Power Consumption (Idle)
47 W
Construction
Housing
High-impact flame-retardant thermoplastic
Color
Black
Protection Rating
IP54
Location
Indoor or Temporary Outdoor
Thermal
Max Ambient Temperature
40°C (104°F)
Min Ambient Temperature
-10°C (14°F)
Noise (Regulated Fan, Full Output)
34.4 dB(A) @ 1 m
Noise (Ultra Low Constant Fan)
25.2 dB(A) @ 1 m

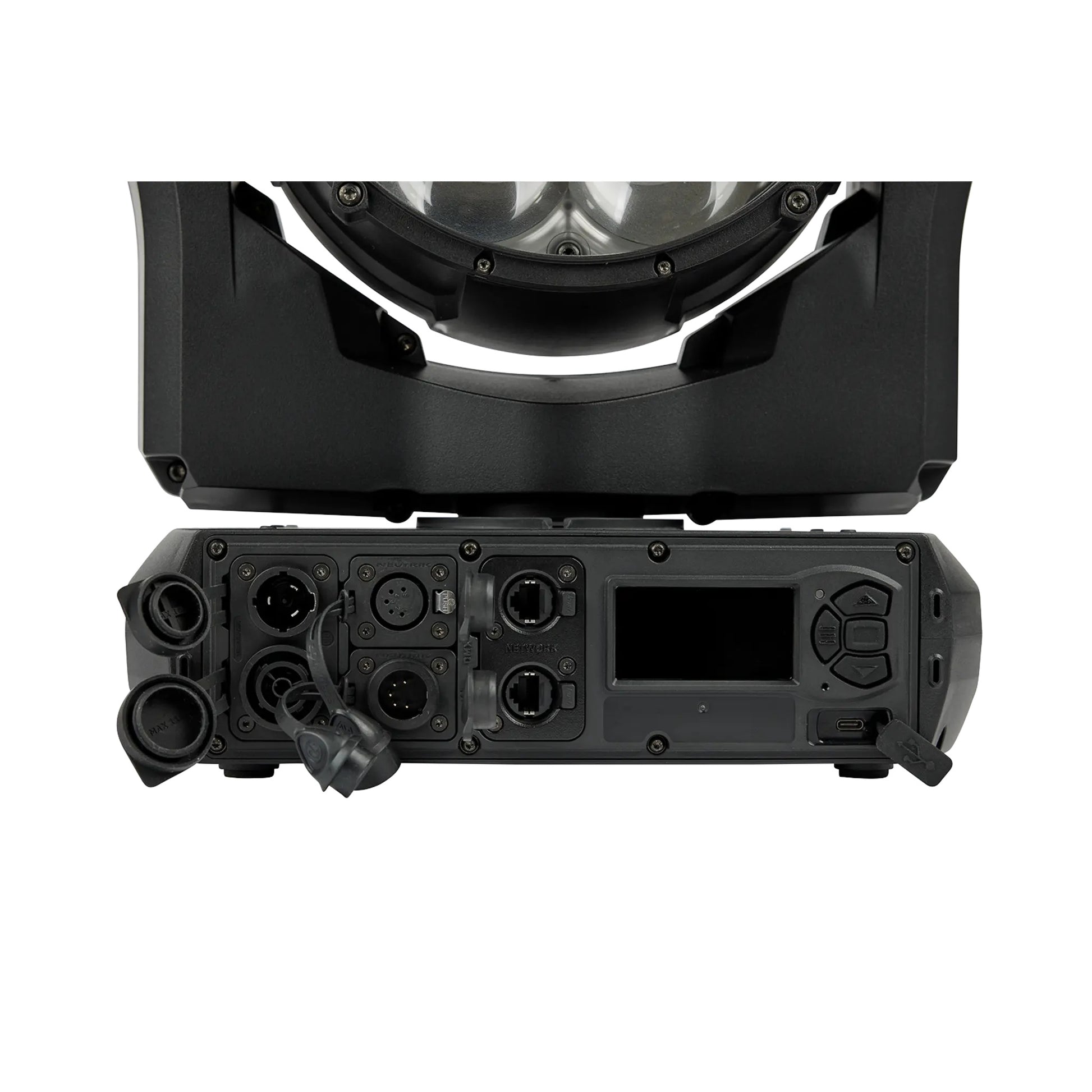

Connections
Power In/Thru
Neutrik powerCON TRUE1 TOP
DMX/RDM In/Thru
Neutrik 5-pin locking XLR TOP
Ethernet In/Thru
Neutrik etherCON TOP (with fail-safe bypass)
Firmware Update
USB 2.0 Type C
