Martin Lighting MAC Viper XIP IP54 All-In-One Moving Head Spotlight | Cardboard | White

Martin Lighting MAC Viper XIP IP54 All-In-One Moving Head Spotlight | Cardboard | White

SoundPro Item: 205068 | Part Number: MAR-90250310HU

$15,666.30
$17,407.00 $15,666.30
Your Price Sold out
MSRP: $17,407.00 | MAP: $15,666.30

Usually ships in 5-7 business days

  • 28,000-Lumen Proprietary White LED Engine At Precise 5,800K
  • CMY Color Mixing With Physical CTO And Virtual CTC To 12,850K
  • Spectral Enhancement Filter Boosts CRI To ≥90 On Demand
  • Dual Rotating Gobo Wheels With 7 Interchangeable Gobos Each
  • Extended Framing Module: ±83° Rotation, 4 Blades With ±30° Angle Control
  • IP54 XIP Weatherproofing With 31.9 dB(A) Ultra-Low Noise Mode
  • 1:9 Zoom Range (5.7°–54°) With Motorized Focus And Auto Tracking
Log in or register for YOUR best price

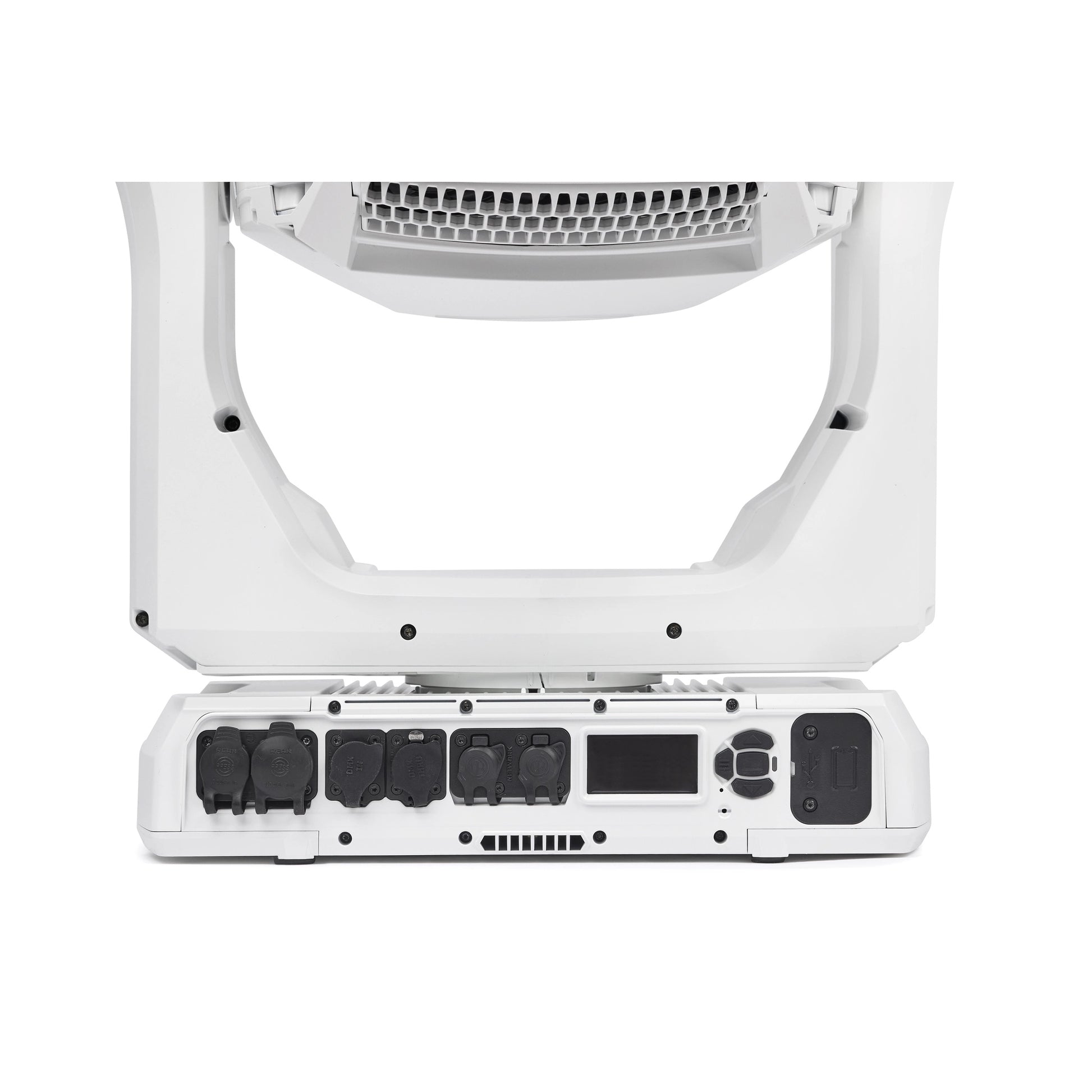

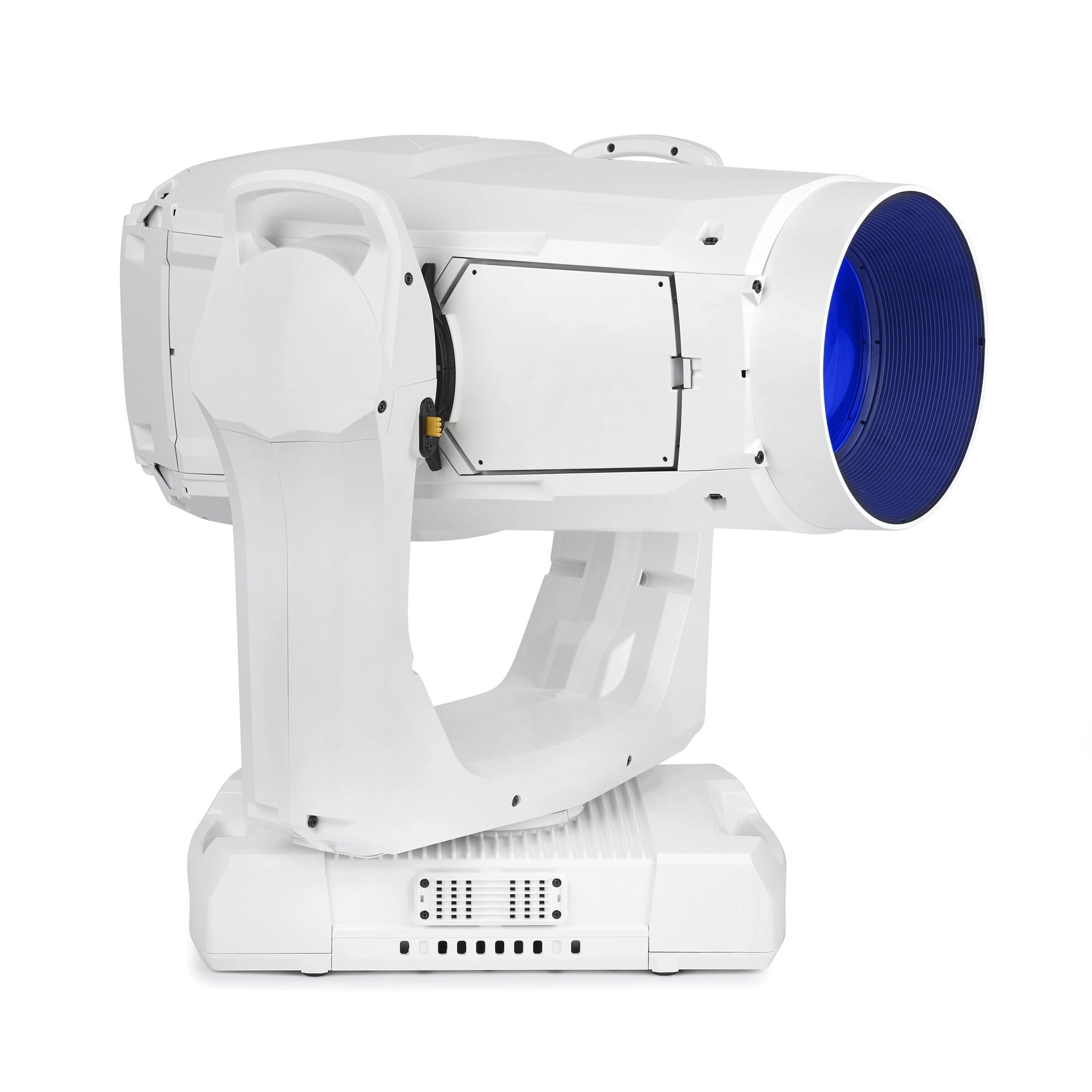

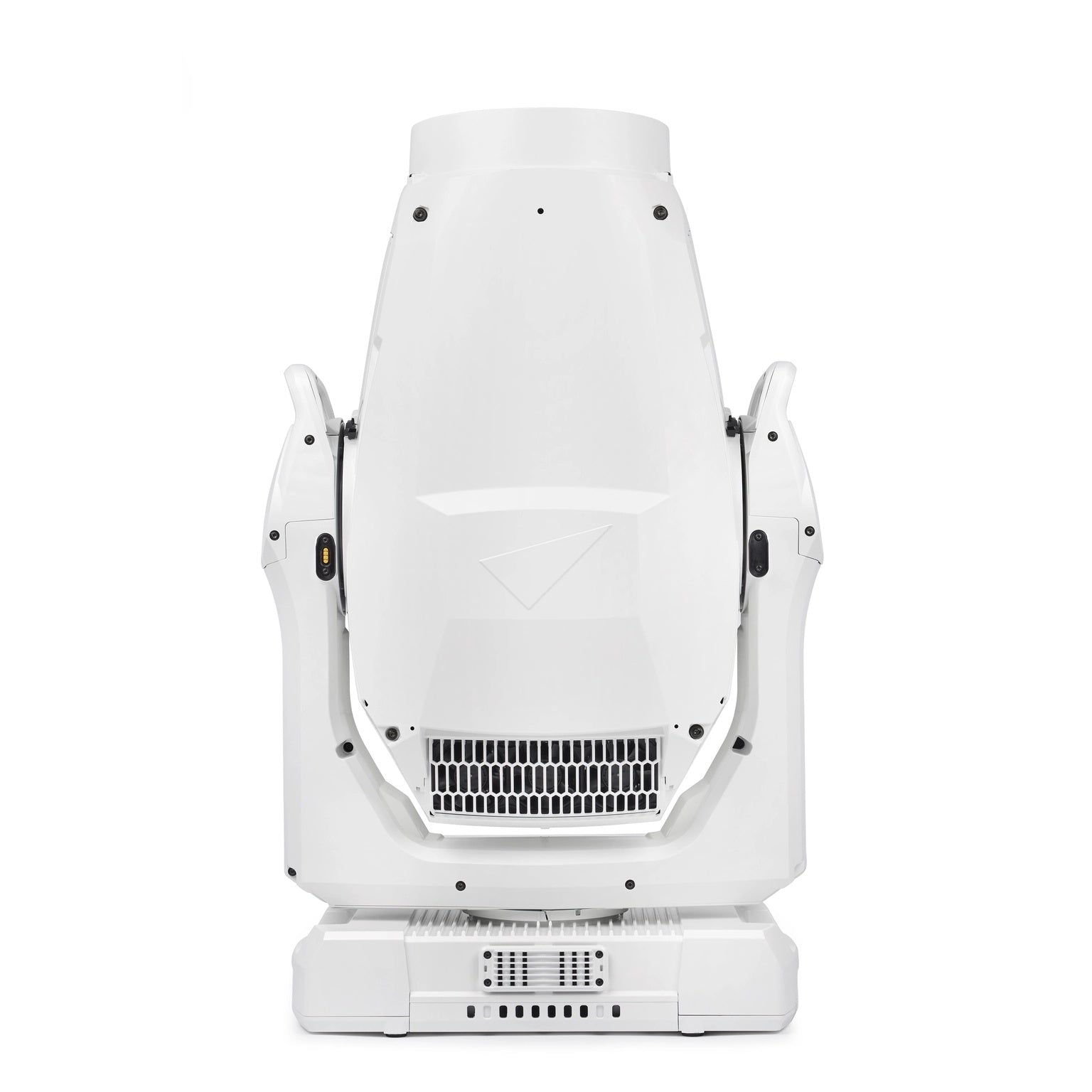

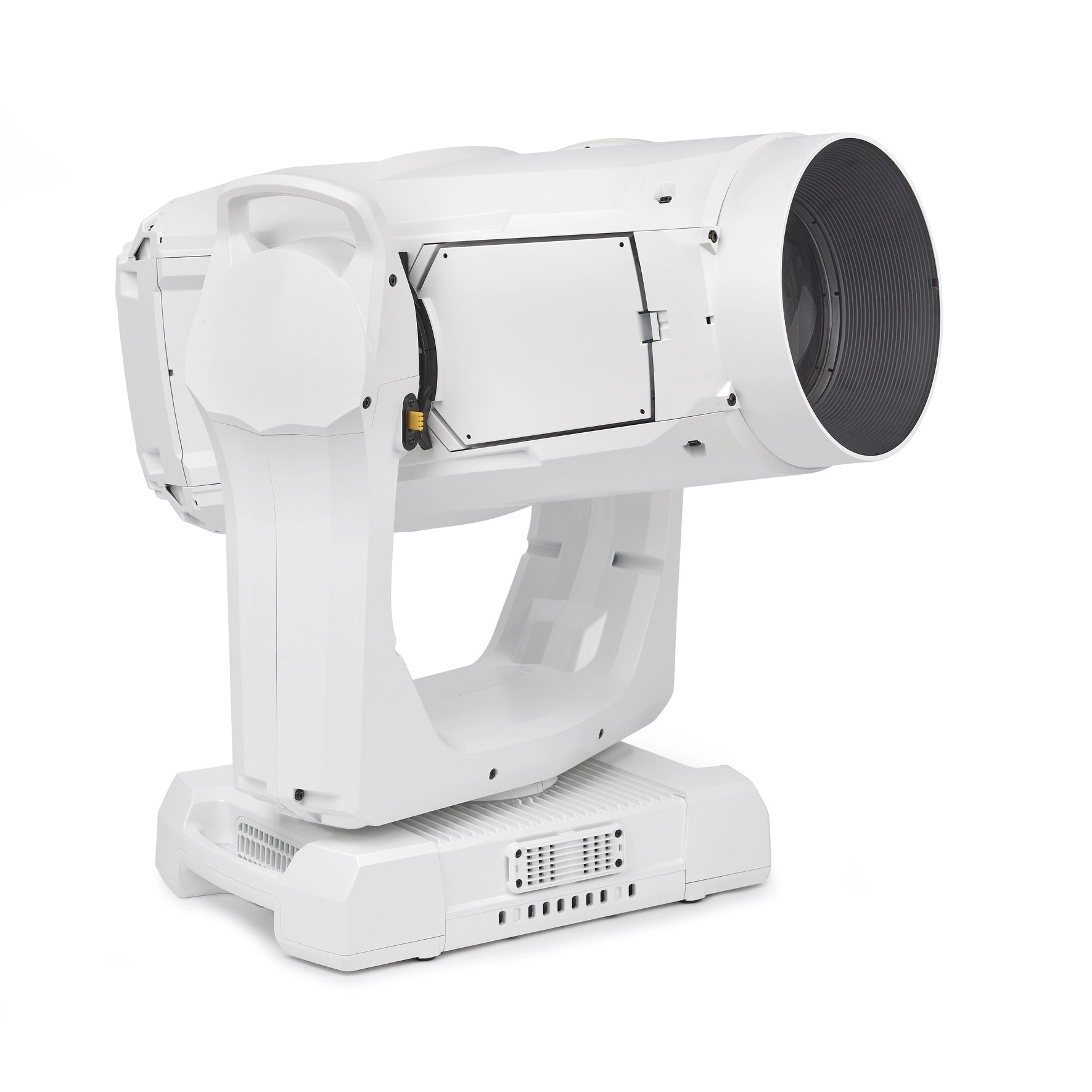

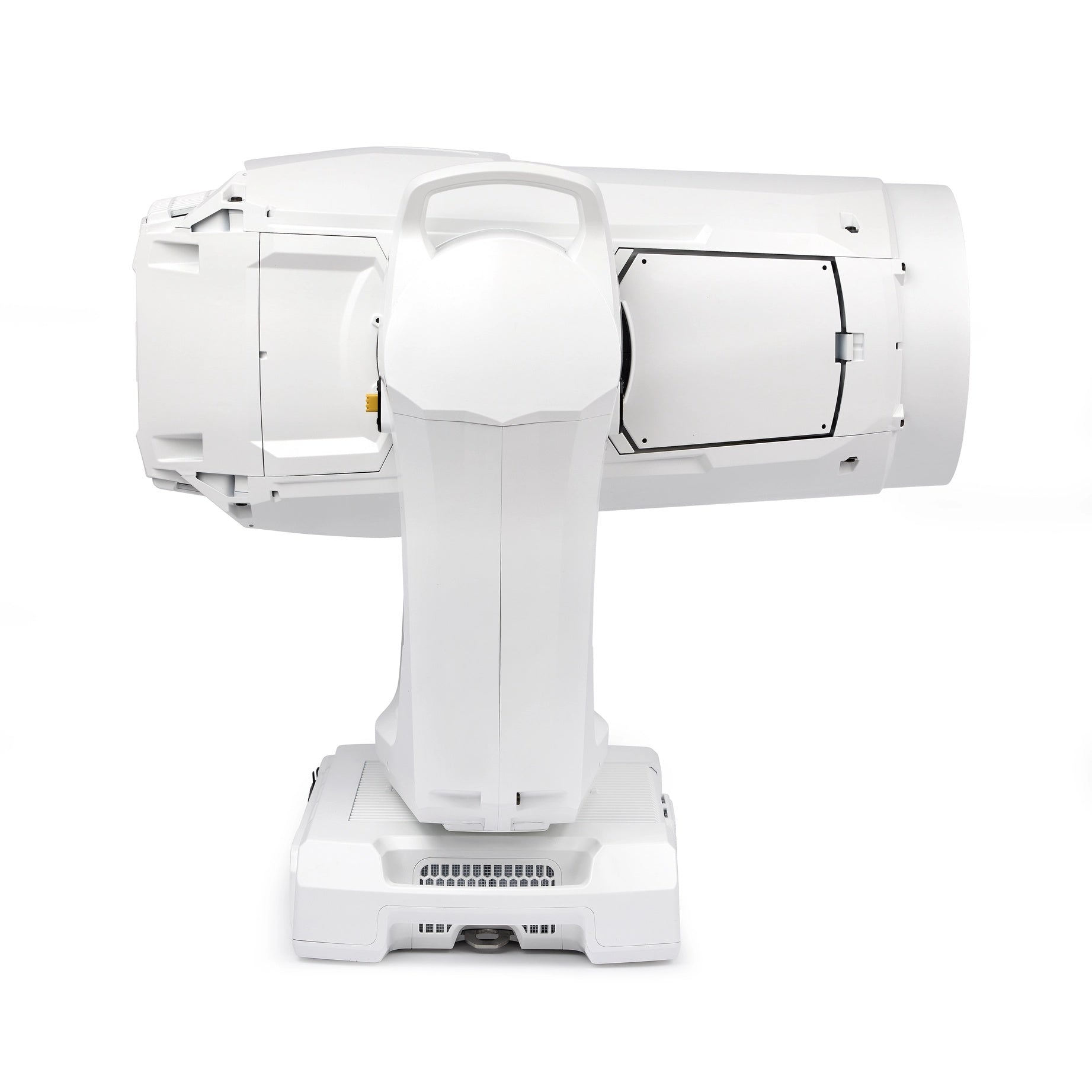

The Martin MAC Viper XIP consolidates the capabilities of the Viper Profile, Performance, and Wash into a single IP54-rated chassis powered by a proprietary 760W white LED engine at precisely calibrated 5,800K. At 28,000 lumens fixture output wide and a peak intensity of 2,500,000 cd narrow, it delivers output that outperforms larger fixtures through consistent, unwavering performance across the full 1:9 zoom range.

CMY color mixing combines with physical CTO (5,800K–2,850K) and Virtual CTC (2,000K–12,850K) for broadcast-compatible color management. The optional Spectral Enhancement Filter on the color wheel raises CRI to ≥90 on demand. Dual 7-gobo rotating wheels, an animation wheel with variable insertion angle, a 4-facet prism, iris, and motorized focus with auto-tracking complete an effects package unmatched in the IP54 moving head category.

XIP smart weatherproofing delivers IP54 protection without compromising the ultra-low 31.9 dB(A) noise floor in constant fan mode — making the Viper XIP deployable in theater, broadcast studio, and outdoor festival applications from a single fixture inventory. The Universal Connect Module slot and NFC-based Companion app setup streamline large-quantity deployment and wireless DMX integration.

View full details

Specifications

Physical
Width (Across Yoke)
479 mm (18.9 in.)
Width (Base)
429 mm (16.9 in.)
Height (Head Straight Up)
758 mm (29.8 in.)
Height (Maximum)
776 mm (30.6 in.)
Depth (Base)
285 mm (11.2 in.)
Weight
37.0 kg (81.5 lbs.)
Optics
Front Lens Diameter
150 mm (5.9 in.)
Zoom Range
1:9
Field Angle (Tenth Peak)
5.7° – 54.0°
Light Source
55 x 22 W White LED (custom Martin engine)
Max LED Engine Power
760 W
Minimum LED Lifetime
>50,000 hours (>80% output) / >20,000 hours (>90% output)
Photometric (Without Spectral Enhancement Filter)
Light Engine Output
56,000 lumens
Fixture Output Wide
28,000 lumens
Fixture Output Narrow
24,700 lumens
Peak Intensity Narrow
2,500,000 cd
CCT
5,800 K (±250 K)
CRI
68 (±3)
TLCI
44 (±3)
Photometric (With Spectral Enhancement Filter)
Fixture Output Wide
18,700 lumens
Fixture Output Narrow
16,600 lumens
Peak Intensity Narrow
1,700,000 cd
CRI
90 (±3)
TLCI
68 (±3)
Movement
Pan
Motorized 540°
Tilt
Motorized 268°
Control
Control Protocols
DMX, RDM, Art-Net, sACN, Martin P3
DMX Modes
Basic, Extended, Ludicrous
DMX Channels
54, 64, 70
Gobos
Max Image Diameter
22 mm (0.866 in.)
External Diameter
27.1 mm +0 / -0.2 mm
Max Thickness
1.1 mm (0.04 in.)
Material
Borofloat 33
Coating
Heavy Matted Aluminum
Electrical
AC Power
100–240 V AC, 50/60 Hz
Power Consumption (Max)
1,040 W
Power Consumption (Typical)
945 W
Power Consumption (Idle)
68 W
Construction
Housing
High-impact flame-retardant thermoplastic
Color
Black
Protection Rating
IP54
Location
Indoor or Temporary Outdoor
Thermal
Max Ambient Temperature
40°C (104°F)
Min Ambient Temperature
-10°C (14°F)
Noise (Regulated Fan, Full Output)
37.7 dB(A) @ 1 m
Noise (Ultra Low Constant Fan)
31.9 dB(A) @ 1 m
Warranty
Fixture
2 years
Light Engine
5 years
