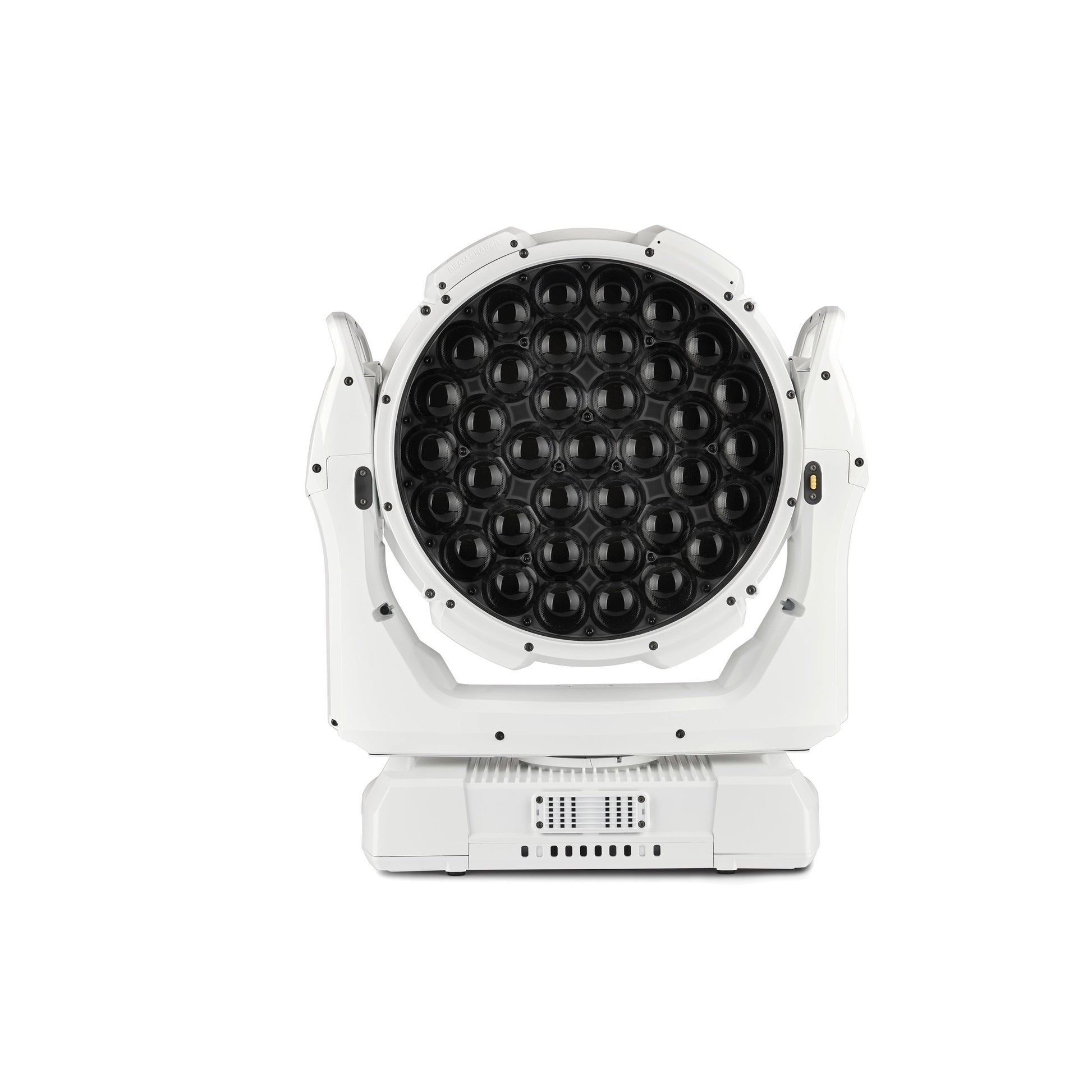

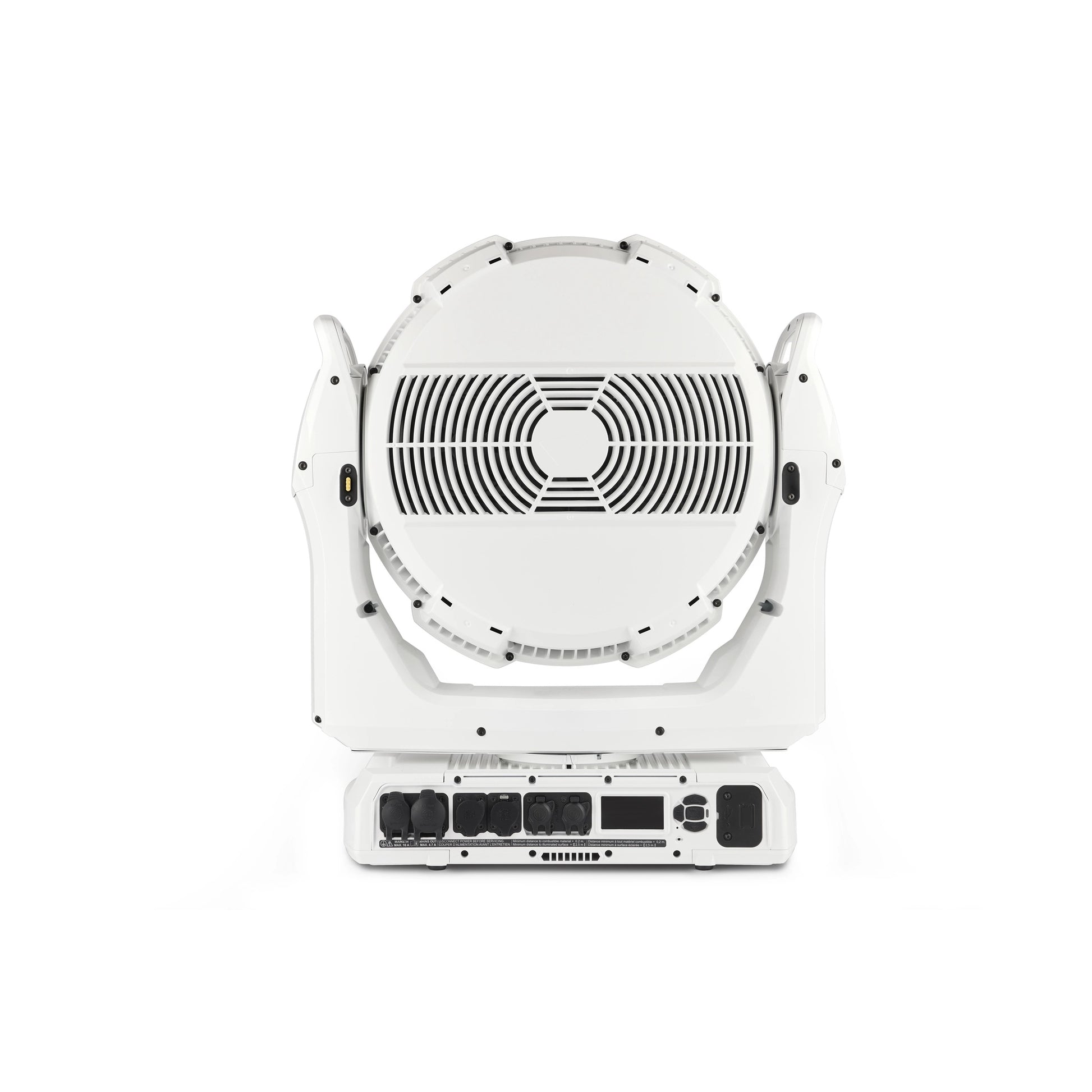

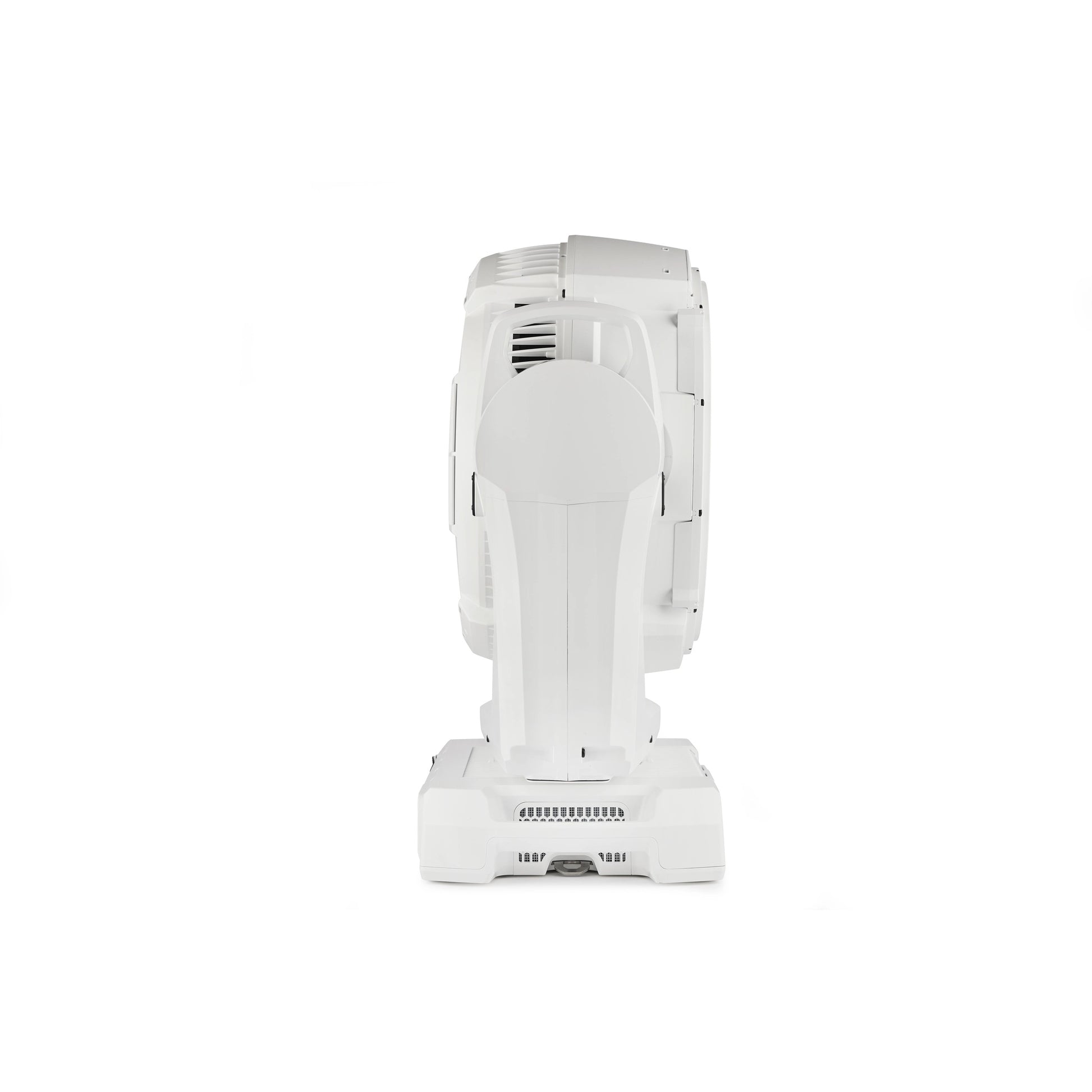

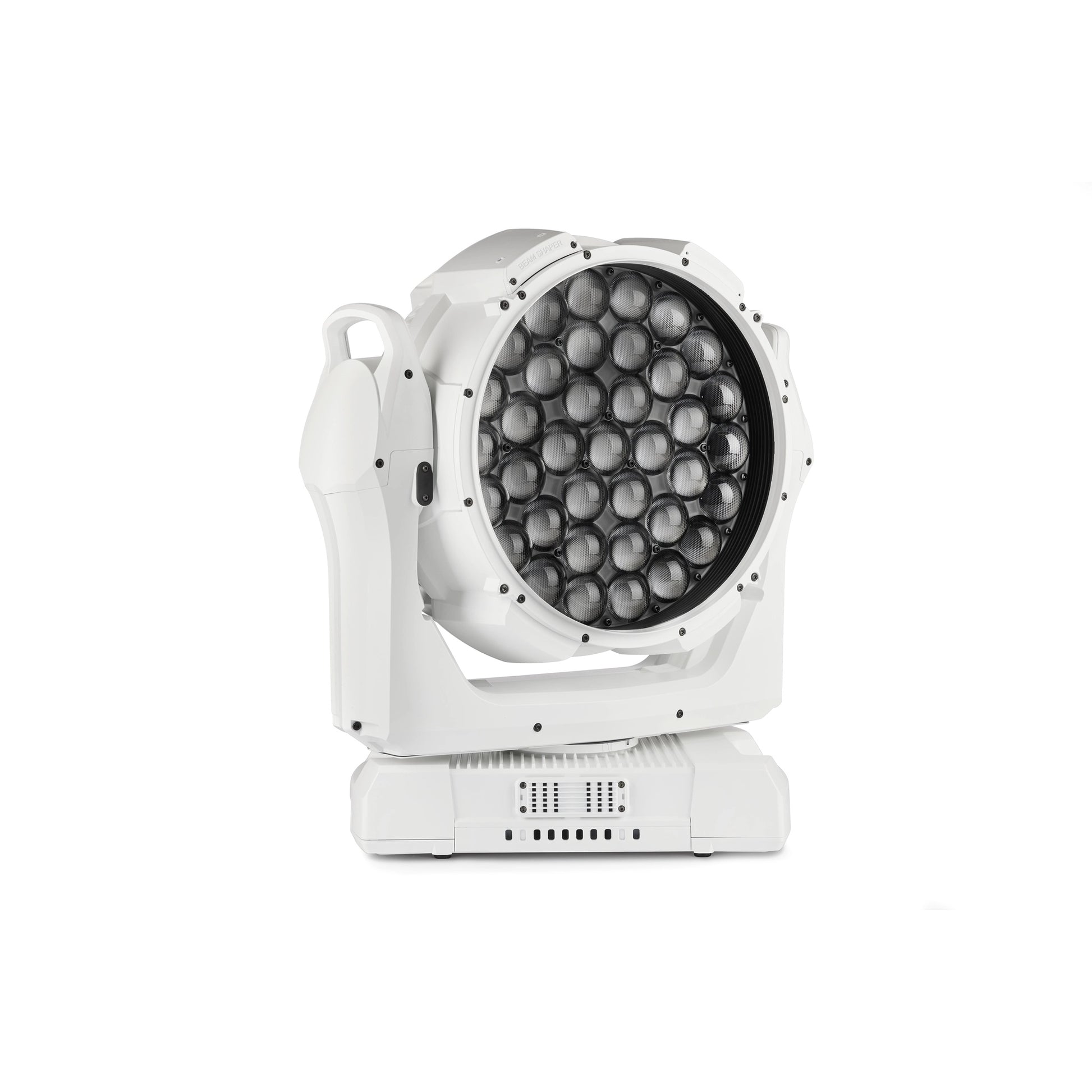

Martin Lighting MAC Aura Raven XIP Outdoor Moving Head Wash Light | EPS | White

Martin Lighting MAC Aura Raven XIP Outdoor Moving Head Wash Light | EPS | White

SoundPro Item: 205077 | Part Number: MAR-90250410HU

$12,568.50
$13,965.00 $12,568.50
Your Price Sold out
MSRP: $13,965.00 | MAP: $12,568.50

Usually ships in 5-7 business days

  • 27,000-Lumen RGBL Engine With Superior CRI And TLCI For Broadcast Use
  • 234-LED Pixelated Aura Backlight With Individual RGB Pixel Control
  • IP54 XIP Smart Weatherproof Protection For Temporary Outdoor Deployment
  • Belt-Driven Silent Zoom: 6° To 51° Field Angle With 1:5.3 Ratio
  • Universal Connect Module Slot For Third-Party Wireless DMX Modules
  • Martin P3 Video Mapping With Crossfade Between DMX And Video Control
  • NFC Interface For Setup And Diagnostics Via Martin Companion App
Log in or register for YOUR best price

The Martin MAC Aura Raven XIP is the flagship of the MAC Aura family, delivering 27,000 lumens through a 343 mm front lens with IP54 XIP smart weatherproof protection for indoor and temporary outdoor deployment. Its RGBL light engine — 37 individually addressable LEDs at 40W each — provides class-leading CRI, TM-30 fidelity, and TLCI scores suited to broadcast, television, and touring applications where color accuracy under cameras is essential.

A 234-LED pixelated Aura backlight behind the front lens operates independently from the main beam, enabling full individual RGB pixel control of both systems simultaneously via DMX or Martin P3 video mapping. The belt-driven zoom system delivers near-silent 6°–51° coverage changes, while the dark lens and compact yoke design make the Raven XIP specifiable for aesthetically sensitive broadcast and theatrical environments. The Universal Connect Module slot adds third-party wireless DMX compatibility without proprietary lock-in.

With six DMX modes from 22 to 851 channels, full RDM support, Art-Net 1–4, sACN, and NFC-based setup via the Martin Companion mobile app, the Raven XIP integrates into any control workflow. Yoke handles simplify transport and inverted installation, and the battery-powered display enables addressing without mains power connected.

View full details

Specifications

Physical
Width (Across Yoke)
528 mm (20.8 in.)
Width (Base)
429 mm (16.9 in.)
Height (Head Forward)
588 mm (23.1 in.)
Height (Maximum)
603 mm (23.7 in.)
Depth (Head)
241 mm (9.5 in.)
Depth (Base)
285 mm (11.2 in.)
Weight
28.8 kg (63.5 lbs.)
Optics
Front Lens Diameter
343 mm (13.5 in.)
Zoom Range
1:5.3
Field Angle (Tenth Peak)
9.9° – 51.0°
Beam Angle (Half Peak)
6.6° – 35.3°
Beam Light Source
37 x 40 W RGBL LED
Aura Light Source
234 x 0.30 W RGB LED
Max Beam LED Engine Power
830 W
Max Aura LED Engine Power
70 W
Minimum LED Lifetime
>50,000 hours (to >70% output)
Photometric
Light Engine Output
39,000 lumens
Fixture Output Wide
27,000 lumens
Fixture Output Narrow
23,000 lumens
Peak Luminous Intensity Narrow
1,900,000 cd
CCT Range
2,000 K – 12,850 K (±200 K)
CRI
≥82
CQS
≥89
TM-30 Rf
≥84
TM-30 Rg
≥110
TLCI
≥84
Beam LED Refresh Rate
2,400 Hz (adjustable); 19,200 Hz mode
Aura LED Refresh Rate
62,500 Hz
Movement
Pan
Motorized 540°
Tilt
Motorized 250°
Control
Control Protocols
DMX, RDM, Art-Net, sACN, Martin P3
DMX Modes
Compact, Basic, Extended, Ludicrous, Plaid, Compact Direct
DMX Channels
22, 38, 149, 266, 851, 22
Ethernet
10/100 Mbit with fail-safe bypass
Electrical
AC Power
100–240 V AC, 50/60 Hz
Power Consumption (Max)
1,120 W
Power Consumption (Typical)
1,020 W
Power Consumption (Idle)
135 W
Power Consumption (Hibernation)
6 W
Construction
Housing
High-impact flame-retardant thermoplastic
Color
Black
Protection Rating
IP54
Location
Indoor or Temporary Outdoor
Thermal
Max Ambient Temperature
40°C (104°F)
Min Ambient Temperature
-10°C (14°F)
Noise (Regulated Fan, Full Output)
35.5 dB(A) @ 1 m
Noise (Ultra Low Fan Mode)
23.6 dB(A) @ 1 m
Connections
Power In/Thru
Neutrik Rean powerCON TRUE1 TOP
DMX/RDM In/Thru
Neutrik 5-pin locking XLR TOP
Ethernet In/Thru
Neutrik etherCON TOP
Firmware Update
USB 2.0 Type C
Accessory Slot
Universal Connect Module Slot
