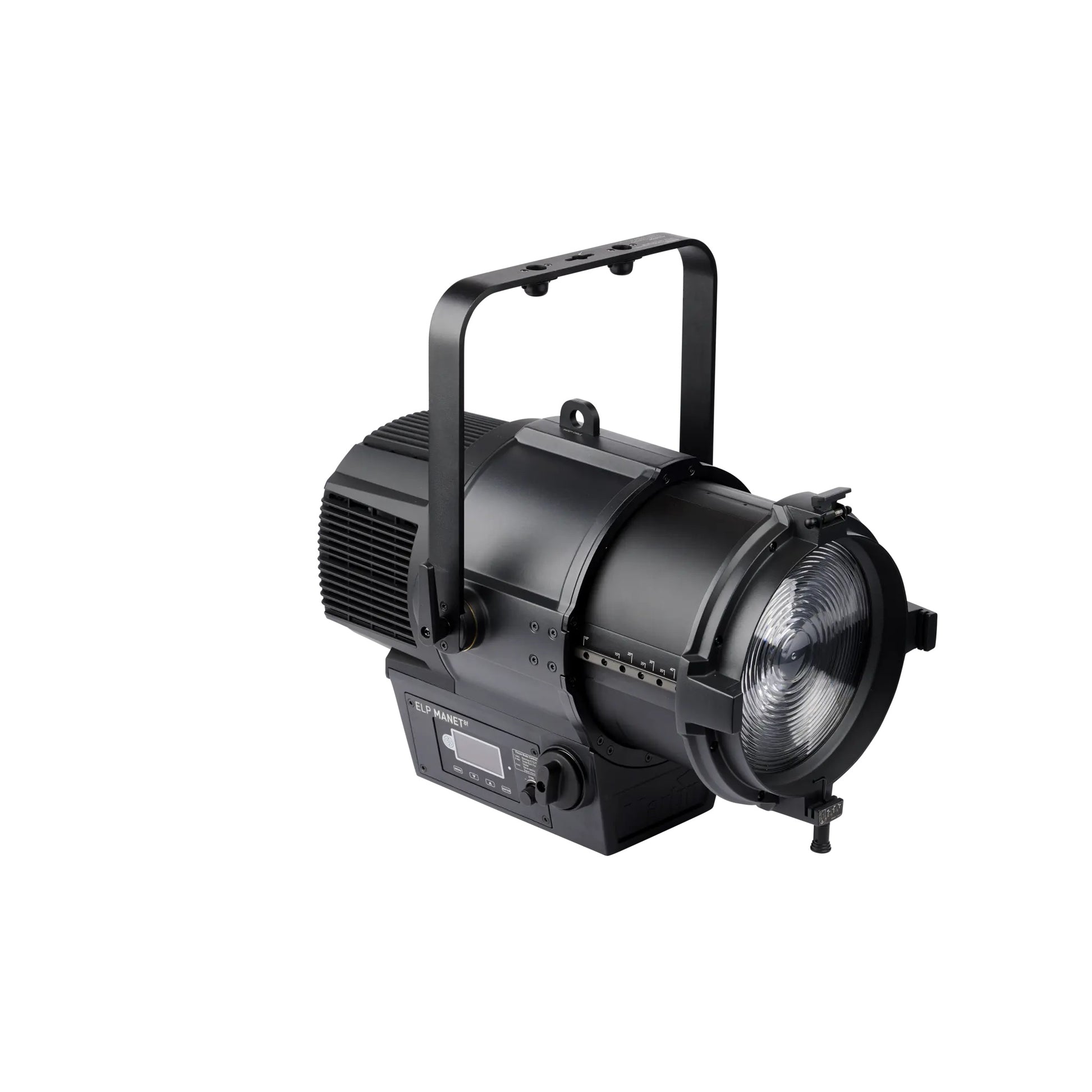

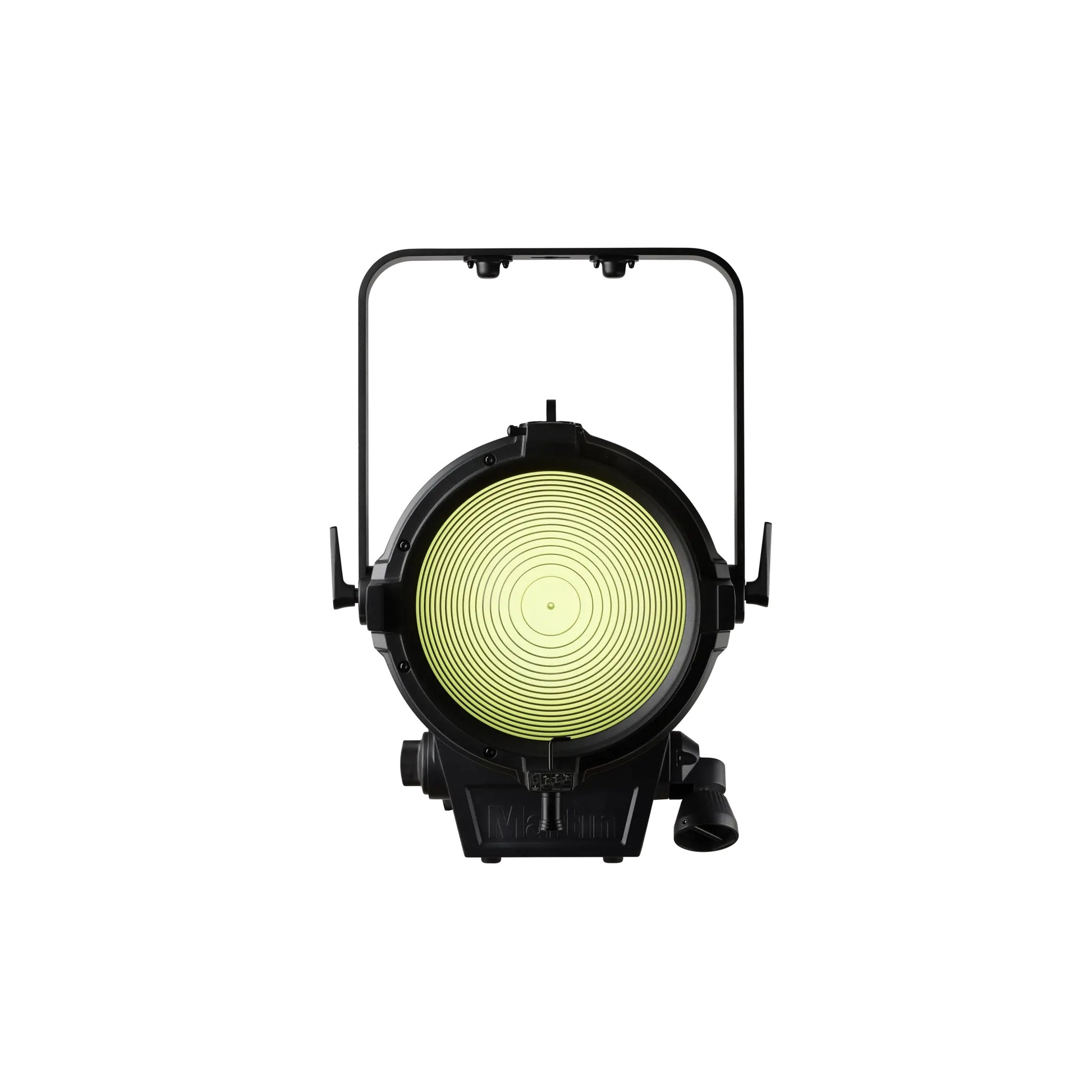

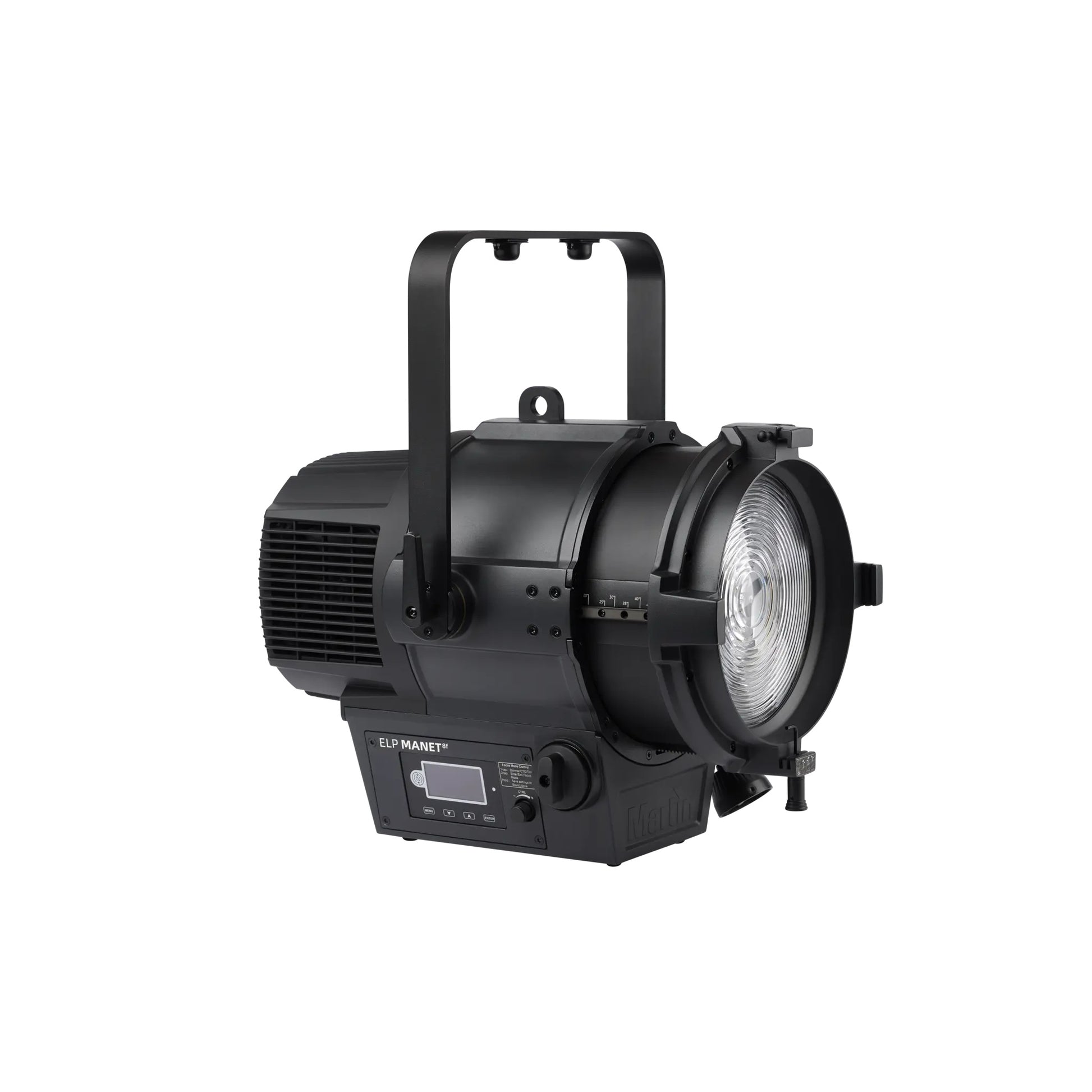

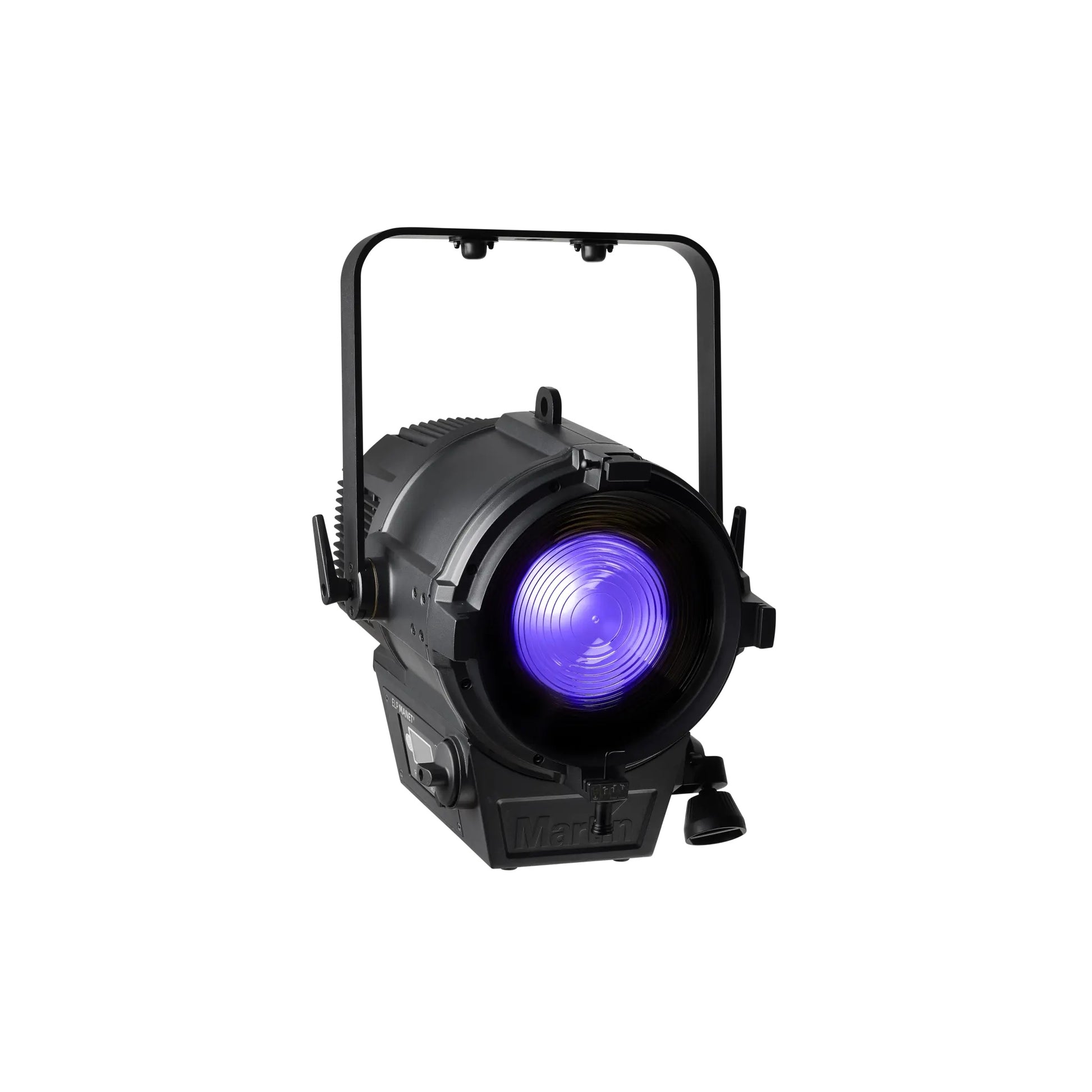

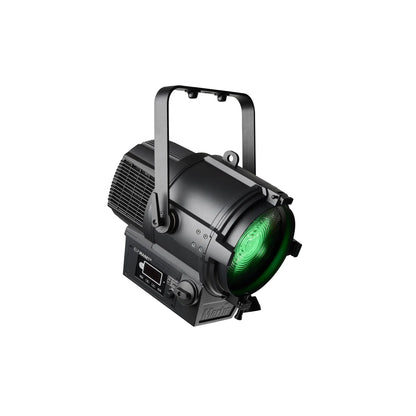

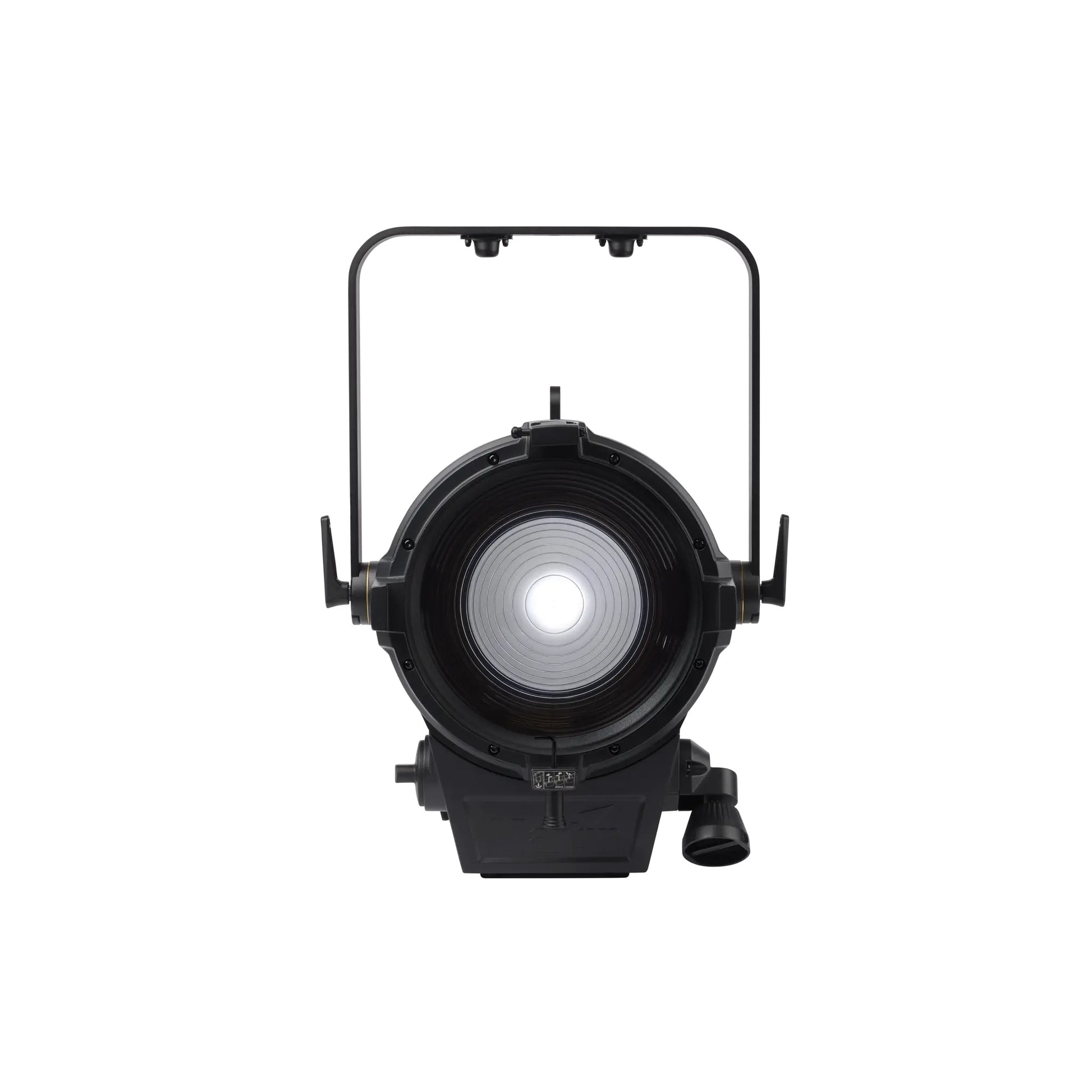

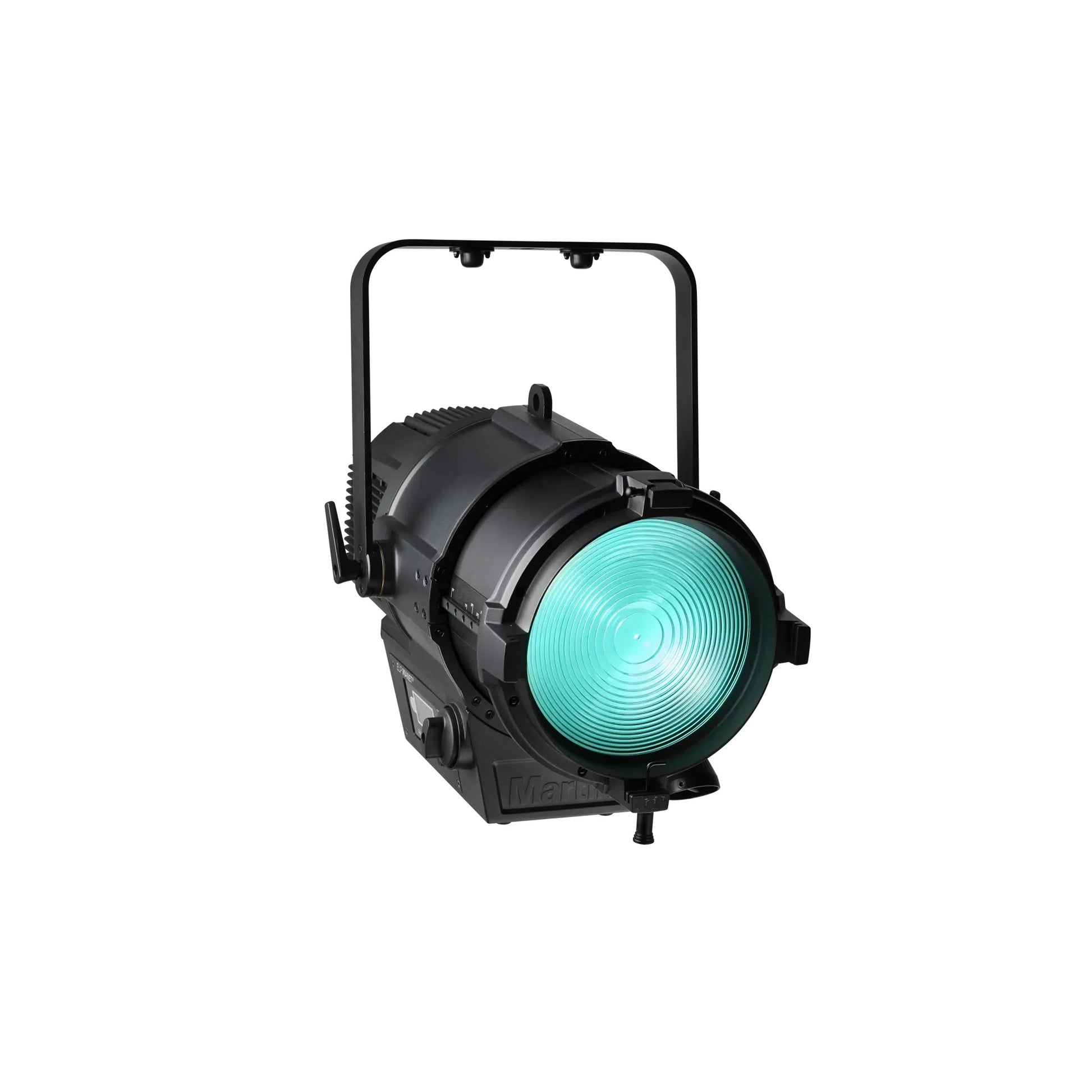

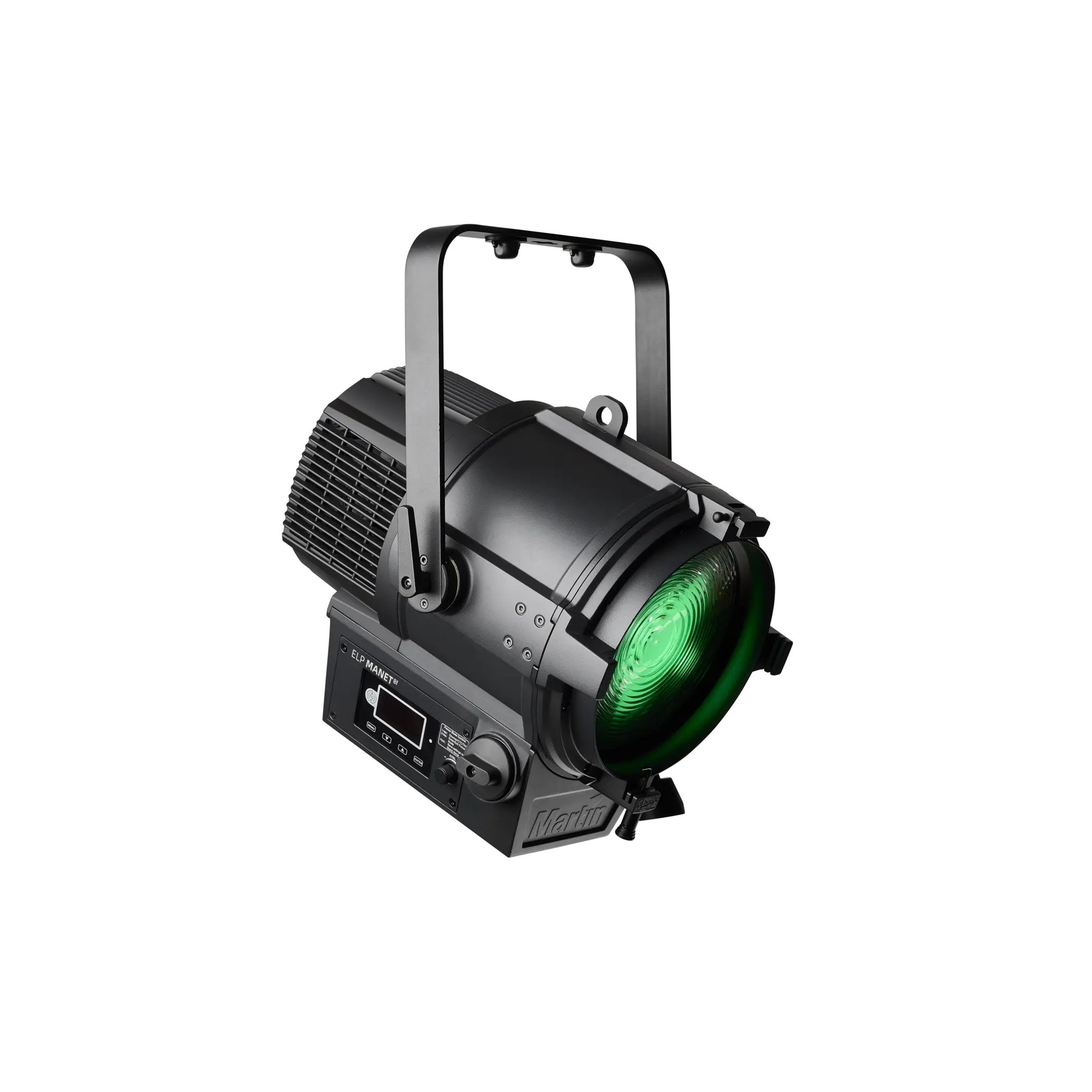

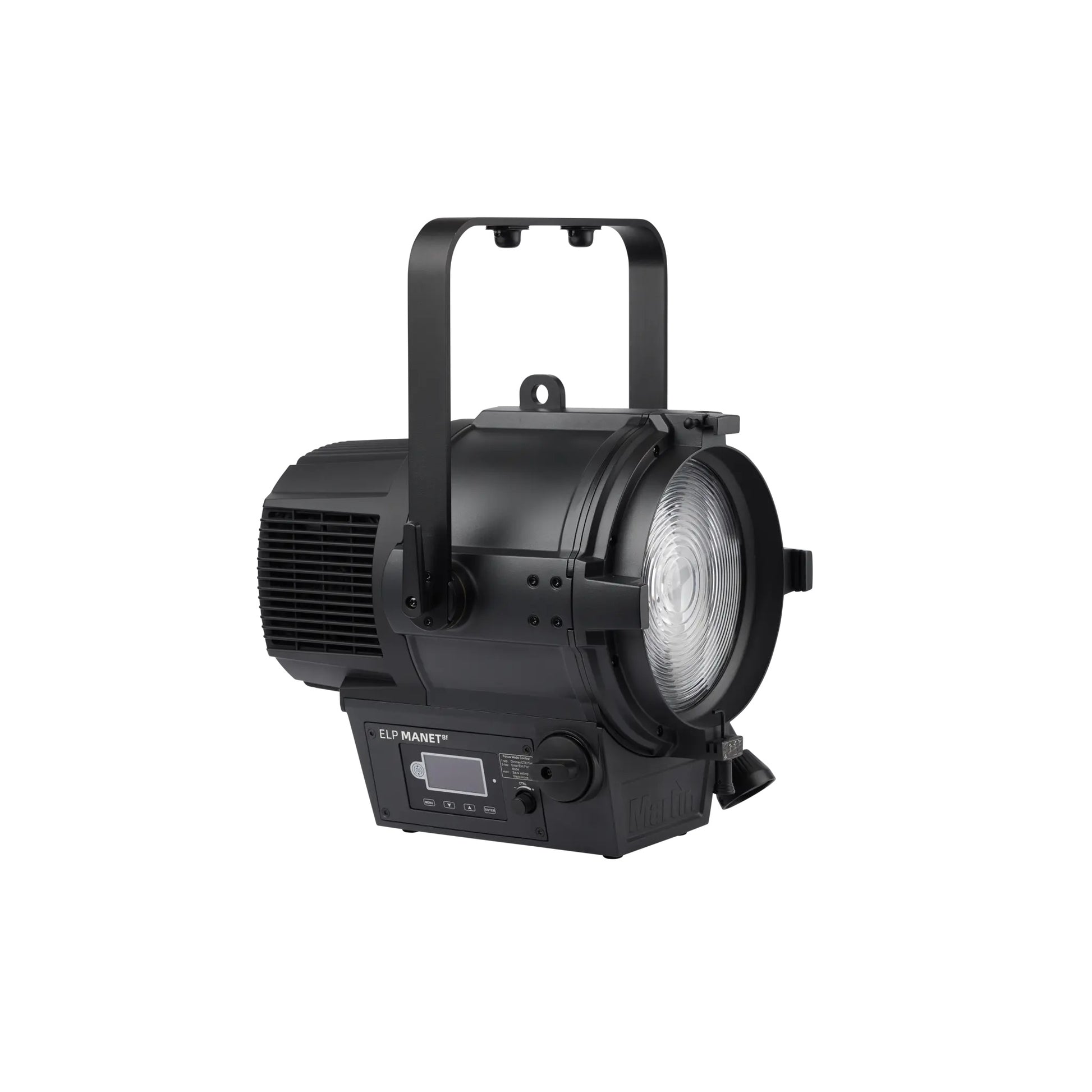

Martin Lighting ELP MANET 8f LED Stage Fresnel

Martin Lighting ELP MANET 8f LED Stage Fresnel

SoundPro Item: 202193 | Part Number: MAR-90800020

$2,999.00
$3,400.00 $2,999.00
Your Price Sold out
MSRP: $3,400.00 | MAP: $2,999.00

Usually ships in 5-7 business days

  • 15,500 Lumens For Strong Stage Coverage
  • 9°–50° Zoom For Flexible Beam Control
  • RGBALC Engine For Broad Color Creation
  • High CRI And TM-30 For Accurate Rendering
  • Low-Noise Cooling For Quiet Environments
  • DMX, RDM, And NFC For Easier Setup
  • Included Barn Doors For Precise Spill Control
Log in or register for YOUR best price

The Martin Lighting ELP MANET 8f LED Stage Fresnel is a professional LED Fresnel built for applications that need refined beam shaping, strong color performance, and dependable control integration. Its 8" front lens and 9°–50° manual zoom give lighting teams practical flexibility for front wash, key light, stage specials, and studio coverage without changing fixtures for every throw distance. With DMX and RDM support, onboard menu access, and NFC-based configuration options, it fits smoothly into modern production and installed lighting workflows.

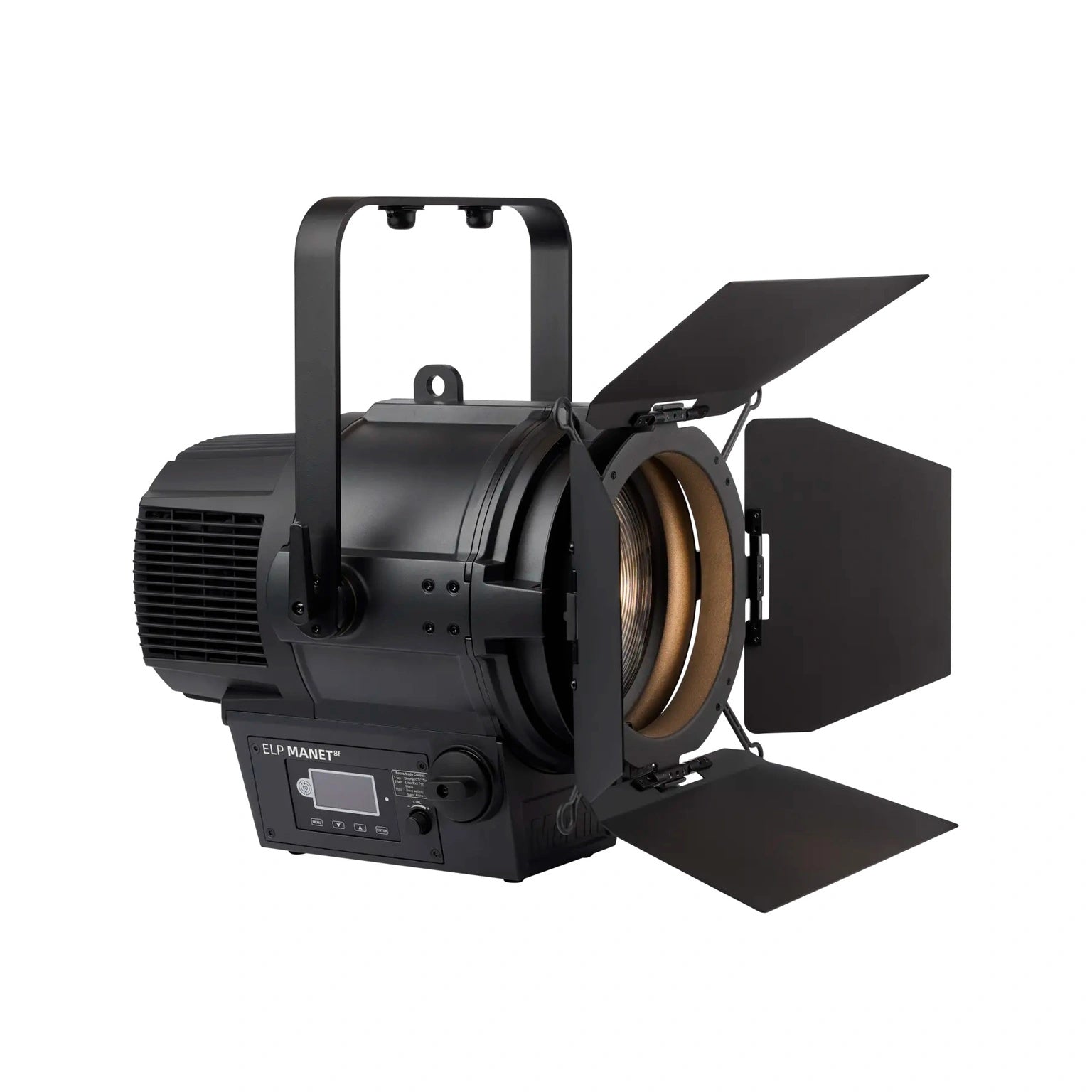

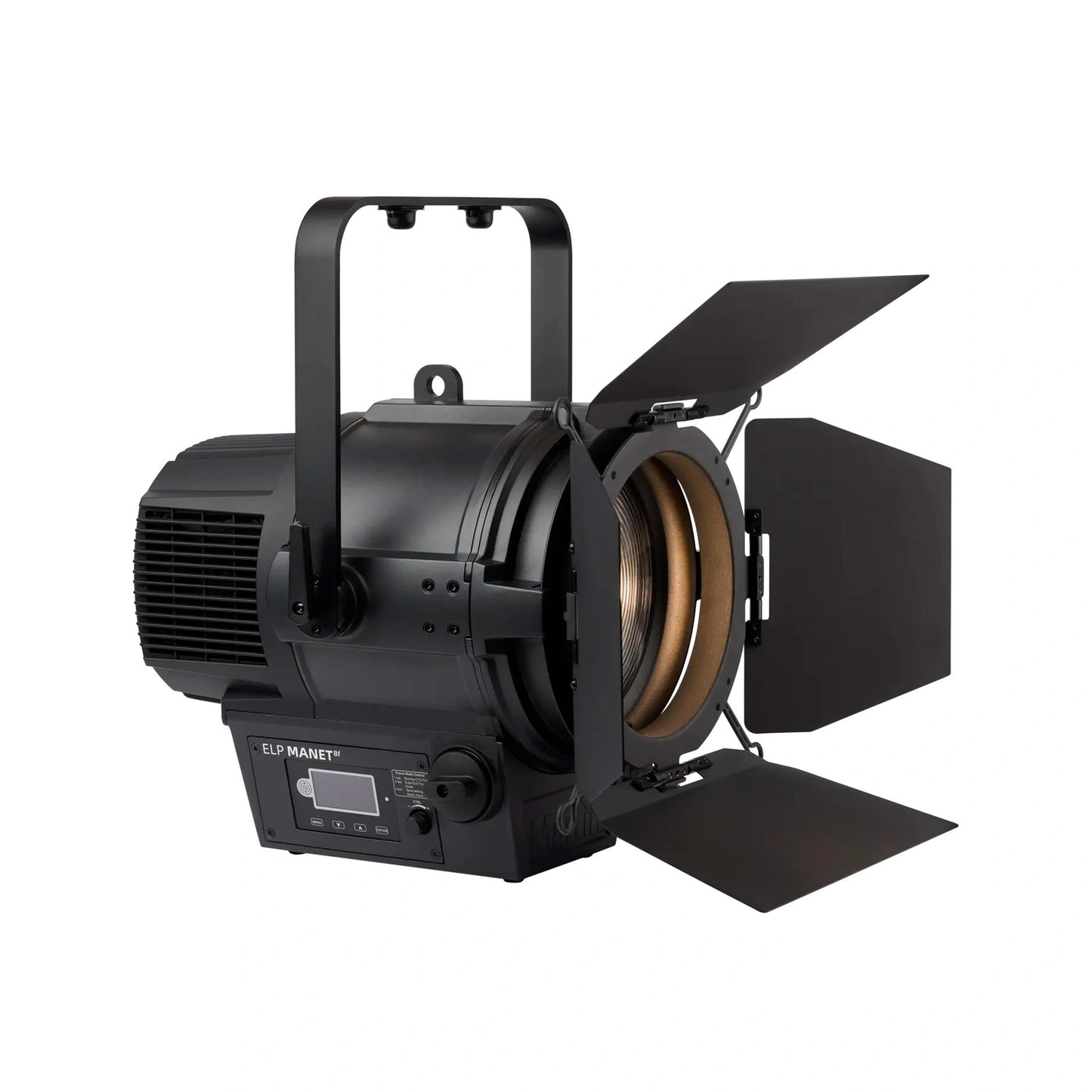

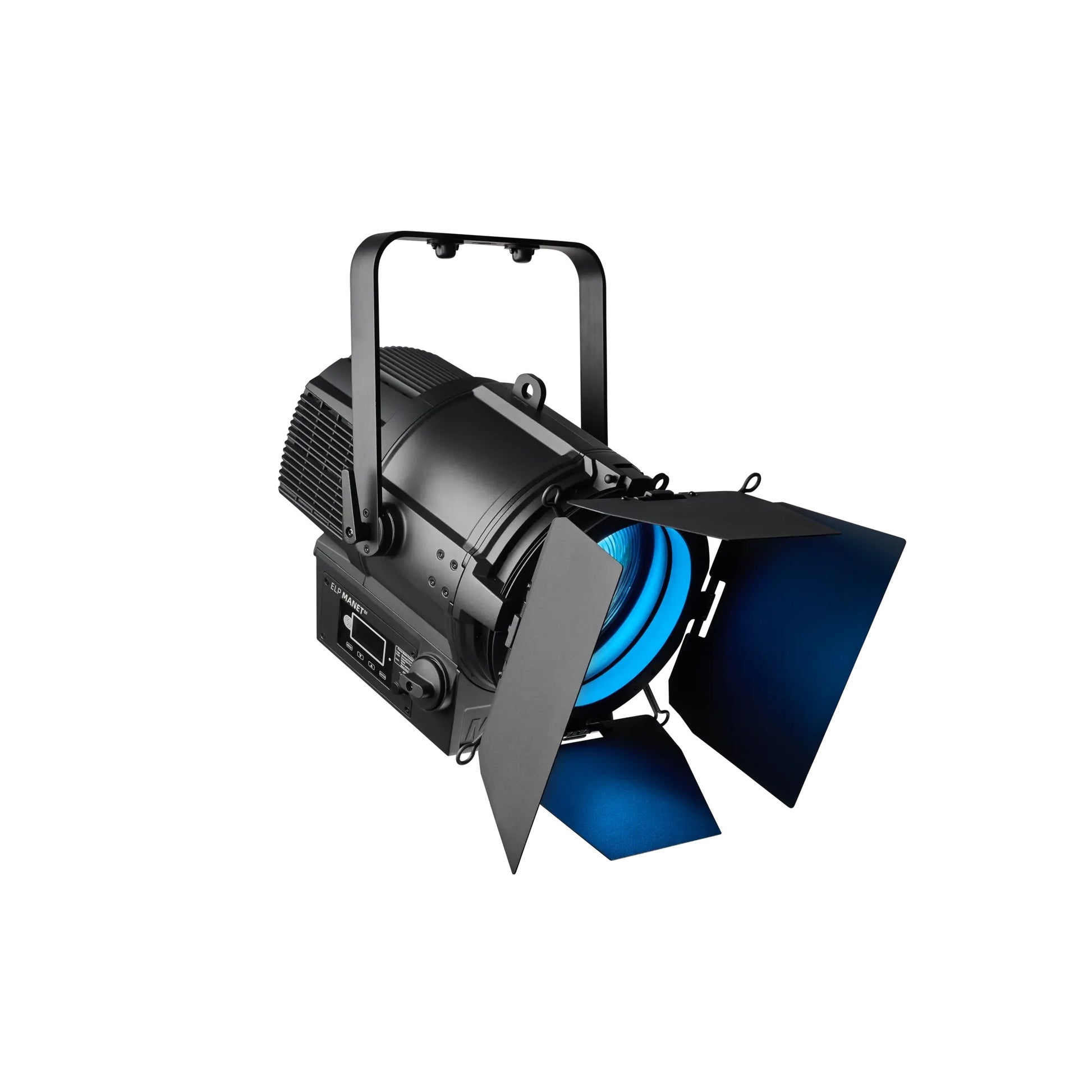

This fixture uses a 500 W RGBALC COB LED source and supports variable color temperature from 1,850 K to 12,500 K with adjustable tint control. That makes it suitable for matching ambient sources, building stylized theatrical looks, or dialing in camera-friendly white light. High output and high-quality color modes, calibrated color options, and fine dimming control support environments where fades, skin tones, and visual consistency matter. The included anti-reflective manual barn door system and color filter frame add practical shaping tools right out of the box.

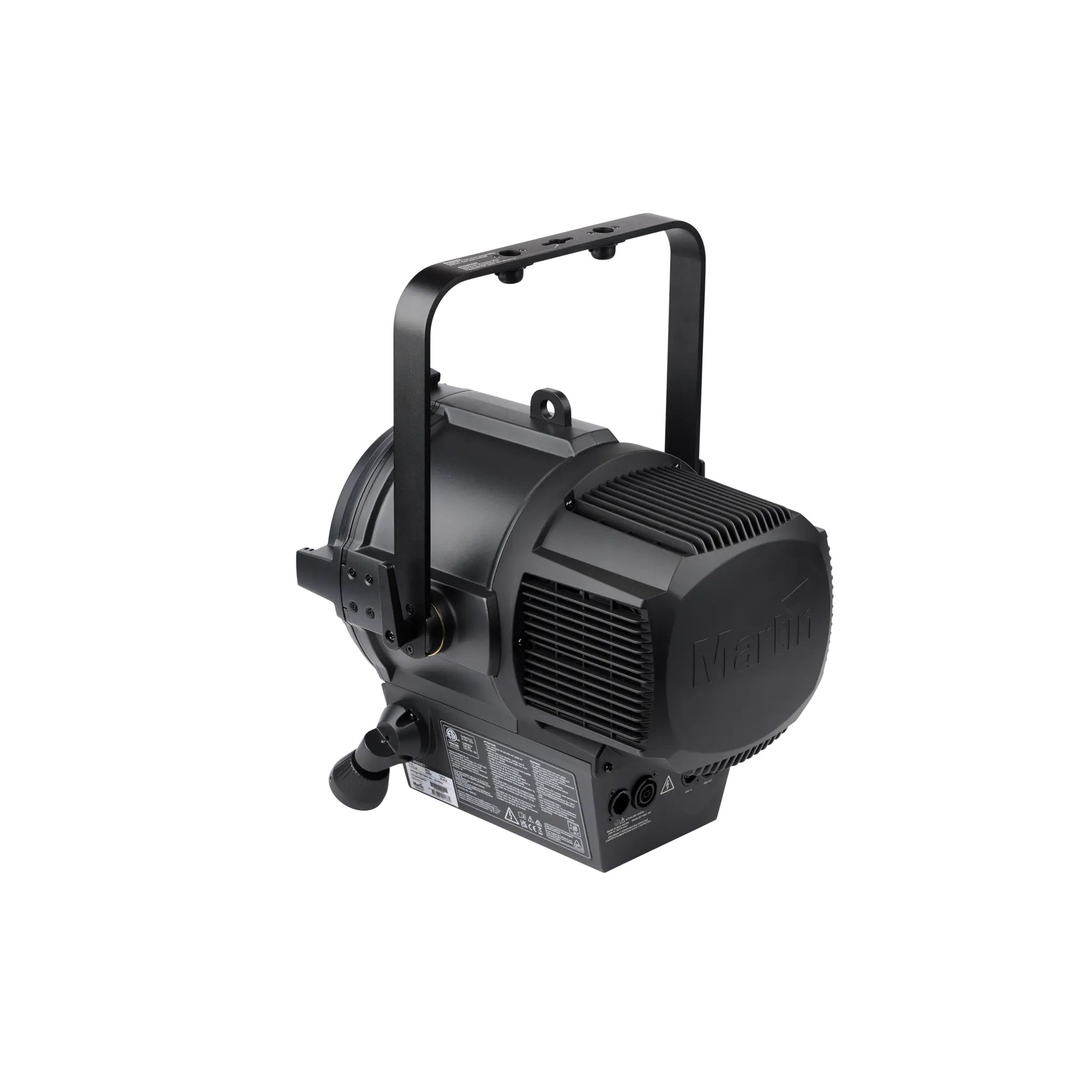

For venues and production teams working in acoustically sensitive spaces, the low-noise, temperature-regulated cooling system is a major advantage. Combined with flexible mounting points, indoor-rated construction, and a compact footprint for its class, this model is a strong choice for theaters, houses of worship, studios, and multipurpose event spaces that want LED efficiency without giving up control or color fidelity.

Downloads

View full details

Specifications

Physical
Width
372.3 mm (14.66 in.)
Height (Head Forward)
499.30 mm (19.66 in.)
Depth
404.90 mm (15.94 in.)
Weight
14.0 kg (30.86 lbs.)
Dynamic Effects
Dimmer/Shutter
0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming Options
Choice of four dimming curves
Color Mixing
RGB(ALC), independently variable 0 - 100%
Color Temperature Control
Variable 1,850 – 12,500 K
Tint Control
Variable green-magenta shift Δuv -0.05 – +0.05
Virtual Color Wheel
48 color presets, continuous rotation & random color
LED Frequency Control
Variable LED PWM control
Control And Programming
Control Protocols
DMX and RDM
DMX Modes
Compact, Basic & Direct
DMX Channels
11, 17 & 17
16-Bit Controllable Parameters
Dimming and Color Mixing
Setting And Addressing
Display Menu, NFC or RDM

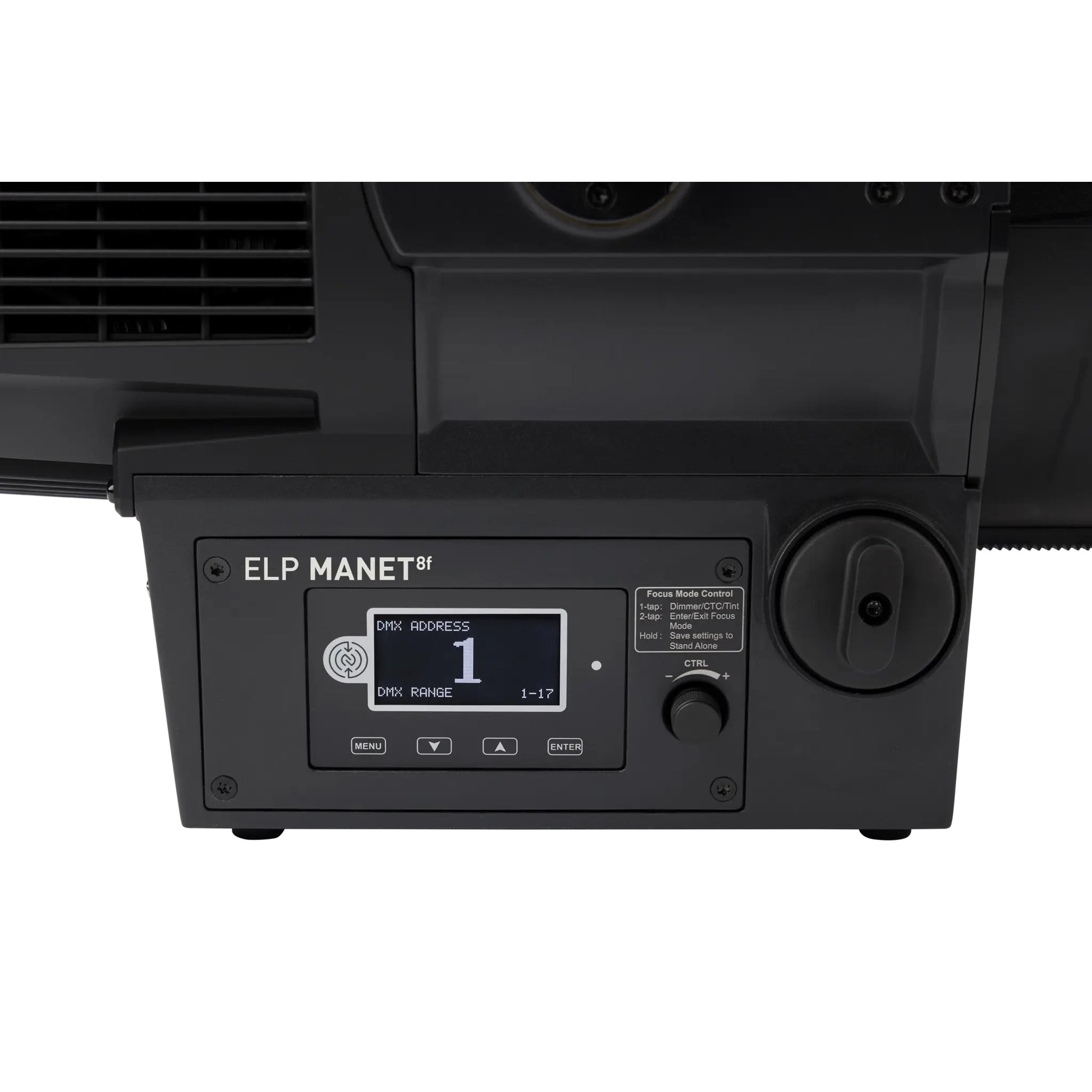

Local User Interface
Backlit LCD Display with integrated NFC antenna
Quick Focus Manual Control
Rotary Encoder
Fixture Identification
User-settable ID number
DMX Compliance
USITT DMX512-A
RDM Compliance
ANSI/ESTA E1.20
DMX/RDM Transceiver
Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit
32 fixtures
Firmware Update
via DMX using Martin Companion
Optics

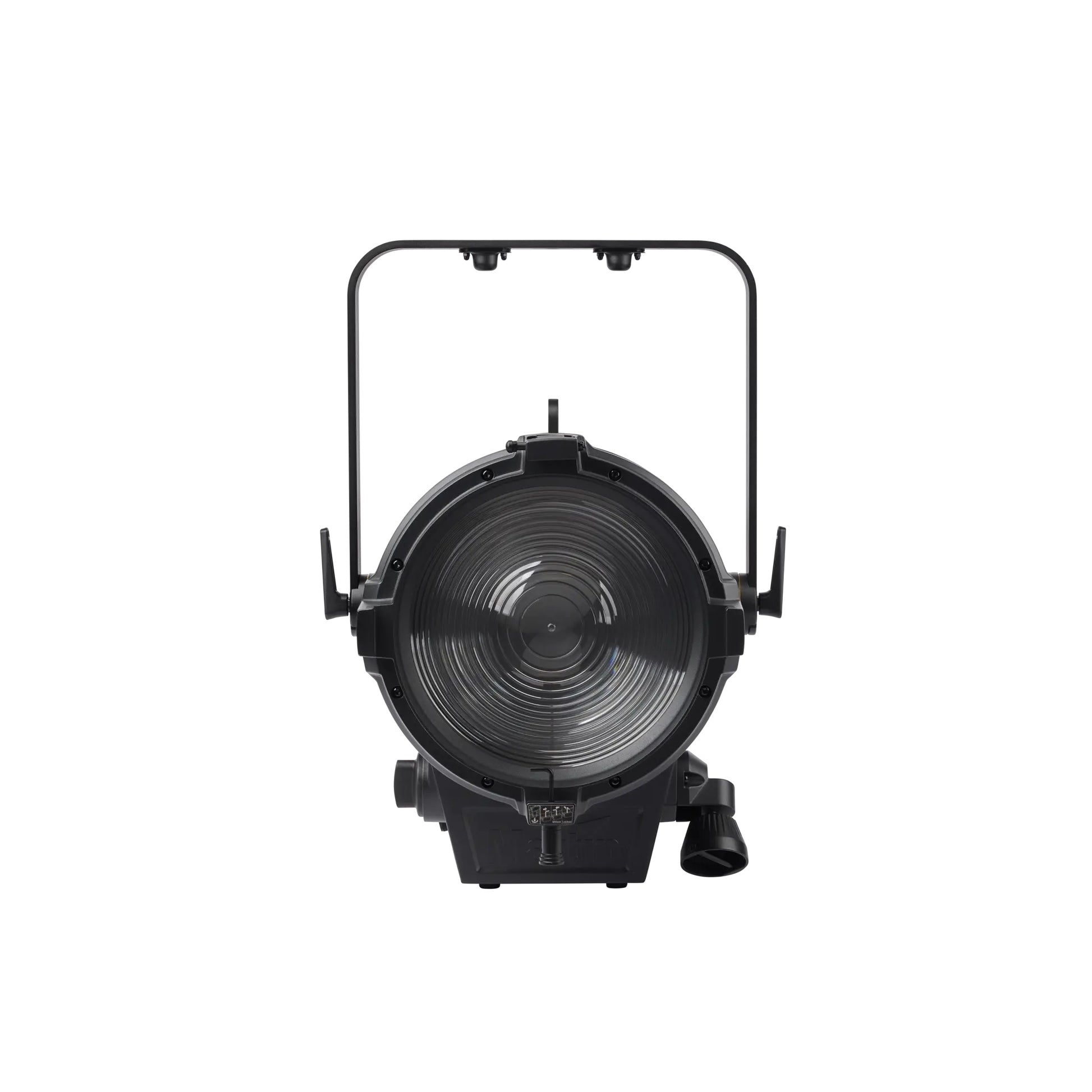

Front Lens Diameter
200 mm (7.87 in.)
Zoom Range
1:5.6
Full Zoom Range At Half Peak (Beam Angle)
9° - 50°
Full Zoom Range At Tenth Peak (Field Angle)
17° - 66°
Light Source
500 W RGBALC COB LED
Max. Total LED Engine Power
500 W
Minimum LED Lifetime
> 20.000 hours (to > 70% luminous output)
Photometric Data
Light Engine Luminous Output
15,500 lumens
Fixture Luminous Output Wide
13,100 lumens
Fixture Luminous Output Narrow
5,600 lumens
CCT
Variable 1,850 K – 12,500 K (+/- 200 K)
CRI (Color Rendering Index) High Output Mode
≥90
CRI (Color Rendering Index) High Quality Mode
≥98
CQS (Color Quality Scale) High Output Mode
≥85
CQS (Color Quality Scale) High Quality Mode
≥95
TM-30 Rf (IES TM-30-15 Fidelity Index) High Output Mode
≥86
TM-30 Rf (IES TM-30-15 Fidelity Index) High Quality Mode
≥95
TM-30 Rg (IES TM-30-15 Gamut Index) High Output Mode
≥107
TM-30 Rg (IES TM-30-15 Gamut Index) High Quality Mode
≥104
TLCI (Television Lighting Consistency Index) High Output Mode
≥98
TLCI (Television Lighting Consistency Index) High Quality Mode
≥98
LED Refresh Rate
3 ,600 Hz with fine adjustment (+/- 2%) (DMX controllable)
Binning
Tight color and flux binning
Calibration
Full Gamut Color Calibration
Color Modes
Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
Construction
Color
Matte black
Protection Rating
IP20
Housing Material
Steel & Aluminum
Installation
Mounting Points
1 pair of 1/4-turn points for 106mm (4.17 in.) center-to-center omega bracket, Single M12 / 1/2" hole for rigging clamp, Two guide holes to support industry standard 28mm Spigot accessory
Location
Indoor
Orientation
Any
Minimum Distance To Combustible Materials
0.2 m (7.87 in.)
Minimum Distance To Illuminated Surfaces
1.0 m (39.37 in.)
Connections
AC Mains Power In/Thru
Neutrik PowerCON TRUE1 TOP
DMX And RDM Data In/Thru
Neutrik 5-pin locking XLR TOP
Electrical
AC Power
100-240 V AC nominal, 50/60 Hz
Power Supply Unit
Auto-ranging electronic switch mode
Typical Half-Cycle RMS Inrush Current At 230 V, 50 Hz
12.68 A
Typical Earth-Leakage Current
0.65 mA
Power Factor
0.99 @ 100 V / 120 V / 208 V / 230 V / 240 V
Max Current Draw
5.3 A @ 100 V / 120 V , 2.2 A @ 208 V / 230 V / 240 V
Typical Current Draw
5.26 A @ 100 V , 4.33 A @ 120 V , 2.45 A @ 208 V , 1.92 A @ 230 V , 2.11 A @ 240 V
Power Consumption Maximum
530 W
Power Consumption Typical
530 W
Idle
3.8 W
Hibernation
TBD W
Thermal
Cooling
Forced air (temperature regulated, low noise, user definable levels)
Maximum Ambient Temperature (Ta Max.)
40° C (104° F)
Minimum Ambient Temperature (Ta Min.)
0° C (32° F)
Maximum Surface Temperature, Steady State, At 40° C Ambient
68° C (154.4° F)
Total Heat Dissipation (Calculated, +/- 10%)
1808 BTU/hr
Acoustic Data
Sound Pressure Level (LpA) @ 1m (Default Regulated High Fan Mode, Full Output)
26.7dB(A)
Sound Pressure Level (LpA) @ 1m (Regulated Medium Fan Mode, Full Output)
21.1 dB(A
Sound Pressure Level (LpA) @ 1 m (Regulated Low Fan Mode, Full Output)
18.9 dB(A)
Environmental
RoHS
Compliant
REACH
Compliant
WEEE
Compliant
Proposition 65
Compliant
Packaging
FSC Certified cardboard outer & inner packaging
Efficacy (Max Output)
24.6 lm/W
LWR*
928.6 lm/kg (421 lm/lbs.)
Approvals
Global CB Certification/IECEE
IEC 60598-2-17 (IEC 60598-1)
EU Safety
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC
EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US Safety
UL 1573
US EMC
FCC Part 15 Class B
Canadian Safety
CSA C22.2 No. 166
Canadian EMC
ICES-003 Class B, ICES-005 Class B
Australia/NZ
RCM
United Kingdom
UKCA
Thailand
TISI 1955-2551
Korea
KS C 9832, KS C 9835
Included Items
Included Items
Adjustable Mounting Bracket
Included Items 2

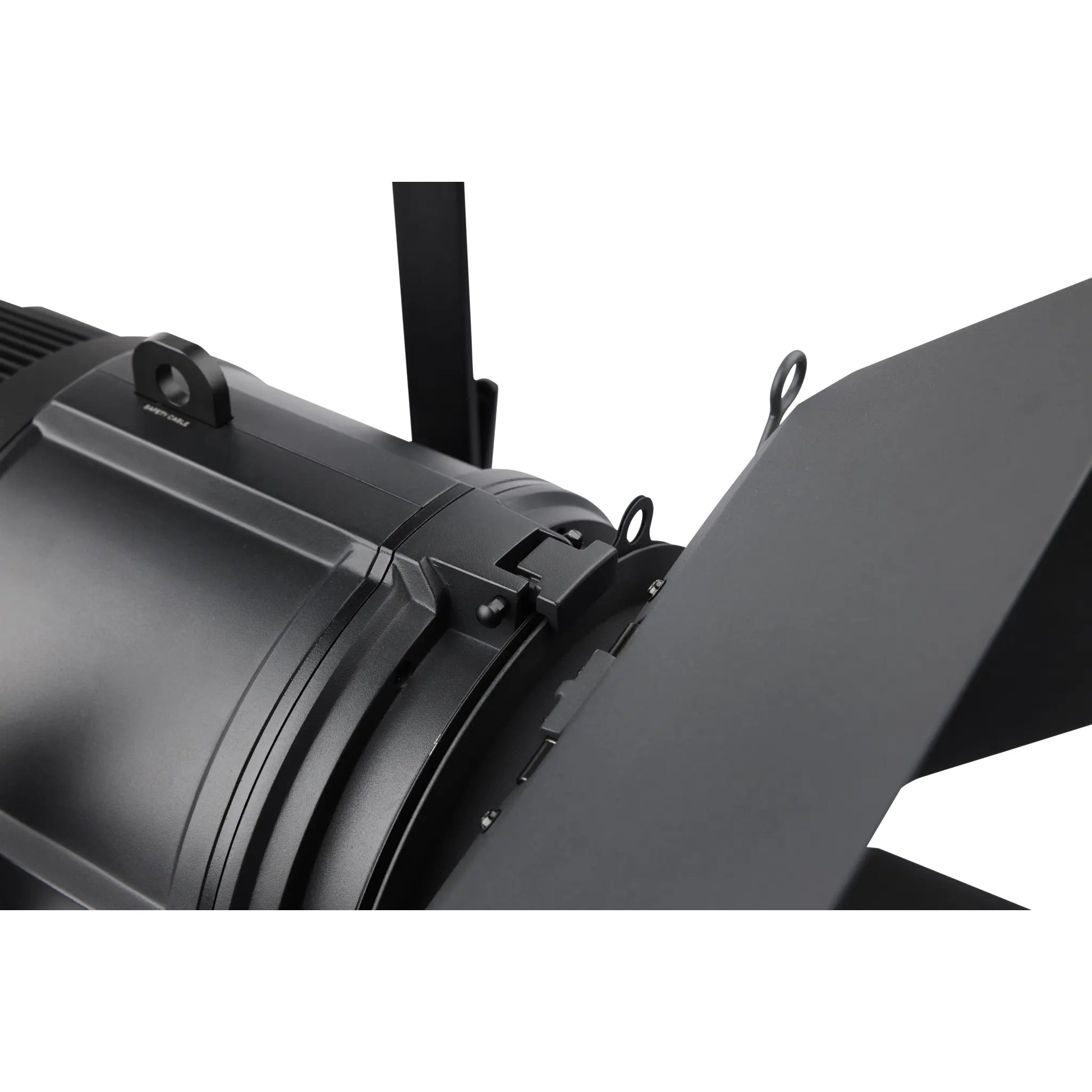

4 leaf Anti-Reflective Manual Barn Door System
Included Items 3
Color Filter Frame
Included Items 4
Multi-Language Safety and Installation Manual
