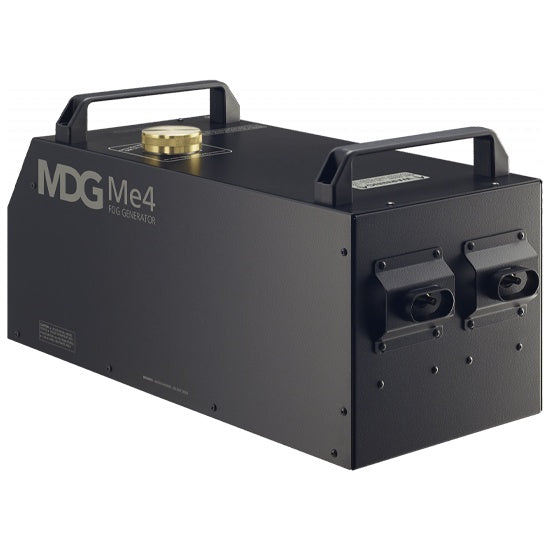

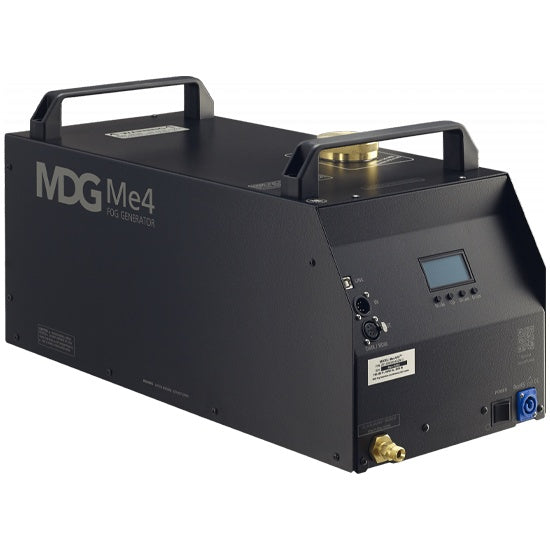

MDG MDGME4 Quad-Output Professional Fog Machine

MDG MDGME4 Quad-Output Professional Fog Machine

SoundPro Item: 115628 | Part Number: MDGME4

$11,685.00
$11,685.00 $11,685.00
Your Price Sold out
MSRP: $11,685.00 | MAP: $11,685.00

Usually ships in 5-7 business days

  • Quad-Nozzle Design Maximizes Coverage Across Large Stages And Venues
  • Automatic Purging System Clears Heating Modules To Prevent Clogging Between Emissions
  • Variable Output Control Via DMX/RDM Enables Precise Console-Driven Fog Programming
  • RDM Compliance Supports Real-Time Feedback And Remote Configuration From The Lighting Desk
  • Continuous Duty Cycle Sustains Consistent Fog Density Without Thermal Cutoff Interruptions

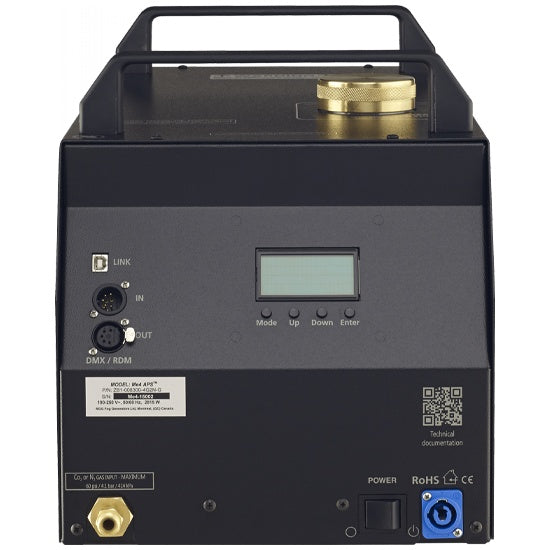

  • Four-Button LCD Interface Allows Direct Local Control Without A DMX Console
Log in or register for YOUR best price

The MDG Me4 is engineered for productions that require sustained, high-volume fog output without interruption. With four independent nozzles and a 100% duty cycle, it maintains consistent fog density at any output level as long as fluid and gas are supplied — making it the right tool for large-scale theatrical productions, touring concerts, arena events, and broadcast stages where lesser machines would overheat or cycle off.

DMX/RDM integration gives lighting programmers precise variable control from 0–100% output via three standard USITT DMX512 channels with XLR-5 connectors, while a 4-button LCD interface supports direct local operation without a console. The RDM-compliant architecture allows real-time feedback and remote configuration from the lighting desk — a meaningful operational advantage in complex rigs where access to the unit is limited.

The Automatic Purging System (APS) actively clears heating modules after each fog emission to prevent residue buildup and nozzle clogging, reducing maintenance downtime between shows. With CE, CSA, and UL approval, the Me4 meets the compliance requirements for professional installed and touring use across North American and European markets.

View full details

Specifications

Performance
Maximum Fog Output
400 m³ (14,126 ft³) per minute
Fog Color
Pure white
Particle Size
0.5 - 0.7 microns
Warm-Up Time
8 minutes (maximum)
Duty Cycle
100%
Fluid & Gas
Fluid Type
MDG Neutral
Fluid Consumption
4 L (1.06 US gallon) per hour at 2.76 bar / 40 psi
Reservoir Capacity
6.5 L (1.7 US gallon)
Gas Type
N2
Gas Consumption
3.4 kg (7.5 lb) per hour at 2.76 bar / 40 psi
APS (Automatic Purging System)
Standard
Connectivity
Control Interface
4-button LCD user interface
DMX Channels
3 standard USITT DMX512 channels
Connectors
XLR-5
RDM Compliant
Yes
Electrical
Operating Voltage
190 - 250 VAC, 50/60 Hz single phase
Power Consumption
2,815W
Dimensions
Length
68.5 cm (27")
Width
28 cm (11")
Height
30 cm (12")
Weight
Product Weight
33 kg (72 lb)
Shipping Weight
44 kg (97 lb) with flight case
Certifications
Approvals
CE certified, CSA and UL approved
