MDG MDGTHEONE Dual-Mode Atmospheric Fog and Haze Generator

MDG MDGTHEONE Dual-Mode Atmospheric Fog and Haze Generator

SoundPro Item: 115644 | Part Number: MDGTHEONE

$25,412.50
$25,412.50 $25,412.50
Your Price Sold out
MSRP: $25,412.50 | MAP: $25,412.50

Usually ships in 5-7 business days

  • Seamless Haze And Fog Mode Switching With Full Hundred Percent Duty Cycle
  • Automatic Purging System Prevents Residue Buildup And Clogging After Every Cycle
  • Automatic Refill System Draws From External Container For Uninterrupted Operation
  • DMX, RDM, ACN, ArtNet, ETCNet, SHOWNet, And Pathport Network Control Onboard
  • Universal Voltage Auto-Detection Enables Immediate International Deployment
  • PLASA-Rated Touring Cradle Supports Rigging, Stacking, And Standard Truck Loading
  • Integral Adjustable Fan With Dedicated DMX Channel Travels Inside The Cradle
Log in or register for YOUR best price

theONE is built for touring LD teams, rental houses, and production companies that need a single unit capable of delivering both haze and fog without swapping machines mid-show. Its 100% duty cycle means uninterrupted atmospheric output across long festival runs, Broadway residencies, and arena tours, eliminating the downtime associated with conventional fog machines or separate haze units. Automatic universal voltage detection from 100–250 VAC makes it immediately deployable internationally without step-down transformers or site-specific power planning.

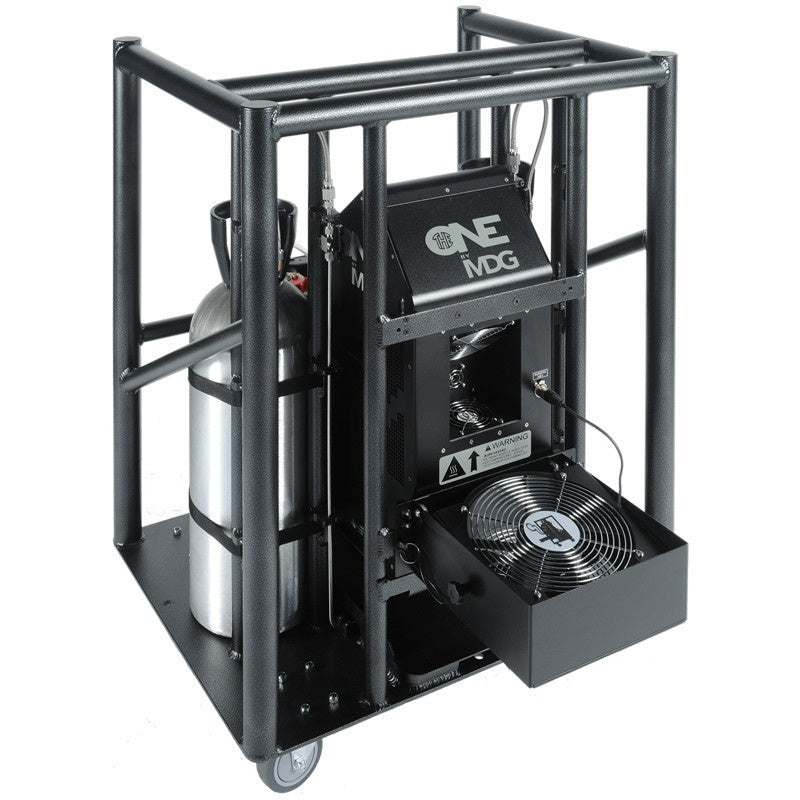

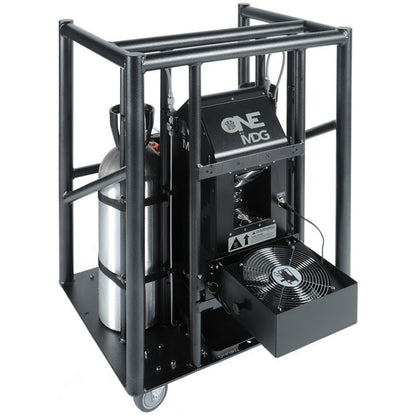

The Automatic Refill System draws fluid continuously from a 20 L external container, while the Automatic Purging System clears the heating module after every emission cycle to prevent clogging—two failure points that regularly interrupt shows with competing machines. The integrated touring cradle exceeds PLASA rigging standards and accommodates the fluid container and CO2 or N2 gas bottles within a single aluminum frame rated for rigging, stacking, and standard truck loading, making load-in and load-out faster for production crews on tight schedules.

Network control through Pathport, ACN, ArtNet, ETCNet 2 and 3, and SHOWNet, alongside DMX/RDM, gives lighting programmers the flexibility to operate theONE from any major console or network backbone without additional protocol converters. The integrated dual-position adjustable fan ships within the cradle and provides a dedicated DMX channel for directional output control, removing the need for a separate atmospheric fan unit on the truck manifest.

View full details

Specifications

Certifications
Approval
CE certified, CSA, UL approved
Dimensions
Generator Height
61 cm (24")
Generator Width
25 cm (10")
Generator Depth
30 cm (12")
Cradle Height
106 cm (42")
Cradle Width
76 cm (30")
Cradle Depth
61 cm (24")
Weight
Generator Weight
23 kg (50 lb)
Generator Shipping Weight
25 kg (55 lb)
Cradle Weight
33.5 kg (74 lb)
Cradle Shipping Weight
36 kg (80 lb)
Total Operating Weight
120 kg (265 lb) with 2 North-American gas bottles and a full 20 L (5.3 US gallons) fluid container
Electrical
Operating Voltage
100 - 250 VAC, 50/60 Hz
Power Consumption
1100 - 1480 watts
Warm-Up Time
< 8 minutes
Performance
Haze Particle Size
0.5 - 0.7 micron
Haze Color
Pure white
Haze Fluid Consumption
65 ml (2.20 oz) at 2.07 bar (30 psi) per hour / max output
Haze Gas Consumption (CO2 or N2)
0.35 kg (0.77 lb) per hour / max output
Haze Total Running Time
308 hours (50 hours - gas) 20 L (5.3 US gallons) container, full intensity
Haze Volume Control
Yes - variable
Fog Particle Size
0.5 - 0.7 micron
Fog Color
Pure white
Fog Volume
100 m3 (3.531 ft3) per minute / max output
Fog Fluid Consumption
1 liter (0.26 US gallon) at 2.75 bar (40 psi) per hour / max output
Fog Gas Consumption (CO2 or N2)
1.16 kg (2.56 lb) per hour / max output
Fog Total Running Time
20 hours (15 hours - gas) 20 L (5.3 US gallons) container, full intensity
Fog Volume Control
Yes - variable
Fluid Type
MDG Neutral
APS (Automatic Purging System)
Yes - standard
Connectivity
DMX
Yes, input-output
RJ45
Yes - ACN
Network Protocols
Pathport embedded, ACN, ArtNet, ETCNet 2 & 3, SHOWNet
USB
2.0 Link connector for updates
Construction
Cradle Material
Aluminium frame
Truss Mounting
Yes - 3 x 750 kg rated coupling holes
DMX Fan (Touring Version)
Yes
Controls
Display
LCD, backlit, 5-button command
